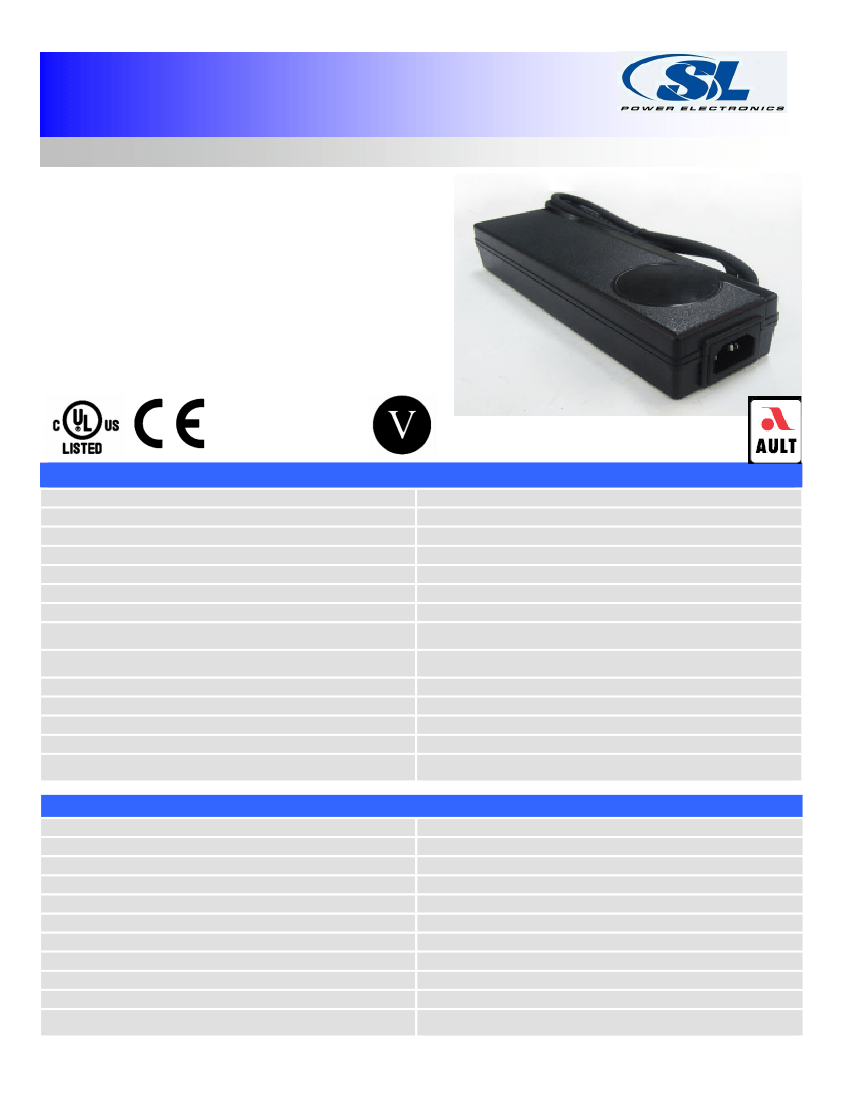

CENB1150
Universal Input 150 Watt Series
Industrial/ITE Switch-Mode Power Supply
•
90-264VAC Universal Input
•
Meets Efficiency Level V, EU(EC) No 278/2009 Phase II
•
Desktop Style
•
12V to 24V Single Output Models, up to 150W
•
Modified and Custom Designs Available
•
Regulated Output with Low Ripple
•
Impact-Resistant Polycarbonate Enclosure
•
No Load Power Consumption <0.5W
•
Meets UL/EN/IEC60950-1, 2
nd
3
Year Warranty
Edition
RoHS
Specifications
AC Input
Input Current
Inrush Current
Input Fuse
Efficiency
Output Voltage
Output Power
Ripple and Noise
Line/Load Regulation
Transient Response
Minimum Load
Case Material
Weight
All Specifications are typical at nominal input, full load at 25
°
C unless otherwise stated.
100-240Vac, +/-10%, 47-63 Hz, 1∅
100 Vac: 2.5 A
60A peak @ 264Vac, cold start
3.15A, 250V Internal Primary Current Fuse provided
Meets Efficiency Level V, ErPII
See chart
See chart
1% pk-pk max., 20MHz BW
Excluding Cord: Line: +/- 1%, Load: +/-5%
500μs max., 50% load step, typical
Not required
Black 94V0 Polycarbonate
700g
MTBF
Hold-up Time
Turn-on Time
Output Rise Time
Overload Protection
Short Circuit Protection
Topology
Safety and EMC Approvals
Dielectric Withstand
Operating Temperature
Storage Temperature
Relative Humidity
Altitude
100,000 hours calculated
18 mS min @ 110Vac, 21mS min @ 240 Vac
2 sec max @110/240Vac
200mS max @ 11//240Vac
Hiccup Mode
Hiccup Mode
Switching – Fixed Frequency Flyback
EN/IEC/CSA/UL60950-1, 2
nd
Edition
EMC: See chart
Input-Output: 4,372Vac
Input-GND: 2,186Vac, Output-GND: 500Vdc
0° to 35°C, no derating
-30 to +85°C
5% to 95%, non-condensing
0 to 5000m
Case Dimensions
212mm x 67.4mm x 48mm, see mechanical drawing
Output Connections
Cable: 18AWG UL2464, 1,200mm, 4 conductor
Connector: Ault #51, 6-pin Molex, other options available
EMI/EMC Compliance
Conducted Emissions
Radiated Emissions
Line Frequency Harmonics
Voltage Fluctuations
Static Discharge Immunity
Radiated RF Immunity
EFT/Burst Immunity
Line Surge Immunity
Conducted RF Immunity
Power Frequency Magnetic Field Immunity
Voltage Dip Immunity
EN55011/22, Class B
EN55011/22, Class B
EN61000-3-2
EN61000-3-3, Line Flicker
EN61000-4-2, 6kV Contact Discharge, 8kV air discharge, Criteria A
EN61000-4-3, 3V/m, Criteria A
EN61000-4-4, 2kV/5kHz, Criteria A
EN61000-4-5, 1kV diff., 2kV common-mode, Criteria A
EN61000-4-6, 3Vrms, Criteria A
EN61000-4-8, 3A/m, Criteria A
EN61000-4-11, 100% dip, 10mS, Crit. A; 60% dip, 100mS, Crit. A; 30%
dip, 500mS, Crit. C; 100%, 5000mS, Crit. C.
______________________________________________________________________________________________________________________________
1 of 2
SL Power Electronics Corp
•
6050 King Drive Ventura, CA 93003
•
Phone 805.486.4565
•
Fax 858.712.2040
•
Email: info@slpower.com
•
www.slpower.com
CENB1150
Universal Input 150 Watt Series
Industrial/ITE Switch-Mode Power Supply
Model Number
CENB1150A1251F01
CENB1150A1551F01
CENB1150A1851F01
CENB1150A2451F01
3
Year Warranty
Max Watts
150 W
150 W
150 W
150 W
Volts (V)
12 V
15 V
18 V
24V
Output Current (max)
12.5 A
10.0 A
8.3 A
6.25 A
Ripple (Vp-p max)
120mV
150mV
180mV
240mV
Model Number Key
CENB 1 150 A 12 51 F 01
Model
Input Connector:
Output Connector:
Output Voltage:
Model
Output Pow er:
# of Outputs
Product Fam ily:
"01" = Standard. "02" and higher indicates a m odified m odel.
"F" = IEC320 C14 grounded. Other options available, see below .
"51" = Molex 39-01-2060. Other options available.
"12" = 12Vdc, "15" = 15Vdc, etc.
A = Original Configuration
"150" = 150 Watts
"1" = Single Output
"C" = Com m ercial/Industrial/ITE, "E" = External, "NB" = Model Series Designator
Connector Information
Input Connector Options
Class I (grounded) Inlet:
“F” = IEC60320 C14
Class II (ungrounded) Inlets:
“N” = IEC60320 C8
“Q” = IEC60320 C18
DC Output Connector
Output Connector Options
Pinout
“51” = 6 pin, Molex 39-01-2060 or equiv. Pins 1,4: +Vout
Pins 3,6: -Vout
Pins 2,4: NC
Mating Connector
Molex 39-01-3063
or equiv.

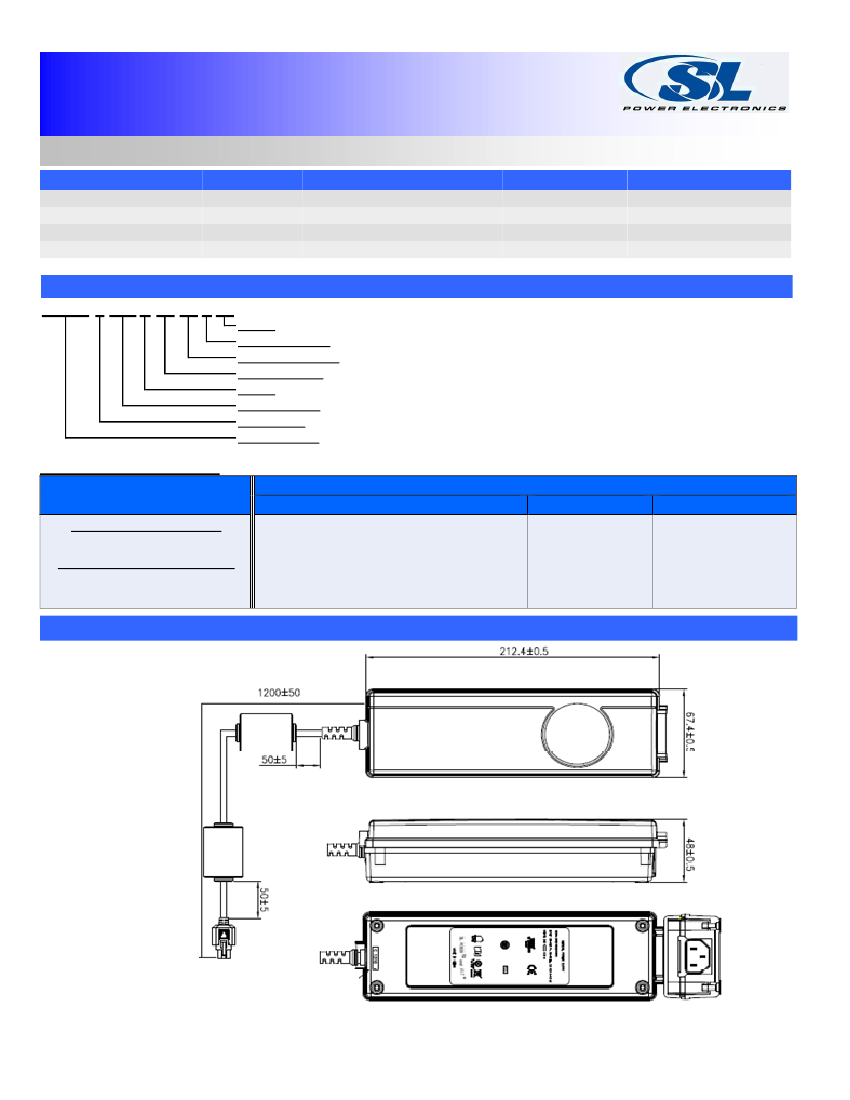

Outline Drawing
“F” Inlet shown.
Other options
available, see above.
Data Sheet © 2015 SL Power Electronics Corp. The information and specifications contained herein are believed to be correct at the time of publication.
Rev. 6-19-15
However, SL Power accepts no responsibility for consequences arising from reproduction errors or inaccuracies. Specifications are subject to change without notice.
______________________________________________________________________________________________________________________________
2 of 2
SL Power Electronics Corp
•
6050 King Drive Ventura, CA 93003
•
Phone 805.486.4565
•
Fax 858.712.2040
•
Email: info@slpower.com
•
www.slpower.com
