XFRMR LAMINATED 25VA CHAS MOUNT

Parameter Name	Attribute value
type	laminated core
Voltage - Primary	115V，230V
Voltage - Secondary (full load)	Parallel 115V, series 230V
Current - Output (maximum)	Parallel 220mA, Series 110mA
primary winding	pair
secondary winding	pair
center tap	none
Power - Max	25 VA
Installation type	Base installation
Terminal type	Wire leads
size/dimensions	71.40mm length x 54.40mm width
Height - Installation (maximum)	58.70mm
Voltage - Isolation	4000Vrms
weight	1.3 pounds (589.7g)

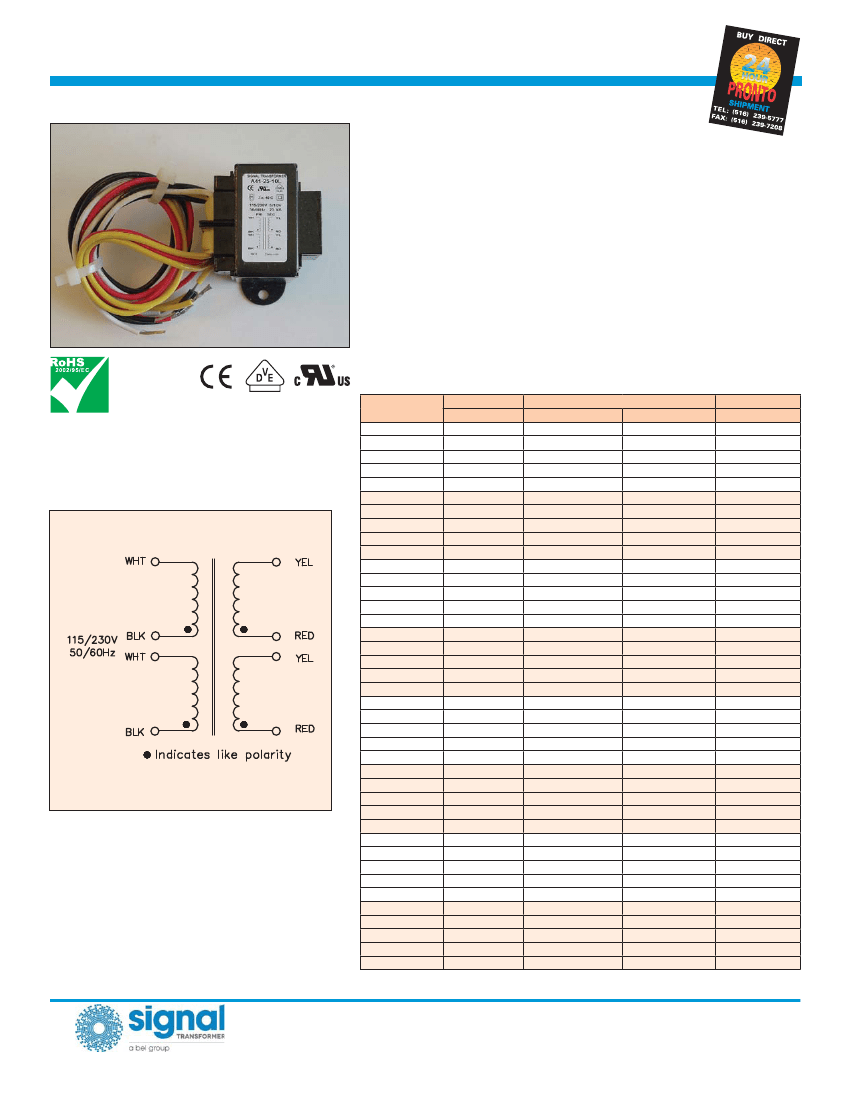

International Standards at Lower Cost and Better Performance

Designed to provide the high isolation, creepage and clearance necessary to

comply with international safety standards.

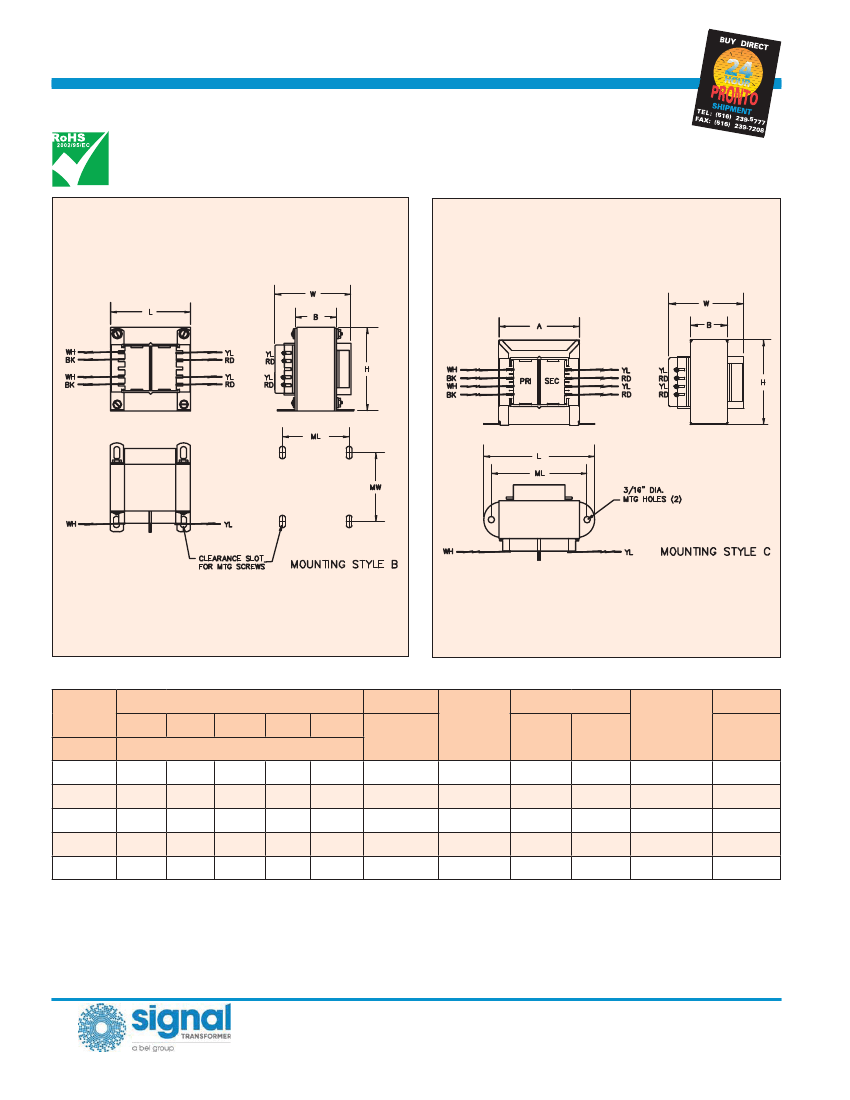

General Specifications

SM

Agency Certifications

Lead Wires

Hook up lead wire style UL1015, CSA TEW

Rated 600V -40° to +105° C

Passes UL VW-1 (flame test)

All primary lead wires are 18AWG UL 1015

All lead wires are 12” in length

0A
