B26B-PNDZS-1(T)(LF)(SN)

Description
CONN HEADR PND TOP 26POS 2MM PCB
CategoryThe connector    The connector
File Size69KB,2 Pages
ManufacturerJST
Environmental Compliance
Download Datasheet Parametric View All

B26B-PNDZS-1(T)(LF)(SN) Overview

CONN HEADR PND TOP 26POS 2MM PCB

B26B-PNDZS-1(T)(LF)(SN) Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codeunknown
Connector typeBOARD CONNECTOR
Contact to complete cooperationTIN
Contact completed and terminatedTin (Sn)
Contact point genderMALE
Contact materialCOPPER ALLOY
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts26
UL Flammability Code94V-0
Base Number Matches1

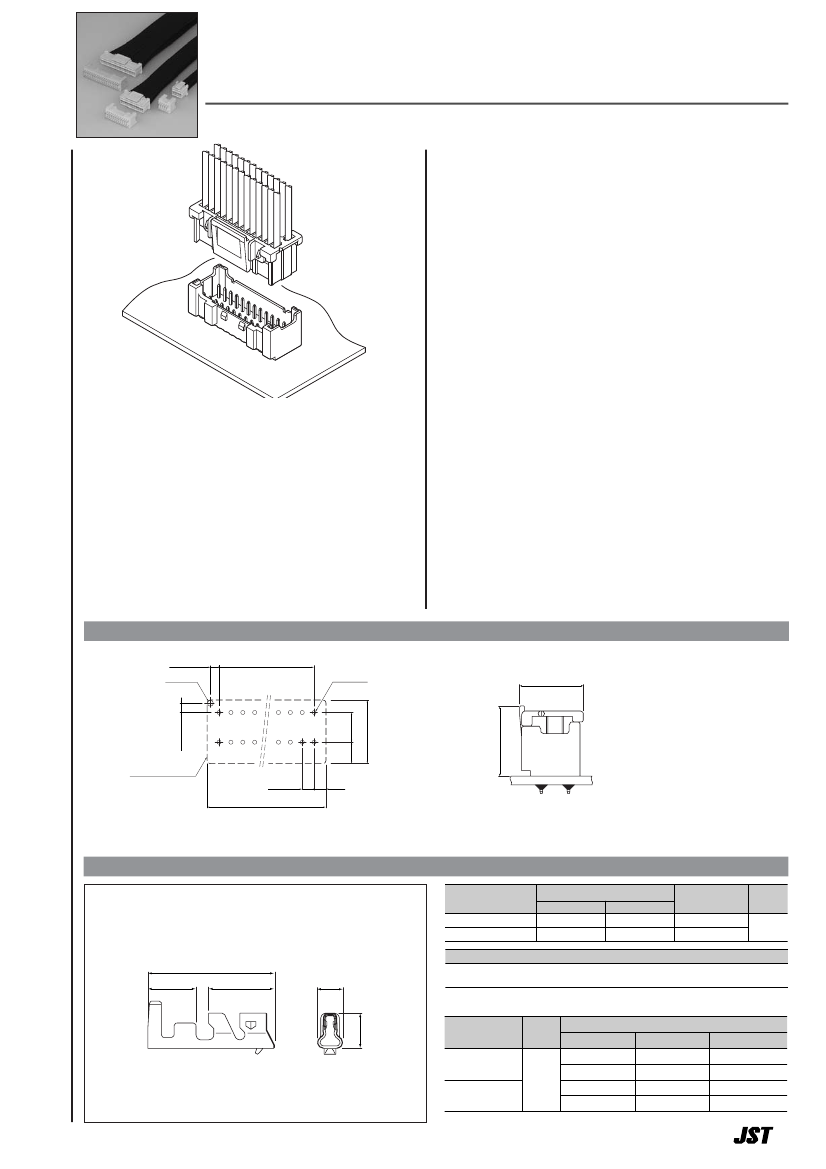

PND
CONNECTOR
2.0mm pitch/Disconnectable Crimp style connectors
Specifications –––––––––––––––––––
• Current rating: 3 A AC, DC (AWG #22)
• Voltage rating: 250 V AC, DC
• Temperature range:
-
25˚C to
+
85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 10 mΩ max.
After environmental tests/ 20 mΩ max.
• Insulation resistance: 1,000 MΩ min.
• Withstanding voltage: 800 VAC/minute
• Applicable wire: Conductor size/ AWG #28 to #22
Insulation O.D./ 0.76 to 1.5 mm
* Refer to "General Instruction and Notice when using Terminals
and Connectors" at the end of this catalog.
* Contact JST for details.
* Compliant with RoHS.
The PND connector is the high-density
dipping type connector with secure lock
for wire to board connection and enabled
to achieve excellent workability and
withstand the unexpected external force.
• Superior operability (Low insertion force)
• Withstanding external force and secure
locking device
• Countermeasure for inverse insertion and
mismatching insertion
• High density
• Polarizing boss
Standards ––––––––––––––––––––––
1
0
Recognized E60389
Certified LR20812
PC board layout and Assembly layout
1.45
±0.05
+0.1
φ1
0
A
±0.05
φ0.7
+0.1
0
11.7
1.55
±0.05
5
±0.05
(10.7)
Connector outline
2
±0.05
(2)
(B)
Note: 1. The above figure is the figure viewed from the connector mounting side.
2. Tolerances are non-cumulative: ±0.05 mm for all centers.
3. Hole dimensions differ according to the type of PC board and piercing method. The dimensions above should serve as a guideline. Contact JST for details.
Contact
Model No.
SPND-001T-C0.5
SPND-002T-C0.5
Applicable wire
mm
2
AWG #
0.13∼0.33
0.08∼0.22
26∼22
28∼24
(3.6)
12.9
Insulation O.D.
(mm)
1.0∼1.5
0.76∼1.5
Q'ty/
reel
8,000
Material and Finish
7.5
Copper alloy, tin-plated (reflow treatment)
3
3.9
1.5
RoHS compliance
2.08
Contact
SPND- 001T-C0.5
Crimping
machine Crimp applicator
MKS-L
AP-K2N
*MKS-SC
MKS-L
Applicator
Dies
Crimp applicator with dies
MK/SPND-001-05 APLMK SPND001-05
SC/SPND-001-05 APLSC SPND001-05
MK/SPAD/ND-002-05 APLMK SPAD/ND002-05
SPND-002T-C0.5
Note: *Strip-crimp applicator
1
