AB3526B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Tools and equipment> AB3526B

AB3526B: DescriptionBUZZER ELEMENT PIEZO 2.6KHZ 35MM; CategoryTools and equipment; File Size184KB，1 Pages; ManufacturerPUI Audio; Environmental Compliance

Download Datasheet Parametric View All

AB3526B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AB3526B	-	-	View	Buy Now

AB3526B Overview

BUZZER ELEMENT PIEZO 2.6KHZ 35MM

AB3526B Parametric

Parameter Name	Attribute value
frequency	2.6kHz
Voltage - input (maximum)	30V p-p
type	standard
impedance	300 Ohms
Capacitance at different frequencies	30000pF @ 1kHz
Operating temperature	-20°C ~ 70°C
size/dimensions	1.378" diameter (35.00mm)
Termination	none

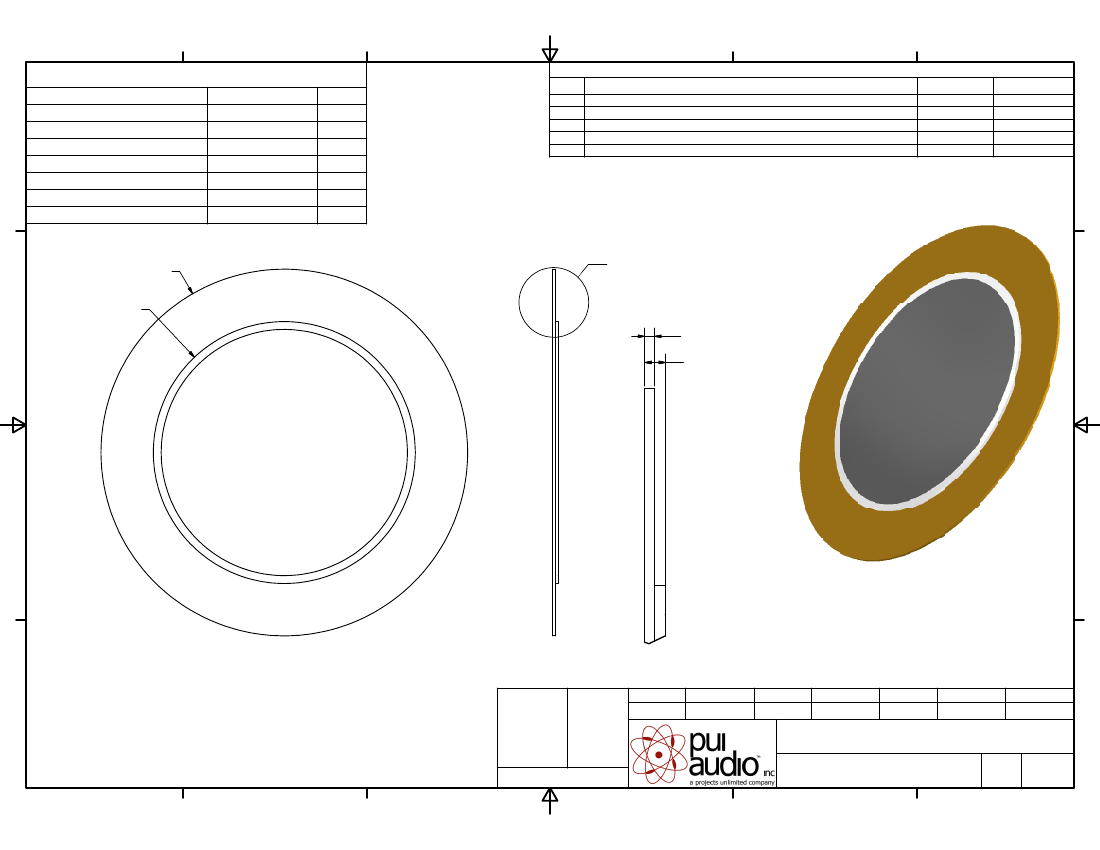

Preview

Download Datasheet

View All

SPECIFICATIONS

PARAMETERS

RESONANT FREQUENCY

RESONANT IMPEDANCE (MAX)

MAX INPUT VOLTAGE

CAPACITANCE @ 1kHZ

PLATE MATERIAL

OPERATING TEMPERATURE

STORAGE TEMPERATURE

VALUES

2,600 ± 500

300

30,000 ±30%

BRASS

-20 ~ +70

-30 ~ +80

UNITS

Ohm

Vp-p

°C

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

REVISION HISTORY

LTR

DESCRIPTION

RELEASED FROM ENGINEERING

REVISED TO NEW TEMPLATE

REVISED SPECIFICATIONS

REVISED DIMENSION SIZE AND STYLE

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

DATE

4/11/2002

9/4/2003

1/15/2004

1/25/2006

8/13/2010

APPROVED

R.W.

B.R.

0.1

0.5

0.25

0.05

0.53

0.1

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE ±0.5 AND

ANGLES ARE ±3°.

A ( 15 : 1 )

Date

Checked by

Date

Approved by

Date

Drawn Date

SIZE

RABL

4/11/2002

S.J.

4/12/2002 8/13/2010

AB3526B

Bender

Edition

Sheet

AB3526B.idw

1/1
