35PZE150M8X9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 35PZE150M8X9

35PZE150M8X9: DescriptionCAP ALUM POLY HYB 150UF 35V T/H; CategoryPassive components; File Size121KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric Compare View All

35PZE150M8X9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	35PZE150M8X9	-	-	View	Buy Now

35PZE150M8X9 Overview

CAP ALUM POLY HYB 150UF 35V T/H

35PZE150M8X9 Parametric

Parameter Name	Attribute value
type	mixture
capacitance	150µF
Tolerance	±20%
Voltage - Rated	35V
ESR (equivalent series resistance)	27 milliohms
Service life at different temperatures	10,000 hours at 105°C
Operating temperature	-55°C ~ 105°C
grade	AEC-Q200
application	Automotive grade
Ripple current @ low frequency	115mA @ 120Hz
Ripple current @ high frequency	2.3A @ 100kHz
lead spacing	0.138"（3.50mm）
size/dimensions	0.315" diameter (8.00mm)
Height - Installation (maximum)	0.433"（11.00mm）
Surface mount pad dimensions	-
Installation type	Through hole
Package/casing	Radial, Can

Preview

Download Datasheet

View All

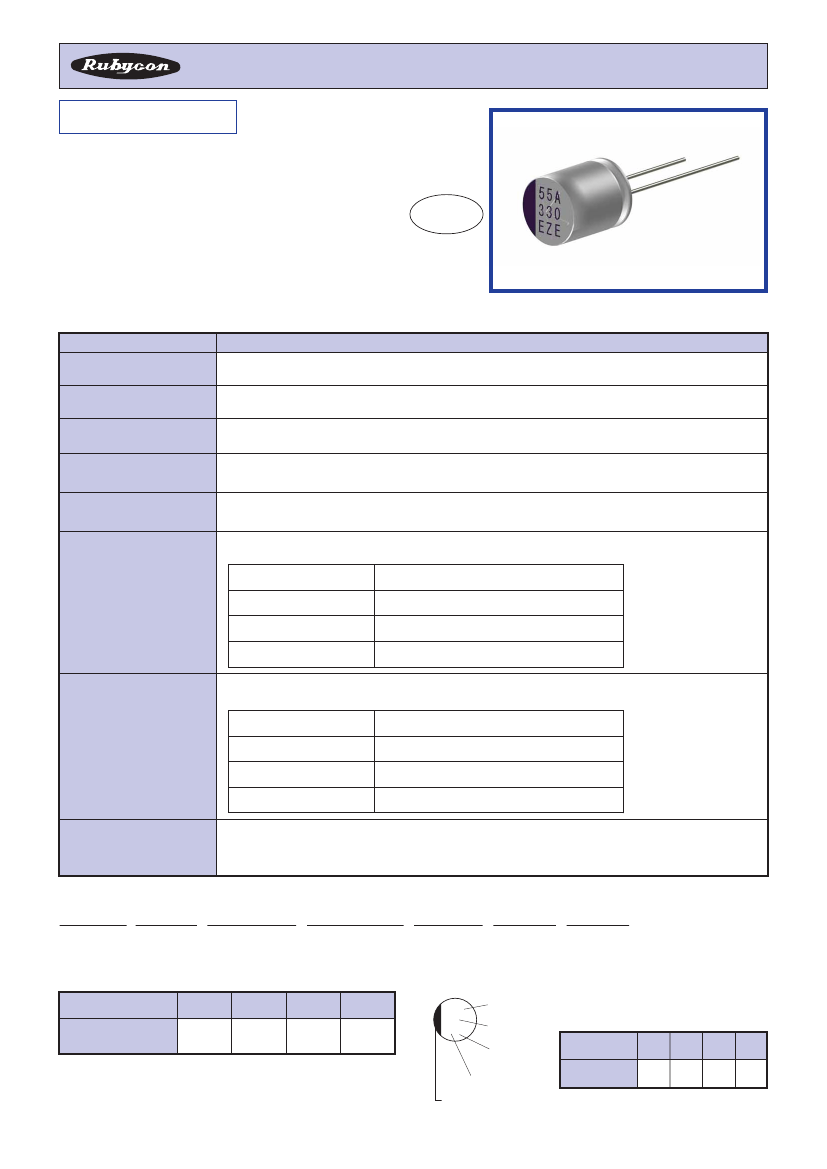

CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS (HYBRID TYPE)

PZE

SERIES

Load Life : 105℃ 10000 hours (Hybrid Type), Radial Lead Type

・

High Voltage ∼63Vdc), Ultra Low ESR, High Ripple Current, Miniaturized.

（

・

AEC-Q200.

RoHS

compliance

◆SPECIFICATIONS

Items

Category Temperature Range

Rated Voltage Range

Capacitance Tolerance

Characteristics

−55∼＋105℃

25∼63Vdc

±20％

（20℃，

120Hz）

The value is shown in

“STANDARD SIZE”

table (After 2 minutes)

The value is shown in "STANDARD SIZE" table (20℃, 120Hz)

After applying rated voltage with rated ripple current for 10000 hours at 105℃,

the capacitors shall meet the following requirements.

Capacitance Change

Within ±30% of the initial value.

Not more than 200% of the initial speciﬁed value.

Not more than the initial speciﬁed value.

Leakage Current(MAX)

Dissipation Factor(MAX)

(tanδ)

Endurance

Dissipation Factor

E.S.R.

Leakage Current

After applying rated voltage for 2000 hours at 85℃ and humidity of 85%,

the capacitors shall meet the following requirements.

Capacitance Change

Biased Humidity

Dissipation Factor

E.S.R.

Leakage Current

Within ±30% of the initial value.

Not more than 200% of the initial speciﬁed value.

Not more than the initial speciﬁed value.

Low Temperature Characteristics

Impedance Ratio MAX）

（

（−55℃）（＋20℃）

≦2.0

（−25℃）（＋20℃）

≦1.5

（100kHz）

◆PART NUMBER

□□□

Rated Voltage

PZE

Series

□□□□□

Capacitance

Ｍ

Capacitance Tolerance

□□□

Option

□□

Lead Forming

D×L

Case Size

◆MULTIPLIER FOR RIPPLE CURRENT

Frequency

（Hz）

Coeﬃcient

◆MARKING

100k≦

1.00

51A

H ZE

120

0.05

0.30

10k

0.70

Lot No.

Capacitance

Series

※

Rated voltage code

※Voltage code

Rated Voltage

(Vdc)

Voltage code

Negative

35PZE150M8X9 Related Products

	35PZE150M8X9	50PZE68M8X9	PZ-HYBRID-KIT	63PZE33M8X9	35PZE270M10X9	63PZE56M10X9	50PZE100M10X9
Description	CAP ALUM POLY HYB 150UF 35V T/H	CAP ALUM POLY HYB 68UF 50V T/H	CAP KIT ALUM POLY HYBRD 33-330UF	CAP ALUM POLY HYB 33UF 63V T/H	CAP ALUM POLY HYB 270UF 35V T/H	CAP ALUM POLY HYB 56UF 63V T/H	CAP ALUM POLY HYB 100UF 50V T/H
Tolerance	±20%	±20%	±20%	±20%	±20%	±20%	±20%
Voltage - Rated	35V	50V	25 ~ 63 V	63V	35V	63V	50V
application	Automotive grade	Automotive grade	Universal	Automotive grade	Automotive grade	Automotive grade	Automotive grade
Installation type	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole
type	mixture	mixture	-	mixture	mixture	mixture	mixture
capacitance	150µF	68µF	-	33µF	270µF	56µF	100µF
ESR (equivalent series resistance)	27 milliohms	30 milliohms	-	40 milliohms	20 milliohms	30 milliohms	28 milliohms
Service life at different temperatures	10,000 hours at 105°C	10,000 hours at 105°C	-	10,000 hours at 105°C	10,000 hours at 105°C	10,000 hours at 105°C	10,000 hours at 105°C
Operating temperature	-55°C ~ 105°C	-55°C ~ 105°C	-	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
grade	AEC-Q200	AEC-Q200	-	AEC-Q200	AEC-Q200	AEC-Q200	AEC-Q200
Ripple current @ low frequency	115mA @ 120Hz	90mA @ 120Hz	-	85mA @ 120Hz	125mA @ 120Hz	90mA @ 120Hz	100mA @ 120Hz
Ripple current @ high frequency	2.3A @ 100kHz	1.8A @ 100kHz	-	1.7A @ 100kHz	2.5A @ 100kHz	1.8A @ 100kHz	2A @ 100kHz
lead spacing	0.138"（3.50mm）	0.138"（3.50mm）	-	0.138"（3.50mm）	0.197"（5.00mm）	0.197"（5.00mm）	0.197"（5.00mm）
size/dimensions	0.315" diameter (8.00mm)	0.315" diameter (8.00mm)	-	0.315" diameter (8.00mm)	0.394" diameter (10.00mm)	0.394" diameter (10.00mm)	0.394" diameter (10.00mm)
Height - Installation (maximum)	0.433"（11.00mm）	0.433"（11.00mm）	-	0.433"（11.00mm）	0.433"（11.00mm）	0.433"（11.00mm）	0.433"（11.00mm）
Package/casing	Radial, Can	Radial, Can	-	Radial, Can	Radial, Can	Radial, Can	Radial, Can
