5452030 Overview

TERM BLOCK HDR 5POS 90DEG 3.81MM

5452030 Parametric

Parameter Name	Attribute value
type	Connector, male pins, shrouded (4 sides)
Number of pins	5
Number of pins per level	5
Number of levels	1
spacing	0.150"（3.81mm）
Needle seat direction	90°, right angle
Plug entrance	-
Terminal type	welding
Installation type	Through hole
Current - IEC	8A
Voltage - IEC	160V
Current - UL	8A
Voltage - UL	300V
Wire Gauge or Range - AWG	-
Wire gauge or range - mm²	-
color	black
Operating temperature	-
Contact mating surface treatment	tin
characteristic	-
Material flammability rating	-
Intrusion protection	-
Screw size	-
Torque - Screws	-
Wire stripping length	-
Contact material	-
Shell material	-
Contact tail length	0.134"（3.40mm）
Insulation height	0.291"（7.40mm）

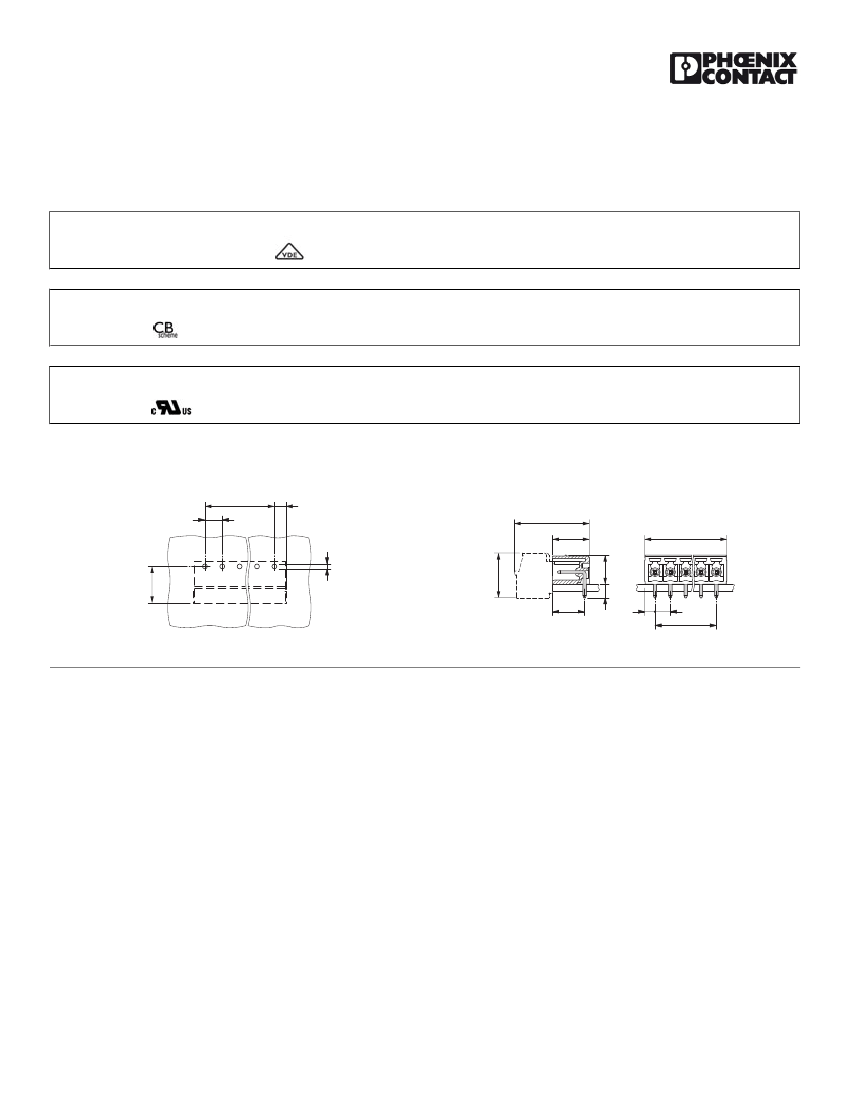

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/us/products/5452030

Printed-circuit board connector - BCH-381H- 5 BK - 5452030

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 5, Pitch: 3.81 mm, Color: black,

Contact surface: Tin, Mounting: Wave soldering

The figure shows a 5-pos. version of

the product in gray

Key Commercial Data

Packing unit

Minimum order quantity

Weight per Piece (excluding packing)

Custom tariff number

Country of origin

1 pc

100 pc

1.2 g

85366990

China

Classifications

eCl@ss

eCl@ss 4.0

eCl@ss 4.1

eCl@ss 5.0

eCl@ss 5.1

eCl@ss 6.0

eCl@ss 7.0

eCl@ss 8.0

eCl@ss 9.0

272607xx

27260701

27261101

27440401

27440402

ETIM

ETIM 3.0

ETIM 4.0

ETIM 5.0

EC001121

EC002637

04/28/2016 Page 1 / 3
