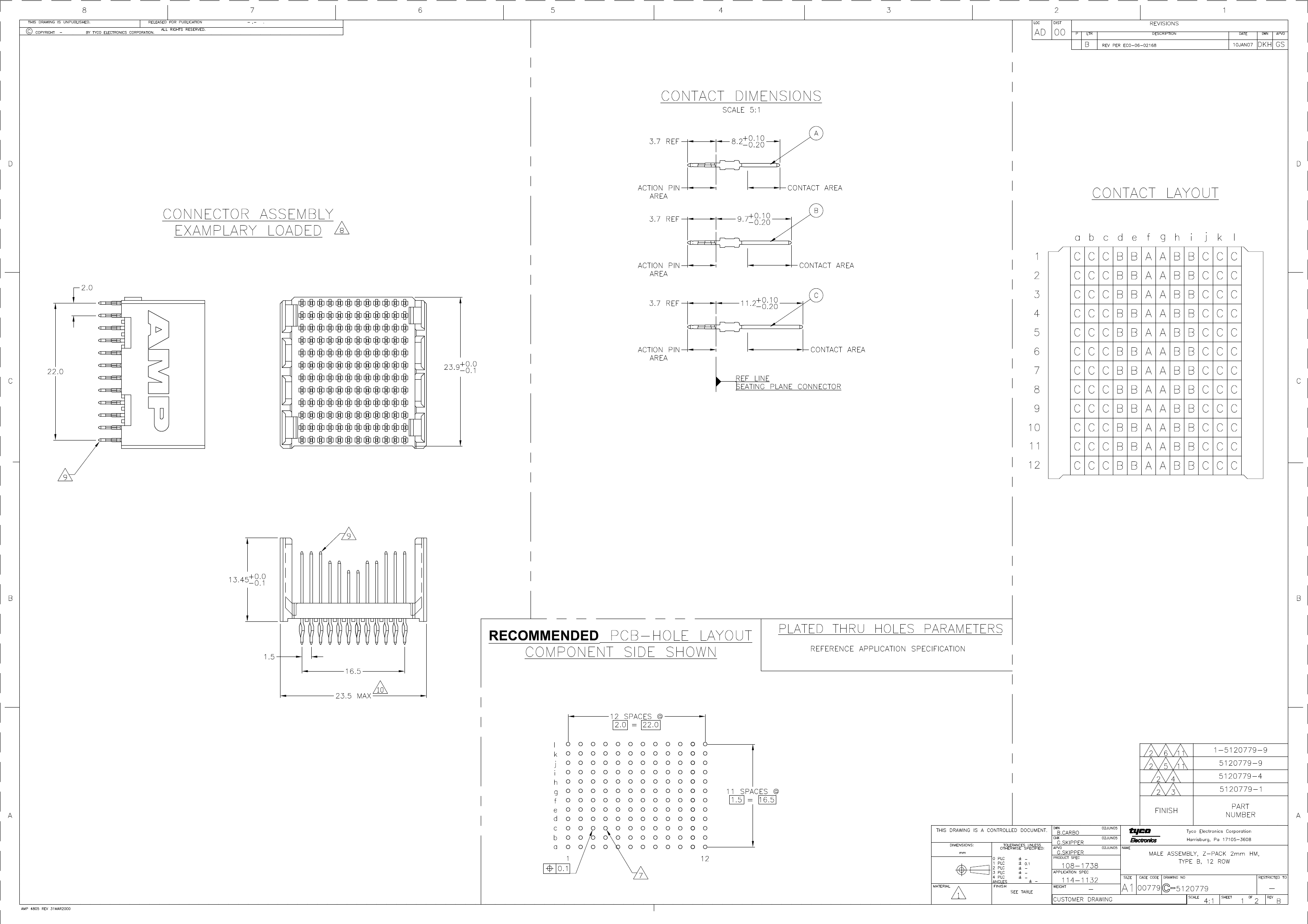

Preview

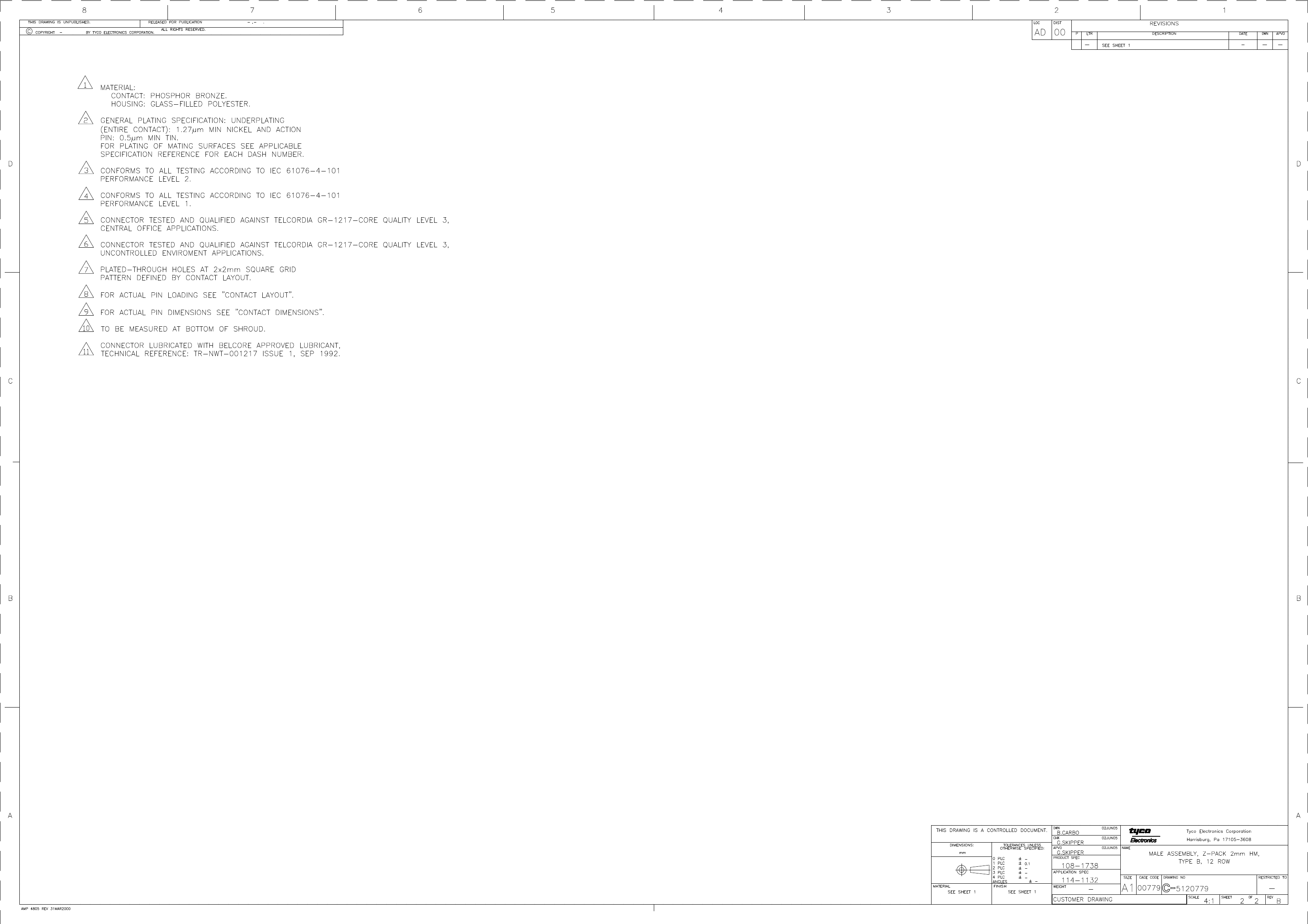

1-5120779-9: Description144 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT; CategoryThe connector The connector; File Size211KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

1-5120779-9 Overview

144 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT

1-5120779-9 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	Z-PACK
body width	0.925 inch
subject depth	0.53 inch
body length	0.941 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN (20) OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.7506 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	5120779
Plug contact pitch	0.079 inch
Match contact row spacing	0.059 inch
Plug information	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	12
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.4986 mm
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal length	0.146 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	144
Evacuation force-minimum value	.14734 N
Base Number Matches	1

Preview

Download Datasheet

View All

1-5120779-9 Related Products

	1-5120779-9	5120779-4	5120779-9
Description	144 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT	144 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT	144 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT
Reach Compliance Code	unknow	unknown	unknown
Other features	Z-PACK	Z-PACK	Z-PACK
body width	0.925 inch	0.925 inch	0.925 inch
subject depth	0.53 inch	0.53 inch	0.53 inch
body length	0.941 inch	0.941 inch	0.941 inch
Body/casing type	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	TIN (20) OVER NICKEL	TIN (20) OVER NICKEL	TIN (20) OVER NICKEL
Contact point gender	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO
Dielectric withstand voltage	750VAC V	750VAC V	750VAC V
Durability	250 Cycles	250 Cycles	250 Cycles
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
maximum insertion force	.7506 N	.7506 N	.7506 N
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
JESD-609 code	e3	e3	e3
MIL compliance	NO	NO	NO
Manufacturer's serial number	5120779	5120779	5120779
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.059 inch	0.059 inch	0.059 inch
Plug information	NO	NO	NO
Mixed contacts	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	12	12	12
Number of rows loaded	4	4	4
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	1.4986 mm	1.4986 mm	1.4986 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.146 inch	0.146 inch	0.146 inch
Terminal pitch	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	144	144	144
Evacuation force-minimum value	.14734 N	.14734 N	.14734 N
Base Number Matches	1	1	1
ECCN code	-	EAR99	EAR99
