KPD1S2W6P2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> KPD1S2W6P2

KPD1S2W6P2: DescriptionSWITCH PUSH SPST-NO 0.25A 50V; Categoryaccessories; File Size262KB，3 Pages; ManufacturerC&K; Environmental Compliance

Download Datasheet Parametric Compare View All

KPD1S2W6P2 Overview

SWITCH PUSH SPST-NO 0.25A 50V

KPD1S2W6P2 Parametric

Parameter Name	Attribute value
type	Piezoelectric
circuit	SPST-NO
switch function	Off - instantaneous
Rated current	250mA（DC）
Rated voltage - DC	50V
Actuator type	circle, button
Color - Actuator/Cap	black
lighting type, color	-
Lighting voltage (nominal)	-
Installation type	Front panel installation
Terminal type	Wire leads
Intrusion protection	-
characteristic	Sealing - fully sealed type
Panel opening size	Round - 19.05mm diameter
Operating temperature	-40°C ~ 85°C
Mechanical life	-
Electrical life	10,000,000 cycles

Preview

Download Datasheet

View All

C&K KP Series

Piezo Pulse Momentary Pushbutton Switches

Pushbutton

Features/Benefits

•

Piezo switch element—no

mechanical wear

•

One piece hermetically

sealed construction

Typical Applications

•

Industrial controls

•

High end instrumentation

•

Gas pumps, outdoor environments

•

Shock resistant switch,

withstands harsh environments

•

Available in aluminum and

plastic housings

•

RoHS compliant models available

Specifications

RATING: 250 mA continuous, 50 V max.

ELECTRICAL LIFE: 10,000,000 actuations typ.

CONTACT RESISTANCE: ON: 7.5Ω; OFF: 5 megohms.

INSULATION RESISTANCE: 109

Ω

min.

ACTUATION: 8oz typical up to 3lbs max.

OPERATING TEMPERATURE: –40ºC to 85ºC.

CIRCUIT CLOSURE DURATION: 50 mS min.

Materials

HOUSING: L and S Models: Polyetherimide (UL 94V-0), black,

standard; M Models: Aluminum, natural iridite finish.

WIRE LEADS: 22 AWG with TFE Teflon insulation; Red positive lead,

violet negative lead.

GRAPHIC RETAINING RING: 6/6 nylon (UL 94V-2).

MOUNTING NUT: L Models: Nylon; M and S Models: Steel, zinc plated.

LOCKWASHER: M and S Models only: Steel, zinc plated.

Any models supplied with W4P, W6P or Y4P termination are RoHS com-

pliant and compatible.

NOTE:

For the latest information regarding RoHS compliance, please go to:

www.ittcannon.com/rohs. Any models supplied with W4P, W6P or Y4P termination

are RoHS compliant and compatible.

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown

and described on pages A-87 and A-88. For additional options not shown in catalog, consult Customer Service Center.

Model No.

KPD1S2

SPST, DC, small plastic housing, black

KPD1M0

SPST, DC, small aluminum housing

KPD1S1

SPST, DC, small plastic housing, white

Terminations

W4P

4" wire lead

W6P

6" wire lead

Y4P

4" wire lead

with connector

4" wire lead

6" wire lead

4" wire lead

with connector

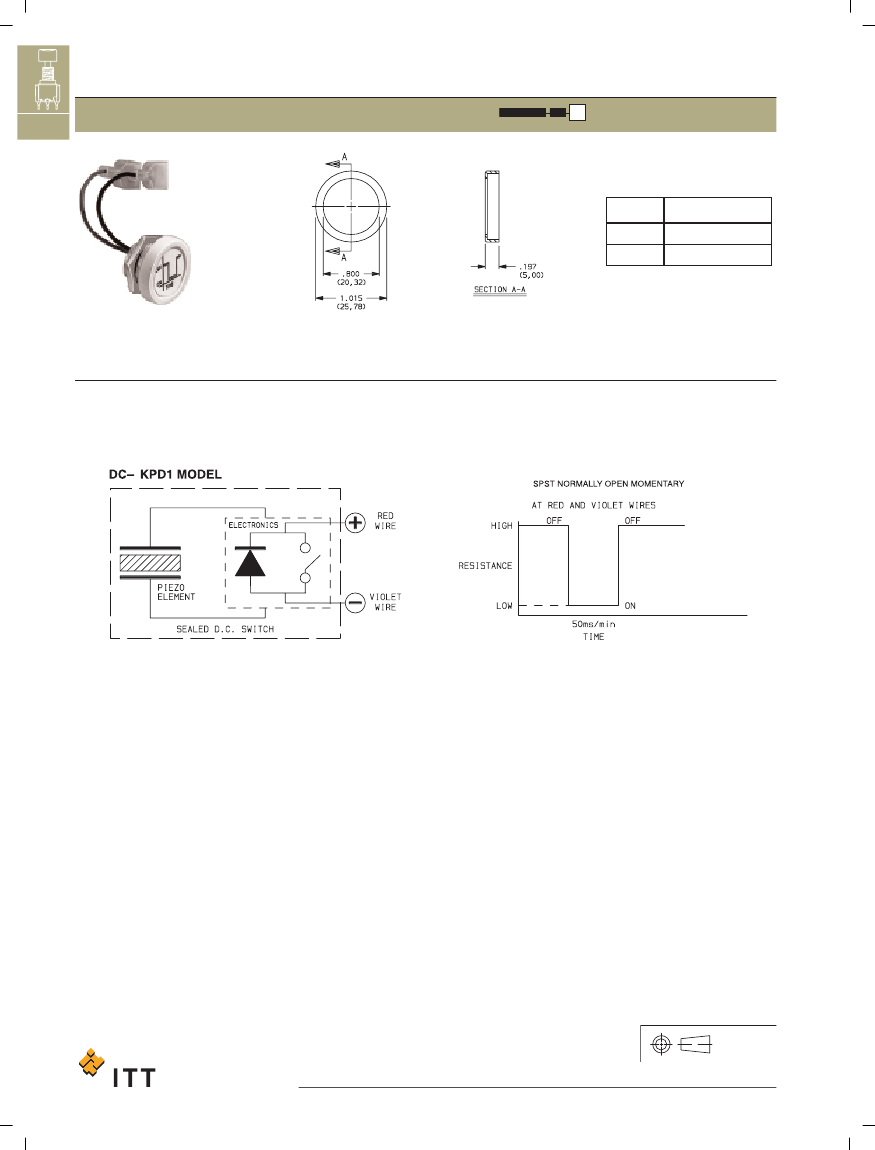

Graphic Retaining Ring

NONE

No ring

Black

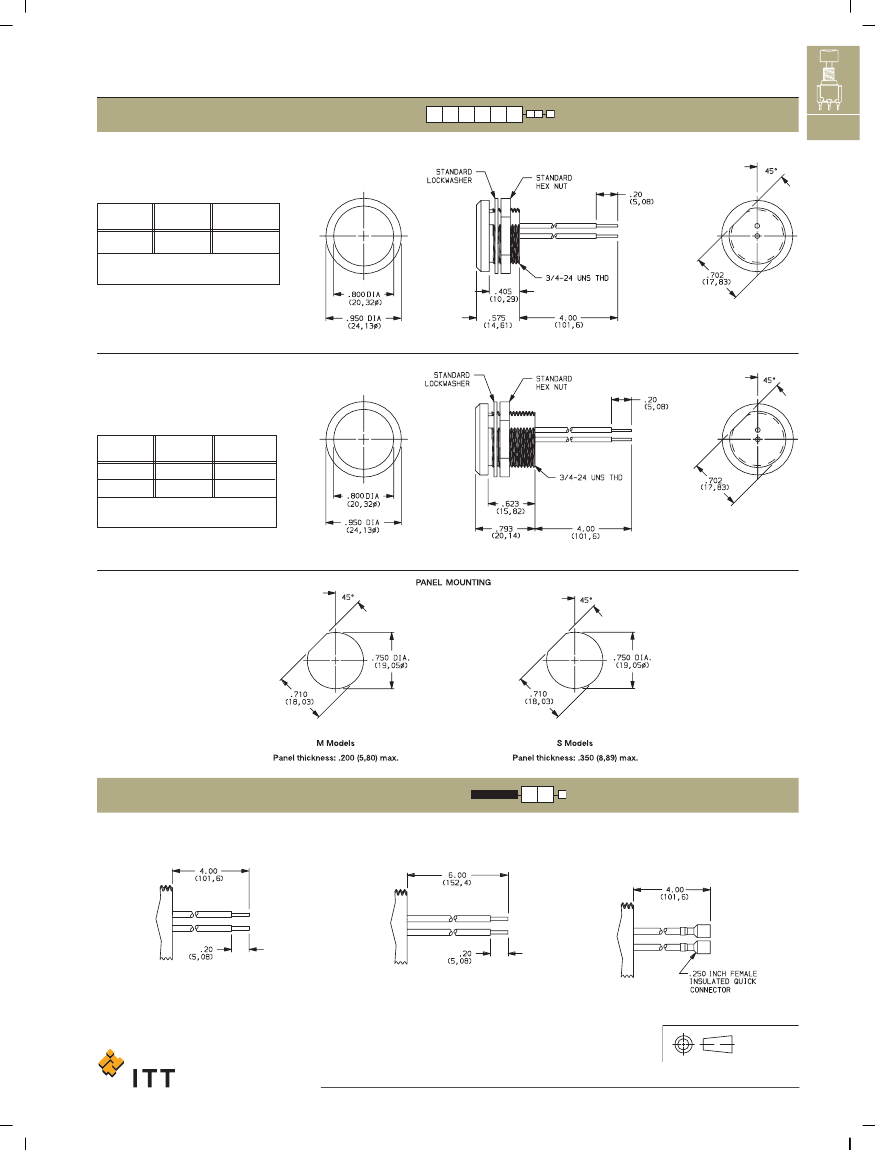

Dimensions are shown: Inches (mm)

Specifications and dimensions subject to change

A–86

www.ittcannon.com

KPD1S2W6P2 Related Products

	KPD1S2W6P2	KPD1S2W62	KPD1S2W4	KPD1S2W4P
Description	SWITCH PUSH SPST-NO 0.25A 50V	SWITCH PUSH SPST-NO 0.25A 50V	SWITCH PUSH SPST-NO 0.25A 50V	SWITCH PUSH SPST-NO 0.25A 50V
type	Piezoelectric	Piezoelectric	Piezoelectric	Piezoelectric
circuit	SPST-NO	SPST-NO	SPST-NO	SPST-NO
switch function	Off - instantaneous	Off - instantaneous	Off - instantaneous	Off - instantaneous
Rated current	250mA（DC）	250mA（DC）	250mA（DC）	250mA（DC）
Rated voltage - DC	50V	50V	50V	50V
Actuator type	circle, button	circle, button	circle, button	circle, button
Color - Actuator/Cap	black	black	black	black
Installation type	Front panel installation	Front panel installation	Front panel installation	Front panel installation
Terminal type	Wire leads	Wire leads	Wire leads	Wire leads
characteristic	Sealing - fully sealed type	Sealing - fully sealed type	Sealing - fully sealed type	Sealing - fully sealed type
Panel opening size	Round - 19.05mm diameter	Round - 19.05mm diameter	Round - 19.05mm diameter	Round - 19.05mm diameter
Operating temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Electrical life	10,000,000 cycles	10,000,000 cycles	10,000,000 cycles	10,000,000 cycles
