FIN12AC — Low-Voltage 12-Bit Bi-Directional Serializer/Deserializer with Multiple Frequency Ranges

April 2008

FIN12AC

Low-Voltage 12-Bit Bi-Directional

Serializer/Deserializer with Multiple Frequency Ranges

Features

■

Low power consumption

■

Fairchild proprietary low-power CTL™ interface

■

LVCMOS parallel I/O interface:

Description

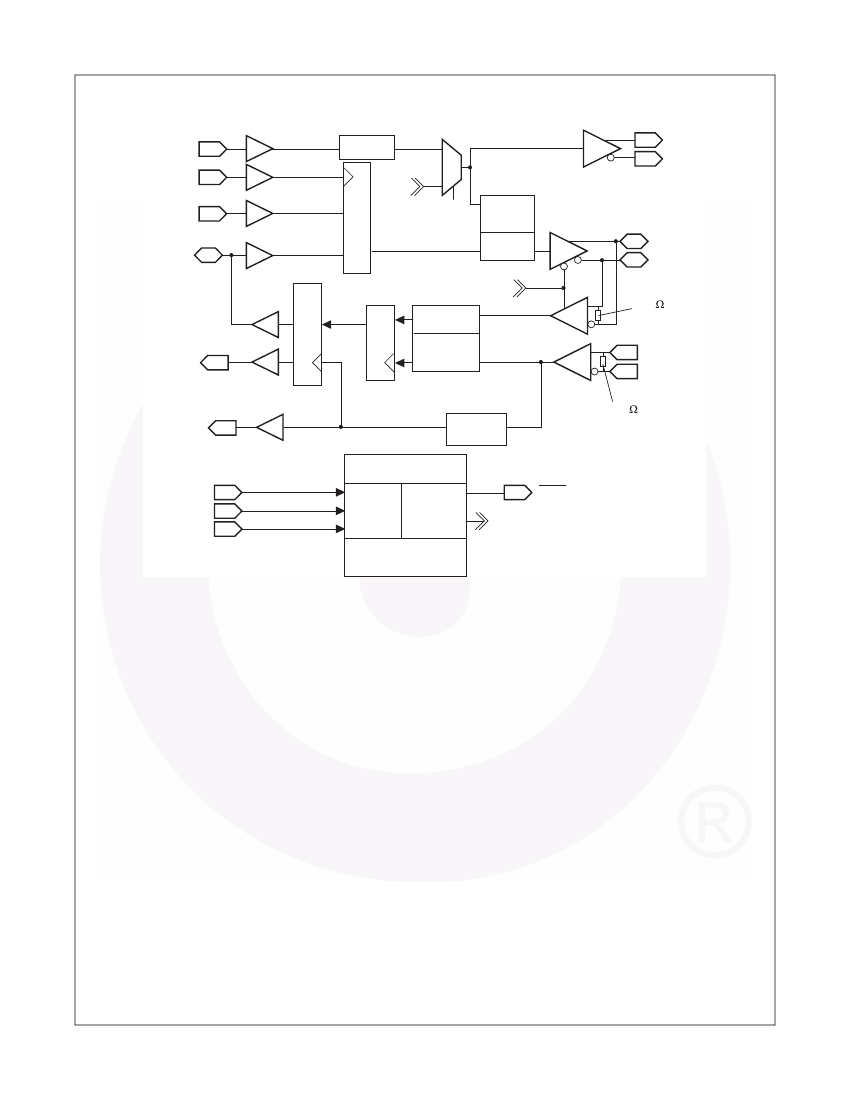

The FIN12AC is a 12-bit serializer / deserializer capable

of running a parallel frequency range between 5MHz

and 40MHz, selected by the S1 and S2 control signals.

The bi-directional data flow is controlled through use of a

direction (DIRI) control pin. The devices can be config-

ured to operate in a unidirectional mode only by hardwir-

ing the DIRI pin. An internal Phase-Locked Loop (PLL)

generates the required bit clock frequency for transfer

across the serial link. Options exist for dual or single PLL

operation, dependent upon system operational parame-

ters. The device has been designed for low power opera-

tion and utilizes Fairchild proprietary low-power control

Current Transistor Logic (CTL™) interface. The device

also supports an ultra low power power-down mode for

conserving power in battery-operated applications.

■

– 2mA source / sink current

– Over-voltage tolerant control signals

Parallel I/O power supply (V

DDP

) range between

1.65V and 3.6V

Analog power supply range of 2.5V to 3.3V

Multi-mode operation allows for a single device to

operate as Serializer or Deserializer

Internal PLL with no external components

Standby power-down mode support

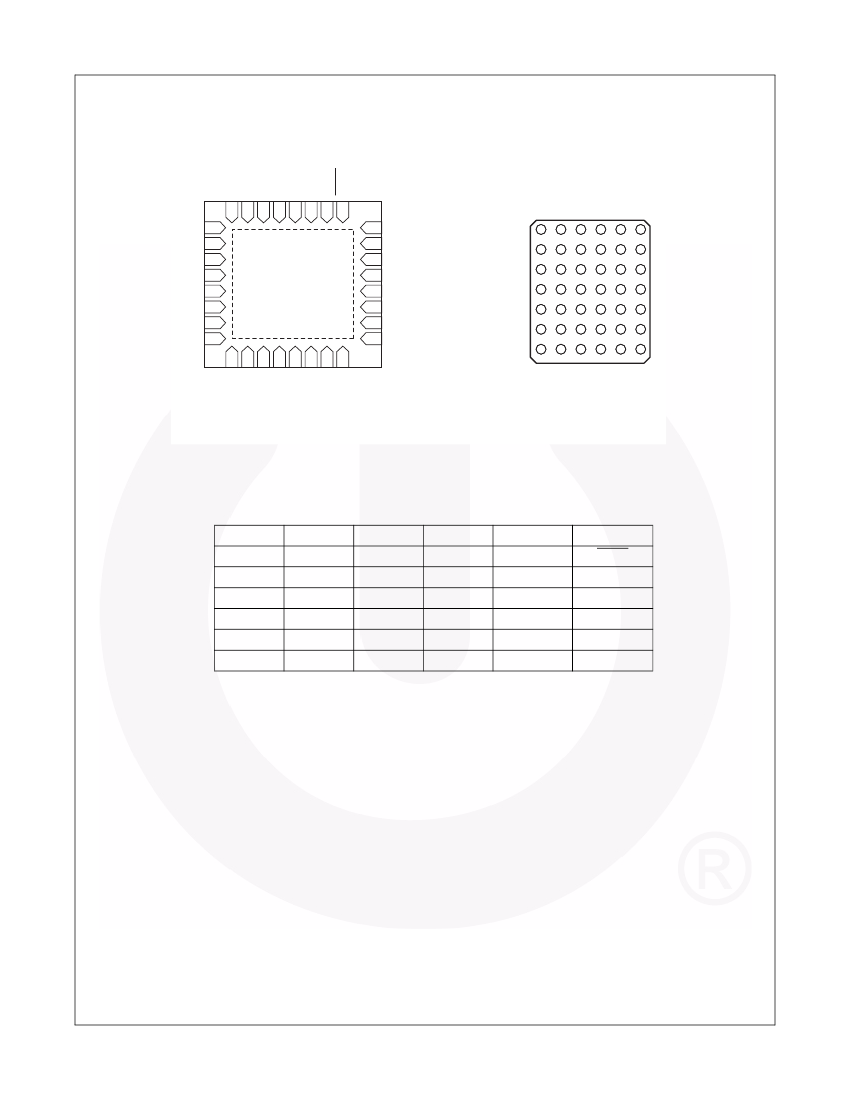

Small footprint packaging:

– 32-terminal MLP and 42-ball BGA

Built-in differential termination

Supports external CKREF frequencies; 5MHz to 40MHz

Serialized data rate up to 560Mb/s

Voltage translation from 1.65V to 3.6V

Applications

■

Microcontroller or pixel interfaces

■

Image sensors

■

Small displays: LCD, cell phone, digital camera,

portable gaming, printer, PDA, video camera,

automotive

Ordering Information

Part Number

FIN12ACGFX

FIN12ACMLX

Operating

Temperature Range

-30 to +70°C

Package

42-Ball Ultra Small Scale Ball Grid Array

(USS-BGA), JEDEC MO-195, 3.5mm Wide

32-Terminal Molded Leadless Package

(MLP), Quad, JEDEC MO-220, 5mm Square

Packing

Method

Tape and Reel

Pb-free package per JEDEC J-STD-020B.

µSerDes

™

is a trademark of Fairchild Semiconductor Corporation.

FIN12AC Rev. 1.1.2

www.fairchildsemi.com

FIN12ACGFX Related Products

	FIN12ACGFX	FIN12ACMLX
Description	IC SERIALIZER/DESERIALIZER 42BGA	IC SERIALIZER/DESERIALIZER 32MLP
Function	Serializer/Deserializer	Serializer/Deserializer
data rate	560Mbps	560Mbps
input type	LVCMOS	LVCMOS
Output type	LVCMOS	LVCMOS
Number of inputs	12	12
Number of outputs	12	12
Voltage - Power	1.65 V ~ 3.6 V	1.65 V ~ 3.6 V
Operating temperature	-30°C ~ 70°C（TA）	-30°C ~ 70°C（TA）
Installation type	surface mount	surface mount
Package/casing	42-VFBGA	32-WFQFN Exposed Pad
Supplier device packaging	42-USS-BGA（3.5x4.5）	32-MLP（5x5）
