8690280000

Description
RELAY GEN PURPOSE DPDT 10A 24V
CategoryMechanical and electronic products    relay
File Size235KB,5 Pages
ManufacturerWeidmuller
Websitehttp://www.weidmuller.com/
Download Datasheet Parametric View All

8690280000 Online Shopping

Suppliers Part Number Price MOQ In stock
8690280000 - - View Buy Now

8690280000 Overview

RELAY GEN PURPOSE DPDT 10A 24V

8690280000 Parametric

Parameter NameAttribute value
MakerWeidmuller
package instructionCADMIUM FREE
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time10 weeks
Other featuresCOIL OPERATE VOLTAGE(AC): 19.2 V; COIL RELEASE VOLTAGE(AC): 9.6 V
body width35.5 mm
body height57 mm
Body length or diameter35.5 mm
Coil current (AC) maximum value0.094 A
Coil power2300 mW
Coil resistance86 Ω
Maximum coil voltage (AC)24 V
Coil/Input Power TypeAC
Contact (AC) maximum rated R load10A@250VAC
Maximum contact current (AC)10 A
Maximum contact voltage (AC)250 V
Contact/Output Power TypeAC
Manufacturer's serial number8690280000
Installation featuresPANEL MOUNT
operating hours12 ms
Maximum operating temperature50 °C
Minimum operating temperature-45 °C
method of packingBULK
physical size35.5mm X 35.5mm X 57mm
GuidelineUL; VDE
Relay actionMOMENTARY
Relay functionDPDT
Relay typePOWER/SIGNAL RELAY
release time5 ms
sealIP20
surface mountNO
Termination typeSOLDER
Base Number Matches1

Data sheet...
RIDERSERIES
RRD228024
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com


The ideal relay version for the separation of input and
output signals in industrial automation.
High powers can be safely switched with the
RIDERSERIES.
Conventional relays and LED indicators are simply
plugged in, retaining and disassembly clips provide a
secure fixing.

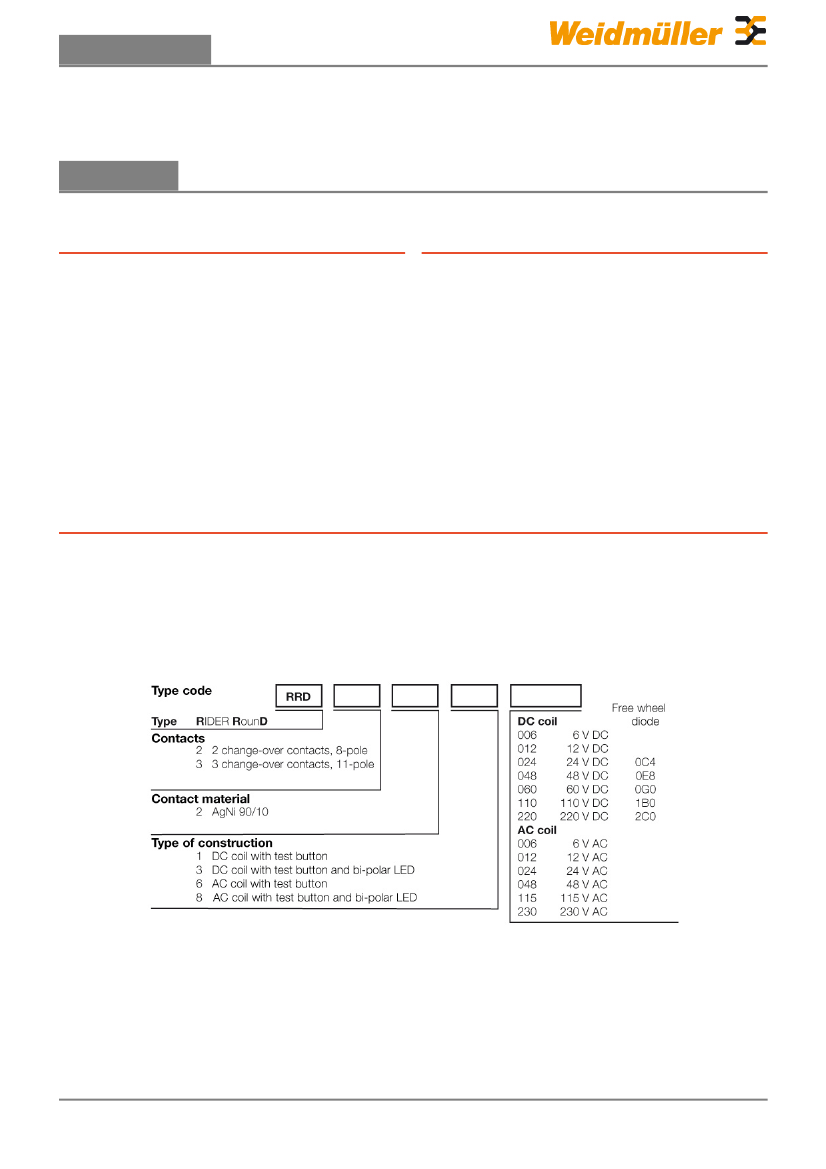

General ordering data

Order No.
Type
Version
GTIN (EAN)
Qty.

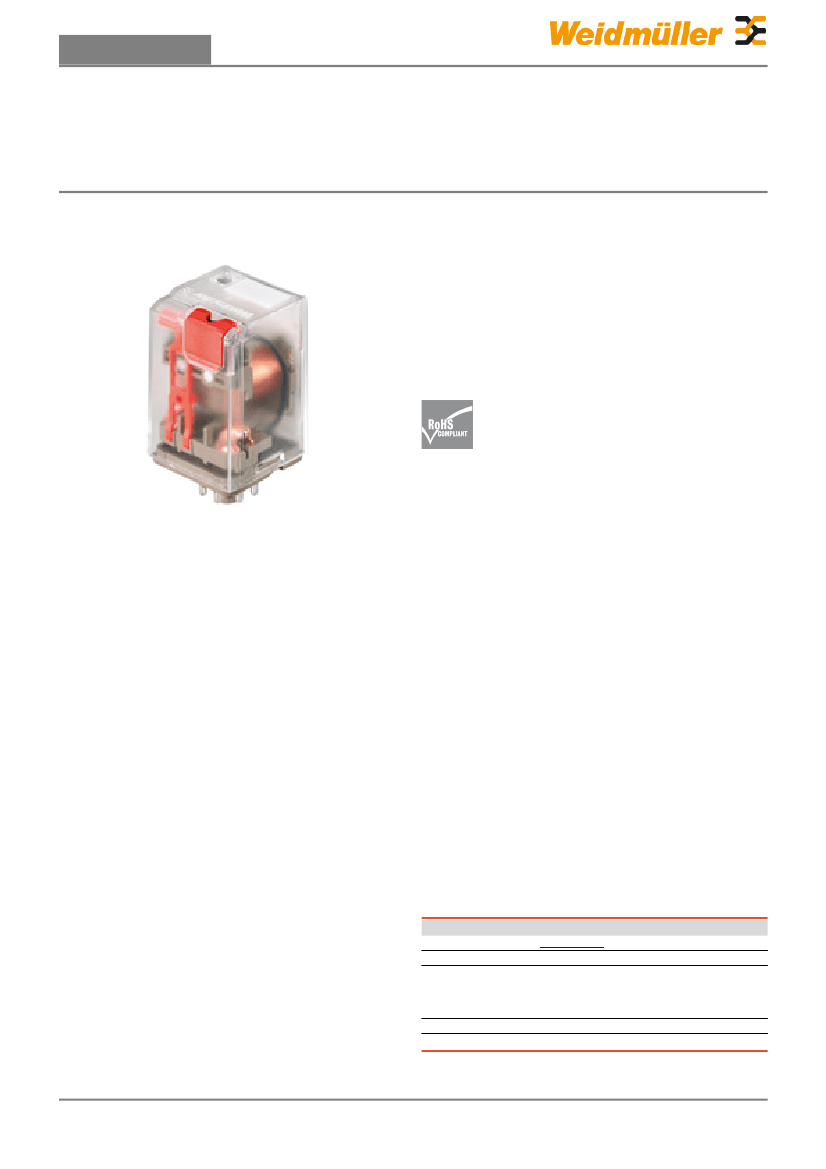

8690280000
RRD228024
RIDERSERIES, Relais, No. of contacts: 2, CO
contact with test button, AgNi 90/10, Rated
control voltage: 24 V AC, Continuous current: 10
A, Plug-in connection
4032248360901
25 pc(s).
Creation date March 11, 2013 6:58:28 PM CET


Catalogue status 20.12.2012 / We reserve the right to make technical changes.
1
