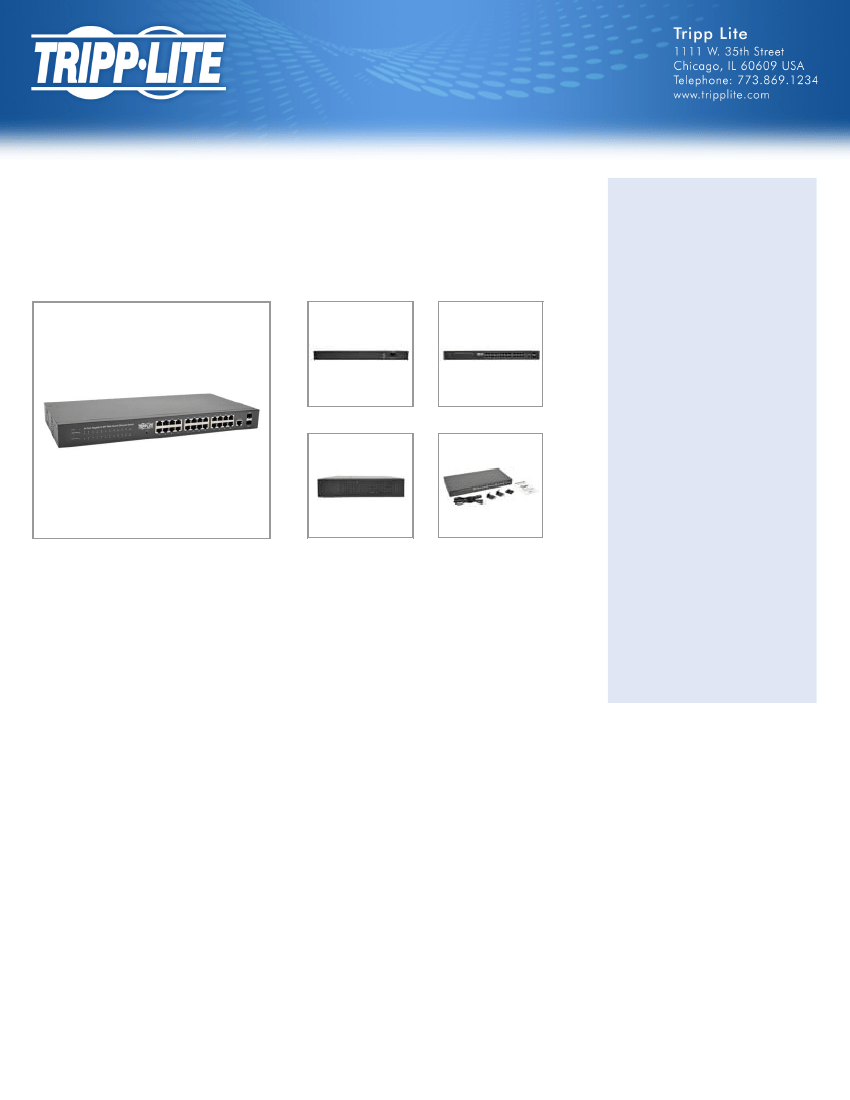

24 10/100/1000Mbps Port Gigabit L2 Web-Smart
Managed Switch, 2 Dedicated Gigabit SFP Slots,
52 Gbps, Web Interface
MODEL NUMBER:
NGS24C2
Highlights
q
IP-MAC-Port-Binding, ACL,
Storm Control
q
Port Security, DHCP Snooping,
802.1x, L2
q
Web-Smart management
interface, SNMP, RMON
features
q
Enterprise-level, security and
layer 2 management
q
Cost-effective form factor for
small and medium businesses
Package Includes
q
NGS24C2 24-Port Gigabit L2
Web-Smart Managed Network
Switch
Fully managed 24-port web-smart Gigabit network switch with dual SFP slots in a 1U rack-mount/desktop
unit. Ideal for monitoring and controlling a LAN in a small-to-medium distributed network.
q
Detachable AC power cord
w/NEMA 5-15P plug, 5 ft.
q
Description
The energy-efficient NGS24C2 24-Port Gigabit L2 Web-Smart Managed Network Switch features 24
twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto
MDI/MDIX cross-over detection functions for convenient plug-and-play capability. Two dedicated mini-
GBIC SFP ports are also included for uplinking data to other switches via optical fiber or copper.
q
q
(2) Rack-mounting brackets
(8) Screws
(4) Rubber feet
Owner’s manual
q
Easy-to-read LEDs indicate connection and activity status for each port. Built-in web-smart management
software lets you monitor and control each connected device via secure web-based interface. Each port
supports up to 2 Gbps with full duplex.
The heavy-duty metal housing mounts into 1U of an EIA-standard 19-inch rack using the included
brackets and user-supplied hardware. Or attach the included rubber feet to the bottom of the unit for
installation on a flat desktop surface. The five-foot input cord with NEMA 5-15P plug connects to a
protected UPS, generator or mains input AC source.
Features
Enterprise Managed Network Switch
q
24 twisted-pair RJ45 Gigabit Ethernet ports
Auto-negotiable 10/100/1000 Mbps
Automatic MDI/MDIX cross-over detection
52 Gbps switching capacity (2 Gbps per port with full duplex)
Easy-to-read LEDs indicate connection and activity status for each port
q
q
q
q
1/4
q
Supports 9k jumbo frames
Supports MAC address auto-learning and auto-aging up to 8,000 addresses
Advanced Enterprise-level and L2 management features
q
q
Built-In Web-Smart Management Software
q
Monitors and controls connected equipment via simple Web interface
VLAN, trunking, VPN, port monitoring and other features improve network efficiency and performance
q
Dual Dedicated Mini-GBIC SFP Ports
q
Connect to Mini-GBIC SFP modules for uplinking to other switches via optical fiber or copper
LEDs indicate interface traffic
q
Compliant with Energy Efficient Ethernet standards
q
Automatically shifts unused ports to low power state without interrupting network connection
Meets IEEE 802.3ab, 802.3i, 802.3u, 802.3x, 802.3, 802.1q, 802.1d, 802.1w and 802.3ad standards
q
Versatile Installation Options
q
Fanless metal housing mounts in 1U of EIA-standard 19 in. racks
Supports desktop installation using included rubber feet on flat surface
5 ft. power cord with NEMA 5-15P plug connects to compatible AC power source
q
q
Specifications
OVERVIEW
UPC Code
037332194831
INPUT
Electrical Consumption
Input Plug Features
Input Cord Length (ft.)
Input Cord Length (m)
Voltage Compatibility (VAC)
Input Phase
Input Plug Type
80 watts max.
Detachable NEMA 5-15P to C13 input cable can be replaced with a wide variety of 100 to 240V international
cordsets that terminate to a C13 connector on the output side
5
1.52
100; 110; 120; 127; 200; 208/240
Single-Phase
NEMA 5-15P
USER INTERFACE, ALERTS & CONTROLS
Switches
1 included switch enables factory reset
2/4
LED Indicators
Power LED (Green for Power On); One LED per RJ-45 port (Amber indicates 10/100Mbps link; Green indicates
1000Mbps link; LEDs flash to indicate port activity); Two LEDs indicate SFP connection (Green)
PHYSICAL
Primary Form Factor
Minimum Required Rack Depth
(inches)
Minimum Required Rack Depth (cm)
Shipping Dimensions (hwd / in.)
Shipping Dimensions (hwd / cm)
Shipping Weight (lbs.)
Shipping Weight (kg)
Unit Dimensions (hwd / in.)
Unit Dimensions (hwd / cm)
Unit Weight (lbs.)
Unit Weight (kg)
Color
Desktop; Rackmount
8.1
20.57
3.460 x 21.850 x 11.610
8.79 x 55.50 x 29.49
7.0600
3.20
1.73 x 17.32 x 8.07
4.39 x 43.99 x 20.5
5.4
2.45
Black
ENVIRONMENTAL
Storage Temperature Range
Relative Humidity
Operating Elevation (ft.)
Operating Temperature
Operating Elevation (m)
-40 to 158 F (-40 to 70 C)
10 to 90% (Non-condensing)
10,000
32 to 104 F (0 to 40 C)
3,000
CONNECTIONS
Ports
Network Switch Ports
26
(24) 10/100/1000 (RJ45); (2) Dedicated SFP
CERTIFICATIONS
Certifications
Compliant standards: IEEE 802.3ab (1000BASE-T GIGABIT ETHERNET), IEEE 802.3i (10BASE-T ETHERNET),
IEEE 802.3u (100BASE-T ETHERNET), IEEE 802.3x (FULL DUPLEX/FLOW CONTROL), IEEE 802.3 (NWAY
AUTO-NEGOTIATION), 802.1q(TAGGED VLAN), 802.1d(STP), 802.1w (RSTP), 802.1p (QUALITY OF SERVICE)
Tested to: UL 60950-1:2007 (2nd Ed); CAN/CSA C22.2 NO. 60950-1-07 2nd Edition
Approvals
WARRANTY
Product Warranty Period
(Worldwide)
5-year limited warranty
© 2018 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
3/4
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https://www.tripplite.com/products/product-certification-agencies
4/4
