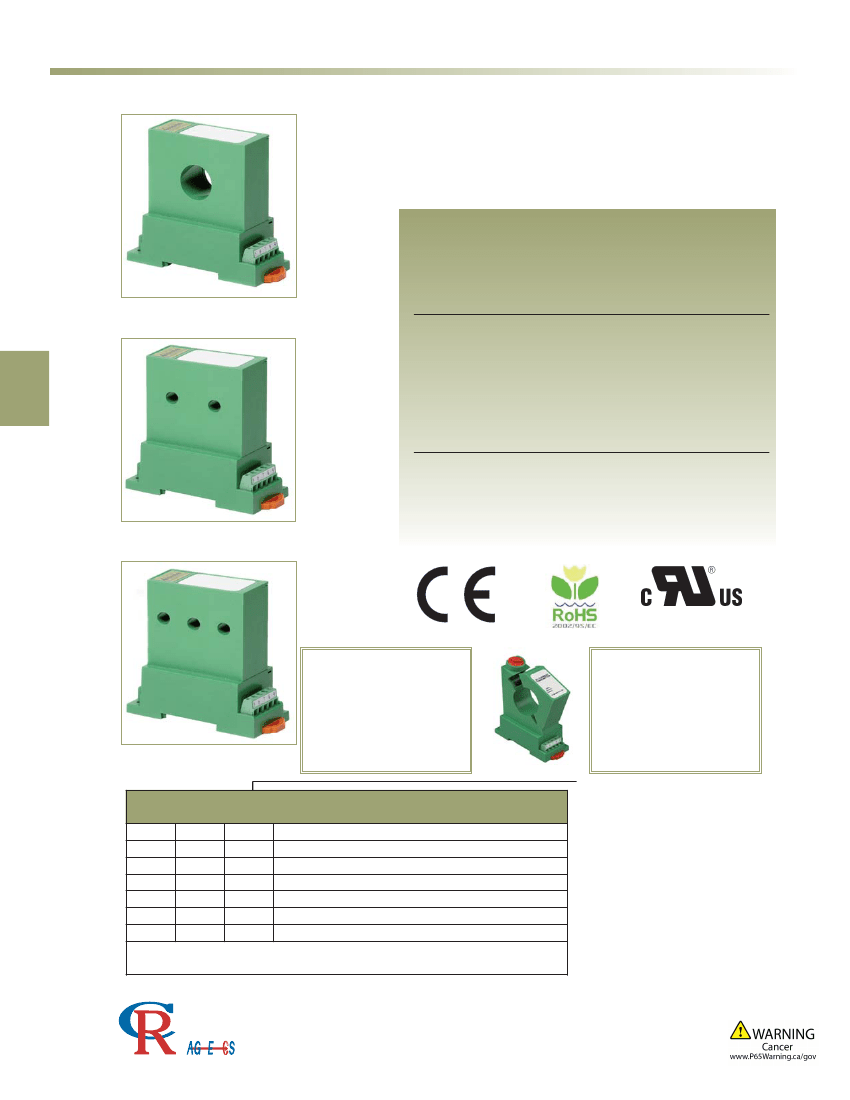

Average RMS AC Current Transducer
DIN RAIL / PANEL MOUNT, AVERAGE RMS
The
CR4400
Series, Current Transducers and Transmitters are
designed to produce a DC output signal that is proportional to
the average RMS input AC current. Designed for multi-point
current sensing, these devices provide excellent features in a
value package .
Applications
Multi-point current sensing and control panels
Monitor motor faults
Monitor heating elements
Monitor lighting elements
CR4410 CR4411 CR4420
Single Element - .79" Window
0.5 to 600 AAC Input Range
Features
Low cost
DIN rail or panel mount
Available with 0-5 VDC, 0-10VDC or 4-20 mADC output
High Accuracy
Interfaces with most commercially available instrumentation
Connection diagram printed on case
C
Transducers
CR4450 CR4460
Regulatory Agencies
Recognized to meet UL 61010B-1
Constructed to meet CAN/CSA-C22.2, No. 61010-1-2004
Meets requirement of IEC 61010-1 and BS EN 61010-1
Two Element - .26" Window
0.5 to 30 AAC Input Range
E199795
Use a 5 Amp Secondary
Current Transformer to extend
the ranges of all CR Magnetics
Current Transducers
All single phase current
transducers are available in split
core design. Simply put an “S” at
the end of the prefix*
I.E. CR4410S-10
* Not UL Recognized
Add suffix for input range
5
10
15
20
25
30
40
50
75
100
150
-
-
-
-
-
-
-
-
-
-
-
0-5 AAC
0-10 AAC
0-15 AAC
0-20 AAC
0-25 AAC
0-30 AAC
0-40 AAC
0-50 AAC
0-75 AAC
0-100 AAC
0-150 AAC
CR4470 CR4480
Three Element - .26" Window
0.5 to 30 AAC Input Range
PART NUMBERS
CR4410(S)
CR4411(S)
CR4420(S)
CR4450
CR4460
CR4470
CR4480
-
-
-
-
-
-
-
Single element with 0 - 5 VDC output (split core design)
Single element with 0 - 10 VDC output (split core design)*
Single element with 4 - 20 mADC output (split core design)
Two element with 0 - 5 VDC output *
Two element with 4 to 20 mADC output *
Three element with 0 - 5 VDC output *
Three element with 4 - 20 mADC output *
Two and three element transducers are available only in ranges of 0.5 to 30 AAC
Ranges available up to and
including 600 AAC
The Professional
Energy Monitoring
Company
ISO 9001:2008 Quality Management System
M N TI
3500 Scarlet Oak Blvd. St. Louis MO USA 63122 V: 636-343-8518 F: 636-343-5119
Web: http://www.crmagnetics.com
38
E-mail: sales@crmagnetics.com

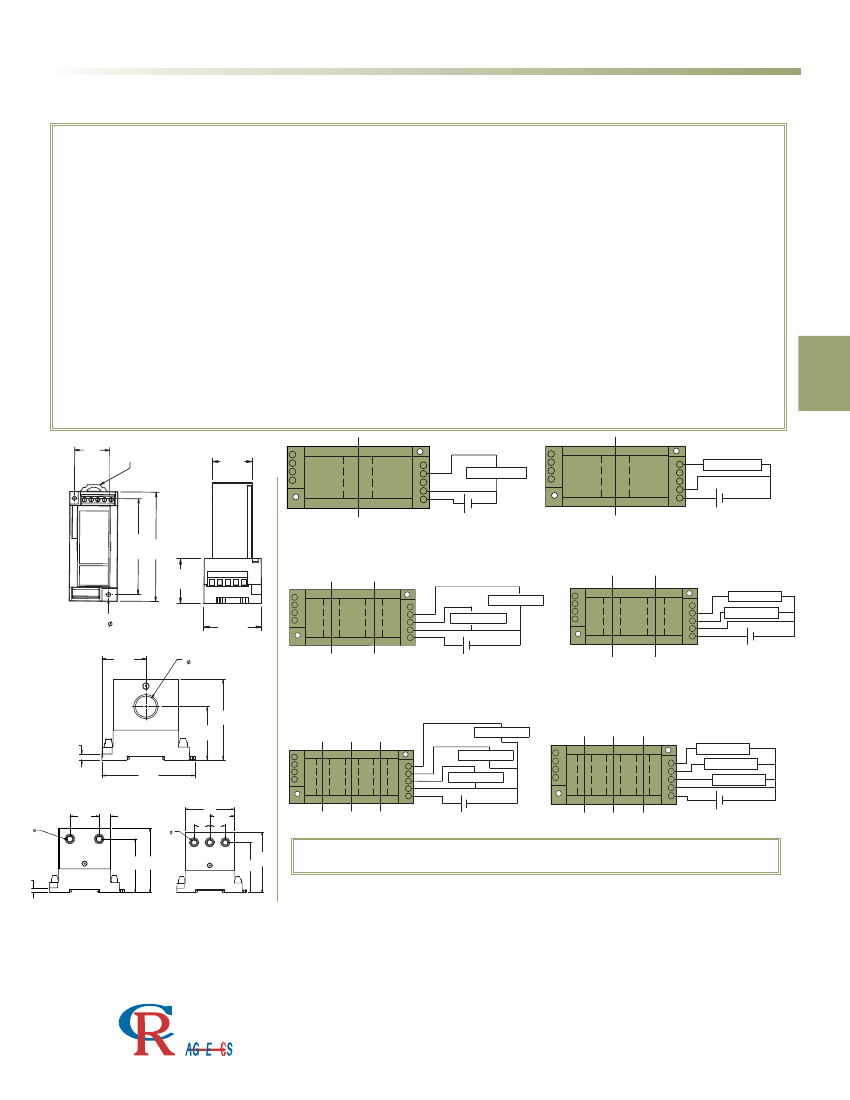

Average RMS AC Current Transducer
SPECIFICATIONS
Basic Accuracy:..................... 0.5%
Linearity:................................ 10% to 100% FS
Thermal Drift:......................... 500 PPM/°C
Operating Temperature:......... 0°C to +60°C
Installation Category:............ CAT II
Vibration Tested To:............... IEC 60068-2-6,1995
Pollution Degree:.................... 2
Response Time:..................... 250 ms max., 0-90% FS
MTBF:.................................... Greater than 100 K hours
Altitude:.................................. 2000 meter max.
Calibration:............... Average Sensing, RMS Calibrated
Insulation Voltage:................. 2500 VDC
Power Source:....................... 24 VDC
Frequency Range:................. 50Hz - 400Hz
Output Load:.......................... 4-20 mADC - 0 to 300
Ω
0-5 VDC - 2K
Ω
or Greater
[26.6]
1.05
DIN RAIL
MOUNTING
CLIP
DIN RAIL / PANEL MOUNT, AVERAGE RMS
Cleaning:............................... Water-dampened cloth
Relative Humidity:.................5% to 95%, Non-Condensing
Supply Voltage:....................24 VDC ±10%
Supply Current:
CR4410/11...........................Typical 20mA
Max 40mA
CR4420................................Typical 25mA
Max 45mA
CR4450................................Typical 20mA
Max 75mA
CR4460................................Typical 40mA
Max 90mA
CR4470................................Typical 25mA
Max 110mA
CR4480................................Typical 55mA
Max 120mA
CR4410S..............................Typical ---mA
Max -----mA
CR4420S..............................Typical ---mA
Max -----mA
Torque Specs.:................ 3.0 inch lbs. (0.4Nm)
Weight:.............................0.5 lbs.
C
Transducers
[25]
.98
1
2
3
4
9
8
7
6
5
+
OUTPUT
-
+
-
SUPPLY
1
2
3
4
+
9
8
7
6
5
-
OUTPUT
+
-
SUPPLY
[73.1][83.3]
2.88 3.28
[28.3]
1.12
1
2
3
4
CR4410
One Element 0 - 5 VDC Output
CR4411
One Element 0 - 10 VDC Outpu
t
+
9
8
7
6
5
CR4420
One Element 4 - 20 mADC Output
+
1
2
3
4
9
8
7
6
5
-
OUTPUT 2
OUTPUT 1
+
-
SUPPLY
-
[3.3]
.13
Top View
Optional
Mounting
[41.8]
1.65
End View
[20.1]
.79
[36.6]
1.44
+
OUTPUT 1
+
-
SUPPLY
OUTPUT 2
-
+
L1
L2
L1
L2
CR4450
Two Element 0 - 5 VDC Output
[76.6]
3.02
[5.6]
.22
TYP
[88.7]
3.49
[50.7]
2.00
CR4460
Two Element 4 - 20 mADC Output
+
OUTPUT 3
1
2
3
4
CR4410 CR4411 CR4420
[35]
1.38
[13.5]
.53
[62]
2.44 [30.8]
1.21
[19.8] [19.8]
.78
.78
9
8
7
6
5
+
OUTPUT 2
+
OUTPUT 1
+
-
SUPPLY
+
1
2
3
4
9
8
7
6
5
OUTPUT 3
+
+
+
OUTPUT 2
-
-
-
OUTPUT 1
-
SUPPLY
[6.6]
.26
[6.6]
.260
CR4470
Three Element 0 - 5 VDC Output
[76.7]
[64.2] 3.02
2.53
L
1
L
2
L
3
CR4480
L 2
Three Element 4 - 20 mADC Output
L1
L3
[64] [76.7]
2.52 3.02
[5.6]
.22
TYP
*Request CR Magnetics Low & Medium Voltage Current Transformers Catalog.
CONNECTION DIAGRAM
CR4450
CR4460
CR4470
CR4480
OUTLINE DRAWING
NOTE: The building installation must have a switch or circuit-breaker that is in close proximity and within easy reach of the operator. The switch or circuit breaker
shall be marked as the disconnecting device for the equipment.
The Professional
Energy Monitoring
Company
ISO 9001:2008 Quality Management System
M N TI
3500 Scarlet Oak Blvd. St. Louis MO USA 63122 V: 636-343-8518 F: 636-343-5119
Web: http://www.crmagnetics.com
39
E-mail: sales@crmagnetics.com
