Power cable - SAC-5P-M12MSL/10,0-280 FE - 1414895
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

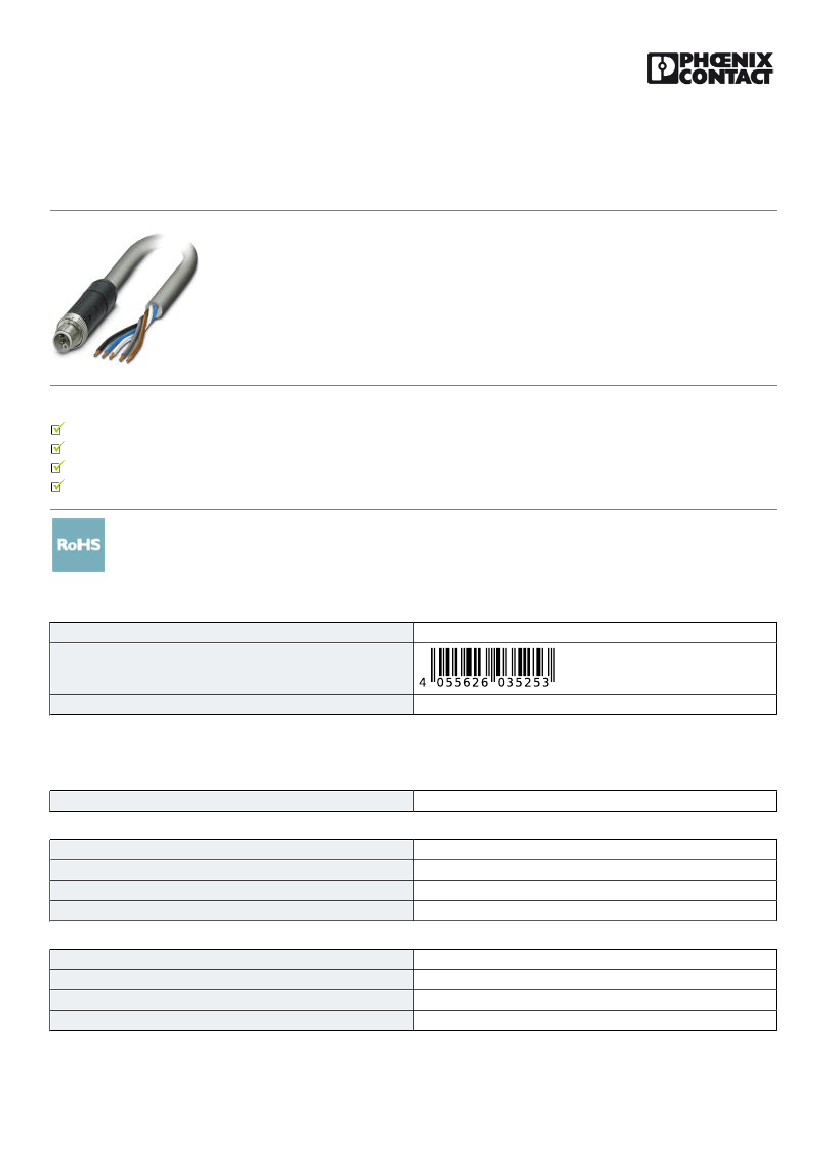

Power cable, 5-position, PUR halogen-free, gray RAL 7001, Plug straight M12, L-coded, on free cable end,
cable length: 10 m, for direct current up to 16 A/63 V
Your advantages
Easy and safe: 100% electrically tested plug-in components
High-performance: DC connectors for up to 16 A and 63 V DC
Our standard: robust halogen-free PUR cable
Key Commercial Data
Packing unit
GTIN
GTIN
4055626035253
1 pc
Technical data
Dimensions
Length of cable
10 m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 85 °C (Plug / socket)
IP65
IP67
IP68
General
Rated current at 40°C
Rated voltage
Number of positions
16 A
63 V (DC)
63 V DC
5
10/25/2018 Page 1 / 5
https://www.phoenixcontact.com/pi/products/1414895
Power cable - SAC-5P-M12MSL/10,0-280 FE - 1414895
Technical data
General
Color handle area
Insulation resistance
Coding
Standards/regulations
Status display
Protective circuit/component
Overvoltage category
Degree of pollution
Insertion/withdrawal cycles
Torque
black
≥ 100 MΩ
L - Power
M12 connector IEC 61076-2-111
No
Unwired
III
3
≥ 100
0.4 Nm (M12 connector)
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
V0
CuSn
Ni/Au
PA
PA
Zinc die-cast, nickel-plated
Standards and Regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
M12 connector
IEC 61076-2-111
V0
Cable
Cable type
Cable type (abbreviation)
UL AWM style
Conductor cross section
AWG power supply
Conductor structure, voltage supply
Core diameter including insulation
Thickness, insulation
Wire colors
External sheath, color
Outer sheath thickness
External cable diameter D
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Number of bending cycles
Minimum bending radius, drag chain applications
Traversing path
PUR halogen-free gray
280
20233 / 10493 (80°C/300 V)
5x 2.5 mm²
14
141x 0.15 mm
2.85 mm ±0.1 mm
≥ 0.31 mm
Brown, white, blue, black, gray
gray RAL 7001
approx. 0.76 mm
9.65 mm ±0.25 mm
5xD
10 x D
4000000
10 x D
10 m
10/25/2018 Page 2 / 5
https://www.phoenixcontact.com/pi/products/1414895
Power cable - SAC-5P-M12MSL/10,0-280 FE - 1414895
Technical data
Cable
Traversing rate
Acceleration
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Flame resistance
3 m/s
10 m/s²
185 kg/km
PUR
PP
Bare Cu litz wires
≥ 1 GΩ*km (at 20 °C)
≤ 8 Ω/km (at 20 °C)
≤ 300 V AC
≥ 3000 V AC (Spark test)
According to UL 758/1581 (Cable Flame)
according to UL 758/1581 FT1
According to DIN EN 60332-1-2
Halogen-free
Resistance to oil
Other resistance
in accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
according to DIN EN 60811-404, 168 h at 100 °C
Hydrolysis and microbe resistant as per VDE 0282 section 10
Low adhesion
abrasion-resistant
Resistant to salt water
Ambient temperature (operation)
-50 °C ... 80 °C (cable, fixed installation)
-30 °C ... 80 °C (cable, flexible installation)
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”

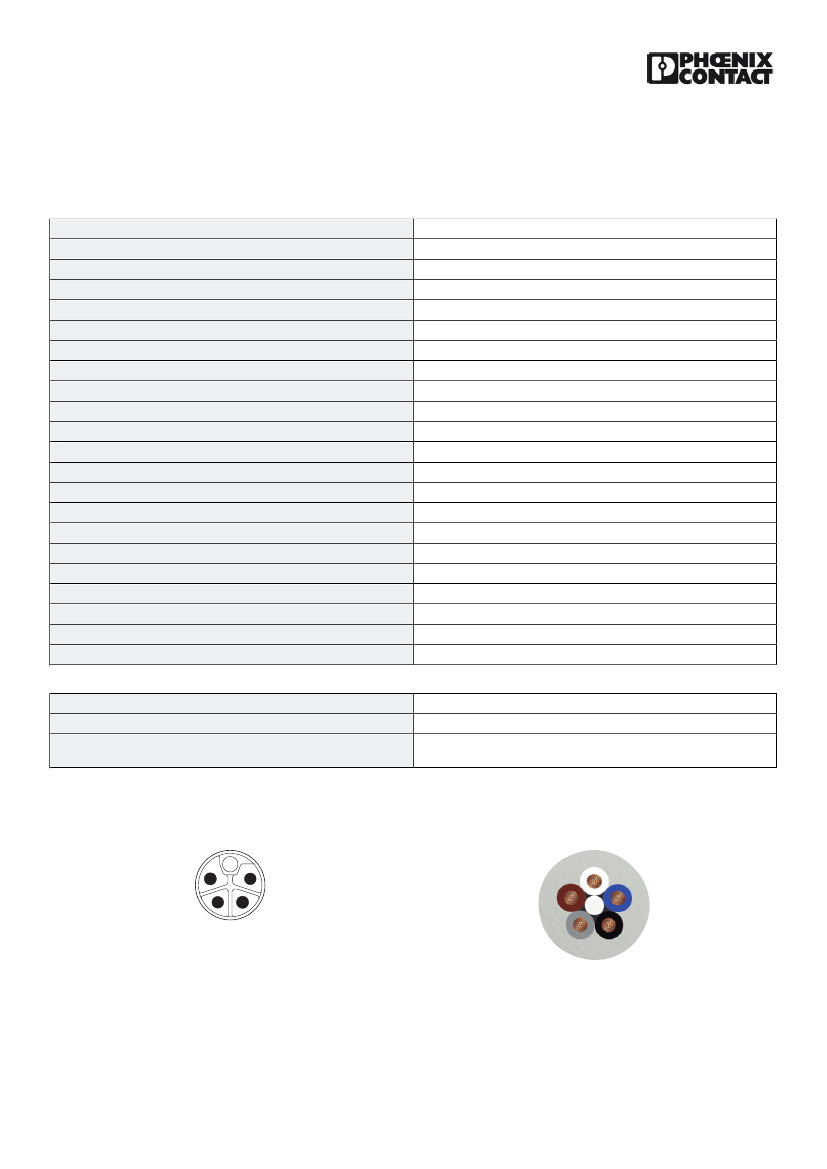

Drawings
Schematic diagram
FE
Cable cross section
4
1
3
2
Pin assignment of M12 connector, 5-pos., L-coded, pin side view
PUR halogen-free gray [280]
10/25/2018 Page 3 / 5
https://www.phoenixcontact.com/pi/products/1414895
Power cable - SAC-5P-M12MSL/10,0-280 FE - 1414895
Diagram
Current strength [A]
30
25
20
15
10
5
0
0
10
20
30
40
50
60
70
80
90 100 110
Dimensional drawing
= Socket
= Plug
Plug, M12 x 1, straight, shielded
Ambient temperature [°C]
Circuit diagram
1
2
4
3
FE
BN
WH
BK
BU
GY
Contact assignment of the M12 plug
Approvals
Approvals
Approvals
EAC / EAC
Ex Approvals
Approval details
EAC
EAC-Zulassung
EAC
RU C-
DE.AI30.B.00767
