LQLBH1608TR10J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > inductor> Fixed inductance> LQLBH1608TR10J

LQLBH1608TR10J: DescriptionGeneral Purpose Inductor, 0.1uH, 5%, 1 Element, Ferrite-Core, SMD; Categoryinductor Fixed inductance; File Size514KB，13 Pages; ManufacturerTaiyo Yuden

Download Datasheet Parametric View All

LQLBH1608TR10J Overview

General Purpose Inductor, 0.1uH, 5%, 1 Element, Ferrite-Core, SMD

LQLBH1608TR10J Parametric

Parameter Name	Attribute value
Maker	Taiyo Yuden
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
core material	FERRITE
DC Resistance	0.9 Ω
Nominal inductance(L)	0.1 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Minimum quality factor (at nominal inductance)	14
Maximum rated current	0.2 A
self resonant frequency	1700 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	100 MHz
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

高周波巻線チップインダクタ

WOUND CHIP INDUCTORS

FOR HIGH FREQUENCY

LB SERIES H TYPE

OPERATING TEMP.

K25VJ85C

特長 FEATURES

Y実装上の特性を重視した½状。

Y巻線タイプのため、High

Qで自己共振周波数が高い。

YDimention

attaches much importance to characteristics of mount case.

YThe

product has excellent Q and SRF because, wound chip inductor.

用途 APPLICATIONS

Y携帯電話や無線LAN等の高周波機器

YPortable

telephones and wireless LAN.

½名表記法 ORDERING

CODE

½式

LBH

高周波巻線巻線チップインダクタ

包装

テーピング

公称インダクタンス

〔μH〕

例

3N9

10N

R10

0.0039

0.01

0.1

FNW

小数点

インダクタンス許容差

M5L

M0.5nH

個別仕様

標準品

外径寸法

hmmi

1608(0603)

1.6P0.8

½社管理記号

QQQ

標準品

スペース

LBH 1

Type

LBH

Wound chip inductors

for high frequency

6 0

Packaging

T 1 0 N J

Nominal Inductance

〔μH〕

QQQQ

Inductance Tolerances

M5%

M0.5nH

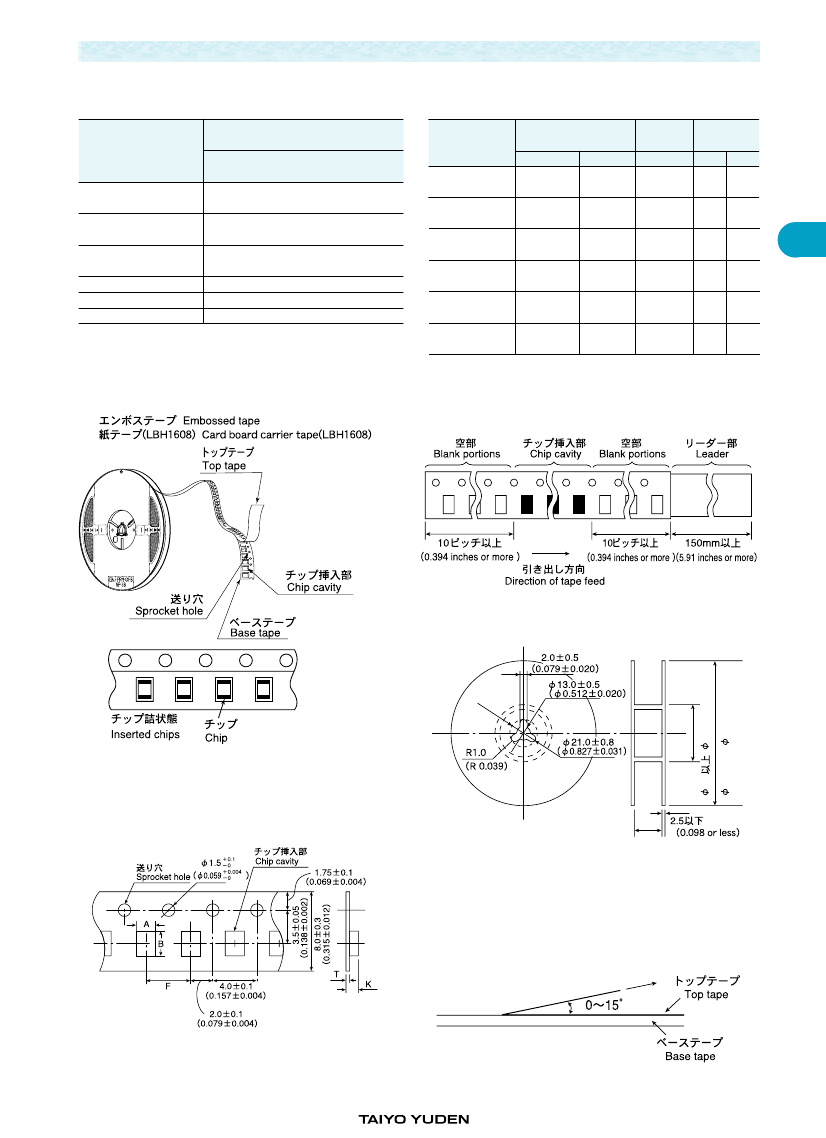

Tape & Reel

example

3N9

10N

R10

0.0039

0.01

0.1

*N=decimal point

Special code

Standard Products

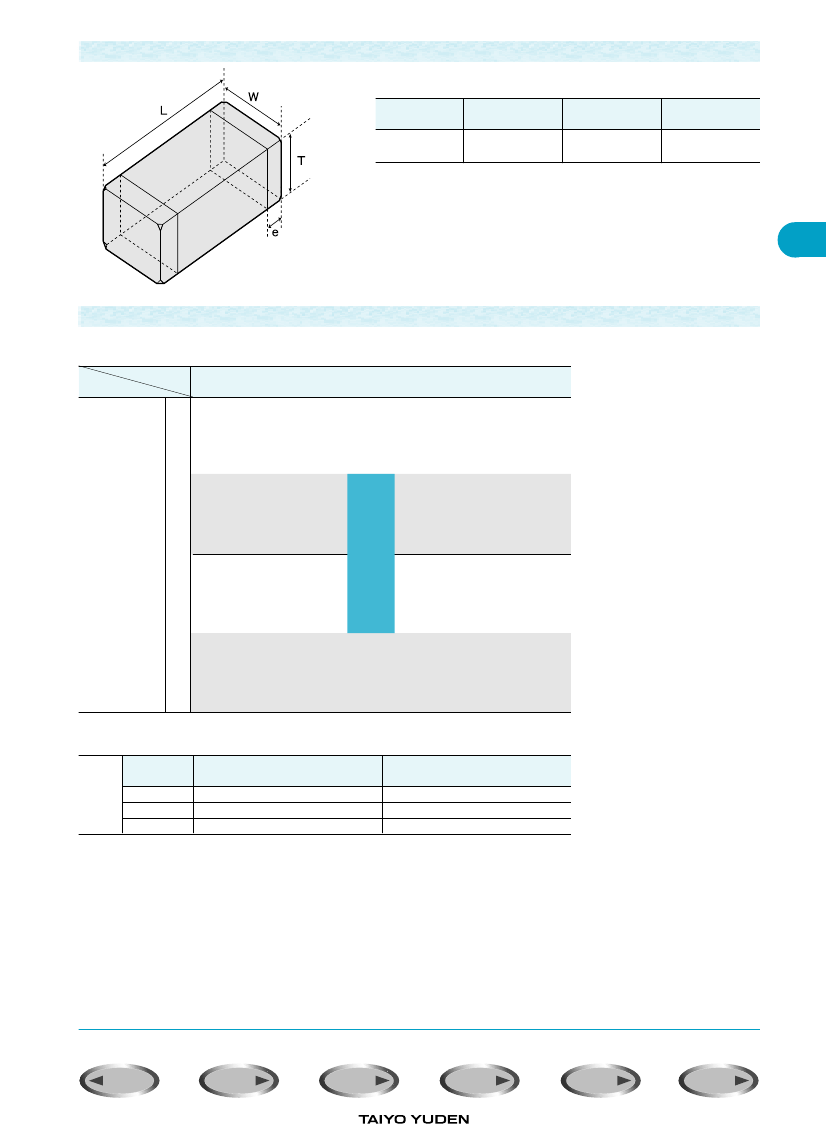

External Dimensions

hmmi

1608(0603)

1.6P0.8

Internal code

QQQ

Standard Products

QWBlank

space

192
