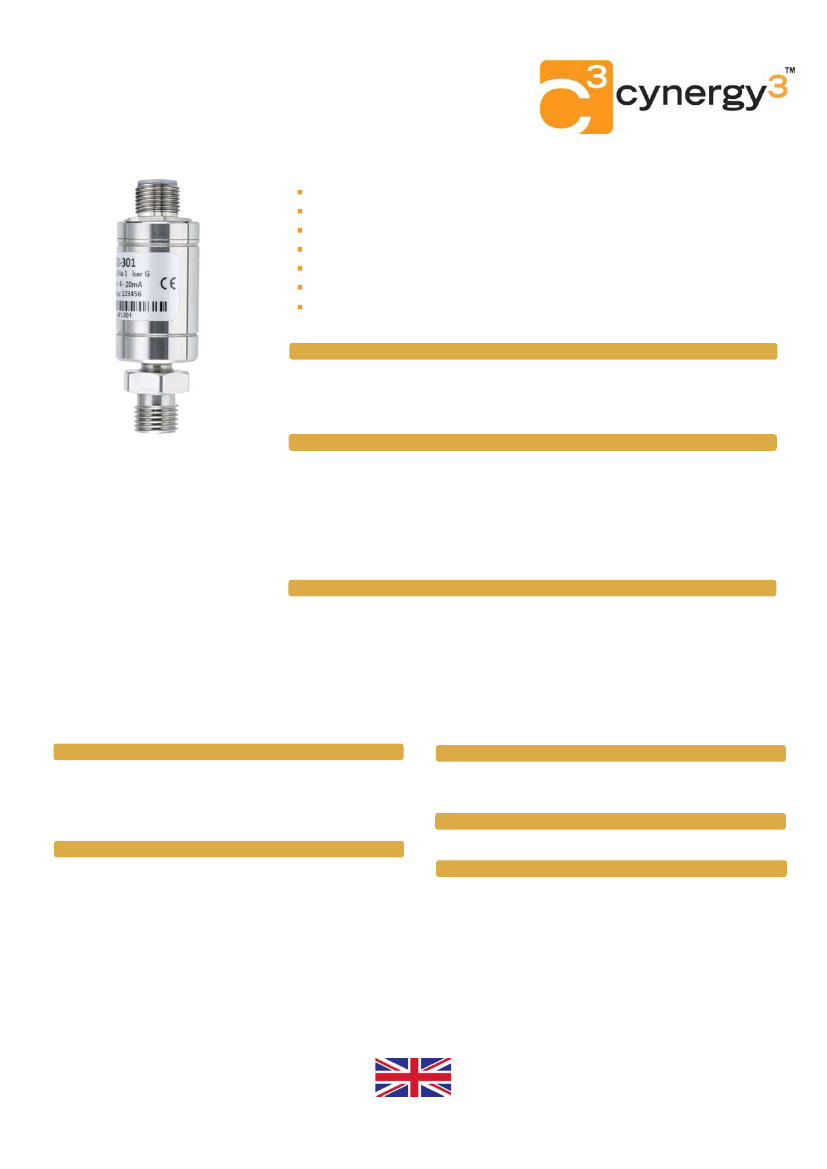

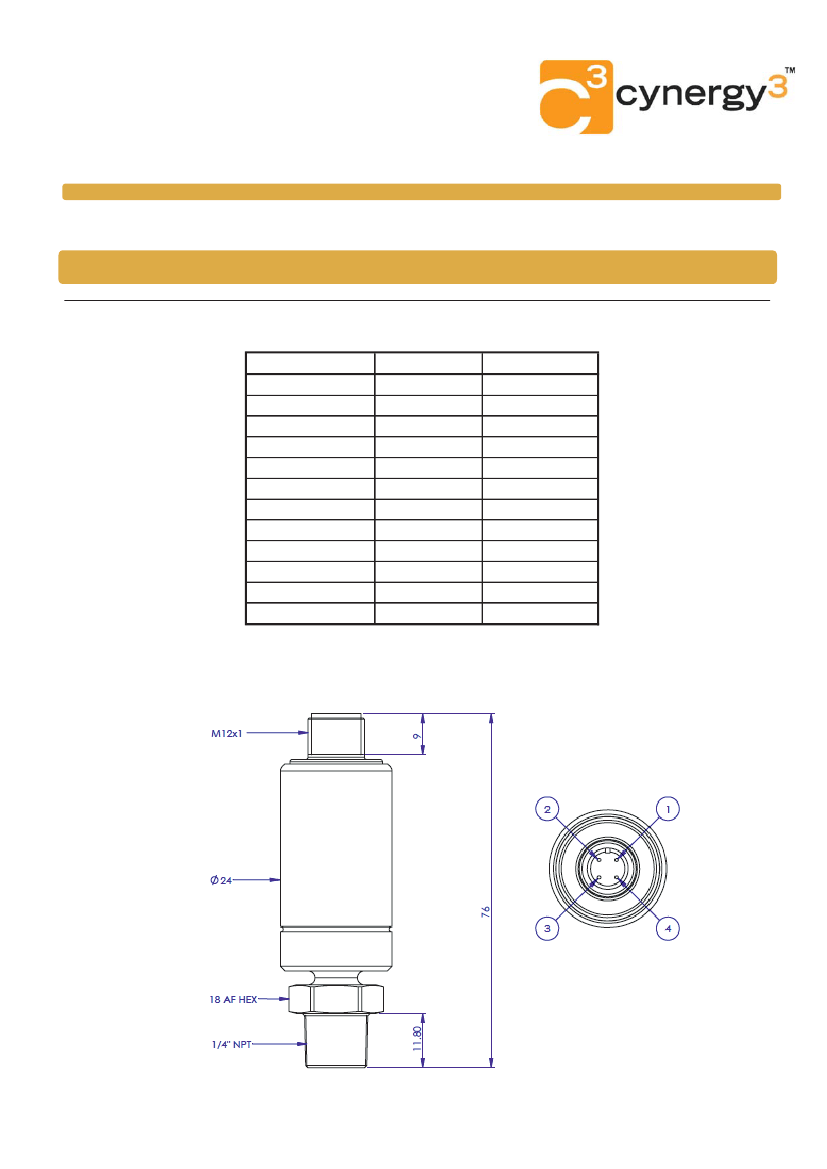

IPSLU-M12 series
Low Range Industrial Pressure Sensor with M12 4-Pin connector
Piezo-resistive sensor
Stainless steel body & diaphragm
Accuracy <
±
0.25% FS BFSL
Various outputs including Volts and mA.
Pressure ranges from 1 psi to 15 psi
Gauge or Absolute pressure reference
1/4"NPT process connection
Options available on the IPSLU-M12 pressure transmitter.
Pressure range
Output type
Mating cable and plug assemblies are available - see datasheet M12 Cable Set Series
Suitable applications
HVAC
Pneumatics
Rainwater harvesting
Agricultural machinery
Laboratory testing
The IPSLU-M12 is suitable for use in a
wide range of applications. The probe
uses a piezo-resistive silicon sensor,
giving excellent media compatibility within
an oil filled 316L stainless steel housing
The electronics incorporate a
microprocessor based amplifier, requiring
no adjusting and giving stable electronics,
especially in high vibration/shock
applications.
Each device is temperature compensated,
calibrated and supplied with a traceable
serial number and calibration data.
Custom versions can be made for
particular applications.
Material Specifications
Housing
“O” ring seals
Diaphragm
Media wetted parts
Miscellaneous
Current consumption
Weight
Installation position
Operational Life
Insulation resistance
Environmental protection
Cynergy3 Components Ltd.
7 Cobham Road
Ferndown Industrial Estate
Wimborne, Dorset BH21 7PE
Telephone +44 (0) 1202 897969
Mechanical engineering
Environmental engineering
Automotive testing
Tank gauging
IBC, IBC Tote or pallet tank
Performance
Accuracy (Non-Linearity & Hysteresis)<±0.25% / FS (BFSL) for gauge refererence
Setting Errors (offsets)
2-wire
Zero & Full Scale, <±0.5% / FS
3-wire
Zero & Full Scale, <±0.5% / FS
Permissible Load
2-wire
R
max
= [(Supply-9min)/0.02]
W
3-wire
R
min
= 10k
W
Influence Effects
Supply
<0.005% FS / 1V
Load
0.05% FSO / k
W
316L Stainless Steel
Viton
316L Stainless Steel
Housing & connection, “O” ring seal,
diaphragm
2 -wire Limits at 28mA
3-wire Typical 6mA
Approx 3.5oz (100g)
Any, small zero shift when tilted through
90º
> 100x 10
6
cycles
> 50MOhms at 50Vdc
IP67 (only when used with a similarly
rated connector)
Electrical Protection
Supply reverse polarity
Electromagnetic compatibility
Mechanical Stability
Shock
Vibration
Temperatures & Thermal Effects
Media Temperature
Ambient Temperature
Storage temperature
Compensated temperature range
Thermal Zero Shift (TZS)
Thermal Span Shift
No damage/no function
CE Compliant
100g / 11s
10g RMS (20 - 2000Hz)
-40ºC to +125ºC
-20ºC to +80ºC
-40ºC to +125ºC
+20ºC to +80ºC
<±0.04% /FS/ºC
<-0.015% /ºC
Email:sales@cynergy3.com
IPSLU-M12 2018
ISO
9001
C E R T I F I E D
Made in the UK
www.cynergy3.com
© 2018 Cynergy3 Components, All Rights Reserved. Specifications are subject to change without prior notice. Cynergy3 Components and the Cynergy3 Components logo are trademarks of Cynergy3 Components Limited.
IPSLU-M12 series
Low Range Industrial Pressure Sensor with M12 4-Pin connector
Pressure Ranges
Nominal Pressure, Gauge, psi
Permissible Overpressure psi
Output Signals and Supply Voltages
Wire system
Output
2-wire
4-20mA
3-wire
0-5Vdc
0.75
30
1.5
30
3.75
30
7.5
75
11.25
75
15
75
Supply Voltage
9-32Vdc
9-32Vdc
Connection Pin Nos
+ve Supply Pin 1
+ve Supply Pin 1
Output Pin 3
-ve Supply Pin 2
-ve Supply Pin 2
Earth Pin 4
Ground Earth Pin
Part No
IPSLU-GP001-5M12
IPSLU-GP002-5M12
IPSLU-GP005-5M12
IPSLU-GP008-5M12
IPSLU-GP010-5M12
IPSLU-GP015-5M12
IPSLU-GP001-6M12
IPSLU-GP002-6M12
IPSLU-GP005-6M12
IPSLU-GP008-6M12
IPSLU-GP010-6M12
IPSLU-GP015-6M12
Pressure Range
0-1 psi G
0-2 psi G
0-5 psi G
0-8 psi G
0-10 psi G
0-15 psi G
0-1 psi G
0-2 psi G
0-5 psi G
0-8 psi G
0-10 psi G
0-15 psi G
Output
4-20mA
4-20mA
4-20mA
4-20mA
4-20mA
4-20mA
0 to 5V 3Wire
0 to 5V 3Wire
0 to 5V 3Wire
0 to 5V 3Wire
0 to 5V 3Wire
0 to 5V 3Wire
Mechanical Dimensions
ISO
9001
C E R T I F I E D
www.cynergy3.com
© 2018 Cynergy3 Components, All Rights Reserved. Specifications are subject to change without prior notice. Cynergy3 Components and the Cynergy3 Components logo are trademarks of Cynergy3 Components Limited.
