Introduction
This board is dedicated to supplying power with USB Type-C Power Delivery, and voltage
profile (PDO) is 5V, 9V, 12V, 15V, 20V.
If you want to check the operation of Power Delivery, please prepare capable of receiving
power USB Type-C Power Delivery device and USB Type-C dedicated cable.
Please use selling separately “BM92A12MWV-EVK-001 (20V)”, “BM92A13MWV-EVK-001
(15V)” and “BM92A14MWV-EVK-001 (9V)” for capable of receiving power USB Type-C
Power Delivery device.

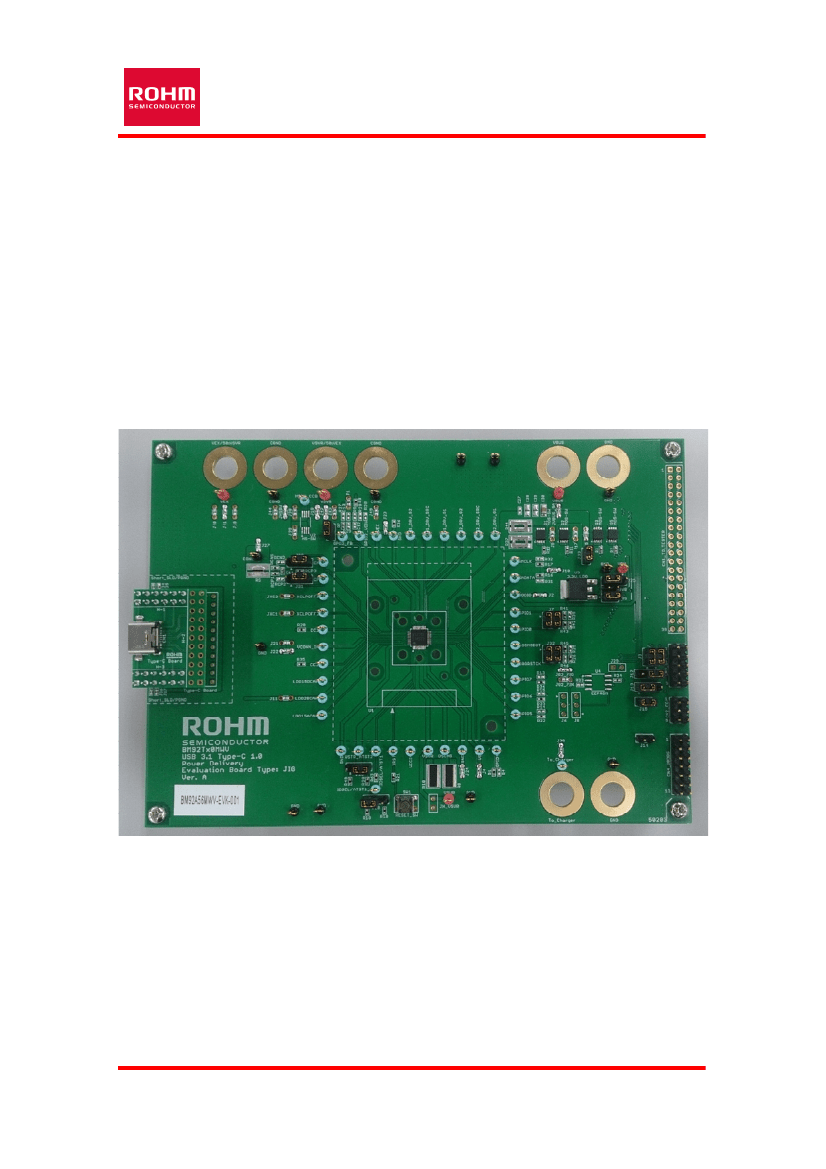

Figure1. Evaluation Board Photo
ROHM Co.,Ltd.
URL http://www.rohm.com
2/8
ROHM USB Type-C Power Delivery
Evaluation Board Manual
BM92A56MWV-EVK-001 Ver.1.00
Evaluation Board Circuit and Pin Explanation
VBUS
CC2
CC1
VEX
VSVR

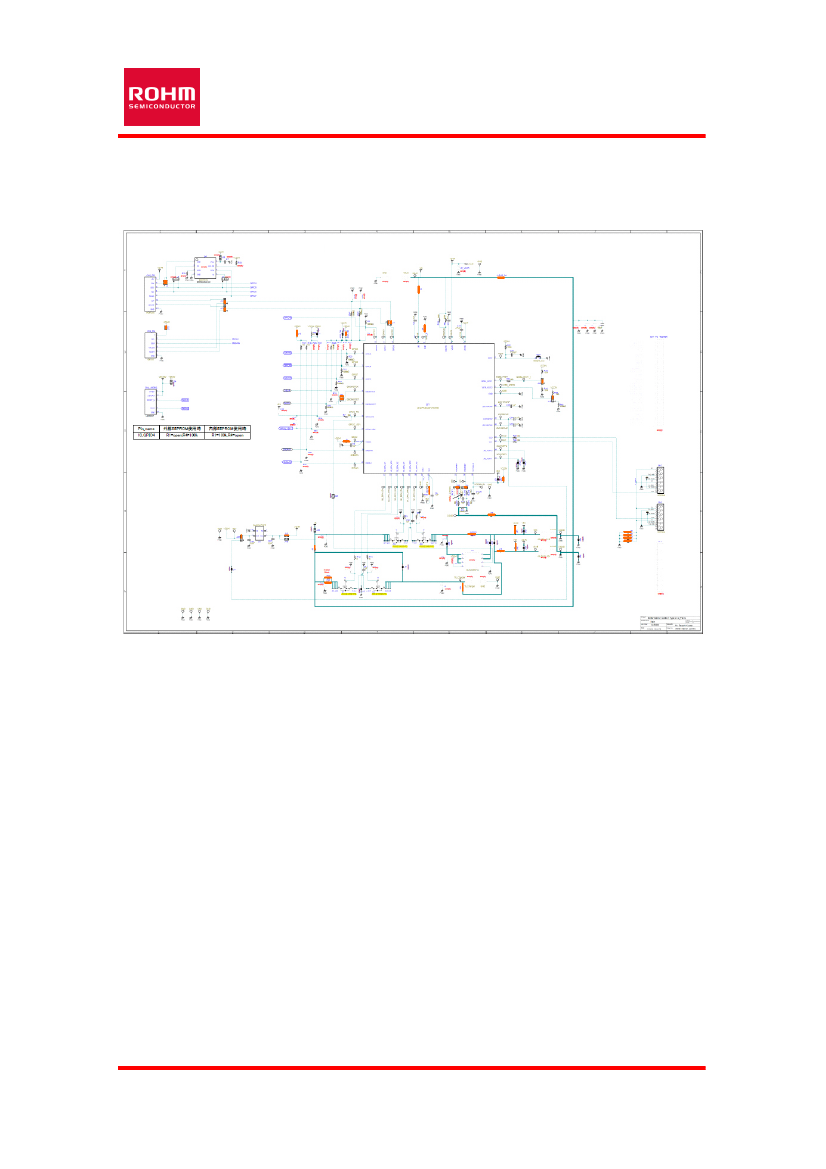

Figure2. Evaluation Board Circuit
ROHM Co.,Ltd.
URL http://www.rohm.com
3/8
ROHM USB Type-C Power Delivery
Evaluation Board Manual
BM92A56MWV-EVK-001 Ver.1.00
VEX
VSVR
VBUS
Type-C
Receptacle
CC1
CC2

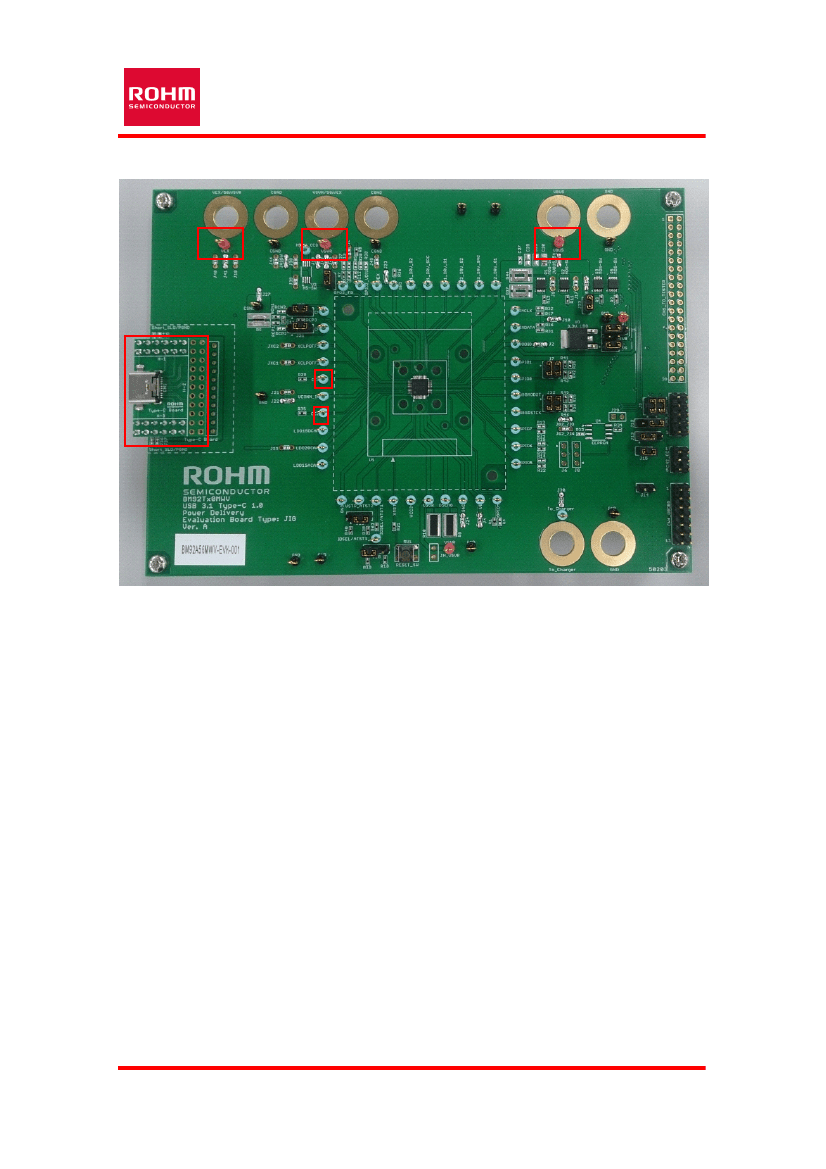

Figure3. Evaluation Board Photo
・VEX
pin:5V voltage input pin.
Although it is named VEX pin on the board, it is connected
to the VSVR pin of the PDIC.
・VSVR
pin:5V or 9V or 12V or 15V or 20V voltage input pin.
Although it is named VSVR pin
on the board, it is connected to the VEX pin of the PDIC.
・CC1,CC2
pin:You can monitor the communication waveform (BMC waveform) with USB
Power Delivery.
・VBUS
pin:It is connected to VB pin of PDIC and VBUS pin of Type-C Receptacle. You can
monitor the VBUS voltage to power the Sink side.
ROHM Co.,Ltd.
URL http://www.rohm.com
4/8
ROHM USB Type-C Power Delivery
Evaluation Board Manual
BM92A56MWV-EVK-001 Ver.1.00
How to use and evaluate
1. Please input 5V to VEX pin and 5V or 9V or 12V or 15V or 20V to VSVR pin of this
board.
5V
5V or 9V or 12V or 15V or 20V

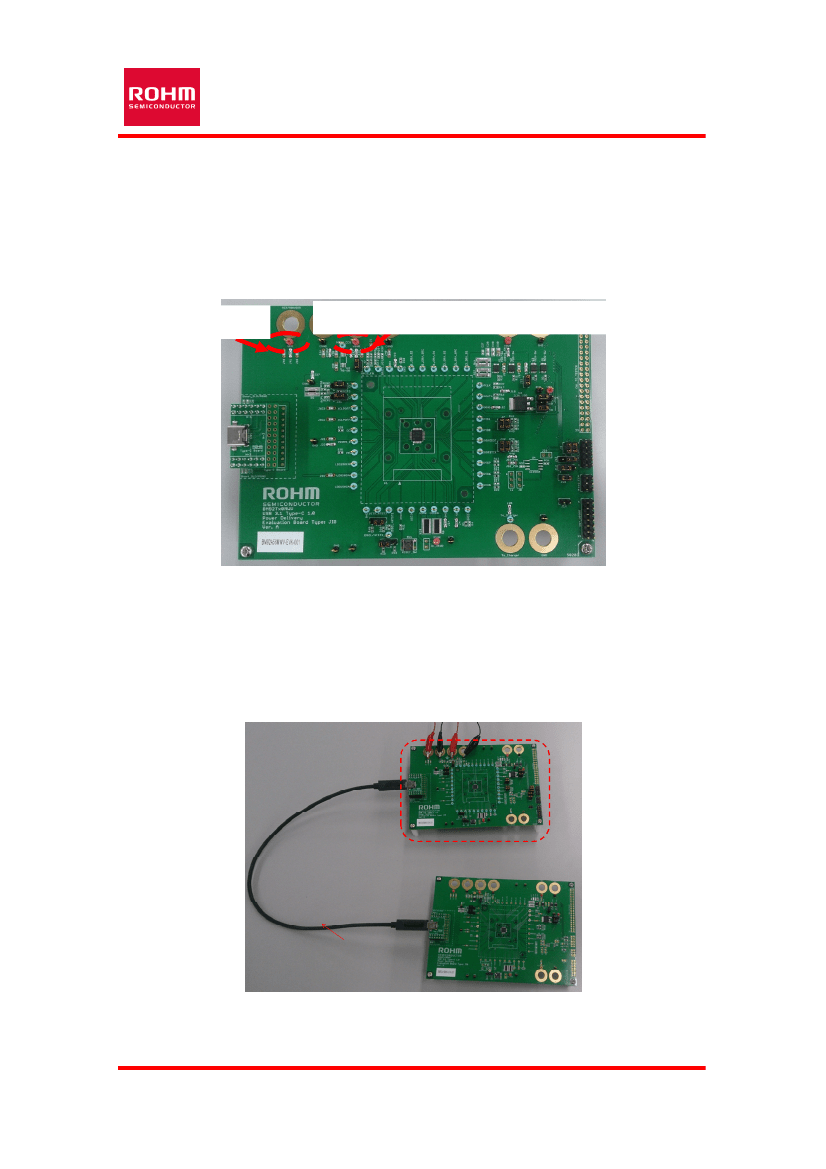

Figure4. Evaluation Board Photo
2. Please connect to capable of receiving power USB Type-C Power Delivery device with
Type-C dedicated cable.
The following is a picture connected to the
selling separately
BM92A15MWV-EVK-001.
BM92A56MWV-EVK-001
BM92A15MWV-EVK-001
Type-C Cable
Figure5. Device connection photo using Type-C cable
