SY100E171JC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> SY100E171JC

SY100E171JC: Description3-BIT 4:1 MULTIPLEXER; Categorylogic logic; File Size59KB，4 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com

Download Datasheet Parametric Compare View All

SY100E171JC Overview

3-BIT 4:1 MULTIPLEXER

SY100E171JC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microchip

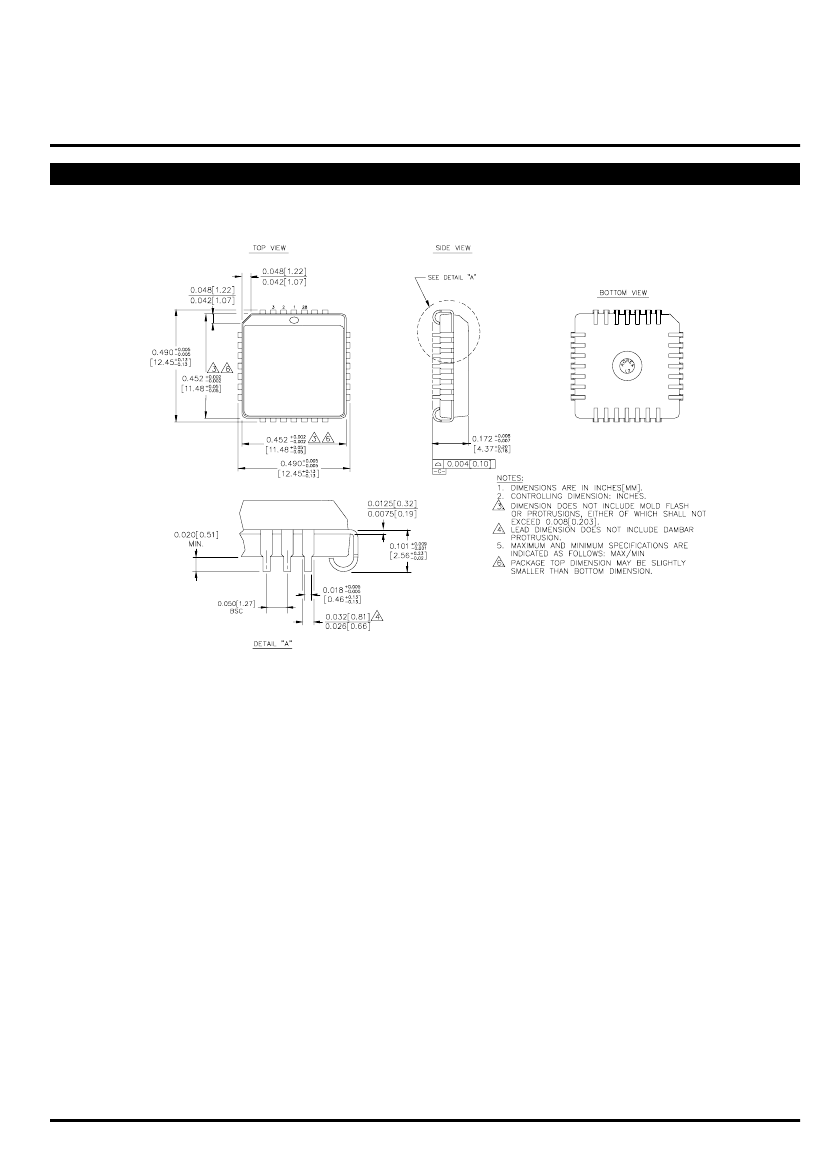

package instruction	PLASTIC, LCC-28
Reach Compliance Code	_compli
series	100E
JESD-30 code	S-PQCC-J28
JESD-609 code	e0
Logic integrated circuit type	MULTIPLEXER
Number of functions	3
Number of entries	4
Output times	1
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature
Output characteristics	OPEN-EMITTER
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC28,.5SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	-4.5 V
Maximum supply current (ICC)	77 mA
Prop。Delay @ Nom-Su	0.65 ns
propagation delay (tpd)	0.85 ns
Certification status	Not Qualified
surface mount	YES
technology	ECL
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD

Preview

Download Datasheet

View All

3-BIT 4:1

MULTIPLEXER

SY10E171

SY100E171

FEATURES

725ps max. D to output

Extended 100E V

range of –4.2V to –5.5V

Differential outputs

Split select architecture

Fully compatible with industry standard 10KH,

100K ECL levels

Internal 75K

Ω

input pulldown resistors

Fully compatible with Motorola MC10E/100E171

Available in 28-pin PLCC package

DESCRIPTION

The SY10/100E171 offer three 4:1 multiplexers with

differential outputs, designed for use in new, high-

performance ECL systems. The leading 4-bit multiplexer

operation is organized pairwise, with each pair being a 2-

bit multiplexer. Separate select (SEL

, SEL

) controls

are provided within each pair. The SEL

and SEL

signals control the leading multiplexers, while the SEL

signal controls the output multiplexer. The three select

signals can be used to determine which of the four data

inputs will be propagated to the corresponding outputs.

BLOCK DIAGRAM

2:1

MUX

SEL

PIN CONFIGURATION

CCO

2:1

MUX

SEL

2:1

MUX

SEL

25 24 23 22 21 20 19

SEL

10 11

CCO

2:1

MUX

SEL

TOP VIEW

PLCC

J28-1

2:1

MUX

SEL

2:1

MUX

SEL

2:1

MUX

SEL

PIN NAMES

–D

SEL

, SEL

SEL

–Q

CCO

Function

Data Inputs

First-stage Select Inputs

Second-stage Select Input

True Output

Inverted Output

to Output

CCO

Rev.: C

2:1

MUX

SEL

2:1

MUX

SEL

Amendment: /1

Issue Date: February, 1998

SY100E171JC Related Products

	SY100E171JC	SY10E171JCTR	SY10E171JC	SY10E171	SY100E171	SY100E171JCTR
Description	3-BIT 4:1 MULTIPLEXER	3-BIT 4:1 MULTIPLEXER	3-BIT 4:1 MULTIPLEXER	3-BIT 4:1 MULTIPLEXER	3-BIT 4:1 MULTIPLEXER	3-BIT 4:1 MULTIPLEXER
Is it Rohs certified?	incompatible	incompatible	incompatible	-	-	incompatible
package instruction	PLASTIC, LCC-28	PLASTIC, LCC-28	PLASTIC, LCC-28	-	-	PLASTIC, LCC-28
Reach Compliance Code	_compli	_compli	_compli	-	-	_compli
series	100E	10E	10E	-	-	100E
JESD-30 code	S-PQCC-J28	S-PQCC-J28	S-PQCC-J28	-	-	S-PQCC-J28
JESD-609 code	e0	e0	e0	-	-	e0
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	-	-	MULTIPLEXER
Number of functions	3	3	3	-	-	3
Number of entries	4	4	4	-	-	4
Output times	1	1	1	-	-	1
Number of terminals	28	28	28	-	-	28
Maximum operating temperature	85 °C	85 °C	85 °C	-	-	85 °C
Output characteristics	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	-	-	OPEN-EMITTER
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	-	-	COMPLEMENTARY
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	-	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	QCCJ	-	-	QCCJ
Encapsulate equivalent code	LDCC28,.5SQ	LDCC28,.5SQ	LDCC28,.5SQ	-	-	LDCC28,.5SQ
Package shape	SQUARE	SQUARE	SQUARE	-	-	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	-	-	CHIP CARRIER
power supply	-4.5 V	-5.2 V	-5.2 V	-	-	-4.5 V
Maximum supply current (ICC)	77 mA	67 mA	67 mA	-	-	77 mA
Prop。Delay @ Nom-Su	0.65 ns	0.65 ns	0.65 ns	-	-	0.65 ns
propagation delay (tpd)	0.85 ns	0.65 ns	0.65 ns	-	-	0.85 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	-	-	Not Qualified
surface mount	YES	YES	YES	-	-	YES
technology	ECL	ECL	ECL	-	-	ECL
Temperature level	OTHER	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	-	-	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	-	-	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND	J BEND	-	-	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	-	-	1.27 mm
Terminal location	QUAD	QUAD	QUAD	-	-	QUAD
