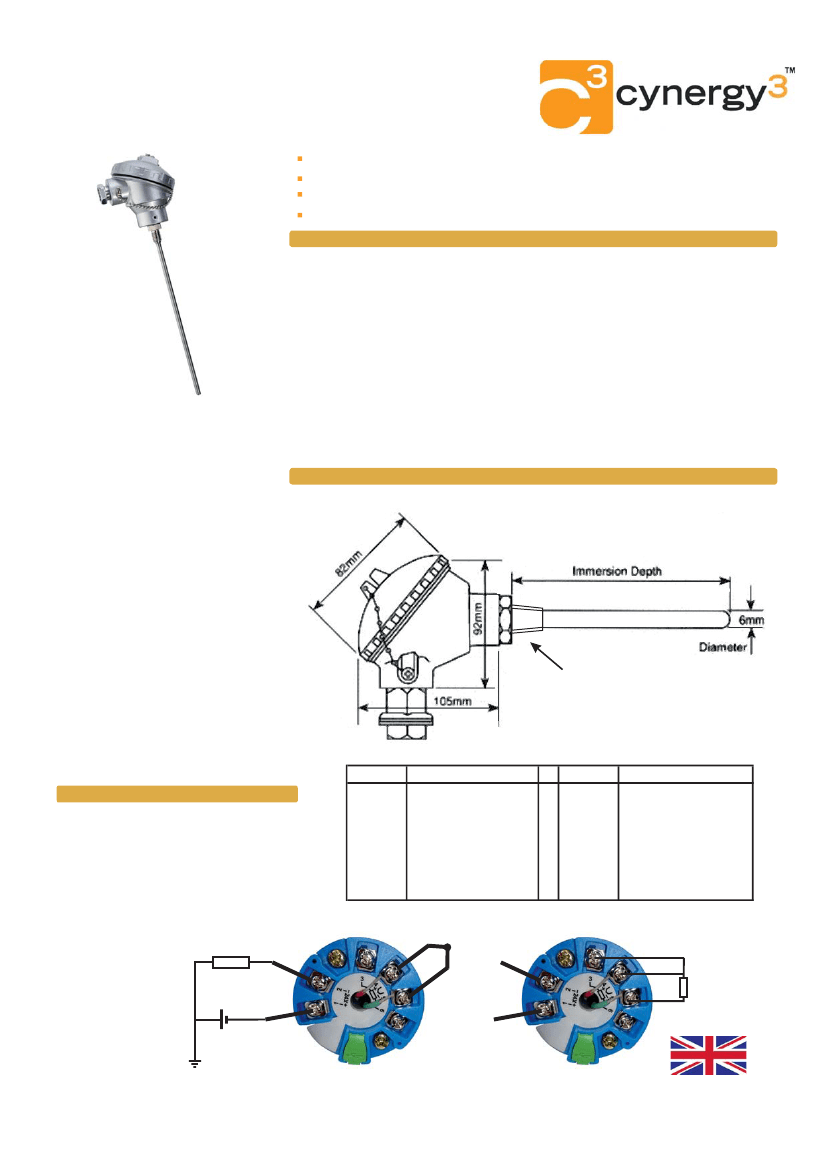

ITTU Series
Programmable Temperature Probes - Thermocouple
and PT100 Assemblies
K or J Type Thermocouples
PT100 RTD Sensors
4-20mA linearised output, configurable to application specific temperature range
6mm stainless steel sheath
Temperature Sensor Style
The standard sensor type is shown in the diagram below.
Standard products are factory configured as below:-
J-Type
0 to 1200
°
C = 4-20mA
K-Type
0 to 1350
°
C = 4-20mA
RTD type -200 to + +850
°
C = 4-20mA.
A free software download is available from the Cynergy3 website which enables the scaling of the
4-20mA output to be customised to suit your specific application*.
The sheath length ranges from 100mm to 400mm for the PT100 sensor version and from 150mm
to 400mm for the thermocouple sensor version. This style of thermocouple allows any standard
6mm compression fitting to be used, making it easy to fit the sensors to any process connection.
The head mounting thread is 1/4"NPT.
*Requires ICAB-1 USB to serial converter programmingcable
These temperature probe assemblies are all
constructed using a stainless steel sheath
containing either a J or K type thermocouple
or a P100 RTD sensor element.
The aluminium head contains a
programmable 4-20mA transmitter which,
although pre-programmed for the standard
temperature range of the sensor can be
changed by the user* so that the 4-20mA
output corresponds to any temperature
range within the sensors' capabilities.
A wide range of accessories can be chosen,
from plastic and metal cable glands to
compression fittings and stainless steel
pockets (not supplied).
Please contact our sales department with
details of the probe you are looking for and
we will give you a very competitive
quotation.
*Requires free software download and ICAB-1 cable
Connection Head
The dimensions of the standard aluminium connection head are shown below:
1/4"NPT mounting thread
Transmitter Technical Specification
Power Supply
12-35 Vdc 2-wire system
Output
4-20mA
Output LoadR
L
500
Ω
maximum, typically 250
Ω
Typical Accuracy
RTD overall 0.1%,
thermocouple overall 0.2%
Temperature Drift
≤
25 ppm/ °C FS
Op. ?ambient Temp -20 to +50 °C
Storage Temp
-40 to 120 °C
Part No.
ITTUP100A
ITTUP150A
ITTUP200A
ITTUP250A
ITTUP300A
ITTUP400A
Description
PT100 6x100mm 4-20mA
PT100 6x150mm 4-20mA
PT100 6x200mm 4-20mA
PT100 6x250mm 4-20mA
PT100 6x300mm 4-20mA
PT100 6x400mm 4-20mA
Part No.
ITTUJ200A
ITTUJ300A
ITTUJ400A
ITTUK150A
ITTUK200A
ITTUK300A
ITTUK400A
Description
J type 6x200mm 4-20mA
J type 6x300mm 4-20mA
J type 6x400mm 4-20mA
K type 6x150mm 4-20mA
K type 6x200mm 4-20mA
K type 6x300mm 4-20mA
K type 6x400mm 4-20mA
R
L
Cynergy3 Components Ltd.
7 Cobham Road
Ferndown Industrial Estate
Wimborne, Dorset BH21 7PE
Telephone +44 (0) 1202 897969
Email:sales@cynergy3.com
-
24Vdc
+
+
-
RTD
-
24Vdc
+
ISO
9001
C E R T I F I E D
ITTU 2018
THERMOCOUPLE
RTD 3-WIRE
Made in the UK
www.cynergy3.com
