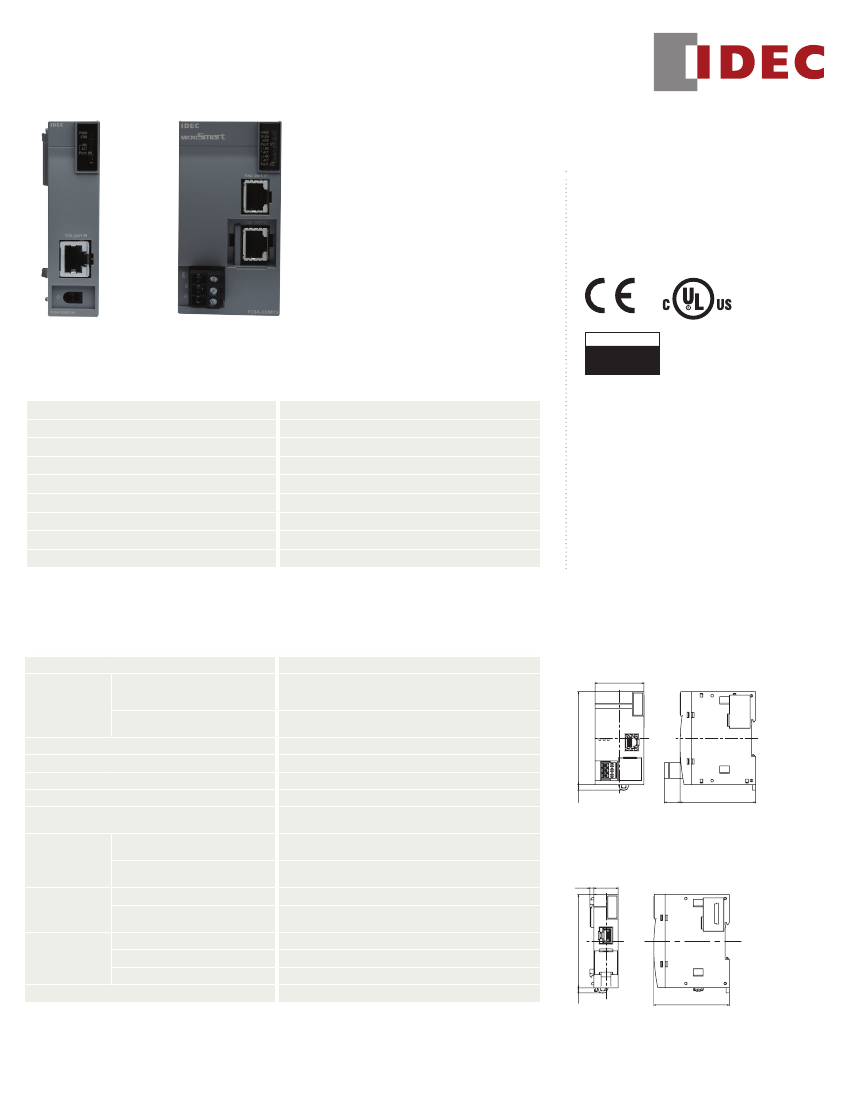

MicroSmart FC6A Plus PLC
Expansion Interface Module
KEY FEATURES
•
•
•
Easily expand FC6A digital and analog
I/O
Supports 1 master and up to 10 slave
modules
Uses standard RJ45 Ethernet cable
MASTER MODULE
SLAVE MODULE
FC6A PLUS EXPANSION INTERFACE MODULE
(MASTER MODULE) SPECIFICATIONS
Part No.
No. of Connectable CPU
No. of Connectable Slaves
Connector
Cable
Maximum Cable Length
Isolation from Internal Circuit
Power Consumption inside Module
Weight (approx.)
FC6A-EXM1M
Plus: 1
10
RJ45
CAT 5. STP
100m
Pulse transformer isolation
DC5V: 75mA
80g
ClassI Div2
Hazardous
Location
Note: When using an expansion interface module (separate master type), the no. of connectable expansion modules to the Plus CPU module is 5 maximum.
(13 max. modules when using an expansion interface (unibody type)
FC6A PLUS EXPANSION INTERFACE MODULE
(SLAVE MODULE) SPECIFICATIONS
Part No.
Between CPU module and expansion
interface module: Connectable I/O
modules
Beyond the expansion interface module:
Connectable I/O modules
Rated Power Voltage
Allowable Voltage Range
Maximum Power Consumption (*1) (External Power)
Allowable Momentary Power Interruption
Connectable Expansion Modules
Between internal circuits and power
supply
Between input circuits and
communication
Insertion/Removal Durability
Connector
Applicable Ferrules
Connector
Communication
Weight (approx.)
*1: Power consumption by the expansion interface module and seven I/O modules.
DIMENSIONS (mm)
FC6A-EXM1S
47.3
FC6A-EXM1S
7 maximum (224 I/Os maximum)
8 maximum (256 I/Os maximum)
24V DC
20.4 to 28.8V DC
24.5W
10ms minimum (24V DC)
Digital I/O Module
Analog I/O Module
Not isolated
Pulse transformer isolation
100 times minimum
1-wire: AI 0.5-10 (Phoenix Contact)
2-wire: AI-TWIN 2×0.5-10 (Phoenix Contact)
RJ45
CAT 5. STP
100m
5.1
90.0
I/O Expansion
5.1
90.0
15.2
73.0
Isolation from
Internal Circuit
FC6A-EXM1M
3.8
23.6
Cable
Maximum Cable Length
165g
73.0
IDEC Corporation
•
1175 Elko Drive
•
Sunnyvale, CA 94089
•
800-262-IDEC (4332)
•
Fax: 408-745-5258
•
www.IDEC.com/usa
©2017 IDEC Corporation. All Rights Reserved. FC9Y-DS300-0f 10/17 PDF Only
