FG7-01.GC160.01 datasheet, PDF

Datasheet> All Categories > accessories> FG7-01.GC160.01

FG7-01.GC160.01: DescriptionFUNCTIONAL HANDLE ALUMINUM/ NYLO; Categoryaccessories; File Size419KB，2 Pages; ManufacturerDavies Molding

Download Datasheet Parametric View All

FG7-01.GC160.01 Overview

FUNCTIONAL HANDLE ALUMINUM/ NYLO

FG7-01.GC160.01 Parametric

Parameter Name	Attribute value
type	Drawer type
high	3.110"（79.00mm）
Length - center to center	6.299"（160.00mm）
Thread/screw/hole size	M6
Material	aluminum
Installation type	screw holes, back

Preview

Download Datasheet

View All

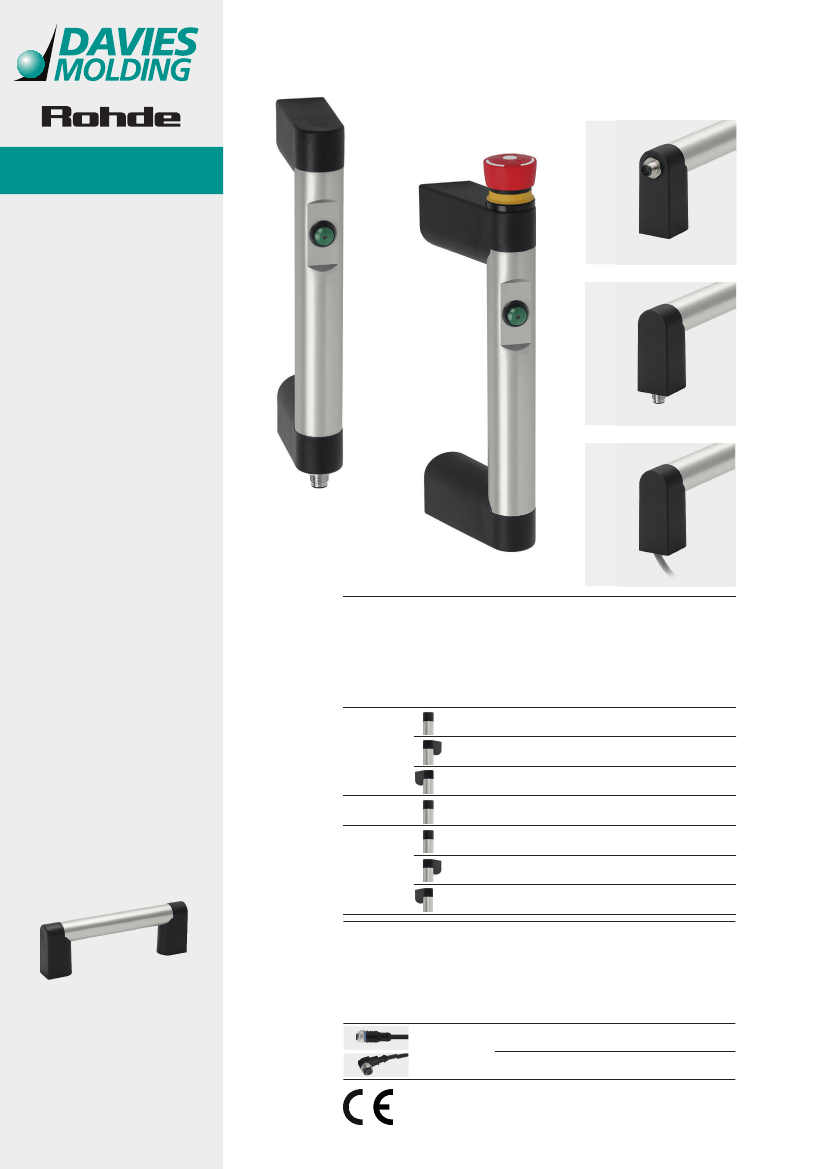

Typ FG7-04.R

with emergency stop

Connection

Handle Series FG7

Material and surface:

Handle ledge ø 30 x 5 mm

aluminium round tube

AlMgSi 0.5; fine ground and

natural coloured anodized.

Handle shanks of polyamide

PA 6, black with fine structure.

Function element:

1 Push buttons with LED.

Type FG7-04 with additional

emergency stop (2 NC con-

tacts).

Connection A:

Coupling positioned at the

tubular axle of the handle

ledge in the handle shank.

Connection B:

Coupling positioned at the

mounting surface of the handle

shank.

Connection C:

The 5 m connection cable is

guided out of the mounting

surface of the handle shank.

The connection A and C are

available with straight and

chamfer handle shanks, as left

and right-hand versions for use

with double doors.

Protection class:

IP 65 (for the versions A and B

with screwed coupling).

Note:

Coupling with 10 m ready

made cable available as

accessories. Other handle

lengths, anodized versions

and illuminated emergency

stop button on request.

Connection

straight

left

right

straight

left

right

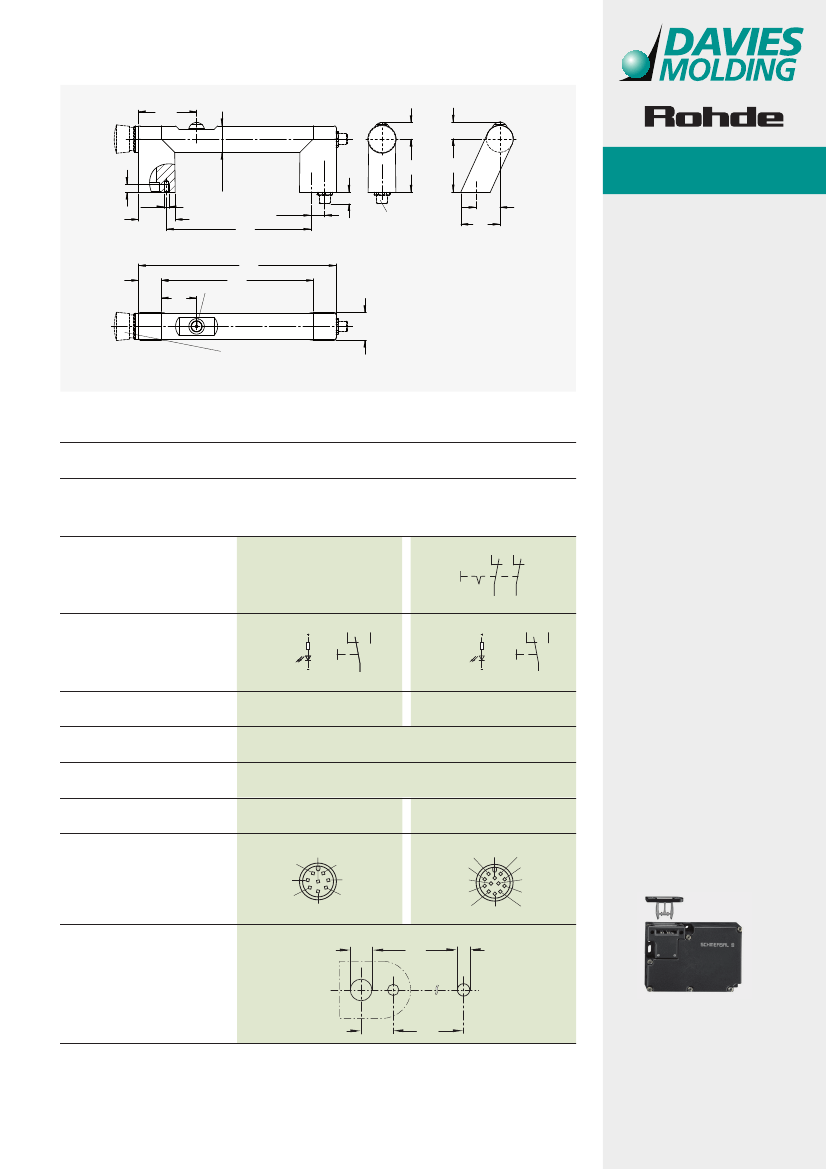

Typ FG7-01.G

Switching version

without emergency

stop, 1 push button

Order no.

FG7-01.GA160.01

FG7-01.LA160.01

FG7-01.RA160.01

FG7-01.GB160.01

FG7-01.GC160.01

FG7-01.LC160.01

FG7-01.RC160.01

Handle accessories

Coupling with cable

8-pole

(M12 x 1)

with emergency

stop, 1 push button

Order no.

FG7-04.GA160.01

FG7-04.LA160.01

FG7-04.RA160.01

FG7-04.GB160.01

FG7-04.GC160.01

FG7-04.LC160.01

FG7-04.RC160.01

12-pole

(M12 x 1)

Order no.

FZ-KS.G12.10

FZ-KS.W12.10

U7-30.G

Counter-handle without electri-

cal function elements s. p. 41.

10 m

Order no.

FZ-KS.G08.10

FZ-KS.W08.10

www.daviesmolding.com
