ENTUBE SE (500V 5V)

Description
VOLTAGE DIVIDER 500V IN 5V OUT
CategoryThe sensor
File Size285KB,1 Pages
ManufacturerVerivolt LLC
Environmental Compliance
Download Datasheet Parametric View All

ENTUBE SE (500V 5V) Overview

VOLTAGE DIVIDER 500V IN 5V OUT

ENTUBE SE (500V 5V) Parametric

Parameter NameAttribute value
typevoltage transmitter
input range±500V
output±5V
Response time-
Accuracy±0.2%
Voltage - Power-
Installation typeDIN rail
Terminal typespring terminal
Operating temperature-25°C ~ 70°C

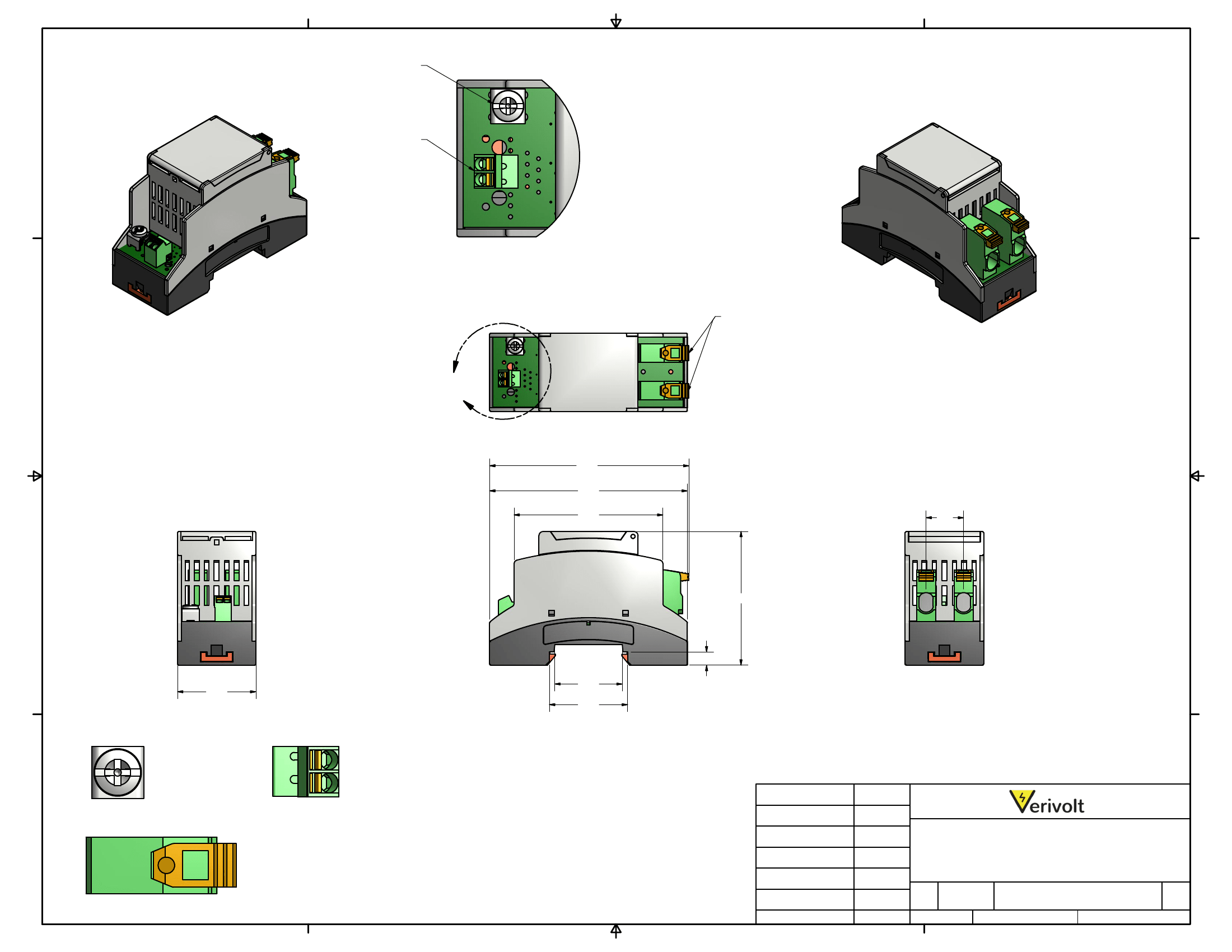

4
3
2
1
Ground lug
D
Signal output
D
DETAIL A
SCALE 2 : 1
Singal input
C
C
A
3.56
3.53
2.66
.67
B
2.39
B
1.40
1.20
1.40
.24
Ground lug
6/32 x 1/4L Screw
0.31" square surface
Brass, Nickel plate
Conductor cross section solid min.0.2 mm
Conductor cross section solid max.1.5 mm
Conductor cross section AWG min.24
Conductor cross section AWG max.16
Stripping length8 mm
DRAWN
J. Lizarazo
CHECKED
QA
31/05/2015
TITLE
A
Conductor cross section AWG min.24
Conductor cross section AWG max.10
Conductor cross section min.0.2 mm
Conductor cross section max.6 mm
Stripping length12 mm
Rated surge voltage (III/3)8 kV
A
MFG
APPROVED
Entube SE
SIZE
DWG NO
REV
C
SCALE
SHEET
1
OF
1
4
3
2
1
