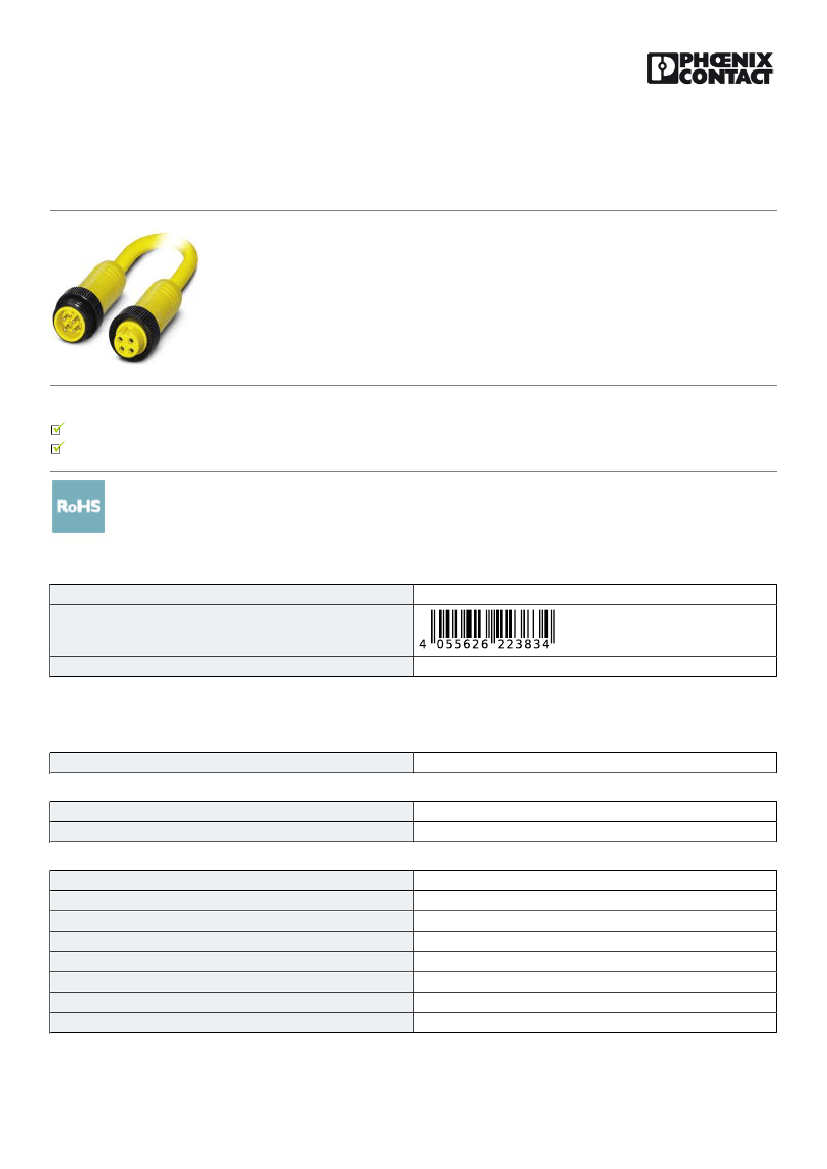

Power cable - SAC-4P-MINMS/10,0-U20/MINFS - 1416816
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Power cable, 4-position, PVC, yellow, Plug straight 7/8"-16UNF, A - standard, on Socket straight 7/8"-16UNF,
A - standard, cable length: 10 m
Your advantages
Easy and safe: 100% electrically tested plug-in components
High-performance: connectors and cables with a large conductor cross section for power supply
Key Commercial Data
Packing unit
GTIN
GTIN
4055626223834
1 pc
Technical data
Dimensions
Length of cable
10 m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-20 °C ... 105 °C (Plug / socket)
IP68
General
Rated current at 40°C
Rated voltage
Number of positions
Color handle area
Insulation resistance
Coding
Status display
10 A
600 V AC
600 V DC
4
yellow
≥ 100 MΩ
A - standard
No
10/25/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/1416816
Power cable - SAC-4P-MINMS/10,0-U20/MINFS - 1416816
Technical data
General
Protective circuit/component
Insertion/withdrawal cycles
Torque
Unwired
100
10 lb
f
-in.
1.12 Nm
Material
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
CuZn
AU
PVC
PVC
Anodized aluminum
Cable
Cable type
Cable abbreviation
AWG signal line
Conductor cross section signal conductor
Conductor cross section voltage supply
Wire colors
External sheath, color
External cable diameter
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Outer sheath, material
Conductor material
Nominal voltage, cable
Flame resistance
Resistance to oil
Other resistance
Ambient temperature (operation)
Yellow, STOOW
U20
16
4 x AWG 16
65 x AWG 32
Black 1, white 2, red 3, green 4
yellow
10.70 mm
4xD
12.5 x D
PVC
Bare Cu litz wires
600 V
UL 1581, FT2
Premium oil resistance (jacket and conductor)
UV resistant (720 h) UL 2556
-40 °C ... 105 °C (cable, fixed installation)
-30 °C ... 105 °C (cable, flexible installation)
Standards and Regulations
Flame resistance
Resistance to oil
Other resistance
UL 1581, FT2
Premium oil resistance (jacket and conductor)
UV resistant (720 h) UL 2556
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”

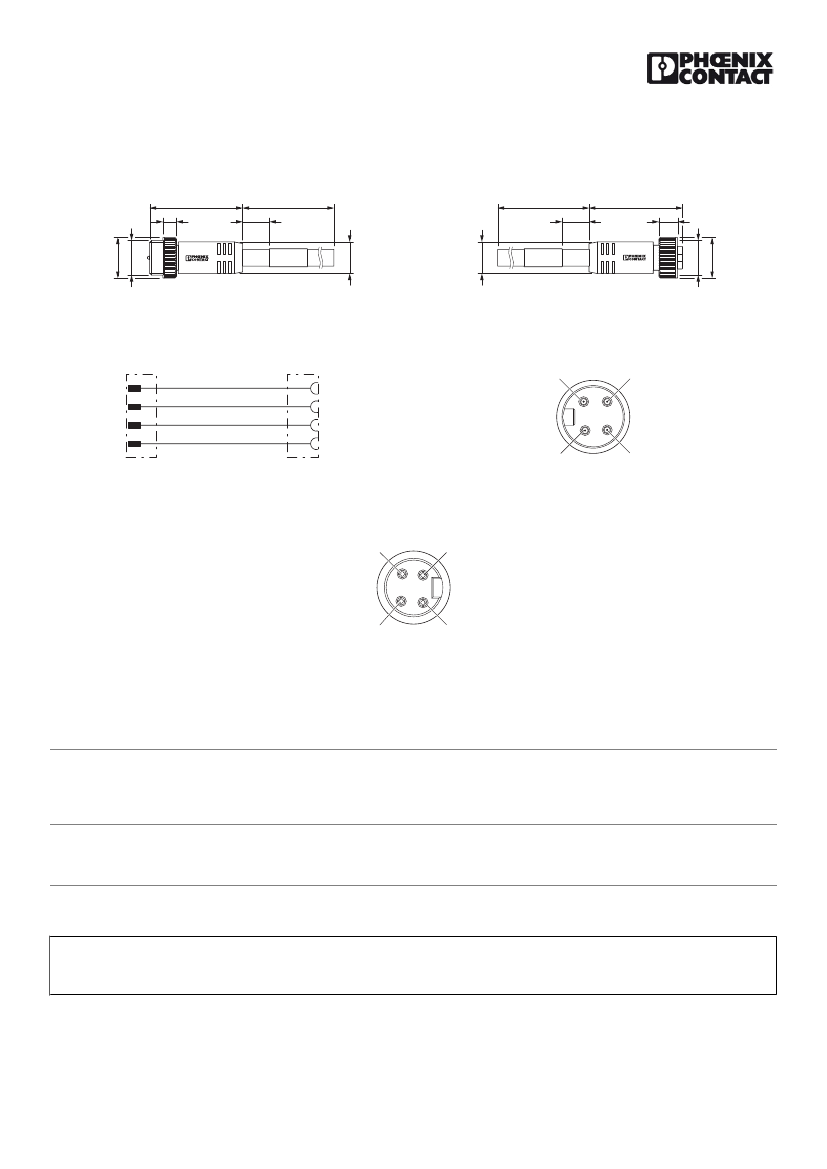

Drawings
10/25/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/1416816
Power cable - SAC-4P-MINMS/10,0-U20/MINFS - 1416816
Dimensional drawing
58,7
8,6
25-50
L
Dimensional drawing
L
25-50
59,4
11,9
7/8"-16 UN
7/8"-16 UN
Ø20,2
Ø25,5
Ø20,2
7/8"-16UNF plug, straight
7/8"-16UNF socket, straight
Circuit diagram
1
2
3
4
1 BK
2 WH
3 RD
4 GN
Schematic diagram
4
3
1
2
Contact assignment of 7/8" plugs/sockets
Pin assignment, plug, 7/8"-16UNF, 4-pos., view of male side
Schematic diagram
3
4
2
1
Pin assignment, socket, 7/8"-16UNF, 4-pos., view of female side
Approvals
Approvals
Approvals
UL Listed / cUL Listed / cULus Listed
Ex Approvals
Approval details
UL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 221474
10/25/2018 Page 3 / 4
Ø25,4
https://www.phoenixcontact.com/pi/products/1416816
Power cable - SAC-4P-MINMS/10,0-U20/MINFS - 1416816
Approvals
cUL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 221474
cULus Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
10/25/2018 Page 4 / 4
