MASW-007921
High Power GaAs SPDT Switch
DC - 7.0 GHz
Features
Ideal for high power SPDT switch applications
including WiMAX, WLAN, Mesh Networks, and
Fixed Wireless Access
Broadband Performance: DC - 7.0 GHz
Low Insertion Loss:
0.65 dB @ 3.5 GHz, RFC to T
X
0.70 dB @ 3.5 GHz, RCF to R
X
High P0.1dB Compression:
40 dBm @ 3V, 3.5 GHz, RFC to T
X
Fast Settling for Low Gate Lag requirements
Lead-Free 2 mm 8-Lead PDFN Package
100% Matte Tin Plating over Copper
Halogen-Free ―Green‖ Mold Compound
RoHS* Compliant and 260°C Reflow Compatible
Asymmetrical Design for optimized performance
Rev. V1
Functional Schematic
Pin 1
TX
N/C
N/C
RX
V
C
1
RFC
V
C
2
GND
Pin Configuration
3
Pin No.
1
2
3
4
5
6
7
8
9
Pin Name
T
X
N/C
N/C
R
X
GND
V
C
2
RFC
V
C
1
Paddle
4
Description
RF Output 1
No Connection
No Connection
RF Output 2
RF and DC Ground
Voltage Control 2
RF Common
Voltage Control 1
RF and DC Ground
Description
M/A-COM’s MASW-007921 is a broadband GaAs
pHEMT MMIC SPDT switch available in a lead-free
2 mm 8-lead PDFN package. The MASW-007921 is
ideally suited for applications where very small size
and high linearity are required.
Typical applications include WiMAX, WLAN, Mesh
networks, fixed wireless access, and other higher
power systems. This switch has a very high initial
compression point, ideal for complex modulations
such as OFDM, with large peak average power
levels.
The MASW-007921 is fabricated using a 0.5 micron
gate length GaAs pHEMT process. The process
features full passivation for performance and
reliability.
3. M/A-COM recommends connecting unused pins to ground.
4. The exposed pad centered on the package bottom must be
connected to RF and DC ground.
Absolute Maximum Ratings
5,6,7
Parameter
Input Power @ 5 V Control
(RFC to R
X
Path)
Absolute Maximum
+38 dBm
+40 dBm
Ordering Information
1,2
Part Number
MASW-007921-TR3000
MASW-007921-001SMB
MASW-007921-002SMB
Package
3000 piece reel
Sample Board
2.0 - 6.0 GHz Tuning
Sample Board
0.05 - 2.0 GHz Tuning
Input Power @ 5 V Control
(RFC to T
X
Path)
Voltage
Operating Temperature
Storage Temperature
8.5 volts
-40°C to +85
°
C
-65
°
C to +150
°
C
1. Reference Application Note M513 for reel size information.
2. All sample boards include 5 loose parts.
1
5. Exceeding any one or combination of these limits may cause
permanent damage to this device.
6. M/A-COM does not recommend sustained operation near
these survivability limits.
7. Maximum Input Power applies for 0.5 to 7.0 GHz range.
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MASW-007921
High Power GaAs SPDT Switch
DC - 7.0 GHz
Electrical Specifications: T
A
= 25°C, Z
0
= 50 Ω, V
C
= 0 V / 3 V, 4.7 pF Capacitor
8,9
Parameter
Insertion Loss RFC to R
X
Test Conditions
0.05 - 2 GHz
10
2.4 GHz
3.5 GHz
5.8 GHz
0.05 - 2 GHz
10
2.4 GHz
3.5 GHz
5.8 GHz
0.05 - 2 GHz
10
2.4 GHz
3.5 GHz
5.8 GHz
DC - 6.0 GHz
10 MHz Spacing, +20 dBm
2.4 GHz
3.5 GHz
5.8 GHz
10 MHz Spacing, +20 dBm
2.4 GHz
3.5 GHz
5.8 GHz
10 MHz Spacing, +20 dBm
2.4 GHz
3.5 GHz
5.8 GHz
10 MHz Spacing, +20 dBm
2.4 GHz
3.5 GHz
5.8 GHz
2.4 GHz
3.5 GHz
5.8 GHz
2.4 GHz
3.5 GHz
5.8 GHz
10% to 90% RF
90% to10% RF
50% control to 90% and
50% control to 10% RF
Units
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dBm
dBm
dBm
dBm
dBm
dBm
dBm
dBm
dBm
dBm
dBm
dBm
dBm
dBm
dBm
dBm
dBm
dBm
nS
nS
nS
mV
µA
Min.
—
—
—
—
—
—
—
—
—
21
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Typ.
0.5
0.6
0.70
0.8
0.5
0.65
0.65
1.2
27
25
26
30
15
102
99
84
104
101
88
59
57
51
62
58
52
38
37
39
38
40
39
21
18
40
100
2.0
Max.
—
0.85
—
—
—
0.85
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
10.0
Rev. V1
Insertion Loss RFC to T
X
Isolation
Return Loss
Input IP2 R
X
Input IP2 T
X
Input IP3 R
X
Input IP3 T
X
Input P0.1dB R
X
Input P0.1dB T
X
Trise, Tfall
Ton, Toff
Transients
Control Current
8. For positive voltage control, external DC blocking capacitors are required on all RF ports.
9. Performance can be optimized by varying the DC blocking capacitor value. See application schematic for details.
10. 0.05 - 2.0 GHz specifications apply with 1000 pF blocking capacitors. See applications section for typical data.
2
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support

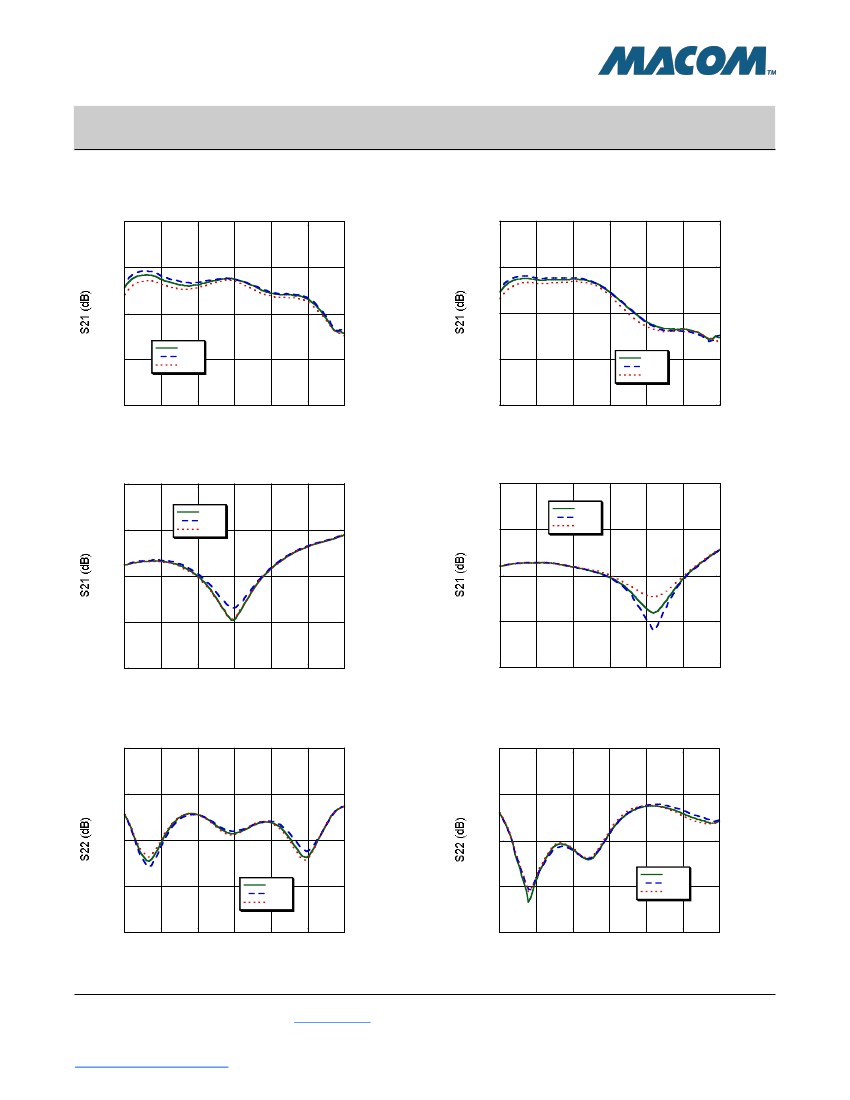

MASW-007921
High Power GaAs SPDT Switch
DC - 7.0 GHz
Application Schematic
11
TX
C1
Rev. V1
Truth Table
12,13
V
C
1
RFC
C2
Control
V
C
1
1
0
Control
V
C
2
0
1
RFC - TX
On
Off
RFC - RX
Off
On
N/C
N/C
RX
C3
V
C
2
GND
12. Differential voltage, V (state 1) - V (state 0), must be
+2.7 V minimum and must not exceed 8.0 V.
13. Positive Control: 1 = +2.9 V to +8 V, 0 = 0 V + 0.2 V.
Negative Control: 1 = 0 V + 0.2 V, 0 = -2.9V to –8.0 V.
Qualification
Qualified to M/A-COM specification REL-201,
Process Flow –1.
Frequency
0.05 - 2.0 GHz
2.4 - 2.5 GHz
2.0 - 6.0 GHz
4.9 - 7.0 GHz
Recommended Value
C1 - C3
1000 pF
8 pF
4.7 pF
1.5 pF
Handling Procedures
Please observe the following precautions to avoid
damage:
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
devices.
11. M/A-COM recommends connecting unused package pins
(N/C) to ground as shown.
4
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:

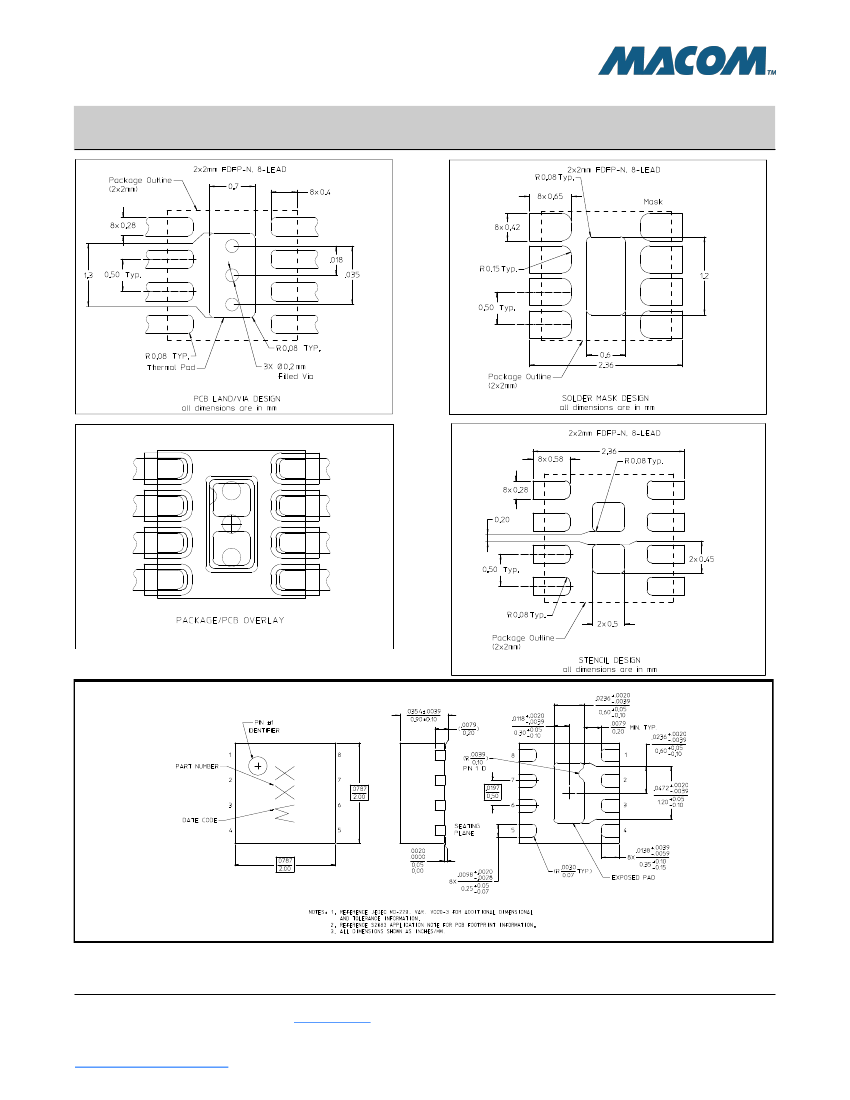

https://www.macom.com/support
