Wall-Mount EnclosurEs
CONCEPT ENClOsurEs
concEPt, tYPE 4 and 12
16 or 14 gauge steel
Seams continuously welded and ground smooth
Corner-formed doors
Simple easy-to-remove and install hinge pins with captivation clip
High-torque threadless studs and fasteners on door
Minimum-width body flange provides maximum door opening
Door opens 210 degrees
External formed body flange
Panel mounting studs fit optional CONCEPT panels and other
accessories
•
Mounting holes in back of body for direct mounting or optional
external mounting brackets
•
Removable door with hidden hinges for clean, aesthetic
appearance
•
Seamless foam-in-place gasket
•
Quarter-turn slotted latch(es)
•
Door alignment device on doors wider than 30 in.
•
Four hinges on 60-in.-high enclosures
•
Grounding stud on body; bonding provision on door (except
window-door models)
•
Provisions on door for optional high-impact thermoplastic data
pocket
•
Hardware kit with panel mounting nuts, panel grounding hardware
and sealing washers
•
Installation instructions provided
single-door and Window-door Models:
•
3-point latch system on enclosures with height equal to or greater
than 42-in. with quarter-turn, slotted latch
Flush-Mount Models:
•
Mounting frame extends completely around enclosure
two-door Models:
•
Overlapping door design provides full-width access
•
Three-point latch system on right-hand hinged door with quarter-
turn, slotted latch
•
•
•
•
•
•
•
•
•
sPEciFications
Wall-mounting brackets required to maintain UL/CSA external
mounting requirement.

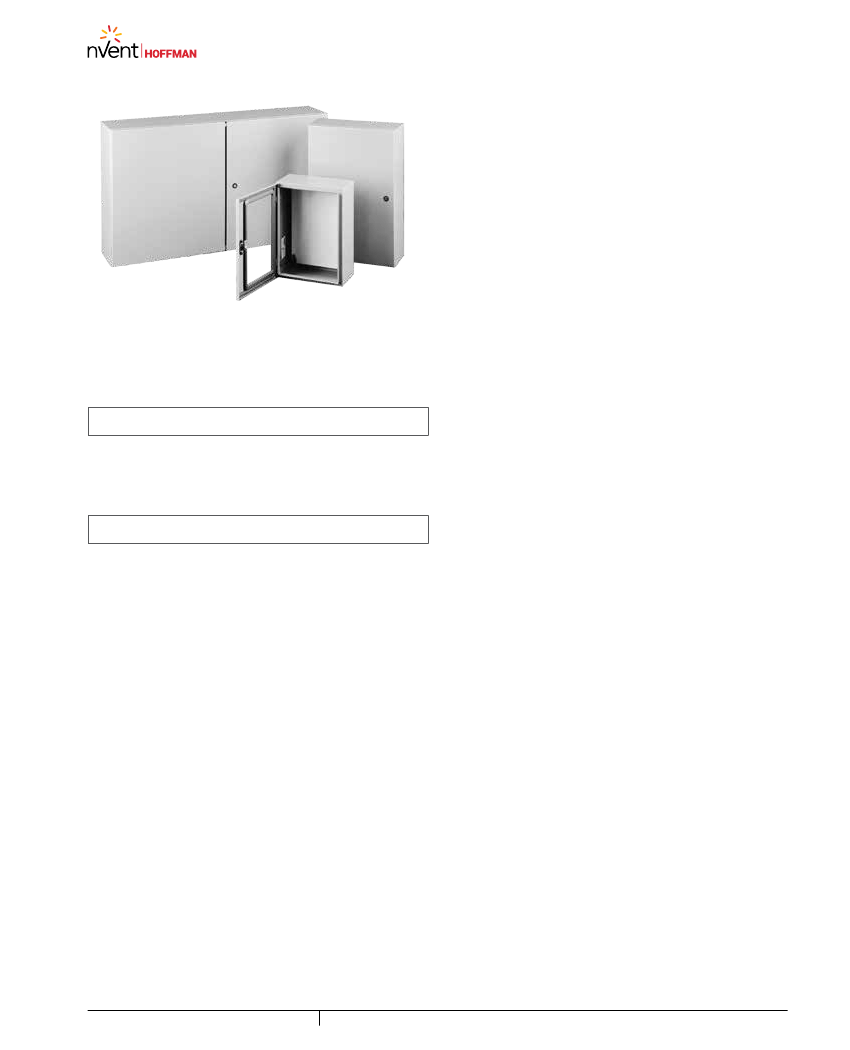

Concept solid single-door, door with window and flush-mount
models
UL 508A Listed; Type 4, 12; File No. E61997
cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. E61997
NEMA/EEMAC Type 4, 12, 13
CSA, File No. 42186: Type 4, 12
VDE IP66
IEC 60529, IP66
Concept two-door models
UL 508A Listed; Type 12; File No. E61997
cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997
NEMA/EEMAC Type 12
CSA, File No. 42186, Type 12
VDE IP 55
IEC 60529, IP55
industrY standards
Two standard finishes are available: ANSI 61 gray or RAL 7035
textured light-gray polyester powder paint inside and out.
FinisH
Concept Panels
Door Stop Kit
aPPlication
Handles
Concept Enclosures are ideal for machine control applications. With Lock Inserts
Mounting-Bracket Kits
streamlined styling, flush quarter-turn latches and an attractive,
durable finish. Available in solid or window single-door and two-door
Padlock Insert
landscape, flush-mount and sloped-top versions for application and
Padlock Handle
HF Side-Mount Filter Fans
mounting flexibility. Two-door landscape models provide full-width
access and easy panel installation.
accEssoriEs
Hoffman excels at modifying and customizing products to
your specifications. Contact your local Hoffman sales office or
distributor for complete information.
BULLETIN: CW1
ModiFication and custoMiZation
1
Mild stEEl
