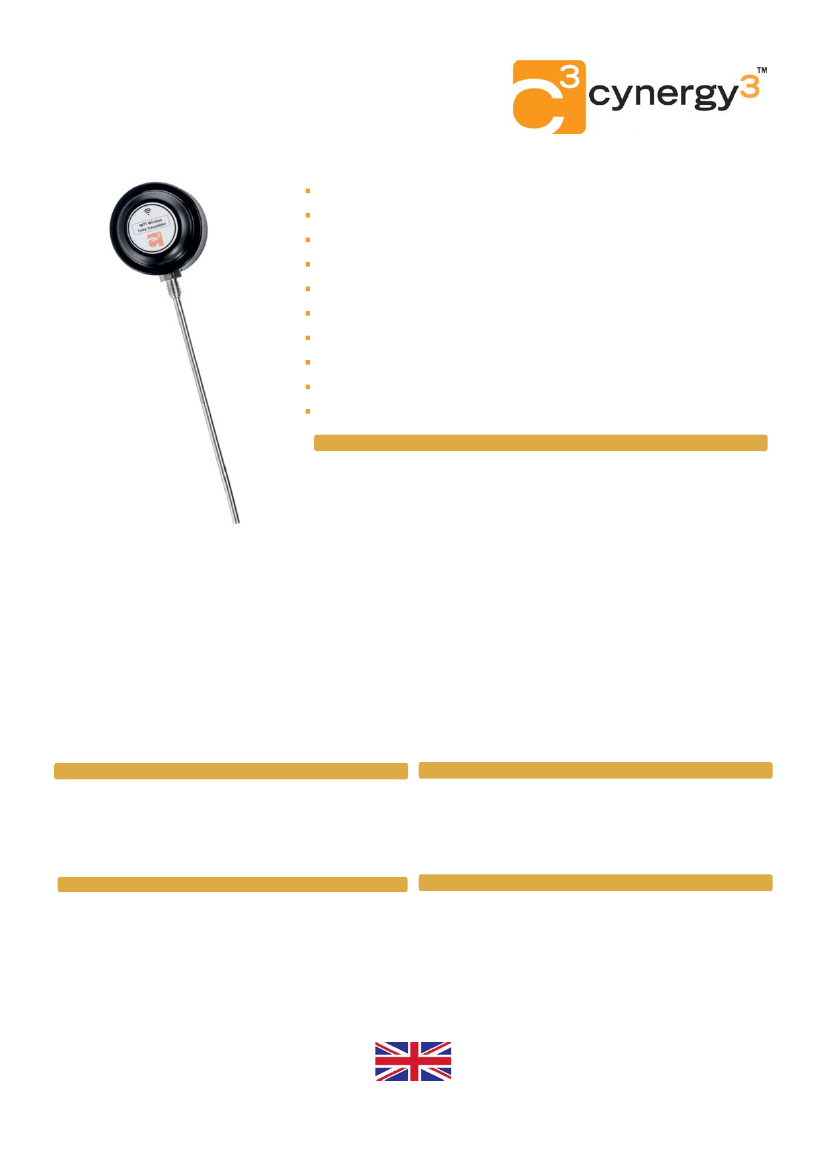

IWTTU Series
Industrial Wireless Temperature Transducer
K or J Type Thermocouples
PT100 RTD Sensors
6mm stainless steel sheath
Up to 750m line-of-site range (depending on receiver)
Five year battery life at 10 second transmission update rate
Simple DIL switch pairing with the single or five channel receiver
Single or five channel receivers available
User-selectable transmission update rates
User-selectable 1-5V or 4-20mA receiver outputs
Receiver clean contacts provide process alarm functions
DESCRIPTION
The IWTTU Wireless Temperature Transducer is a cost effective replacement to a
traditionally wired temperature transducer that offers the advantages of a low-cost
installation in inaccessible and expensive installation environments.
It is easily paired to the compatible IWR family of single- or five-channel wireless
receivers thus offering a “plug and play” solution to your temperature measurement
applications.
The instrument uses either J or K type thermocouples or 3-wire RTD sensors fitted to an
acetal housing giving excellent media compatibility for the harshest of applications.
Compression fittings are available which allow the head to be orientated in the required
direction.
The IWTT sensor should be used with either an IWR-1 or IWR-5 receiver. A line-of-sight
range of up to 750m is possible depending on the wireless receiver used (refer to
datasheets IWR-1 & IWR-5 for further information).
TYPICAL APPLICATIONS INCLUDE:-
-
Simple cable replacement installation
–
dispense with expensive cable runs
-
Environmental monitoring
– pumping stations,
sewage plants, water treatment
-
Facilities management
– boiler rooms, plant
hydraulics, plant pneumatics
-
Asset monitoring
– tanks farms, process
plants, HVAC and building management
-
Service Contract
– temporary installation for
servicing and field trials
Each device is temperature compensated, calibrated and supplied with a traceable
serial number.
System Performance
Transmitter Temperature Ranges
Accuracy (Non-Linearity & Hysteresis) <±0.1% / FS
Standard products are factory configured as below:-
Temperature Coefficent
±500ppm/
°
C
J-Type
0 to 1200
°C
= 4-20mA
K-Type
0 to 1350
°
C = 4-20mA
RTD type -200 to + +850
°
C = 4-20mA.
Transmitter Output
*Transmission Frequency
Transmit Power
System Channel
Antenna
*Compliant with EN 300 328, V1.8.1
2.4 Ghz
18 dBm
User selectable via DIL switch
Integral 0dBi
Instrument Power Source
Battery Type
Battery Life
Battery Shelf Life
User replaceable Lithium C cell
Five years at 10 second update
rate
10 years
Cynergy3 Components Ltd.
Ferndown Industrial Estate
7 Cobham Road
Wimborne, Dorset BH21 7PE
Telephone +44 (0) 1202 897969
Email:sales@cynergy3.com
ISO
9001
C E R T I F I E D
IWTTU 2017
Made in the UK
www.cynergy3.com
© 2017 Cynergy3 Components, All Rights Reserved. Specifications are subject to change without prior notice. Cynergy3 Components and the Cynergy3 Components logo are trademarks of Cynergy3 Components Limited.
IWTTU Series
Industrial Wireless Temperature Transducer
Material Specifications
Probe sheath
“O” ring seals
Wireless Enclosure Material
Weight
**Installation position
316 Stainless Steel
Viton
Acetal
300g typical including battery
Any
Temperatures & Thermal Effects
Media Temperature
Ambient Temperature
Storage Temperature
Thermal Span Shift
-200ºC to +1350ºC
-20ºC to +80ºC
-20ºC to +80ºC
<±0.05% /ºC typical
** Consult installation manual to ensure adequate signal path between transmitter and receiver
Receiver Output Signals (requires either IWR-1 or IWR-5 receiver)
Outputs
1-5V or 4-20mA per channel
Single Channel Receiver
IWR-1 (see data sheet)
Five Channel receiver
IWR-5 (see data sheet)
Alarm Output
5 Amp rated changeover contacts
***Transmission Update Rate 1, 5, 10 and 30 seconds
*** Consult installation manual for set-up:
- single channel system is DIL switch configurable
- five channel system requires set-up using “IWR Set” user software
Mechanical Stability
See user manual
Ordering Codes:-
Temperature Transducer
Spare battery
Single Channel Receiver
Five Channel Receiver
Five Channel Configuration Software
See table below
IBAT-1
IWR-1
IWR-5
IWR-Set (free download*)
*Download user configuration software here: -
http://www.cynergy3.com/cookie-
download/file/nojs/12901/10766/config
Part No.
IWTTUP100A
IWTTUP150A
IWTTUP200A
IWTTUP250A
IWTTUP300A
IWTTUP400A
Description
PT100 6x100mm 4-20mA
PT100 6x150mm 4-20mA
PT100 6x200mm 4-20mA
PT100 6x250mm 4-20mA
PT100 6x300mm 4-20mA
PT100 6x400mm 4-20mA
Part No.
IWTTUJ200A
IWTTUJ300A
IWTTUJ400A
IWTTUK150A
IWTTUK200A
IWTTUK300A
IWTTUK400A
Description
J type 6x200mm 4-20mA
J type 6x300mm 4-20mA
J type 6x400mm 4-20mA
K type 6x150mm 4-20mA
K type 6x200mm 4-20mA
K type 6x300mm 4-20mA
K type 6x400mm 4-20mA

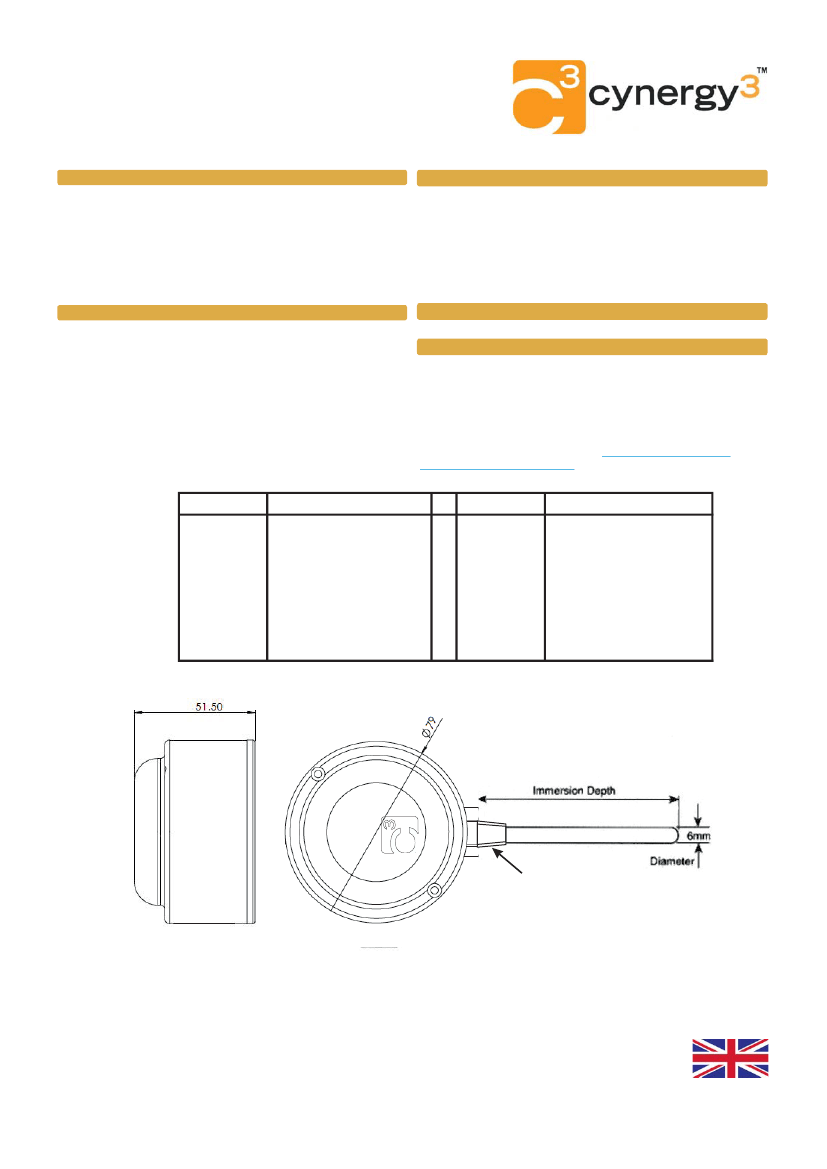

Mechanical Dimensions
1/4"NPT mounting thread
Cynergy3 Components Ltd.
7 Cobham Road
Ferndown Industrial Estate
Wimborne, Dorset BH21 7PE
Telephone +44 (0) 1202 897969
Email:sales@cynergy3.com
ISO
9001
C E R T I F I E D
Made in the UK
© 2017 Cynergy3 Components, All Rights Reserved. Specifications are subject to change without prior notice. Cynergy3 Components and the Cynergy3 Components logo are trademarks of Cynergy3 Components Limited.
