L
FG

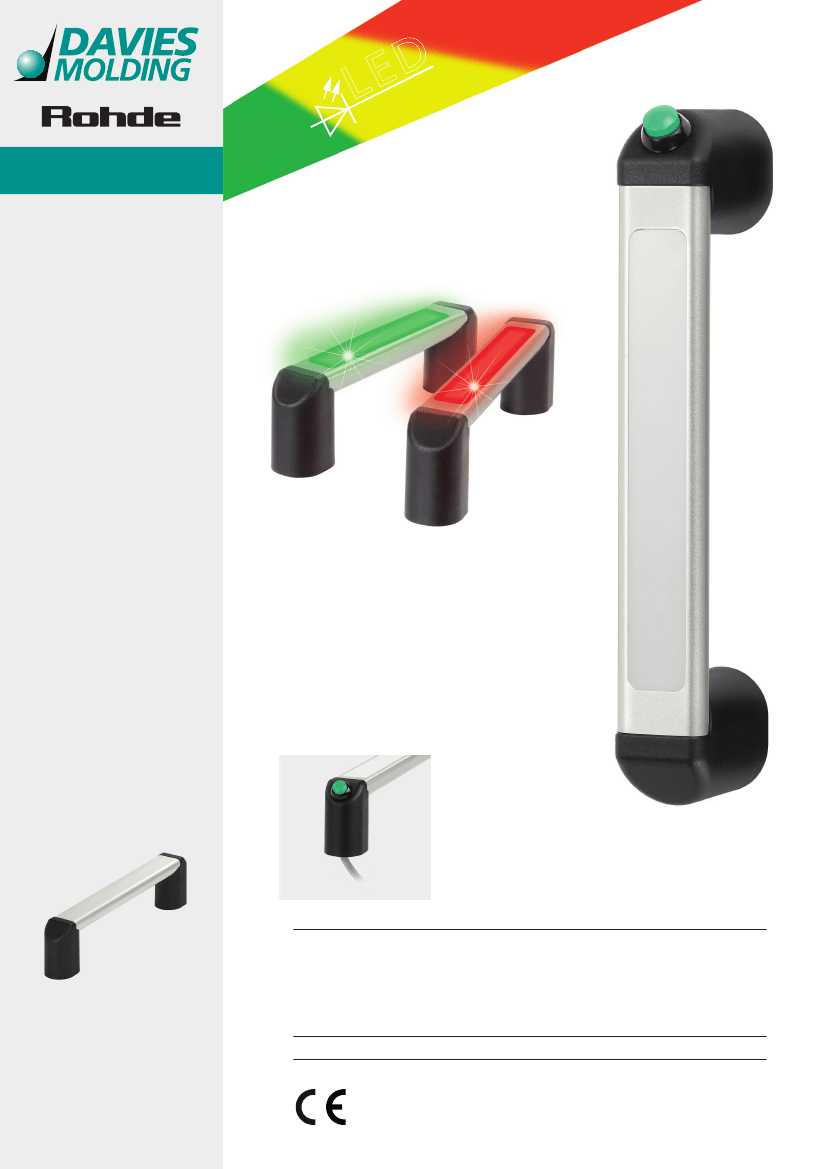

Handle Series FG12-LH
Compact functional handle
with a three-coloured illumina-
table handle ledge. The LED
colours red, yellow and green
can be used to display the cur-
rent operating status of the
machine for example.
Material and surface:
Handle shanks made of poly-
amide PA 6, black with a fine
structure.
Handle ledge made of extruded
oval-profiled aluminium AlMgSi
0.5; glass ball blasted and
anodized in natural colour.
Illuminatable plastic insert
made of translucent PMMA.
Function elements:
One push button, as a change-
over contact.
Connection:
5 m connection cable leading
out of the mounting surface
of the handle shank.
Version with an 8-pole con-
nector on request.
Protection class:
IP 65.
Note:
Other handle lengths and
switching element assign-
ments, as well as white
handle ledge lighting on
request.
D
E

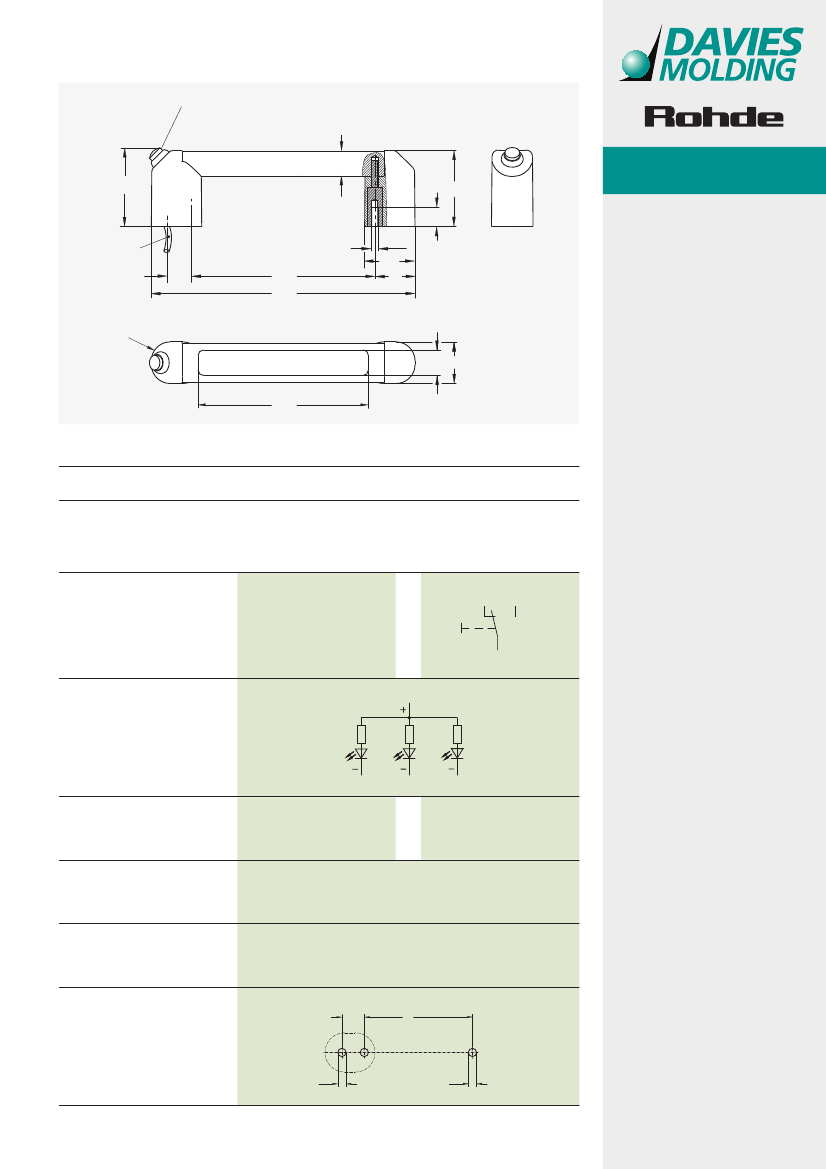

Typ FG12-LH10
Connection
Typ FG12-LH11
Typ
FG12-LH10
without push button,
with LED-illumination
FG12-LH11
with push button and
with LED-illumination
Order no.
FG12-LH11.165.11
VM-02
Counter-handle without any
electrical funktion elements,
see page 35.
A
*
165
L
232
Order no.
FG12-LH10.165.11
*
Other handle lengths on request
