FLLD4200ATHT7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> FLLD4200ATHT7

FLLD4200ATHT7: DescriptionLINE FILTER 200A CHASS MNT; CategoryAnalog mixed-signal IC filter; File Size88KB，1 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

FLLD4200ATHT7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FLLD4200ATHT7	-	-	View	Buy Now

FLLD4200ATHT7 Overview

LINE FILTER 200A CHASS MNT

FLLD4200ATHT7 Parametric

Parameter Name	Attribute value
Maker	KEMET
Reach Compliance Code	compliant
Other features	RATED VOLTAGE OF 305V ALSO AVAILABLE
Certification	IEC; EN; UL
filter type	THREE PHASE EMI FILTER
high	170 mm
high potential	2250 V
Maximum leakage current	11 mA
length	280 mm
Installation type	PANEL MOUNT
working frequency	50-60Hz Hz
Maximum operating temperature	100 °C
Minimum operating temperature	-25 °C
method of packing	BULK
physical size	L280.0XB140.0XH170.0 (mm)/L11.024XB5.512XH6.693 (inch)
Rated current	200 A
Rated voltage	530 V
width	140 mm

Preview

Download Datasheet

View All

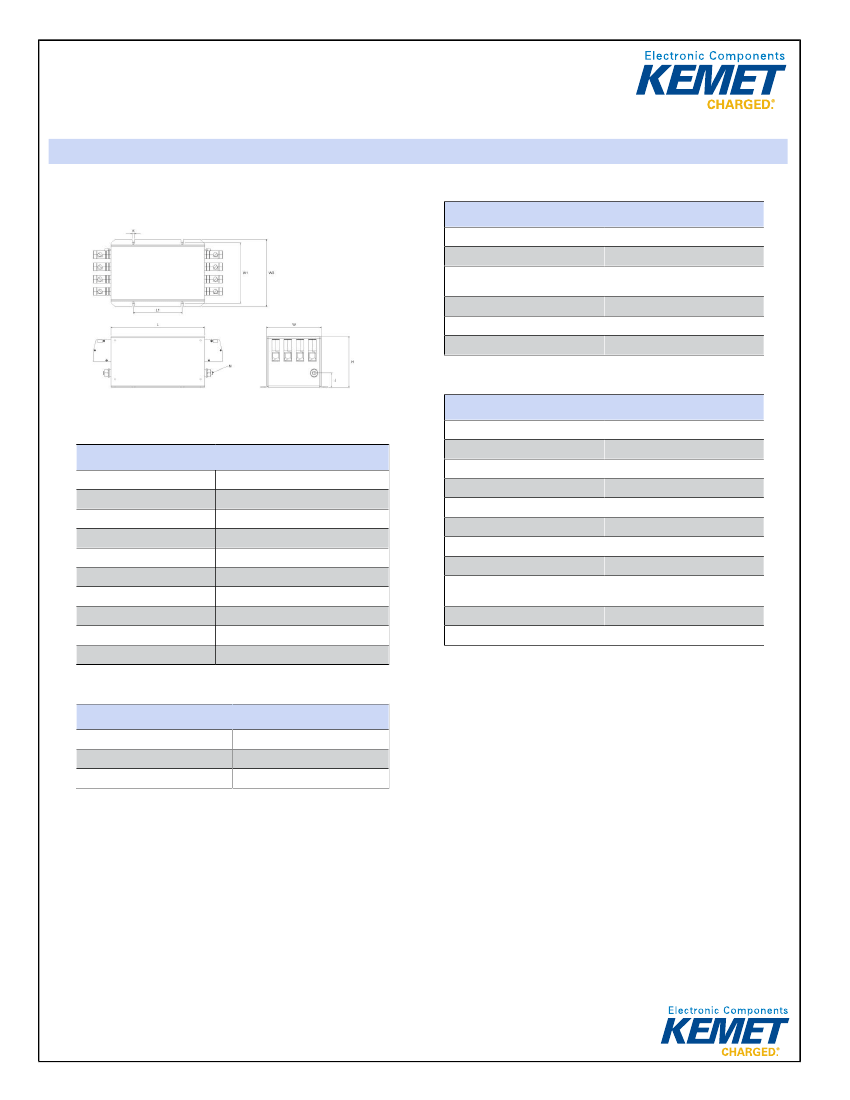

KEMET Part Number: FLLD4200ATHT7

KEMET, FLLD4-TH, EMI Filters, Three Phase, 520 VAC, 200 A, 280x140x170mm

General Information

Series:

Style:

Description:

Features:

RoHS:

Qualifications:

FLLD4-TH

Chassis Mount

EMI Filter, Classis Mount,

Compact

High Performance

Yes

IEC/EN 60939

Specifications

Voltage AC:

520 VAC, 300 VAC

50-60 Hz

200 A (50C)

50C

-25/+100C

25/100/21

2250 VDC

3000 VDC

2250 VDC (Test P to P), 3000

VDC (Test P to E)

45 W (25C 50 Hz)

11 mA

Dimensions

M (Earth)

Lead

280mm NOM

140mm NOM

170mm NOM

230mm NOM

153.5mm NOM

170mm NOM

50mm NOM

6.5mm NOM

Threaded Studs M10

Rated Frequency:

Ripple Current:

Rated Temperature:

Temperature Range:

Climate Category:

Test Voltage DC (P to P):

Test Voltage DC (P to E):

Voltage:

Power Loss:

Leakage Current:

Packaging Specifications

Packaging:

Packaging Quantity:

Weight:

Bulk

6.1 kg
