Encoder Signal Broadcaster
FEATURES
Broadcasts signals from a single encoder to
four independent receivers
Signal processing modules (pulse converter,
integer countdown, anti-dither) can be added
to each output for additional capabilities
Accepts all standard input voltages and
types: single ended, differential and open
collector
Signals are optically isolated for high noise
immunity
Compact package saves installation costs
BEI ELECTRONIC MODULES
The BROADCASTER accepts standard incremental encoder inputs, (two channels in quadrature plus an
index and complements) and can broadcast up to four encoder signals to four independent devices. Each
of the broadcast signals is optically isolated eliminating ground loops. This compact package also allows
for signal processing options, such as anti-dither filter, integer countdown or pulse and direction outputs, to
be incorporated into each of the four broadcast signals independently. The broadcaster is ideal for driving
multiple receivers from a single encoder in applications like electronic line shafting or synchronization of
multiple devices to a single operation.
The module accepts signals of 5, 12-15 and 24 VDC and provides three output options: V
out
= V
in
, V
out
= 5
V or NPN open collector. The compact package mounts to standard EN 50 022 35mm X 7.5mm DIN rail
and is 142mm wide, 78mm deep and 45mm above the DIN rail. A 155mm section of DIN rail is included.

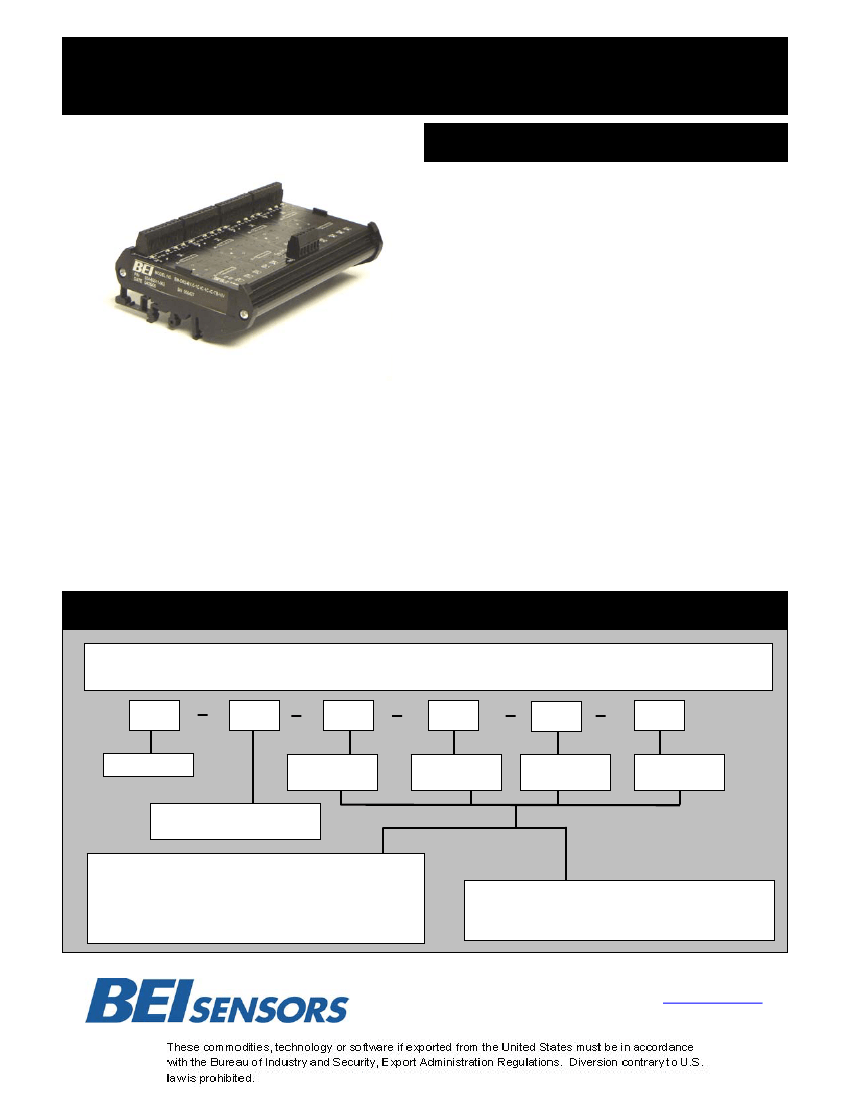

BROADCASTER ORDERING OPTIONS
For assistance, call 800-350-2727 (ASAP)
Use this diagram to construct your model number.
Example: BX-5-IC/V-IC/V-P2/5-P2/5
BX
Broadcaster
5
IC/V
Function for
Channel 1
IC/V
Function for
Channel 2
P2/5
Function for
Channel 3
P2/5
Function for
Channel 4
Output Voltage from Encoder:
5, 15, 24
Choose one for each channel:
DB = Divide By, selectable integer value 1-256
AD= Anti-Dither
Px = Pulse Up/Down where x = multiple, either 1, 2, or 4
PxD = Pulse Direction where x = multiple, either 1, 2, or 4
IC = Isolation Circuit (Standard)
Output Voltage/Type:
/V = Multivoltage 5-28 Volts in, V
out
= V
in
/5 = Multivoltage 5-28 Volts in, V
out
= 5V regulated
/OC = Multivoltage 5-28 Volts in, Vout = Open Collector
Tel:805-968-0782
/ 800-350-2727 |
Fax:
805-968-3154 / 800-960-2726
7230 Hollister Ave., Goleta, CA 93117 |
www.beisensors.com
Specification No. 02097-001 Rev. 06/11

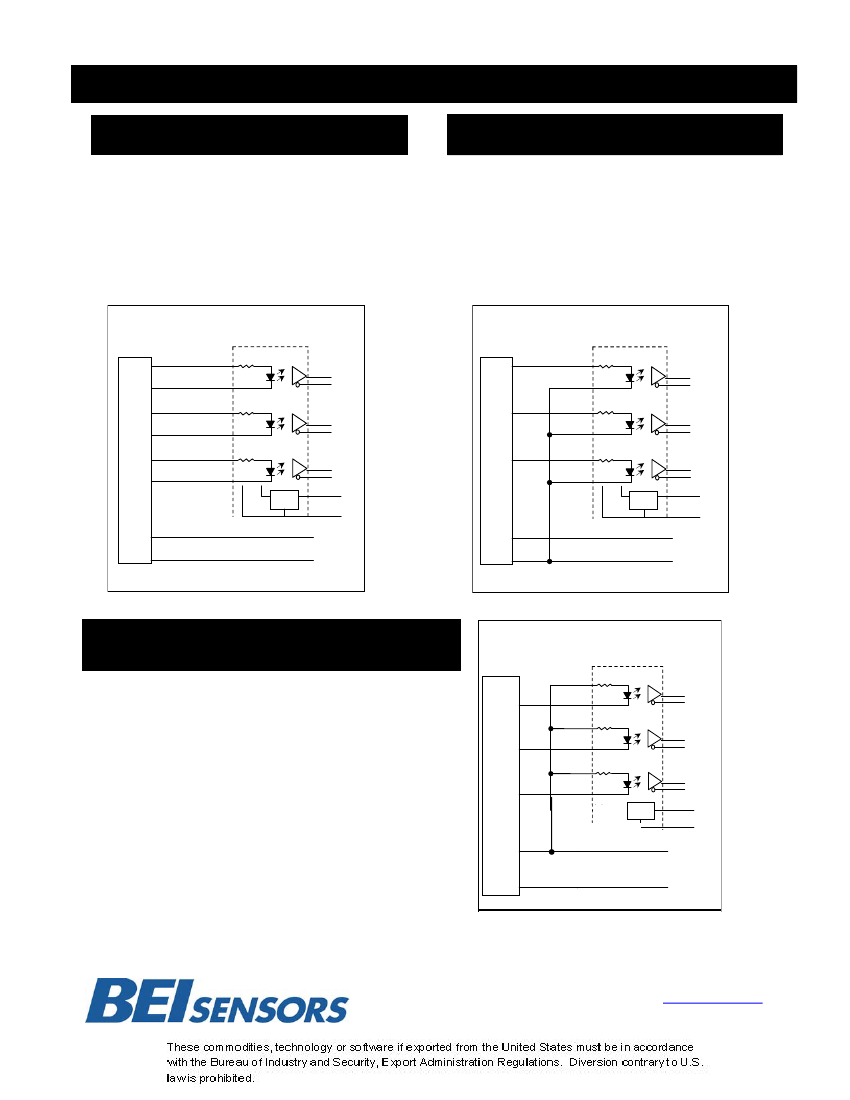

CONNECTION INSTRUCTIONS (for Isolated Circuit and Anti-Dither Functions)
Differential Line Driver (See Figure 1)
Encoder signals from 5 VDC to 24 VDC (must
specify the voltage when ordering)
This is the preferred type of encoder output as it
has the best noise immunity. Connect each
encoder signal to its like input (A to A, A/ to A/,
etc).
Figure 1
Standard Connection to
Broadcaster Module
Optical Isolator Module
AA
A/ A/
BB
B/ B/
ZZ
Z/ Z/
REG
+V
0V
Encoder Differential Line Driver Output
B
B/
Z
Z/
Single Ended Line Driver (See Figure 2)
Encoder signal from 5 VDC to 24 VDC (must specify
the voltage when ordering)
Connect broadcaster A to optical isolator module input
channel A, B to B and Z to Z. Connect the A/, B/, and
Z/ inputs of the optical isolator to circuit common of
the encoder supply. Single ended operation is limited
to shorter cable runs and is more susceptible to noise.
Figure 2
Connection Diagram
Single Ended Line Driver
A
A
A/
BB
B/
ZZ
Z/
B
B/
Z
Z/
REG
+V
0V
Encoder Single Ended Line Driver Output
O
Broadcaster
ptical Isolator
A
A/
O
Broadcaster
ptical Isolator
A
A/
+V
VS
0V
+V
0V
+V
VS
0V
+V
0V
Encoder
Supply
Open Collector with or without Internal Pull-
up Resistors (See Figure 3)
Figure 3
Connection Diagram
Open Collector to
Broadcaster
le
Optical Modu
Broadcaster
Optical Isolator
A
A or A/
A/
B
B or B/
B/
Z
Z or Z/
Z/
AUX
5V
REG
B
B/
Z
Z/
VS
+V
0V
+V
+V
Optical Regulation
Encoder
Power Supply
0V
Encoder Open Collector Output
A
A/
Encoder NPN (sinking) outputs.
Connect encoder output A to optical isolator module
input A/, B to B/ and Z to Z/. Connect the A, B, and Z
inputs of the broadcaster to the positive encoder supply
line. This connection results in a logic inversion within
the broadcaster module. To compensate for the logic
reversal, swap A for A/, B for B/, and Z for Z/ at the
broadcaster outputs.
0V
Tel
:805-968-0782 / 800-350-2727 |
Fax:
805-968-3154 / 800-960-2726
7230 Hollister Ave., Goleta, CA 93117 |
www.beisensors.com
Specification No. 02097-001 Rev. 06/11

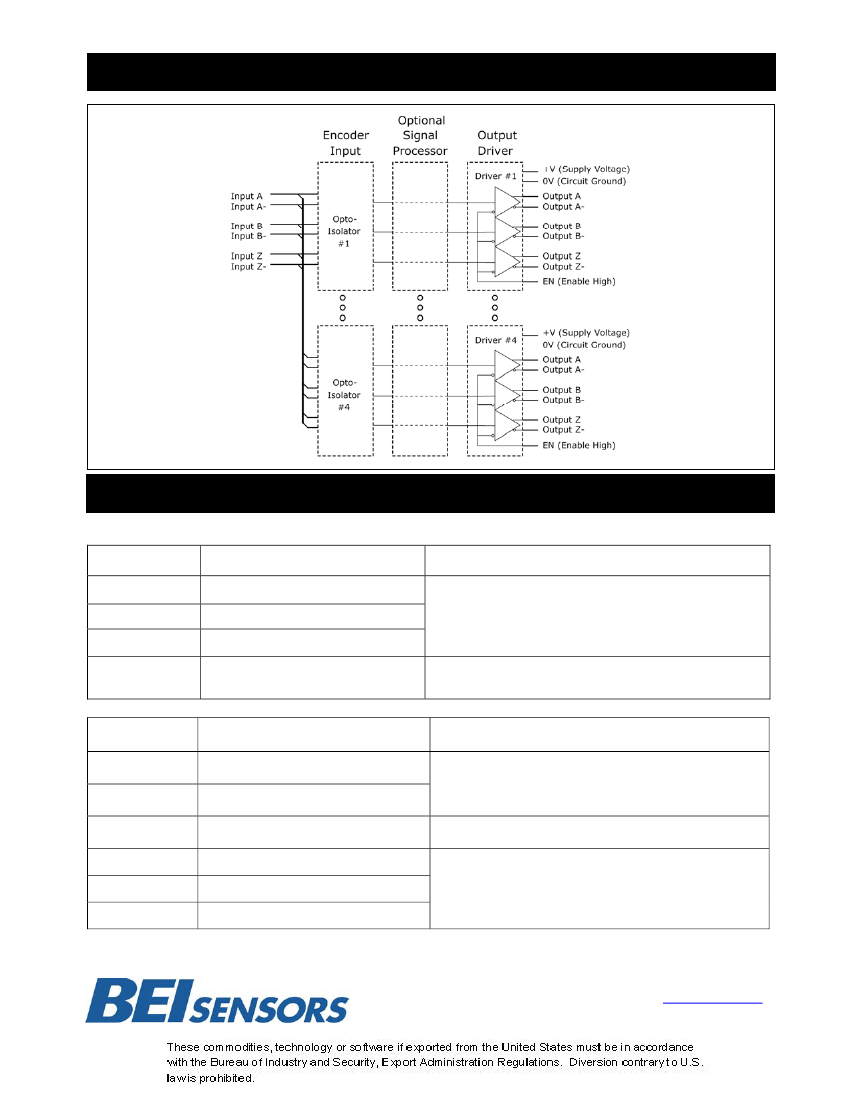

BROADCASTER BLOCK DIAGRAM
TERMINATION PINOUTS
ENCODER SIDE
PIN
A, A/
B, B/
Z, Z/
T1, T2, T3
DESCRIPTION
Channel A Inputs
Channel B Inputs
Channel Z Inputs
Uncommitted Terminals
NOTES
Input levels consistent with specified value in model
number (5 V, 15 V, 24 V).
Signal input current 25 mA nom.
See BEI OIM Applications Guide for single ended
and open collector connection diagrams
Non-committed terminals. Provided for use as
connection points for encoder power.
NOTES
Supply lines between driver sections are not
connected. Driver must be powered in order to
produce an output. Supply voltage need not be the
same for different driver sections.
HI = Output Active, LO = High Impedance Internal
pull-up to V+
Output levels consistent with driver type and supply
voltage (V/V outputs).
DRIVER SIDE
PIN
+V
0V
EN
A, A/
B, B/
Z, Z/
DESCRIPTION
Power supply 5 – 28 VDC
125 mA + load current typ.
Power supply common
Output Enable
Channel A Outputs
Channel B Outputs
Channel Z Outputs
Tel:805-968-0782
/ 800-350-2727 |
Fax:
805-968-3154 / 800-960-2726
7230 Hollister Ave., Goleta, CA 93117 |
www.beisensors.com
Specification No. 02097-001 Rev. 06/11

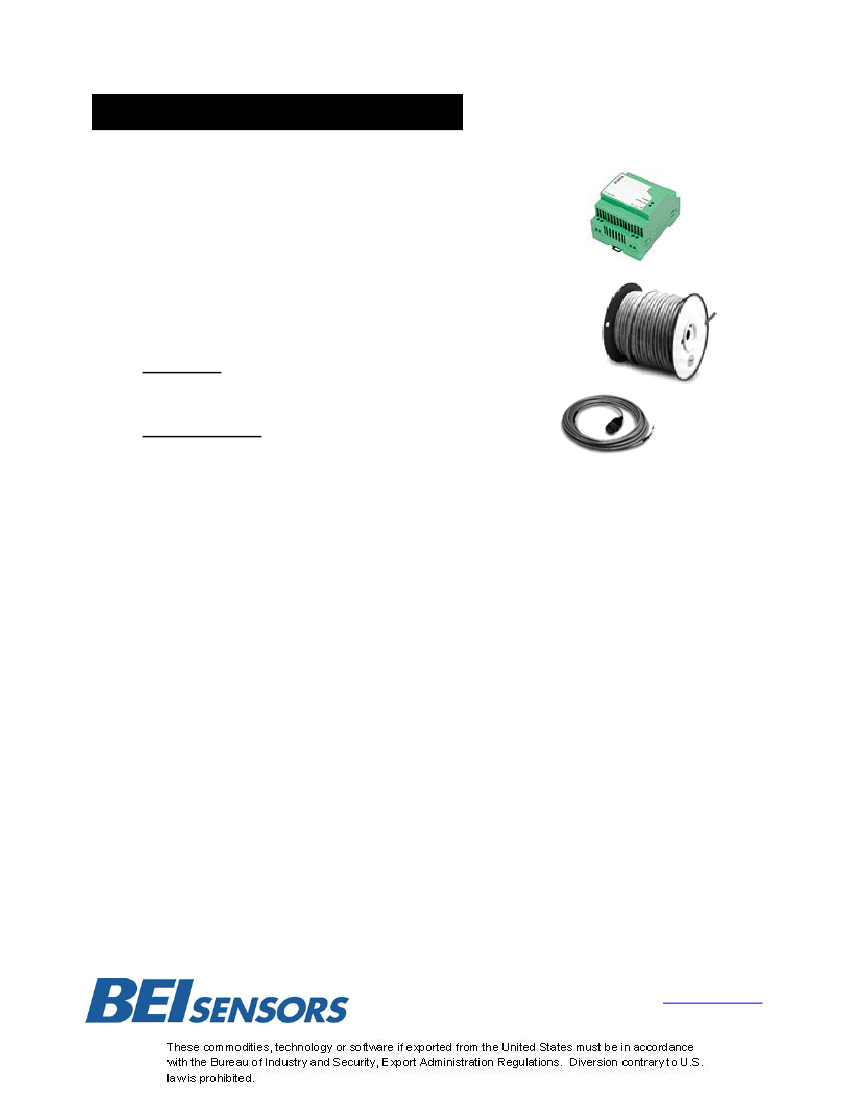

Additional Modules and Accessories
POWER SUPPLY
With a wide range of acceptable input voltages (AC and DC) this DIN Rail
mountable power supply is usable in virtually all industrial applications
worldwide. It has built in surge protection to reduce faults due to transients and
it has 100% reserve capacity for startup and overload conditions.
CABLE AND CABLE ASSEMBLIES
Cable reels for your own custom wiring requirements or cable assemblies are
available, using high quality custom BEI standard cable consisting of four, low
capacitance shielded twisted pairs with an overall shield, extra large
conductors for power, and signal ground; all within an abrasion-resistant PVC
jacket.
Cable Reels
100 ft. reel
Part No. 37048-003-100
500 ft. reel
Part No. 37048-003-500
Cable Assemblies
Part Nos. for MS3106F14S-6S Mating Connector
10 ft. # 31186-1410
│
20 ft. # 31186-1420
│30ft.
# 31186-1430
Part Nos. for MS3106F16S-1S Mating Connector
10 ft. # 31186-1610
│
20 ft. # 31186-1620
│30ft.
# 31186-1630
Part Nos. for MS3106F18S-1S Mating Connector
10 ft. # 31186-1810
│
20 ft. # 31186-1820
│30ft.
# 31186-1830
Tel:805-968-0782
/ 800-350-2727 |
Fax:
805-968-3154 / 800-960-2726
7230 Hollister Ave., Goleta, CA 93117 |
www.beisensors.com
Specification No. 02097-001 Rev. 06/11
