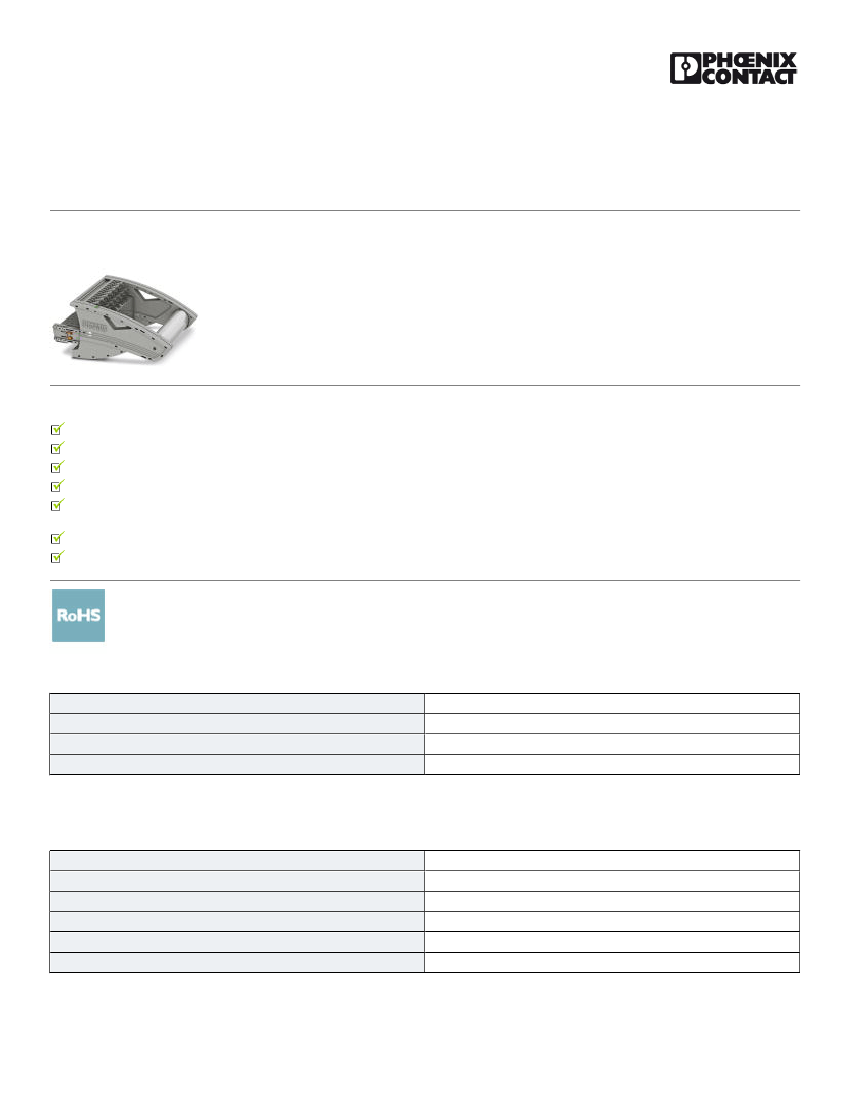

Test plug - FTPR-3/14S - 3069957
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Test plug, With twist grip, Number of positions: 14, Width: 145 mm, Color: gray
Why buy this product
Easy and time saving, thanks to functional grouping of switching operations
Cost-effective, thanks to the tailored, modular design and use of standardized CLIPLINE complete accessories
Space saving, thanks to offset test socket arrangement
Safe, thanks to guided operation with patented twist grip
The integrated, robust switch contact is designed for the most stringent demands, and the use of high-quality materials ensures the transmission of
signal currents, even after multiple actuations
The automatically generated transformer short circuit and the shock-proof design ensure the highest degree of safety during measurement
Maximum safety with leading and automatic transformer short circuit
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 STK
760.000 g
85366990
Poland
Technical data
General
Note
Number of positions
Number of levels
Potentials
Nominal cross section
Color
A detailed circuit diagram can be found under Miscellaneous Downloads
14
1
14
6 mm²
gray
09/30/2016 Page 1 / 12
https://www.phoenixcontact.com/us/products/3069957
Test plug - FTPR-3/14S - 3069957
Technical data
General
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Overvoltage category
Insulating material group
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
Relative insulation material temperature index (Elec., UL 746 B)
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
PA
V0
5 kV
III
I
24 A
24 A
400 V AC/DC
No
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 125 °C
Dimensions
Width
Length
Pitch
145 mm
86 mm
8.2 mm
Connection data
Note
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
The conductor cross section depends on the cable lug used
0.5 mm²
2.5 mm²
20
14
Assembly
09/30/2016 Page 2 / 12
https://www.phoenixcontact.com/us/products/3069957
Test plug - FTPR-3/14S - 3069957
Technical data
Assembly
Mounting type
Insertion in base strip
Standards and Regulations
Flammability rating according to UL 94
V0
Drawings
Circuit diagram
Dimensional drawing
207,04
53,07
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 8.0
eCl@ss 9.0
27141120
27141141
27440313
27440313
ETIM
ETIM 4.0
ETIM 5.0
EC000897
EC002255
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / cULus Recognized
Ex Approvals
Approval details
09/30/2016 Page 3 / 12
85,38
https://www.phoenixcontact.com/us/products/3069957
Test plug - FTPR-3/14S - 3069957
Approvals
UL Recognized
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
D
10 A
300 V
cUL Recognized
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
D
10 A
300 V
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Accessories
Accessories
Connector
Fork-type cable lug - C-FCI 1,5/M3 - 3240032
Fork-type cable lug, red, 0.5 - 1.5 mm², M3
Fork-type cable lug - C-FCI 2,5/M3 - 3240037
Fork-type cable lug, blue, 1.5 - 2.5 mm², M3
09/30/2016 Page 4 / 12
https://www.phoenixcontact.com/us/products/3069957
Test plug - FTPR-3/14S - 3069957
Accessories
Ring cable lug - C-RCI 1,5/M3 - 3240016
Ring cable lug, red, 0.5 ... 1.5 mm², M3
Ring cable lug - C-RCI 2,5/M3 - 3240021
Ring cable lug, blue, 1.5 ... 2.5 mm², M3
Jumper
Plug-in bridge - FBS 2-8 - 3030284
Plug-in bridge, Pitch: 8.2 mm, Length: 29.6 mm, Width: 14.7 mm, Number of positions: 2, Color: red
Plug-in bridge - FBS 3-8 - 3030297
Plug-in bridge, Pitch: 8.2 mm, Number of positions: 3, Color: red
Plug-in bridge - FBS 4-8 - 3030307
Plug-in bridge, Pitch: 8.2 mm, Number of positions: 4, Color: red
