NOTES:
1. SEE CATALOG FOR COMPLETE LIST OF PARTS
APPLICABLE FOR USE WITH THIS PART.
2. DIMENSIONS IN BRACKETS ARE METRIC.
3. MATERIAL: GALVANNEALED STEEL
COLOR: BLACK
4. MOUNTING BRACKETS ADJUSTABLE IN 1/2"
INCREMENTS.
5. ALL MATERIALS AND COMPONENTS USED MEET
THE MATERIAL RESTRICTIONS OF RoHS
(EUROPEAN DIRECTIVE 2011/65/EC ON THE
RESTRICTION OF HAZARDOUS SUBSTANCES)
AS PROPOSED BY THE RoHS TECHNICAL
ADAPTATION COMMITEE.
THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.
B
14.92
378.92
B
4.23
1.00
25.40
1.72
43.69
107.35
18.59
472.24
2X MOUNTING BRACKET
(SEE NOTE 4)
PANDUIT PART NO.
WEIGHT
12.20 lbs
(5.55 kg)
FLEX1U
TITLE
A

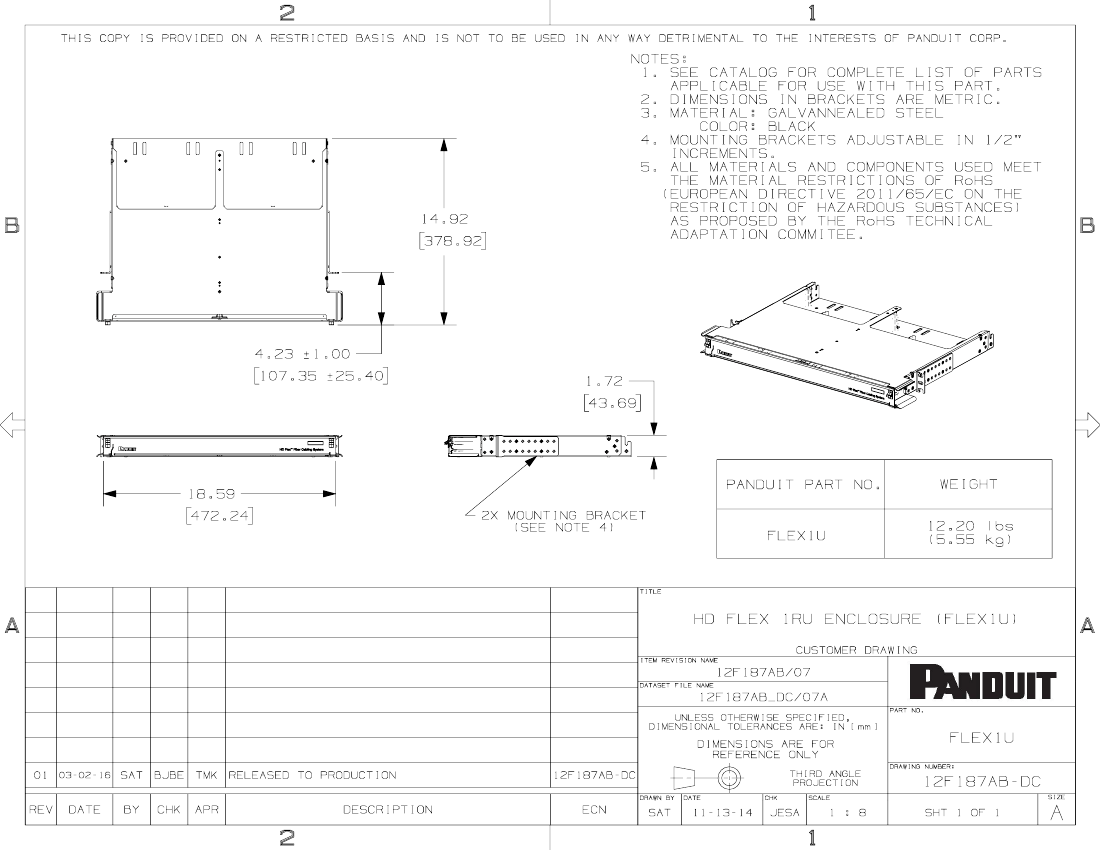

HD FLEX 1RU ENCLOSURE (FLEX1U)
CUSTOMER DRAWING
ITEM REVISION NAME
A
12F187AB/07
DATASET FILE NAME
12F187AB_DC/07A
PART NO.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
DIMENSIONS ARE FOR
REFERENCE ONLY
01
03-02-16
SAT
BJBE
TMK
RELEASED TO PRODUCTION
12F187AB-DC
DRAWN
BY
FLEX1U
DRAWING NUMBER:
THIRD ANGLE
PROJECTION
DATE
CHK
SCALE
12F187AB-DC
SIZE
REV
DATE
BY
CHK
APR
DESCRIPTION
ECN
SAT
11-13-14
JESA
1 : 8
SHT 1 OF 1
