Wzzard™ Refrigeration Monitoring Starter Kit
Wzzard Mesh Wireless Sensor for Commercial Applications
Model BB-WSK-REF-2
www.advantech-bb.com
+ Monitor refrigeration performance for early fault detection and
regulatory compliance
+ Includes everything to monitor chamber temperature, door open/
close and current draw
+ Snap & go set up - no downtime, disruption or cable runs
+ Built-in Node-RED™ software tool for easy deployment
+ Smartmesh IP wireless mesh for point-to-point self-healing
reliability; more resilient as more nodes are added
+ Easily scalable at any time to thousands of sensors
Prevent waste, maintain quality and prove regulatory
compliance through data-driven refrigeration perfor-
mance monitoring.
Monitor Performance of Your Refrigeration System
Maintaining proper temperature for food and pharmaceuticals is essential for
ensuring quality and preventing expensive losses. Adding a remote wireless
monitoring system to your refrigerators and freezers provides real time visibility
into the status of the goods you are trying to protect. Instant alerts via e-mail or
text of any out-of-range temperature or a door left open can mean saving goods
that would otherwise spoil.
The Wzzard Refrigeration Monitoring Starter Kit provides a non-intrusive, easily
installed solution for monitoring internal and external temperatures, door open/
closed and current draw on refrigeration equipment without disrupting existing
facility operations.
• Includes everything you need to monitor cooling chamber temperature and
door open/close along with current consumption of the compressor and fan.
• No equipment downtime. Simply snap on the current clamps and temperature
probe connected to the Wzzard mesh wireless sensor node and provide an
Ethernet connection to the gateway.

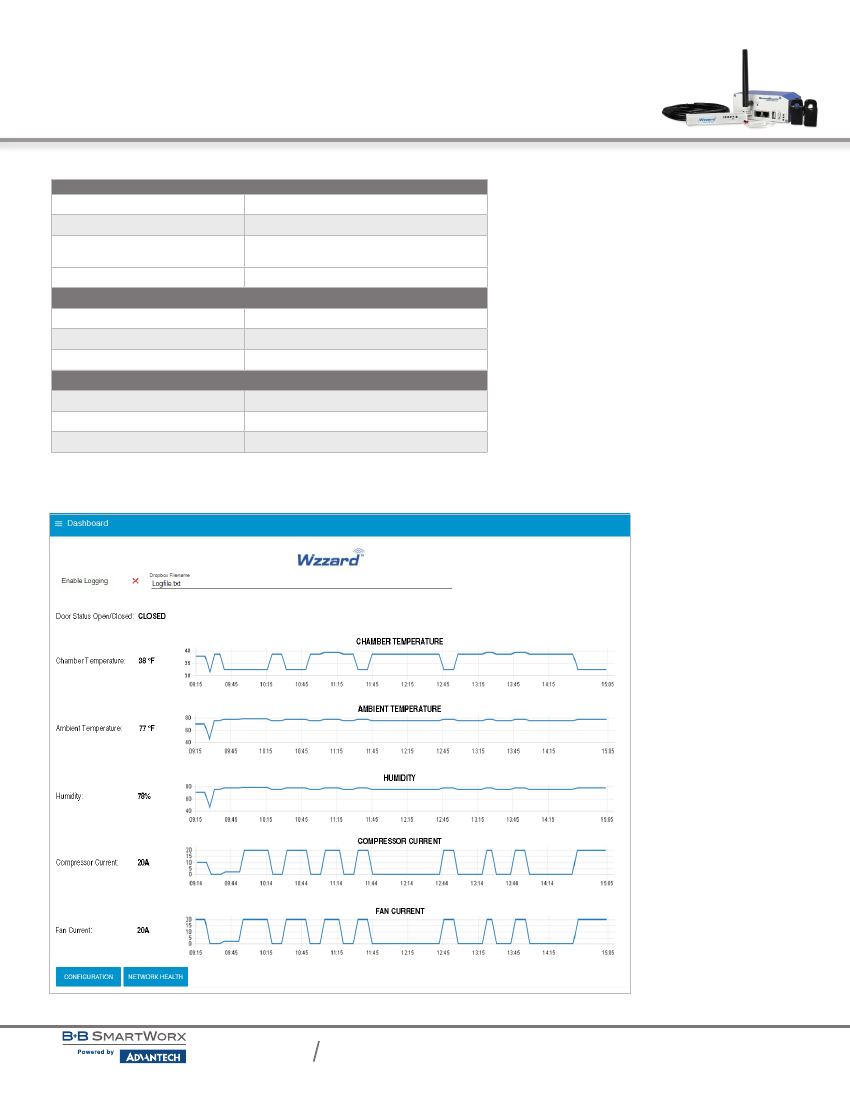

• Dashboard, data trend lines, email/SMS alerts and data logging capability.
• Easily expand the starter kit system by adding additional Wzzard nodes and
sensors to your existing gateway.
• Fast deployment of proof-of-concept and pilots. Easy to scale to hundreds or
thousands of inputs from one location or multiple locations.
Easy to Deploy
• The Wzzard mesh wireless sensor node is battery-powered and is easily
deployed – no need to install expensive or intrusive wiring.
• Included high accuracy temperature sensor can be placed anywhere within the
cooling chamber.
• Clamp-on current transducers are easy to install without disrupting equipment.
Simply clamp them over the hot power lead.
• Wzzard’s 2.4 GHz wireless mesh technology continuously optimizes its
channel selection to eliminate multipath interference, providing best-in-class
reliability in difficult RF environments.
• Simple, cloud-based configuration of the gateway makes it easy to deploy and
manage one device or many.
Scalable
• Grow from monitoring one unit to many simply by adding more sensor
nodes and making simple dashboard edits.
• Or expand into a multi-site system integrated into your preferred software
platform. The popular MQTT protocol and JSON data format make it easy
to integrate into third-party software applications.
• Use the built-in Node-RED to create and customize your own applications
without any advanced programming skills.
Rugged & Reliable
• Wzzard mesh wireless sensor node is rated for -20 to +70°C operating
range, indoor commercial use – no external enclosure required.
• Advanced Smartmesh IP wireless mesh protocol provides excellent point-
to-point wireless reliability and becomes more resilient as more nodes are
added to the system.
ORDERING INFORMATION
MODEL NUMBER DESCRIPTION
Refrigeration Monitoring Starter Kit - includes:
1 - Wzzard mesh wireless sensor node (temperature & humidity)
2 - Clamp-on current sensors
BB-WSK-REF-2
1 - 10K thermistor for temperature inside the chamber
1 - Door open/close sensor
1 - SmartSwarm 342 Gateway
Included Hardware
(1) Wzzard Temp/Humidity Sensor – 2 analog-in + 1 thermistor input + 1 digital Input
(2) JC10F50-V 50A Clamp-On Current Sensors – for compressor and fan current.
(1) BB-WCHCBL Thermistor/Breakout cable.
(1) BB-WCHMS Door Sensor Cable
(1) SmartSwarm 342 Ethernet Network Gateway – with Wzzard board.
(Note: one gateway supports up to 100 wireless sensor nodes.)
Included Software
Cloud license for SmartWorx Hub device management and configuration tool.
Node-RED flow with Web Server for:
• Real time data display.
• Historian trending.
• Visual and email/SMS alerts.
• External data source integration (weather, Twitter feeds, and more).
All product specifications are subject to change without notice.
BB-WSK-REF-2 Kit_0518ds
