5092C SL002 Overview

CABLE 2COND 24AWG SHLD 500'

5092C SL002 Parametric

Parameter Name	Attribute value
Cable type	multi-core
Number of conductors	2
Wire gauge	24 AWG
Number of wire strands	7/32
conductor material	Copper, tin plated
Sheath (insulation) material	Polyvinyl chloride (PVC)
Sheath (insulation) diameter	0.160"（4.06mm）
Shield type	foil
length	500.0'（152.4m）
Casing color	slate color
grade	ISO 10993
characteristic	Biocompatible, drain wire, drawstring
Voltage	300V
Operating temperature	-35°C ~ 105°C
use	communication, control
Sheath (insulation) thickness	0.0320"（0.813mm）
conductor insulation	Polyvinyl chloride (PVC)
shielding material	aluminum
Shielding range	100%

Preview

Download Datasheet

View All

™

Mini D Ribbon (MDR) Connectors

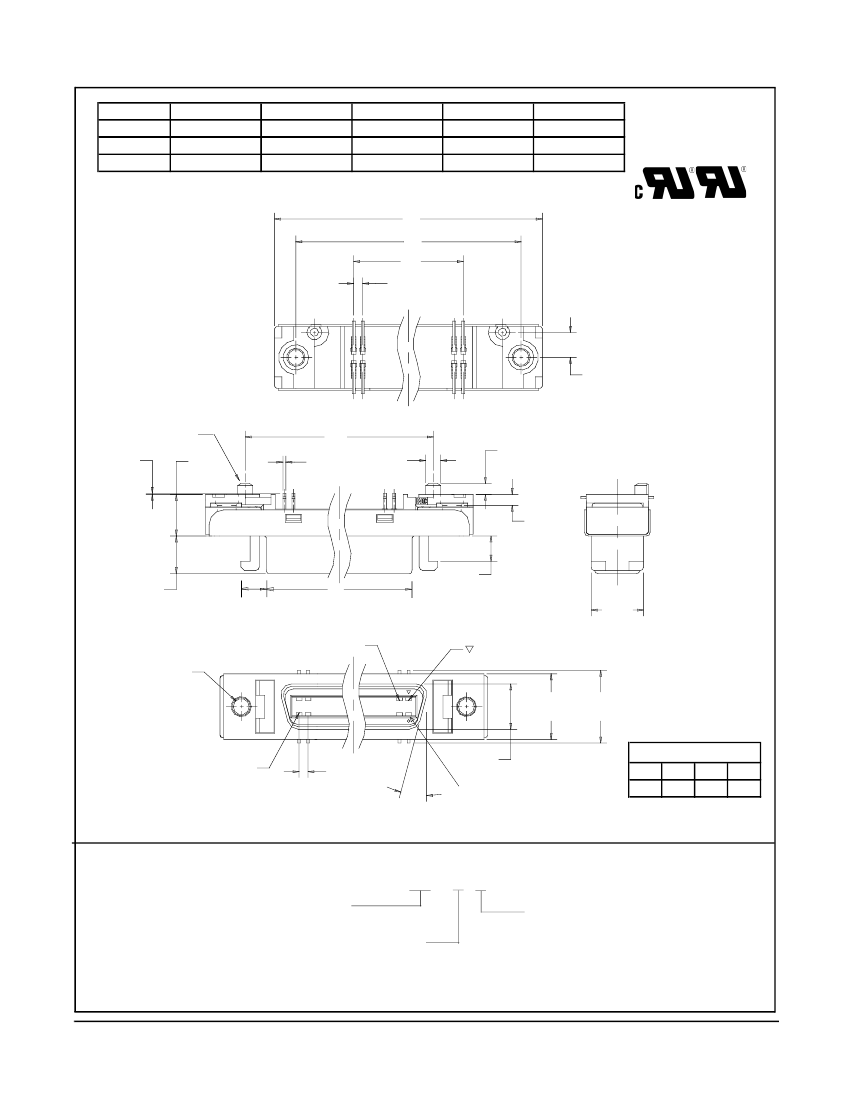

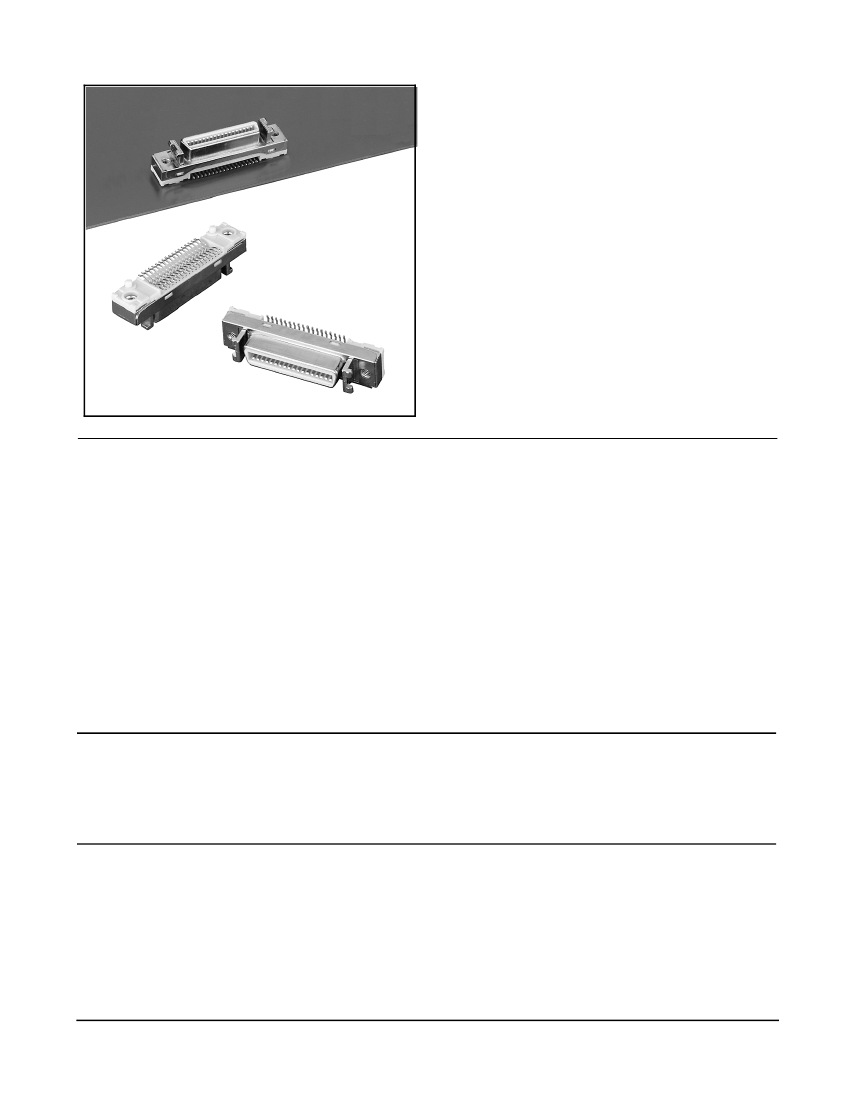

.050″ Surfacemount Vertical Receptacle - Shielded

102 Series

• Wiper-on-wiper contact for reliable repetitive

plugging

• Interface latch design for connection stability

• IEEE 1284C Interface as a 36 contact connector

• Contacts: 20, 26 and 36

• See Regulatory Information Appendix (RIA) for

chemical compliance information.

Date Modified: February 21, 2007

TS-0638-11

Sheet 1 of 3

Physical

Insulation

Material: Glass Reinforced Polyester (PCT)

Flammability: UL 94V-0

Color: Beige

Contact

Material: Copper Alloy

Plating

Underplating:

Wiping Area:

Solder Tails:

Body

Material:

Plating:

Shroud

Material:

Plating:

μ″

[ 2.0

μm

] Nickel

μ″

[ 0.50

μm

] Min Gold

See Ordering Information

Zinc Alloy

Nickel

Steel

Nickel

Marking:

3M Logo and Part Number

Electrical

Current Rating:

1 A

Insulation Resistance:

> 5

at 500 V

Withstanding Voltage:

500 V

RMS

for 1 Minute

Environmental

Temperature Rating:

-55°C to +105°C

Process Rating:

260°C (profile per J-STD-020C)

UL File No.: E68080

Interconnect Solutions

http://www.3M.com/interconnects/

3M is a trademark of 3M Company.

For technical, sales or ordering information call

800-225-5373

Regulatory Information Appendix

3M Electronic Solutions Division/Interconnect

EUROPE

Appendix E1: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC.

This product is RoHS Compliant 2005/95/EC.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in

excess of the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/

EC, unless the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this

information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability

and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Appendix E2: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC

This product contains lead in the compliant pin area in excess of the maximum concentration value allowed but is

compliant by exemption under EU Commission Decision 2005/747/EC.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in

excess of the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/

EC, unless the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this

information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability

and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Appendix E3: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment as

amended by Commission Decision 2005/618/EC.

This product contains lead in the solder tail area in excess of the maximum concentration value allowed.

Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon

information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability

and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Appendix E4: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC.

This product contains decaBDE in the insulating material in excess of the maximum concentration value allowed but is

compliant by exemption under EU Commission Decision 2005/17/EC.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in

excess of the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision

2005/618/EC, unless the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in

writing, this information represents 3M’s best knowledge and belief based upon information provided by third party

suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability

and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

RIA-2217-B

CHINA

Appendix C1: China RoHS

Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits

for Certain Hazardous Substances in Electronic Information Products.

This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006,

means that the product or part

does not

contain any of the following substances in excess of the following maximum

concentration values in any homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium,

polybrominated biphenyls or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise

stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information provided by

third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability

and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Appendix C2: China RoHS

Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits

for Certain Hazardous Substances in Electronic Information Products.

This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006,

means that the product or part

does

contain a substance, as detailed in the chart below, in excess of the following

maximum concentration values in any homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent

chromium, polybrominated biphenyls or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless

otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information

provided by third party suppliers to 3M.

The numerical reference in the symbol above should not be construed as a representation regarding the product’s life or an

extension of a product warranty. The product warranty is stated below. In the event any product is proven not to conform

with 3M’s Regulatory Information Appendix, then 3M’s entire liability and Buyer’s exclusive remedy will be in

accordance with the product Warranty stated below.

Name and Content of Hazardous Substances or Elements

Important Notice

All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the

accuracy or completeness is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended

application. You assume all risks and liability associated with such use. Any statements related to the product which are not contained in 3M’s

current publications, or any contrary statements contained on your purchase order shall have no force or effect unless expressly agreed upon, in

writing, by an authorized officer of 3M.

Warranty; Limited Remedy; Limited Liability.

This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.

3M MAKES NO OTHER

WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE.

If this product is defective within the warranty period stated above, your exclusive remedy shall be, at 3M’s option, to

replace or repair the 3M product or refund the purchase price of the 3M product.

Except where prohibited by law, 3M will not be liable for any

indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of the legal theory asserted.

Electronic Solutions Division

6801 River Place Blvd.

Austin, TX 78726-9000

800/225-5373

www.3M.com/interconnects

RIA-2217-B
