S23LC03 THRU S23LC24
Technical Data
Data Sheet N0292, Rev. A
S23LC03 THRU S23LC24 TVS ARRAY
Description
The S23LCXX series of TVS array have been
designed to provide unidirectional protection for
sensitive electronics from damage due to voltage
transients caused by electrostatic discharge (ESD),
electrical fast transients (EFT), secondary lightning and
other voltage-induced transient events. The device can
be used to protect 1 unidirectional or interface line.
SOT-23

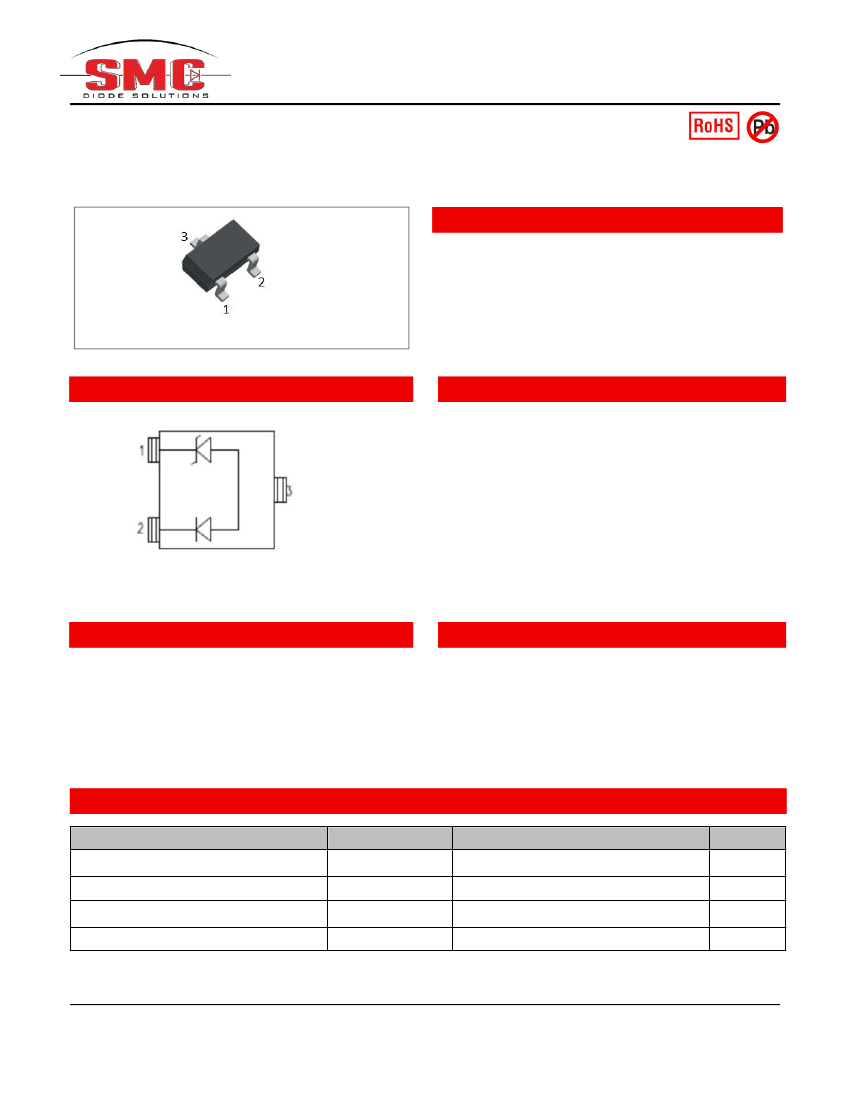

Schematic & Pin Configuration
Features
Protects 3.3,5,12,15,24 V Components
Unidirectional
Ultra Low Capacitance 3 pF
Low Leakage
Provides Electrically Isolated Protection
300 W @ 8/20 us
Protects 1 Line
SOT-23 Packaging
“-A” is an AEC-Q101 qualified device
This is a Pb - Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request
Mechanical Characteristics
SOT-23 Surface Mount Package
Approximate Weight: 0.015 grams
PIN #1 Indicator: DOT on top of package
Packaging: Tape and Reel Per EIA 481
Application
RS-232, RS-422 & RS-423
Cellular Handsets & Accessories
Universal Serial Bus (USB) Port Protection
Portable Electronics
LAN/WAN Equipment
Wireless Bus Protection
Maximum Ratings
@T
A
=25°C unless otherwise specified
Parameter
Peak Pulse Power, 8/20 μs Wave shape
Operating Temperature
Storage Temperature
Lead Soldering Temperature
Symbol
P
T
J
T
stg
T
L
Value
300
-55 to +125
-55 to +150
260 (10 Sec.)
Units
W
C
C
C
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
S23LC03 THRU S23LC24
Technical Data
Data Sheet N0292, Rev. A
Electrical Characteristics
@T
A
=25°C unless otherwise specified
Stand-off
Voltage
Vwm
(V)
Max
3.3
5.0
12.0
15.0
24.0
Breakdown
Voltage
V
BR
@1mA
(V)
Min
4
6
13.3
16.7
26.7
Clamping
Voltage
Vc
@1A
(V)
Max
8
10.8
19
25
44
Leakage
Current
I
R
@ Vwm
(uA)
Max
200
20
1
1
1
Capacitance
(f = 1MHz)
C
@ 0V
(pF)
Max
3
3
3
3
3
Temperature
Coefficient of
V
BR
a(V
BR)
mv/°C
Max
-5
3
10
13
30
Part Number
Device
Code
S23LC03
S23LC05
S23LC12
S23LC15
S23LC24
03L
05L
12L
15L
24L
* Pulse width < 300 µs, duty cycle < 2%

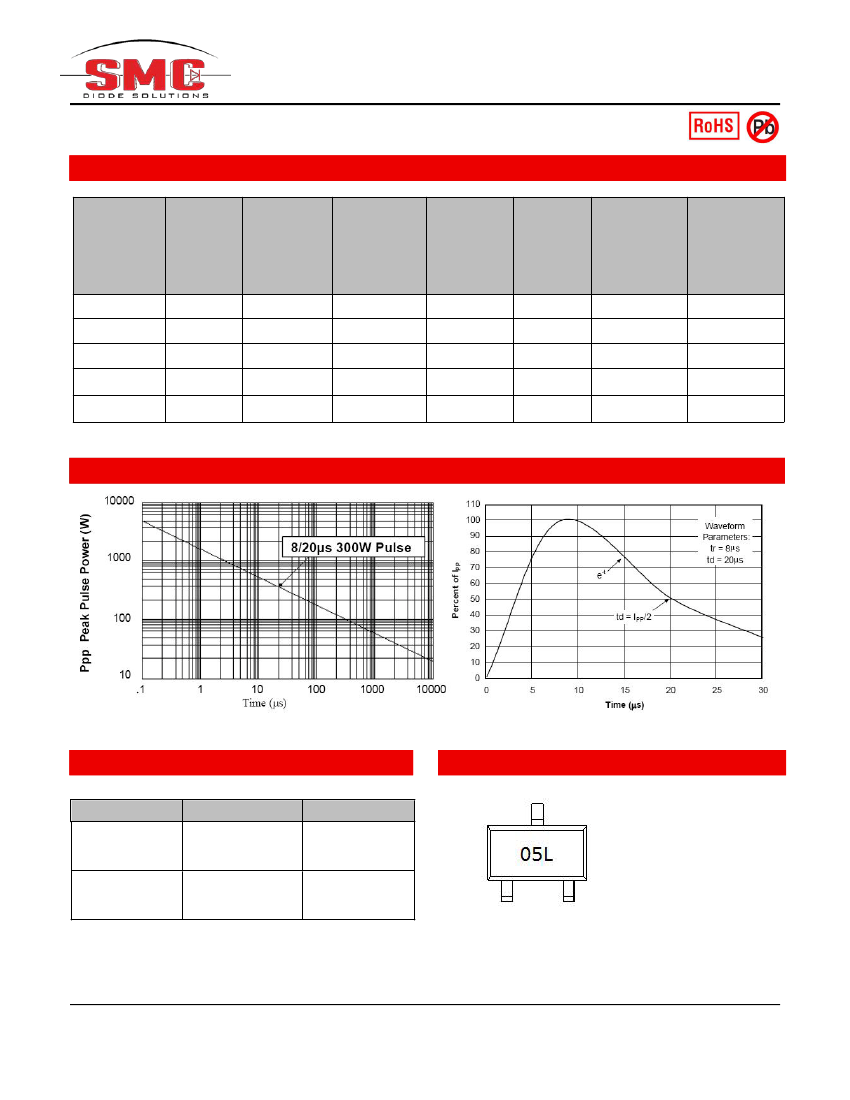

Ratings and Characteristics Curves
Ordering Information
Device
S23LC03
THRU
S23LC36
S23LC03TR
THRU
S23LC36TR
Package
SOT-23
(Pb-Free)
SOT-23
(Pb-Free)
Shipping
3000pcs / reel
Marking Diagram
05L
= Device Code
3000pcs / reel
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
S23LC03 THRU S23LC24
Technical Data
Data Sheet N0292, Rev. A

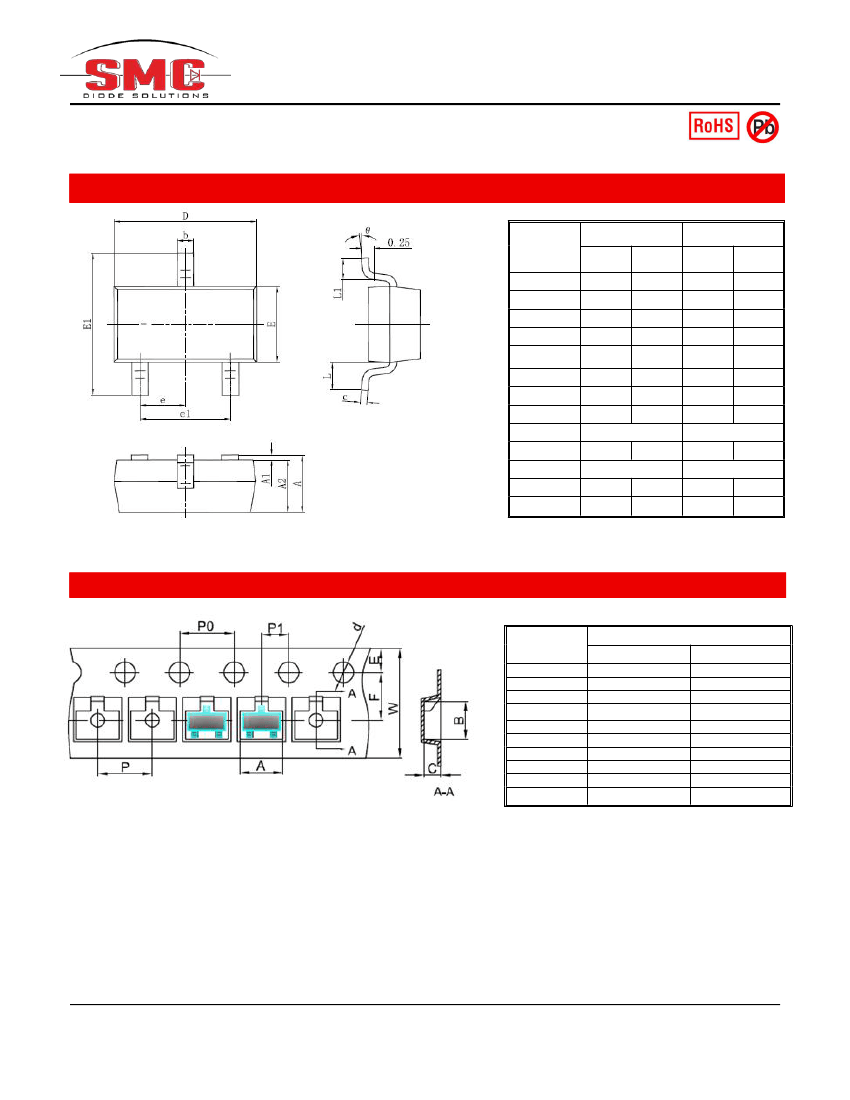

Mechanical Dimensions SOT-23
