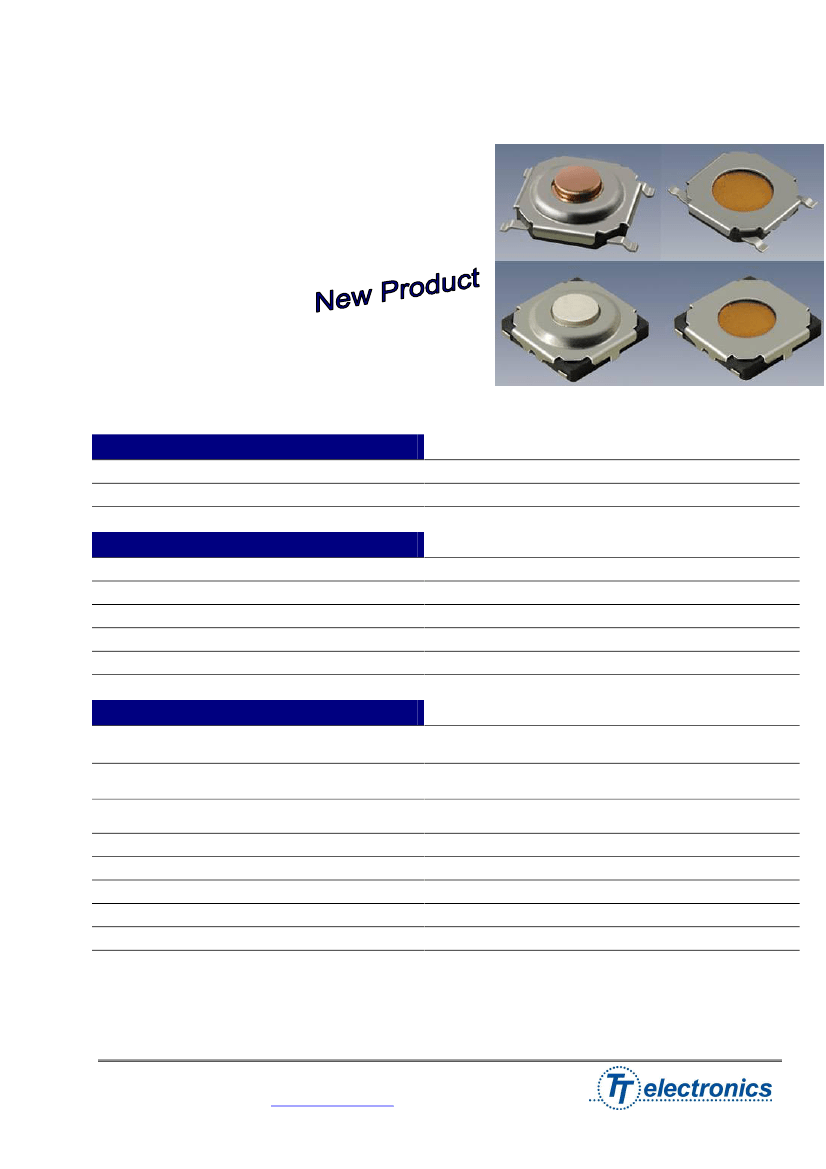

Model SWT5
Tactile Switches, 5.1 X 5.1 mm
RoHS Compliant
Low Profile
Light Weight
SMD
MODELS AVAILABLE
Top Actuation – G Pin
Top Actuation - J Pin
SWT5-G
SWT5-J
ELECTRICAL
Contact Resistance
Insulation Resistance
Dielectric Strength
Rating
Contact Arrangement
100 mΩ
100 MΩ min
AC 250V
DC 12V, 50 mA
Single throw single pole
ENVIRONMENTAL
Life Mechanical
Operating Force Range (refer to operating force table)
Operating Temperature Range
Storage Temperature Range
Stop Strength
Vibration
Shock
Soldering
Stem height = 1.5 mm – 100K Cycles
Stem height = 0.8 mm – 50K Cycles
100 g – 260 g
-20 C – 70 C
-30 C – 80 C
Vertical Static Load of 3Kgf
Mil-STD-202F, Method 201A
Mil-STD-202F, Method 213B Condition A
Recommendations available upon request
o
o
o
o
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
October 6, 2006
Website:
www.bitechnologies.com
page 1 of
4
BI technologies
Model SWT5
ORDERING INFORMATION
1
SWT5 - J 1 K TR
TR
Model Series
Packaging
TR – Tape and Reel
4000 pieces per reel
Color / Force
Stem Height 1, G pin and J pin
A – Gold, 100 gf
D – Gold, 160 gf
E – Gold, 260 gf
Stem Height 2, G pin
K – Black, 100 gf
S – Silver, 160 gf
C – Copper, 260 gf
Stem Height 2, J pin
K – Black, 100 gf
M – Gray, 160 gf
W – White, 260 gf
Style
G – SMD G pin style
J – SMD J pin style
Stem Height
1 – 0.8mm, flushed
2 – 1.5mm
*Contact our customer service for custom designs and features.
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
October 6, 2006
Website:
www.bitechnologies.com
page 2 of
4
BI technologies
Model SWT5

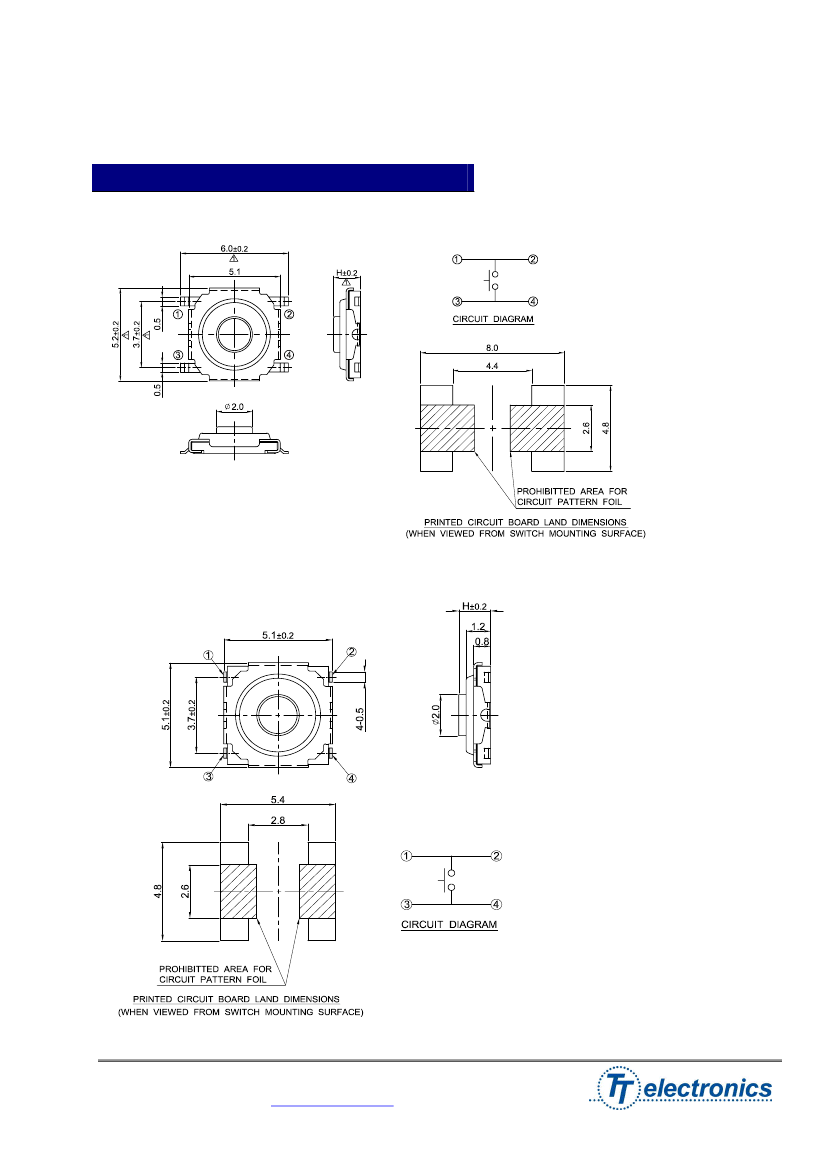

OUTLINE DRAWINGS
SWT5-G (Top Actuation)
SWT5-J (Top Actuation)
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
October 6, 2006
Website:
www.bitechnologies.com
page 3 of
4
BI technologies
Model SWT5

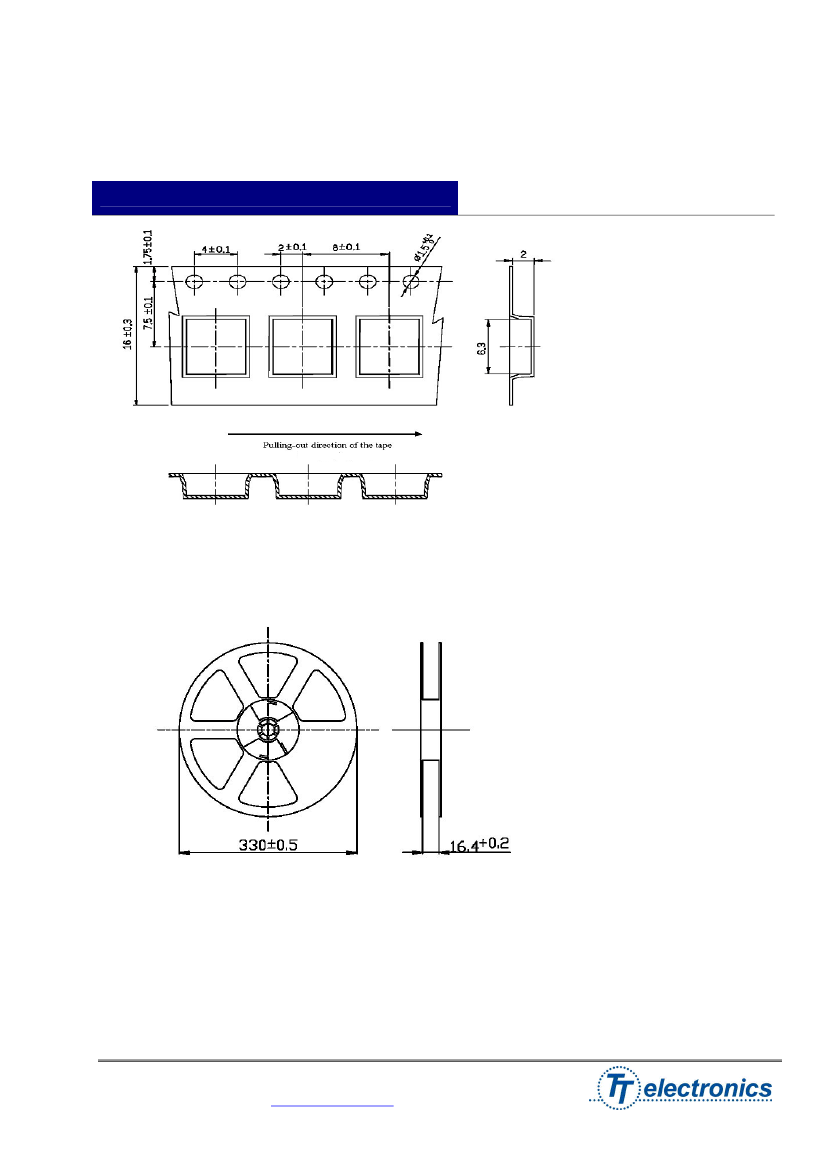

PACKAGING
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
October 6, 2006
Website:
www.bitechnologies.com
page 4 of
4
BI technologies
