OSTVL241151

Description
TERM BLOCK HDR 24POS 90DEG 3.5MM
CategoryThe connector
File Size70KB,1 Pages
ManufacturerOn Shore Technology Inc.
Environmental Compliance

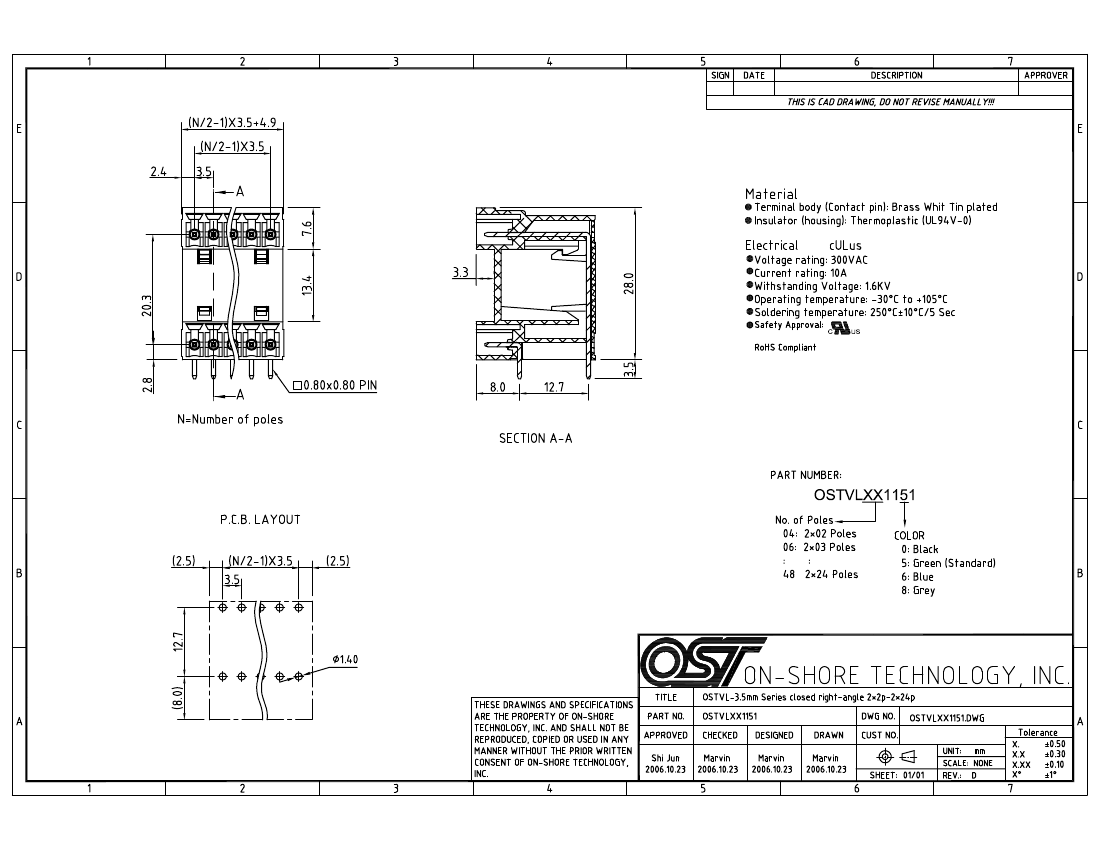

Download Datasheet Parametric View All

OSTVL241151 Overview

TERM BLOCK HDR 24POS 90DEG 3.5MM

OSTVL241151 Parametric

Parameter NameAttribute value
typeConnector, male pins, shrouded (4 sides)
Number of pins24
Number of pins per level12
Number of levels2
spacing0.138"(3.50mm)
Needle seat direction90°, right angle
Plug entrance-
Terminal typewelding
Installation typeThrough hole
Current - IEC-
Current - UL10A
Voltage - UL300V
Wire Gauge or Range - AWG-
Wire gauge or range - mm²-
colorgreen
Operating temperature-30°C ~ 105°C
Contact mating surface treatmenttin
characteristic-
Material flammability ratingUL94 V-0
Intrusion protection-
Screw size-
Torque - Screws-
Wire stripping length-
Contact materialbrass
Shell materialthermoplastic
Contact tail length0.138"(3.50mm)
Insulation height1.102"(27.99mm)
