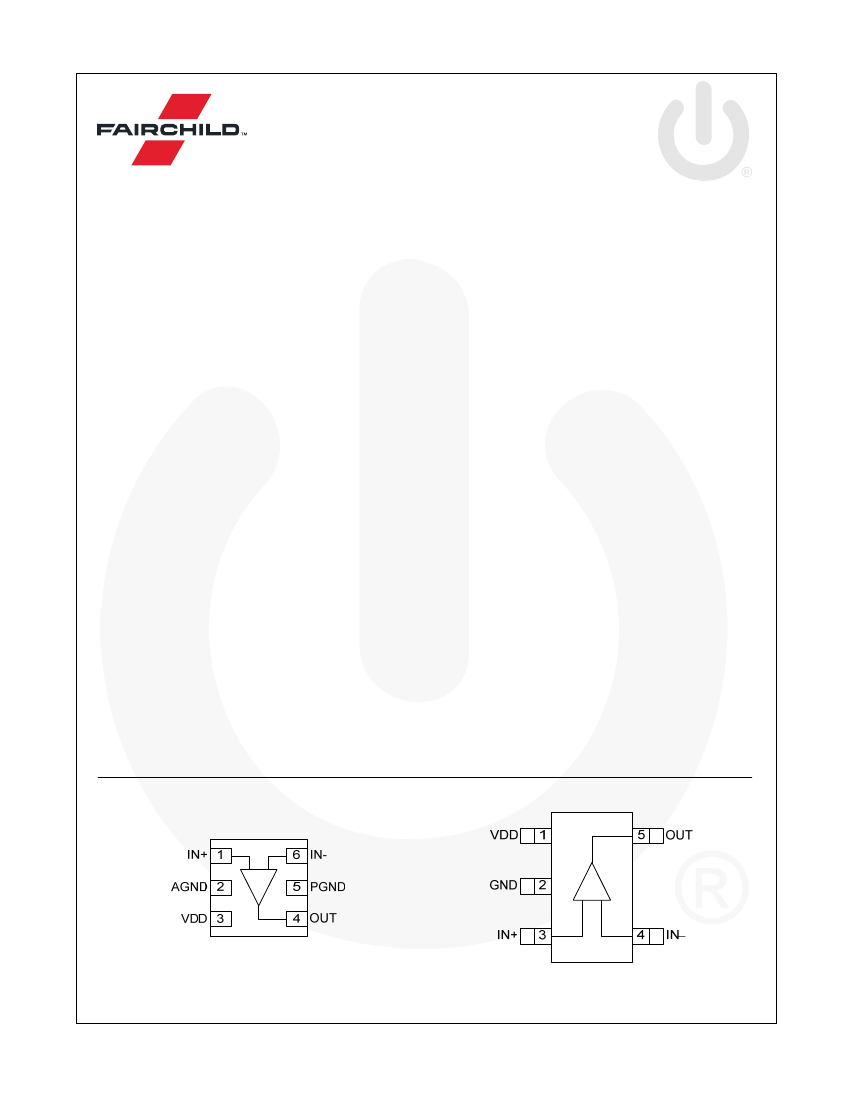

FAN3100C / FAN3100T — Single 2 A High-Speed, Low-Side Gate Driver
June 2014
FAN3100C / FAN3100T
Single 2 A High-Speed, Low-Side Gate Driver
Features
3 A Peak Sink/Source at V
DD
= 12 V
4.5 to 18 V Operating Range
2.5 A Sink / 1.8 A Source at V
OUT
= 6 V
Dual-Logic Inputs Allow Configuration as
Non-Inverting or Inverting with Enable Function
Internal Resistors Turn Driver Off If No Inputs
13 ns Typical Rise Time and 9 ns Typical Fall-Time
with 1 nF Load
Choice of TTL or CMOS Input Thresholds
MillerDrive™ Technology
Typical Propagation Delay Time Under 20 ns with
Input Falling or Rising

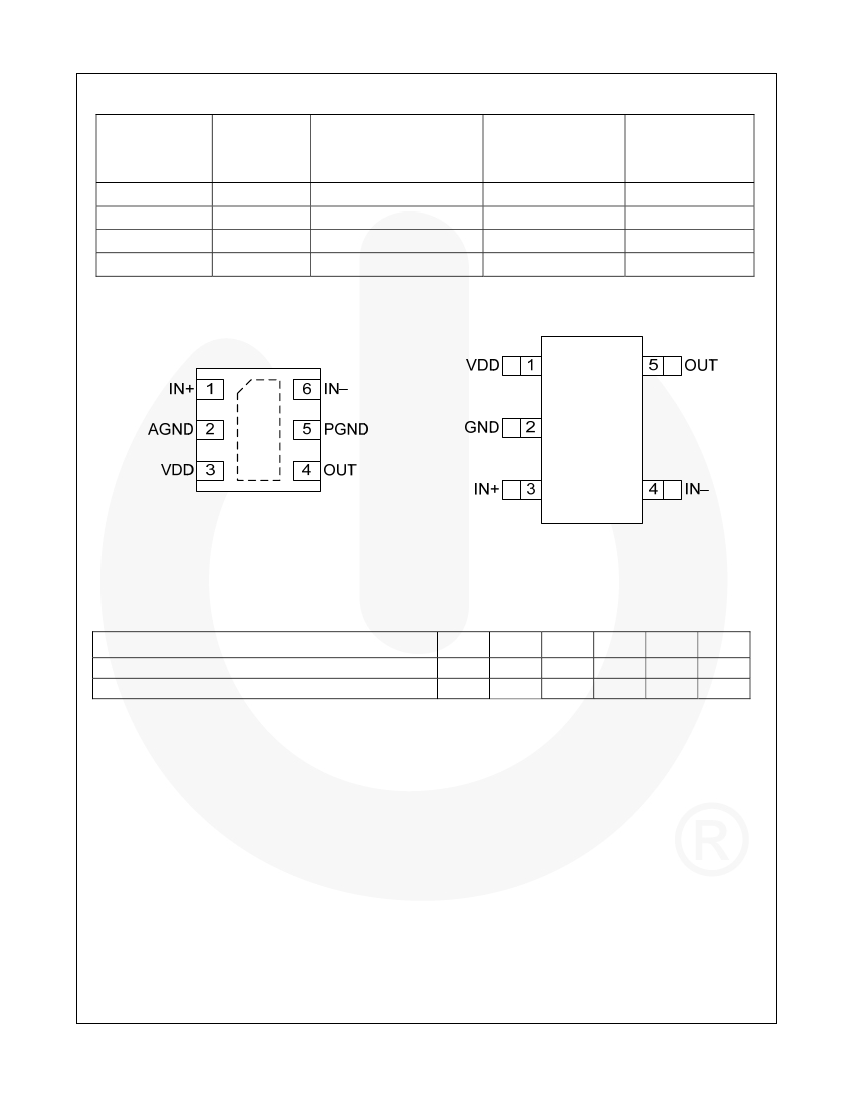

6-Lead, 2x2 mm MLP or 5-Pin, SOT23 Packages
Rated from –40°C to 125°C Ambient
Description
The FAN3100 2 A gate driver is designed to drive an N-
channel enhancement-mode MOSFET in low-side
switching applications by providing high peak current
pulses during the short switching intervals. The driver is
