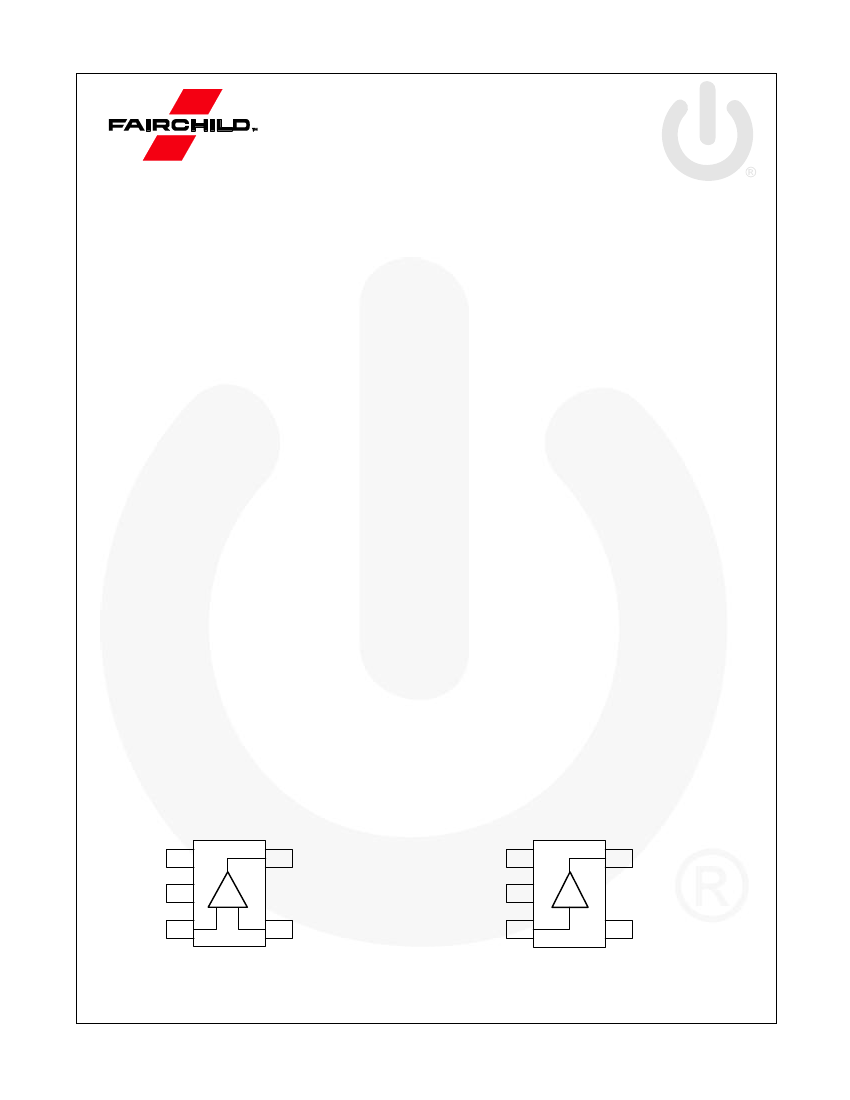

FAN3111 — Single 1A High-Speed, Low-Side Gate Driver
January 2015
FAN3111 — Single 1A High-Speed, Low-Side
Gate Driver
Features
1.4 A Peak Sink / Source at V
DD
= 12 V
1.1 A Sink / 0.9 A Source at V
OUT
= 6 V
4.5 to 18 V Operating Range
FAN3111C Compatible with FAN3100C Footprint
Two Input Configurations:
Dual CMOS Inputs Allow Configuration as
Non-Inverting or Inverting with Enable Function
Single Non-Inverting, Low-Voltage Input for
Compatibility with Low-Voltage Controllers
Small Footprint Facilitates Distributed Drivers for
Parallel Power Devices
15 ns Typical Delay Times
9 ns Typical Rise / 8 ns Typical Fall times with
470 pF Load
5-Pin SOT23 Package
Rated from –40°C to 125°C Ambient
Description
The FAN3111 1A gate driver is designed to drive an N-
channel enhancement-mode MOSFET in low-side
switching applications.

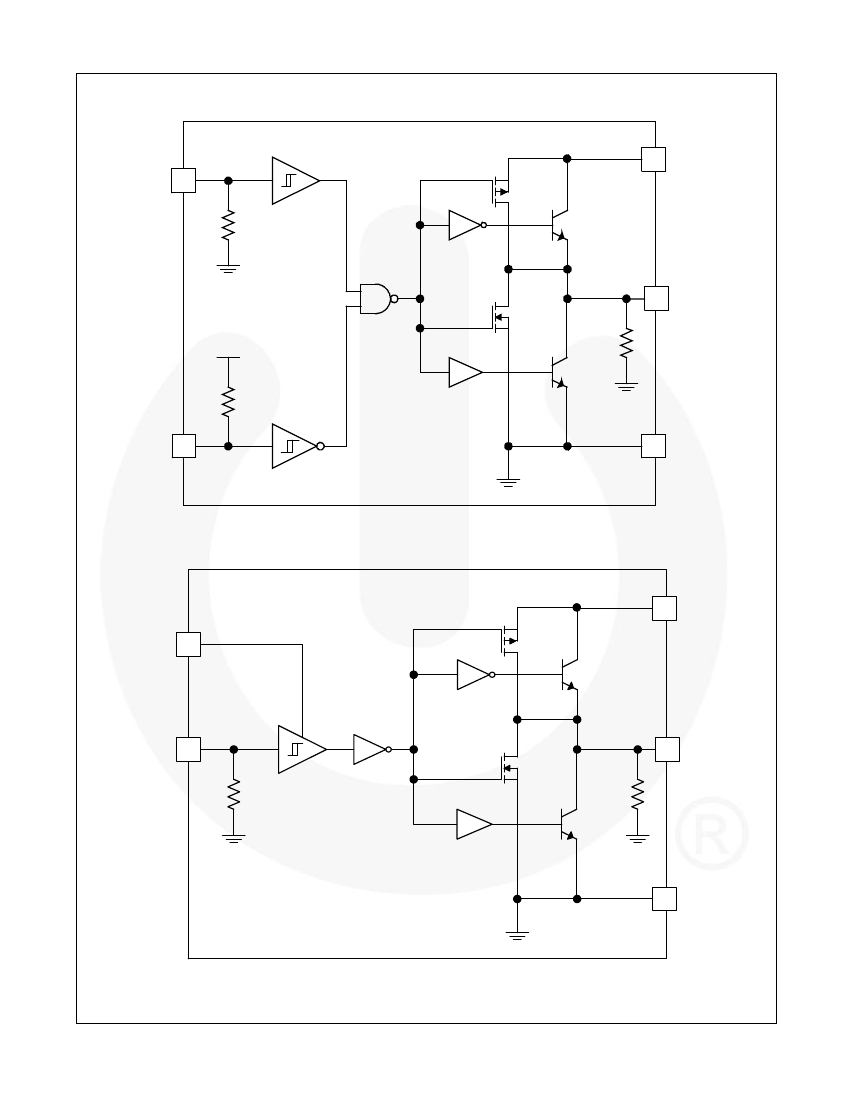

Two input options are offered: FAN3111C has dual
CMOS inputs with thresholds referenced to V
DD
for use
with PWM controllers and other input-signal sources
that operate from the same supply voltage as the driver.
For use with low-voltage controllers and other input-
signal sources that operate from a lower supply voltage
than the driver, that supply voltage may also be used as
the reference for the input thresholds of the FAN3111E.
This driver has a single, non-inverting, low-voltage input
plus a DC input V
XREF
for an external reference voltage
in the range 2 to 5 V.
The FAN3111 is available in a lead-free finish industry-
