SMD Socket anD pin connectorS,
parallel Mount
1. DeScription anD general featureS
general
DeScription

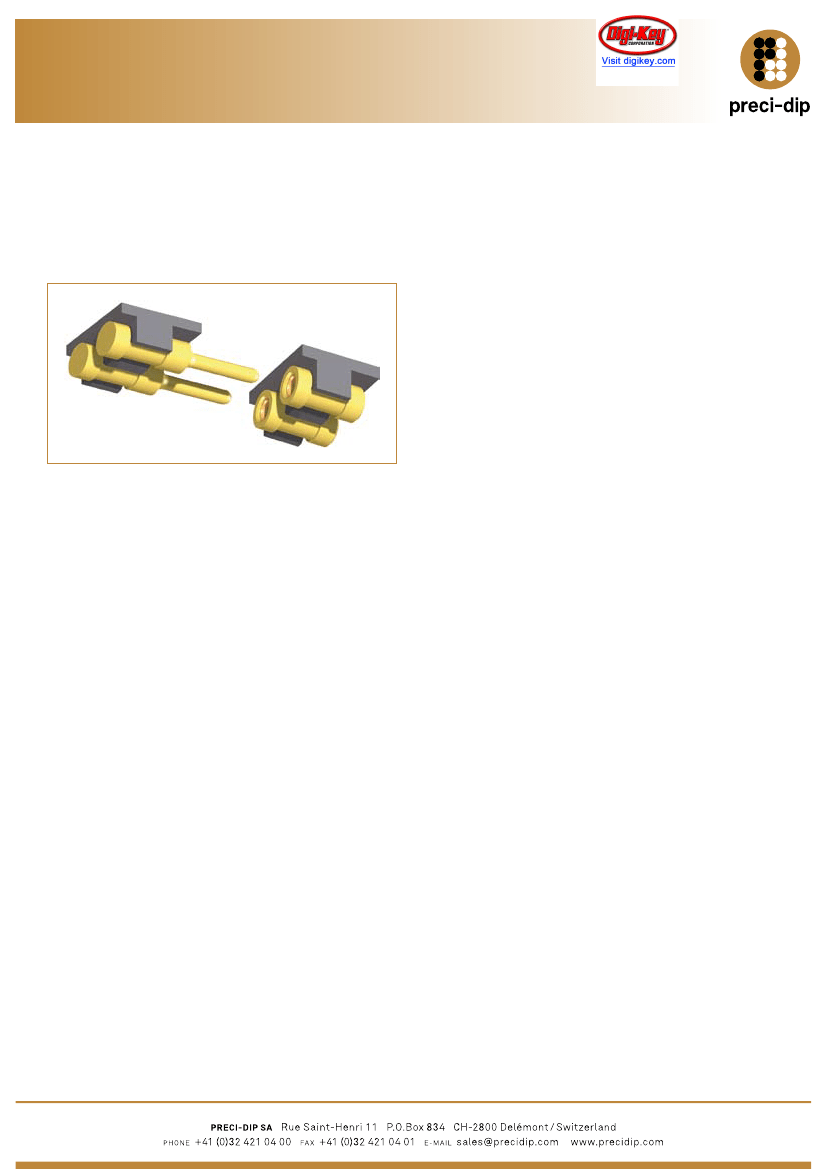

Low profile surface mount socket and pin connectors for parallel mounting. The number
of contacts for each connector is from 2 to 10 poles. This pair of connectors is an optimal
solution to connect and stack printed circuit boards. Both carriers are made of high tem-
perature plastic and maintain the contacts in place during the soldering operation. Car-
rier is used as a pick & place cap allowing automatic positioning on the PCB. Cap is not
foreseen to be removed after soldering. Both connectors can be supplied either in bulk
or in a tape & reel packaging. Challenge was to develop a connector that will be soldered
on a minimum PCB surface.
Main advantage of this connector is its small size and it can be soldered from under-
neath. Optimal connection between two PCB. Reliable technology using our BeCu clip
with 500 cycles guaranteed. The maximum current rating is 3 Amps.
Pair of connectors (socket connector & pin header) has originally been designed and de-
veloped for a connection between two LED lighting strips. Each strip is equipped on one
end with a 2-way socket connector and on the other end with a pin header. LED lighting
strips are stackable. For this application, a connector with SMD solder tails at the back
of the connector was not possible due to space limitation. This type of connectors can of
course be used in many other applications where a board-to-board connection is needed.
aDvantageS
applicationS
optional verSionS
Current version can be modified to meet with your specific requirements. Plastic carrier
and contacts can easily be adapted to fit your application.
1
2. technical SpecificationS
environtMental
Operating temperature
Climatic category (IEC)
Solderability
Resistance to soldering heat
-55 ... + 125°C
55 / 125 / 21
245°C, 5s
260°C, 10s
Mechanical characteriSticS
Mating pins (socket)
Connecting pin
Mechanical life
Coplanarity SMD terminations
Diameter 0.70 to 0.90 mm
0.76 mm
Min. 500 cycles
Max. 0.1 mm
MaterialS
Contact body (socket)
Contact body (pin)
Contact spring
Insulator
Machined brass C36000, tin
plating 5 μm Sn over 2.5 μm Ni
Machined brass C36000, gold pla-
ting 0.25 μm Sn over 2.5 μm Ni
BeCu C17200, gold plated
(gold flash or 0.75 μm) over Ni
Glass filled polyester PCT-GF30-
FR, self-extinguishing UL94V-0,
colour black
electrical characteriSticS
Operating voltage
Rated current
Contact resistance
Insulation resistance
Dielectric strength
Air and creepage distances
Capacitance
100 V
RMS
/ 150 V
DC
3A
max 10 mΩ
Min. 10'000 MΩ at 500 V
aC
500 V
RMS
0.70 mm
1 pF max.
3. orDering inforMation
DiMenSionS, orDer coDe nuMberS
SOCkET CONNECTOR 8FM-PP-0nnn-02-278
Contact Plating Code -PP-:
Code for number of contacts –0nnn-:
PIN CONNECTOR 8MM-11-0nnn-02-279
Contact Plating Code -11-:
Code for number of contacts –0nnn-:
packaging inforMation
Available in bulk or in tape & reel packaging.
Body and clip: 0.25 μm gold
2 to 10 contacts
78-Body: tin Clip: gold flash
38-Body: tin Clip: 0.75 μm gold
2 to 10 contacts

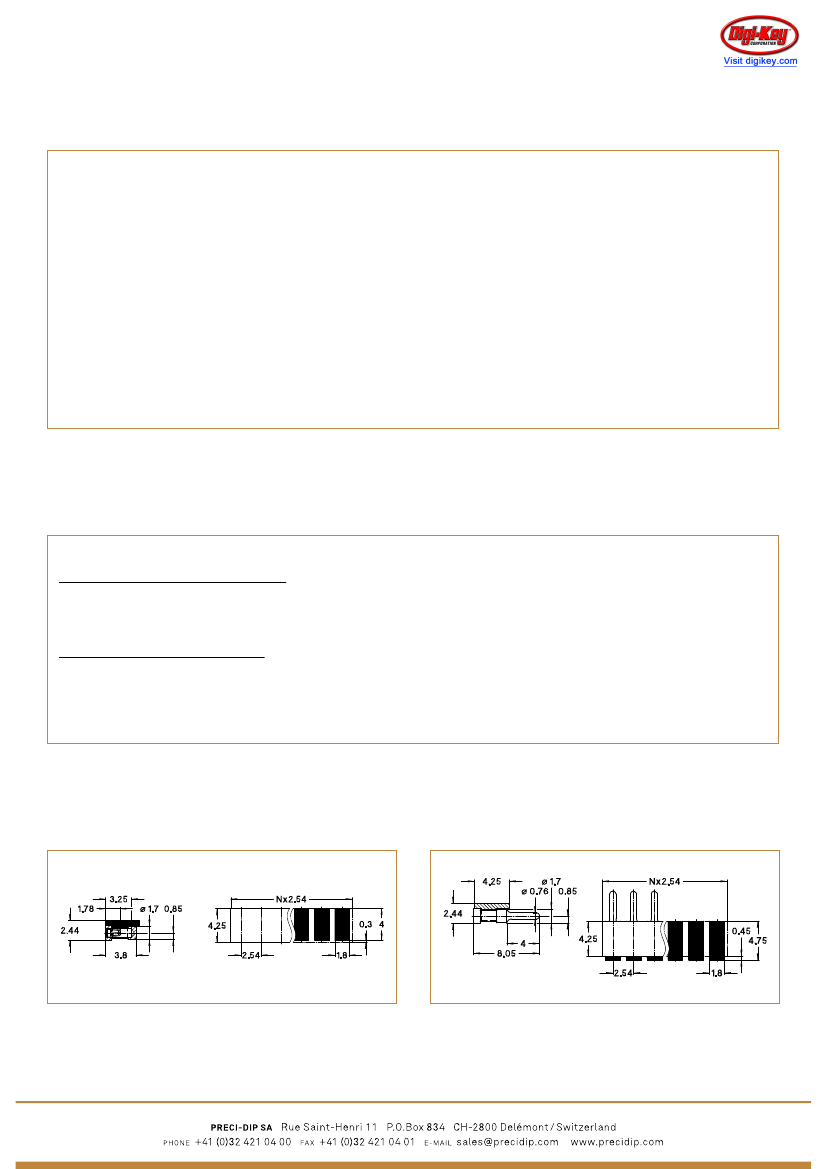

4. technical DraWingS
Socket conector 8FM-PP-0nnn-02-278
Pin conector 8MM-11-0nnn-02-279
