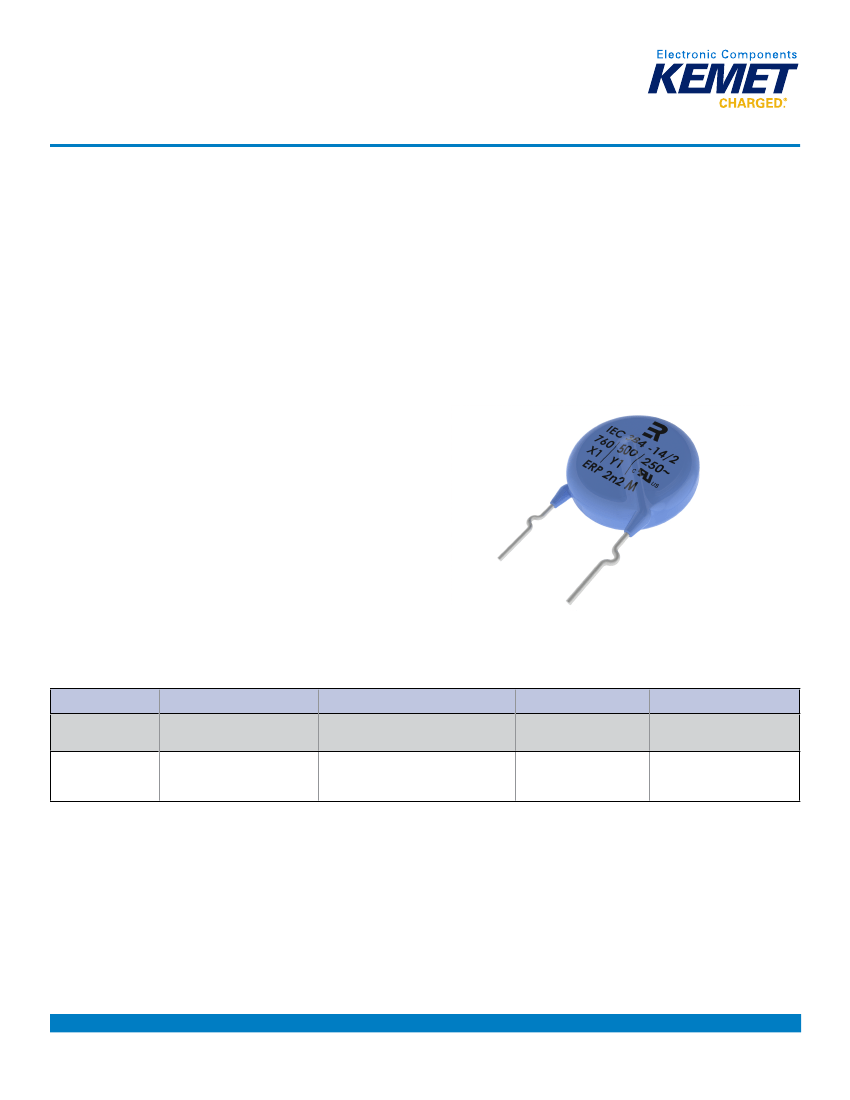

Radial Leaded Ceramic Disc Capacitors
Safety Standard Recognized, ERP610 Series, Encapsulated,
X1 760 VAC/Y1 500 VAC (Industrial Grade)
Overview
KEMET’s ERO610 series encapsulated radial leaded
ceramic disc capacitors are specifically designed for
interference-suppression AC line filtering applications. Hav-
ing internationally recognized safety certifications, these
capacitors are well-suited for applications that require
keeping potentially disruptive or damaging line transients
and EMI out of susceptible equipment. They are also an
ideal solution when needing to suppress line disturbances
at the source.
Safety Certified Capacitors are classified as either X and/
or Y capacitors. Class X capacitors are primarily used in
line-to line (across-the-line) applications. In this application
there is no danger of electric shock to humans should the
capacitor fail, but could result in a risk of fire. The class Y
capacitor is primarily used in line-to-ground (line by-pass)
applications. In this application, failure of the capacitor
could lead to danger of electric shock.
With a working voltage of 760 VAC in line-to-line (Class X)
and 500 VAC in line-to-ground (Class Y) applications, these
safety capacitors meet the impulse test criteria outlined in
IEC Standard 60384. Meeting subclass X1 and Y1 require-
ments, these devices are certified to withstand impulses up
to 4 KV (X1) and 8 KV (Y1) respectively. These encapsulated
devices also meet the flame test requirements outlined in UL
Standard 94V-0.
Click image above for interactive 3D content
Ordering Information
ERP610
Ceramic
Series
ERP610
Open PDF in Adobe Reader for full functionality
W
Voltage Rating
(Safety Subclass Rating)
W = X1 760 VAC/Y1 500 VAC
102
Capacitance
Code (pF)
Two significant digits and Number
of zeroes
M
Capacitance
Tolerance
K = ±10%
M = ±20%
DF0
Lead configuration /
Packaging Code
*See Packaging Options
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1085_ERP610 • 9/13/2016
1
Radial Leaded Ceramic Disc Capacitors
Safety Standard Recognized, ERP610 Series, Encapsulated, X1 760 VAC/Y1 500 VAC (Industrial Grade)
Packaging C-Spec Ordering Options Tables
Bulk Packaging
1
LEAD LENGTH L
30 mm - 3 mm
Straight leads
10 mm ± 1 mm
6 mm - 1 mm
Preformed leads inside crimp
Preformed leads outside crimp
Preformed leads snap-in
Inline wire
1
LEAD DIAMETER D
0.6 mm
0.8 mm
0.6 mm
0.8 mm
0.6 mm/0.8 mm
0.6 mm
0.8 mm
0.6 mm
0.8 mm
0.6 mm
0.8 mm
0.6 mm
0.8 mm
LEAD SPACING F
10 mm
DF0
DJ0
DD0
DH0
DB0
12.5 mm
EF0
EJ0
ED0
EH0
EB0
EFG
EJG
TG0
TH0
QG0
QH0
YG0
YH0
30 mm - 3 mm
5 mm ± 1 mm
Minimum 2.8 mm
Minimum 3.5 mm
Minimum 2.8 mm + 1.5 mm
Minimum 3.0 mm + 2.0 mm
TE0
TF0
YE0
YF0
5 mm and 7 mm lead spacing options are not available for ERP610 Series.
Reel Packaging Component Pitch 25.4 mm
1
TAPING F
Lead spacing F
Body diameter D
Straight leads
Preformed leads inside crimp
Preformed leads outside crimp
Inline wire
1
10 mm
H = 16.5 mm
H = 18.0 mm
H = 20.0 mm
H0 = 16.0 mm
H0 = 16.0 mm
H0 = 16.0 mm
DRT
DRU
DRY
–
TDR
YRD
12.5 mm
All diameters
ERT
ERU
ERY
ERZ
TER
YRE
5 mm and 7 mm lead spacing options are not available for ERP610 Series.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1085_ERP610 • 9/13/2016
2
Radial Leaded Ceramic Disc Capacitors
Safety Standard Recognized, ERP610 Series, Encapsulated, X1 760 VAC/Y1 500 VAC (Industrial Grade)
Benefits
•
•
•
•
•
•
•
•
•
•
•
Safety Standard Recognized (IEC 60384-14)
Reliable operation up to 125°C
Class X1/Y1
10 mm and 12.5 mm lead spacing
RoHS compliant
Capacitance offerings ranging from 33 pF up to 4.7 nF
Available capacitance tolerances of ±10% and ±20%
High reliability
Preformed (crimped) or straight lead configurations
Non-polar device, minimizing installation concerns
Encapsulation meets flammability standard UL 94V-0
Applications
Typical applications include line-to-Line (Class X) filtering, line to-ground (Class Y) filtering, antenna coupling, primary and
secondary coupling (switching power supplies) and line disturbances suppression (motors and motor controls, relays,
switching power supplies and invertors).
Approval Standard and Certification Number
Safety Standard
VDE
UL
CAN/CSA
Specification
EN 132400
UL 60384–14 and
E60384–14
Certificate Number
40001993, 40001996
E356389
These devices are VDE/ENEC recognized for antenna coupling and AC line-to-line (Class X) and line-to-ground (Class Y) applications per IEC60384–14.
Environmental Compliance
These devices are RoHS Compliant. They meet all requirements set forth by both EU and China RoHS directives.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1085_ERP610 • 9/13/2016
3
Radial Leaded Ceramic Disc Capacitors
Safety Standard Recognized, ERP610 Series, Encapsulated, X1 760 VAC/Y1 500 VAC (Industrial Grade)

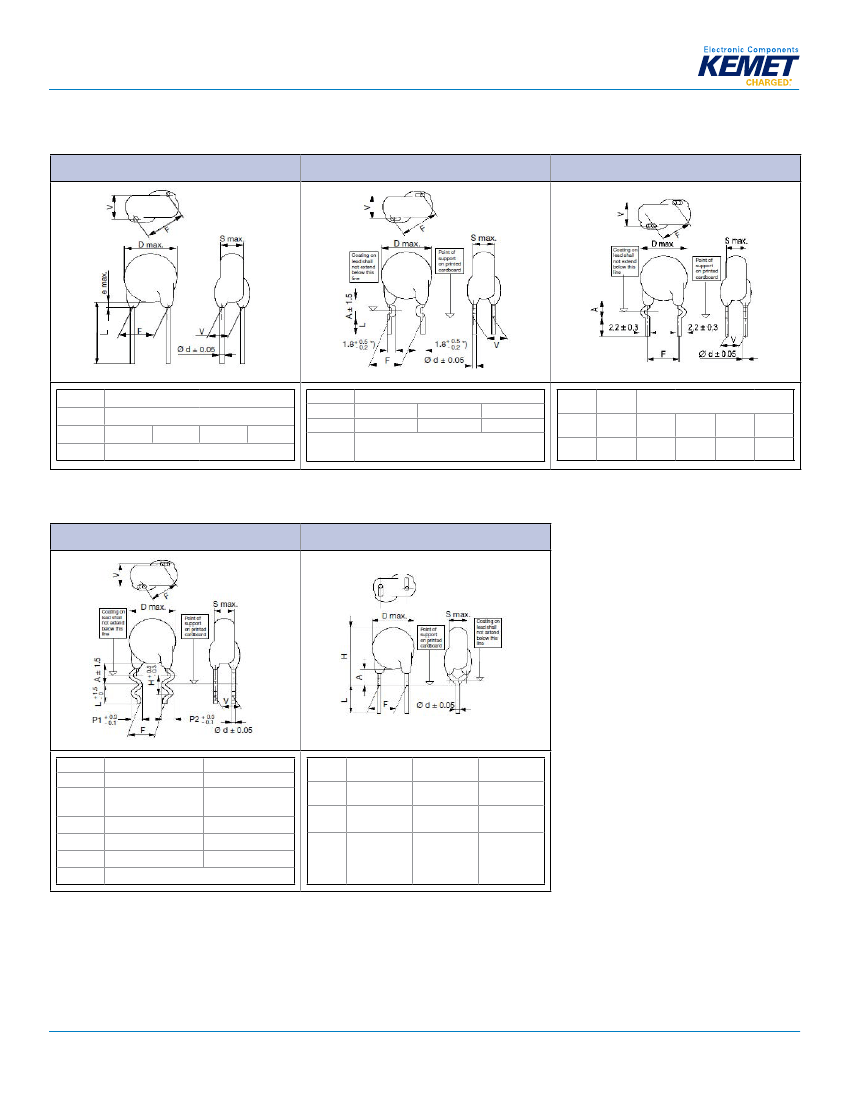

Lead Configurations
Straight Leads
Inside Kink
Outside Kink
Фd
L
F
e
5
0.6 or 0.8
30 - 3 or 10 ± 1
7.5
10
3.0 mm Maximum
12.5
Фd
F
A
L
0.6 or 0.8
7.5
10
12.5
4.0 ± 1.5
5.0 ± 1.5
6.0 ± 1.5
3.0 mm Minimum
Tolerance: 1.0 mm absolute
Фd
F
A
0.6
5.0
5.0
7.5
5.0
0.6 or 0.8
7.5
6.0
10.0
6.0
12.5
6.0
Snap-In Leads
Vertical Crimp
Фd
F
L
H
P1
P2
A
0.8
7.5 / 10 / 12.5
3.5 mm
2.8 mm Minimum
Minimum
2.6
3.3
1.25
1.65
1.65
1.95
D - 8: 6.0 ± 1.5 D > 8: 7.0 ± 1.5
0.6
7.5 / 10 / 12.5
F
D
A
L
7.5
0.6
4.5
Maximum
2.8
Minimum
1.5
absolute
10
0.8
6.0
Maximum
3.0
Minimum
2.0
absolute
12.5
0.8
6.0
Maximum
3.0
Minimum
2.0
absolute
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1085_ERP610 • 9/13/2016
4
Radial Leaded Ceramic Disc Capacitors
Safety Standard Recognized, ERP610 Series, Encapsulated, X1 760 VAC/Y1 500 VAC (Industrial Grade)
General Specifications/Performance Characteristics
Dielectric/Temperature Characteristic
Operating Temperature Range:
Capacitance Change with Reference to +25°C
and 0 VDC Applied (TCC):
−750 ±120 ppm/ºC
±22%
U2J
Y5S
−40°C to +125°C
Y5T
+22%/−33%
Y5U
22%/−56%
Test Voltage Between Terminals
Component test:
4,000 VAC, 50 Hz, 2 seconds
As repeated test admissible only once with
4,000 VAC, 50 Hz, 60 seconds
Random sampling test (destructive test):
4,000 VAC, 50 Hz, 60 seconds
4,000 VAC, 50 Hz,60 seconds (destructive test)
0.50%
2.50%
10,000 MΩ Minimum
(500 VDC applied for 60±5 seconds at 25°C)
Dielectric Strength of Body Insulation
1
Dissipation Factor (tanδ) at +25ºC
1
Insulation Resistance (IR) Limit at +25°C
1
*C = Nominal capacitance
Capacitance and Dissipation Factor (DF) measured under the following conditions:
U2J: 1 MHz ± 100 kHz and 1.0 ±0.2 Vrms
Y5S, Y5T and Y5U: 1 kHz ± 50 Hz and 1.0 ±0.2 Vrms
Note: When measuring capacitance, it is important to ensure the set voltage level is held constant. The HP4284 & Agilent E4980 have a feature known as
Automatic Level Control (ALC). The ALC feature should be switched to "ON."
Table 1 – Product Ordering Codes and Ratings
Dielectric/
Temp.
Char.
U2J
Y5S
Y5T
Dimensions (mm)
KEMET
Part Number
ERP610W330
ERP610W470
ERP610W680
ERP610W101
ERP610W151
ERP610W221
ERP610W331
ERP610W471
ERP610W681
ERP610W102
ERP610W152
ERP610W222
ERP610W272
ERP610W332
ERP610W392
ERP610W472
KEMET
Part Number
Lead Spacing
Lead
Diameter
Bulk
Packaging
Ammo
Packaging
Capacitance
33 pF
47 pF
68 pF
100 pF
150 pF
220 pF
330 pF
470 pF
680 pF
1000 pF
1500 pF
2200 pF
2700 pF
3300 pF
3900 pF
4700 pF
Capacitance
Capacitance
Tolerance
Body
Diameter
(Maximum)
Body
Thickness
(Maximum)
8.0
6.0
±10%
±20%
9.0
10.0
12.0
13.0
15.0
17.0
Capacitance
Tolerance
Body Diameter
(Maximum)
Body Thickness
(Maximum)
0.6
0.8
10
12.5
Y5U
5.0
Lead Diameter
Lead Spacing
(1) To properly complete ordering code, enter the three-digit alphanumeric "Packaging Code." See "Dimensions" section of this document, page 2, for
available options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1085_ERP610 • 9/13/2016
5
