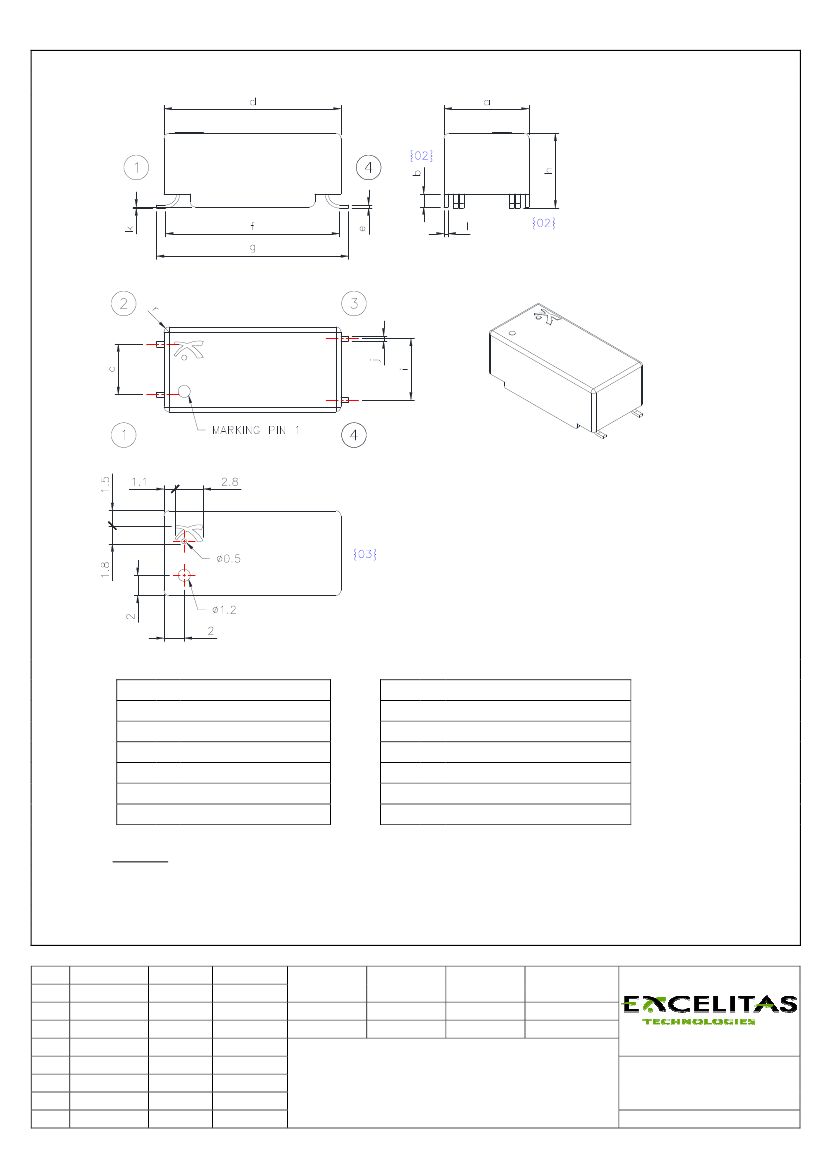

DATA SHEET
4.
ELECTRICAL PERFORMANCE
Item
Resistance
Primary Voltage, Uzp
Primary Capacitance, Cz
Secondary Voltage, Uz (unload)
Polarity of 1 Peak
Inductance, 1 KHz
Thyristor
Insulation Resistance DC 500V
Measuring Conditions:
1.
2.
3.
4.
5.
st
Primary
325 mohm max.
300 V
0.047 µF
---
---
20 ± 5 µH
CR02AM-8
Pri to Core:
100 Mohm min.
Secondary
230 ± 15 ohm
---
---
9 KV min.
1 peak negative
18 ± 5 mH
---
Sec to Core:
100 Mohm min.
st

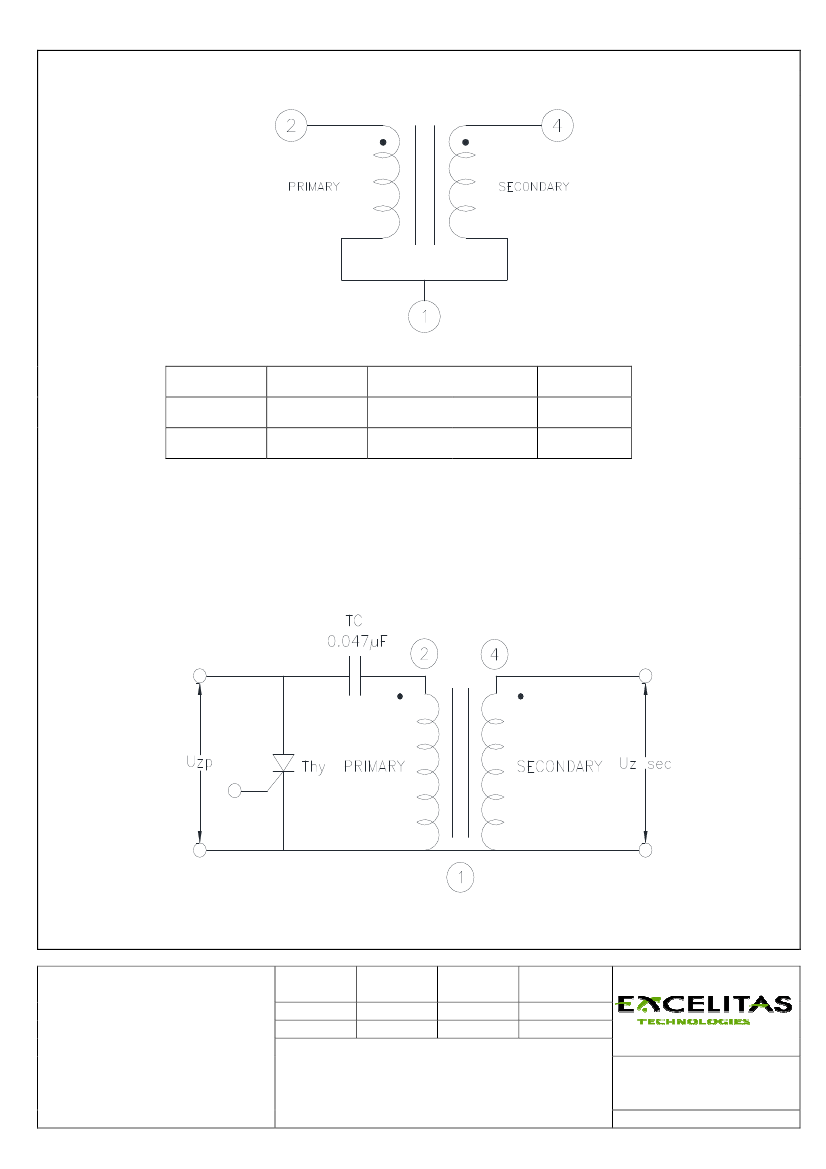

Oscilloscope – Tektronix 3012B
Voltage distributor – Tektronix P6015A 1000x3.0pF 100 Mohm
Test fixture : Excelitas standard trigger card
S.C.R. : 2N5064
T.C. : 0.047 µF PPS capacitor
Operating temperature : -40 to +85 °C
{05}
Reference Waveform (Unload)
NAME
DRAWN
CHECKED
DRAWN
MAUNG TT
MAUNG TT
DATE
11.06.2012
11.06.2012
DEPARTMENT
ENGINEERING
ENGINEERING
ZS 1052-S HT(H)
8 TRACTOR ROAD
SINGAPORE 627969
PAGE
3
OF
5

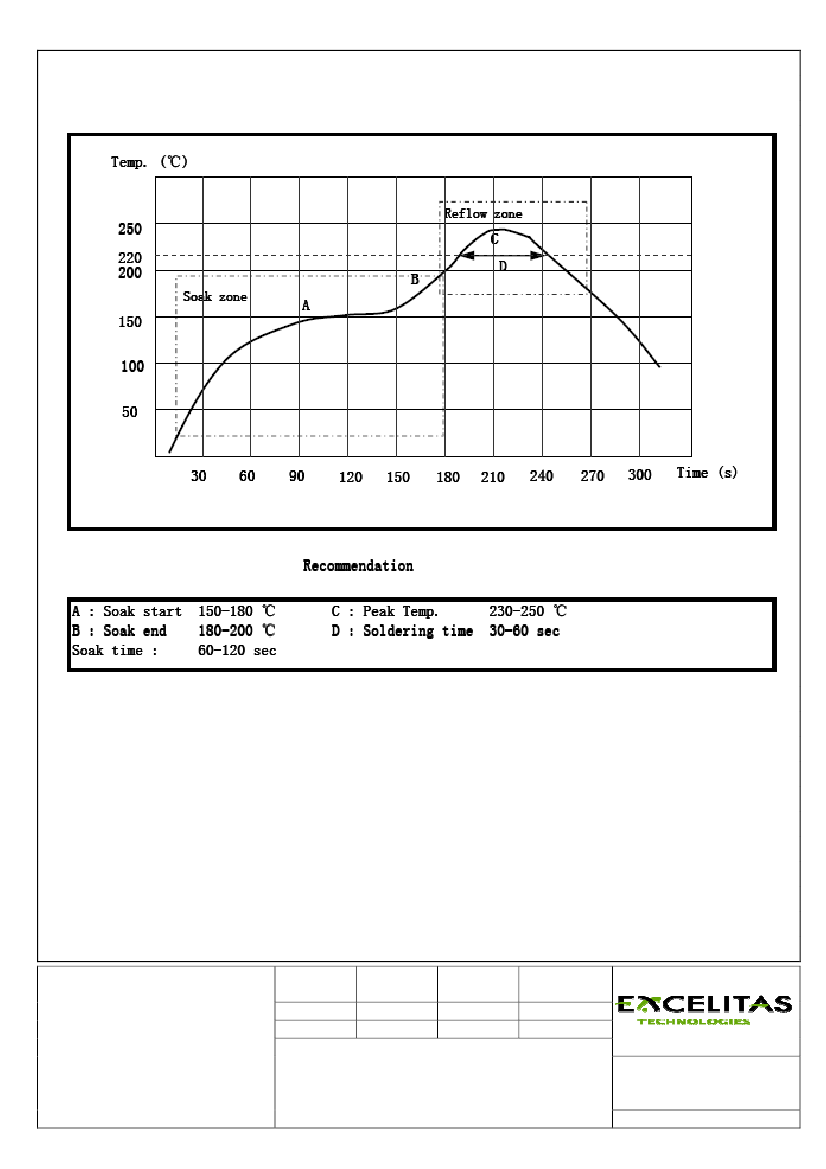

DATA SHEET
{08}
6.
PACKING
Every box of trigger coils shall be labeled for identification and traceability purpose.
Type
Quantity
Batch
QA No.
P/No.
Bau No.
:
:
:
:
:
:
Product name, e.g. ZS 1052-S HT (H)
Quantity of trigger coils packed in reel
Calendar week, Year
Number signed at QA Outgoing acceptance
Customer Part Number, if applicable
Product code for Excelitas
Date
:
Date on which the product is accepted by QA for shipment
A “Passed QA” sign is stamped on the label to indicate conformance to specification. This label is for
each reel.
Item
Reel

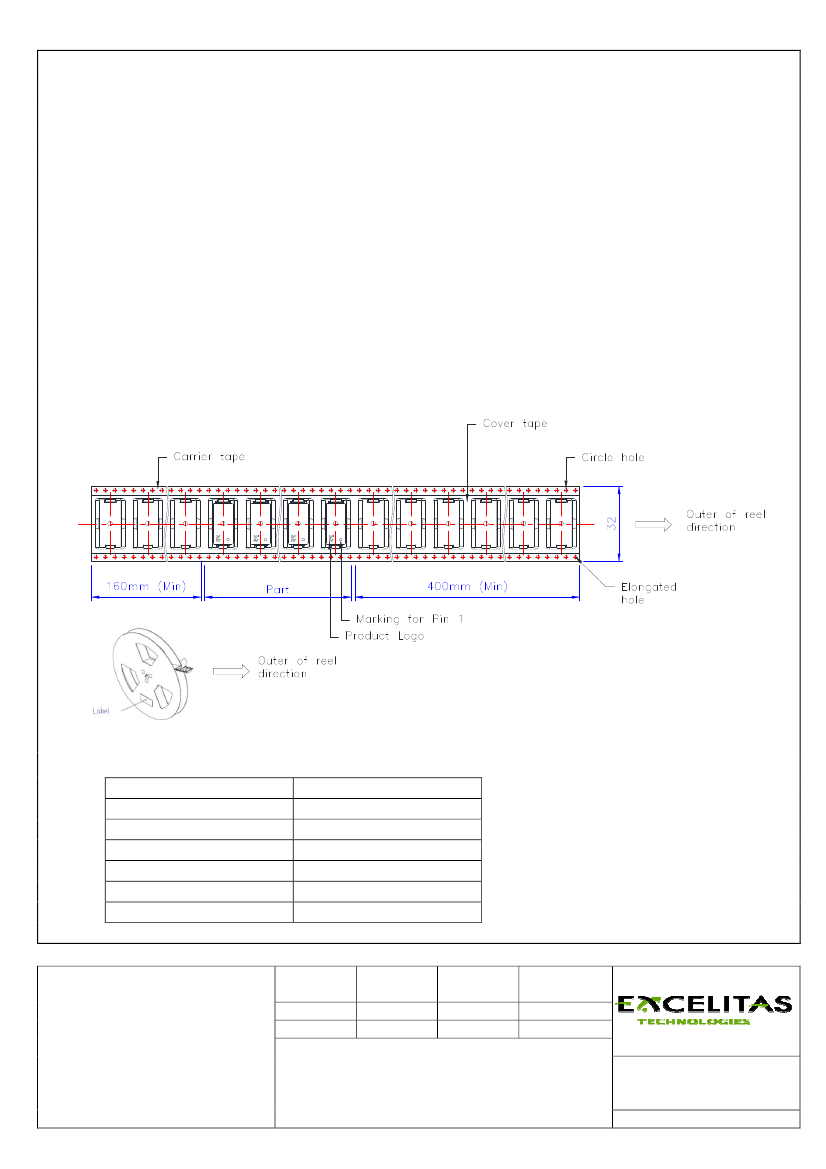

Length of Carry Tape
Quantity Per Reel
Diameter of Reel Axis
Carry Tape
Cover Tape
Data
13”
8.64 m / reel
{09}
500 pcs / reel
{09}
100 mm
PS ESD
PE
NAME
DRAWN
CHECKED
DRAWN
MAUNG TT
MAUNG TT
DATE
11.06.2012
11.06.2012
DEPARTMENT
ENGINEERING
ENGINEERING
ZS 1052-S HT(H)
8 TRACTOR ROAD
SINGAPORE 627969
PAGE
5
OF
5
