IDT7MP4045SA10Z datasheet, PDF

Datasheet> All Categories > storage> IDT7MP4045SA10Z

IDT7MP4045SA10Z: DescriptionSRAM Module, 1MX8, 10ns, BICMOS; Categorystorage; File Size194KB，9 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT7MP4045SA10Z Overview

SRAM Module, 1MX8, 10ns, BICMOS

IDT7MP4045SA10Z Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Reach Compliance Code	not_compliant
ECCN code	3A991.B.2.A
Is Samacsys	N
Maximum access time	10 ns
Other features	CONFIGURABLE AS 256K X 32
Spare memory width	16
I/O type	COMMON
JESD-30 code	R-XZMA-T64
JESD-609 code	e0
memory density	8388608 bit
Memory IC Type	SRAM MODULE
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	64
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX8
Output characteristics	3-STATE
Exportable	YES
Package body material	UNSPECIFIED
encapsulated code	ZIP
Encapsulate equivalent code	ZIP64/68,.1,.1
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Certification status	Not Qualified
Maximum seat height	14.859 mm
Maximum standby current	0.32 A
Minimum standby current	4.5 V
Maximum slew rate	1.6 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BICMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.27 mm
Terminal location	ZIG-ZAG
Maximum time at peak reflow temperature	30
Base Number Matches	1

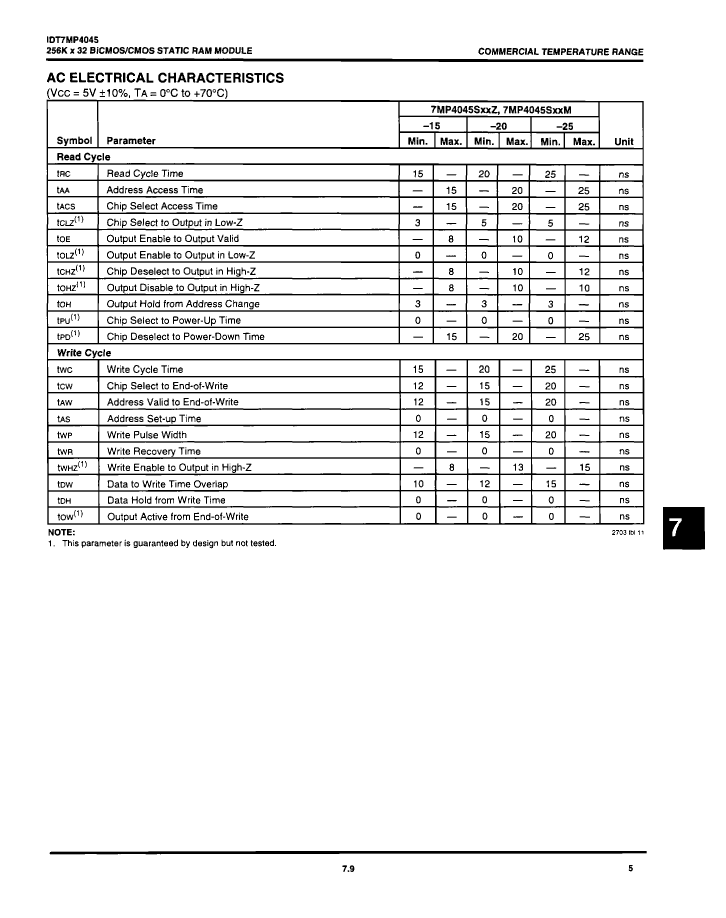

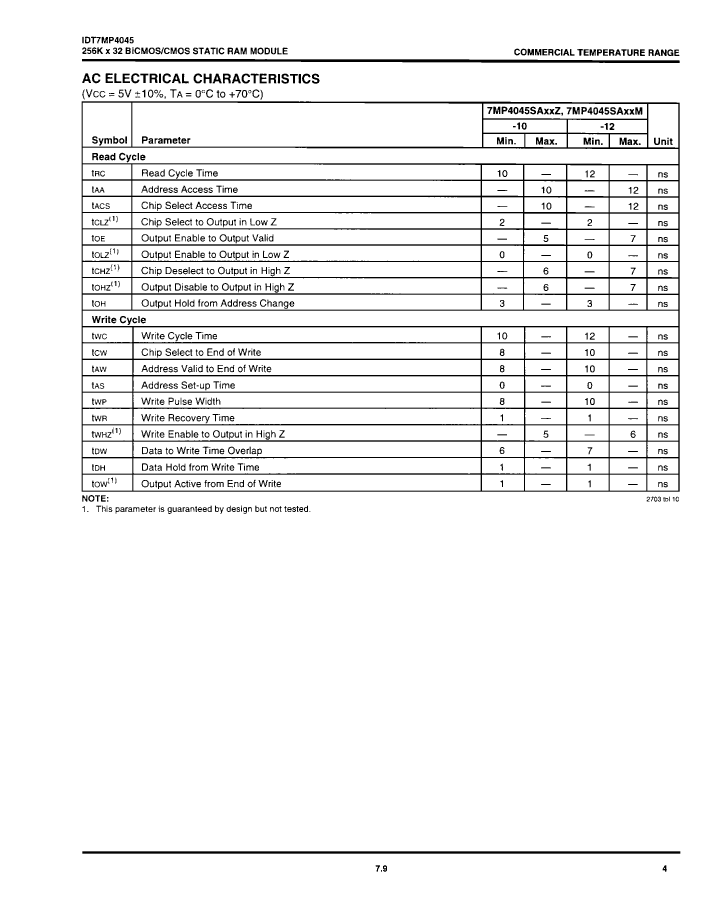

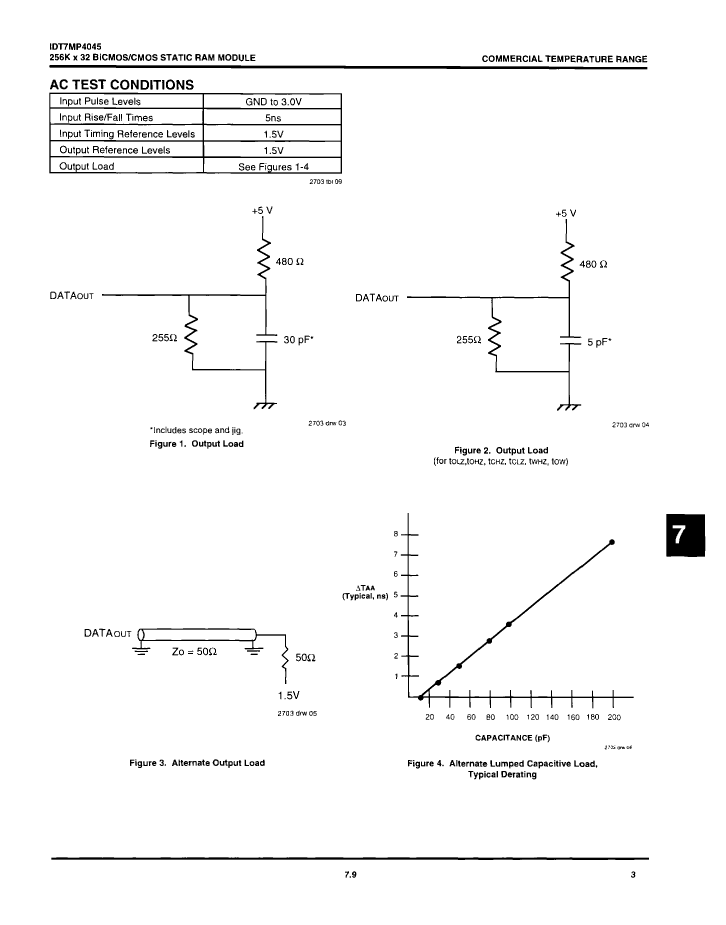

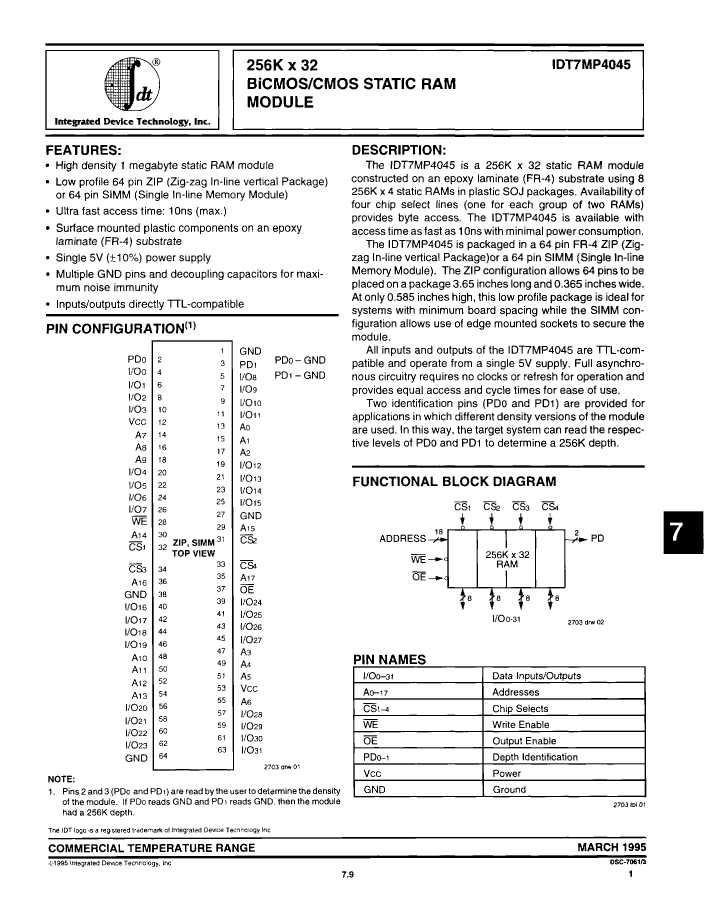

Preview

Download Datasheet

View All

IDT7MP4045SA10Z Related Products

	IDT7MP4045SA10Z	IDT7MP4045S10M	IDT7MP4045SA10M	IDT7MP4045S10Z	IDT7MP4045SA12M	IDT7MP4045SA12Z	IDT7MP4045S12Z	IDT7MP4045S12M
Description	SRAM Module, 1MX8, 10ns, BICMOS	SRAM Module, 1MX8, 10ns, BICMOS	SRAM Module, 1MX8, 10ns, BICMOS	SRAM Module, 1MX8, 10ns, BICMOS	SRAM Module, 1MX8, 12ns, BICMOS	SRAM Module, 1MX8, 12ns, BICMOS	SRAM Module, 1MX8, 12ns, BICMOS	SRAM Module, 1MX8, 12ns, BICMOS
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	_compli
ECCN code	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A
Maximum access time	10 ns	10 ns	10 ns	10 ns	12 ns	12 ns	12 ns	12 ns
Other features	CONFIGURABLE AS 256K X 32	CONFIGURABLE AS 256K X 32	CONFIGURABLE AS 256K X 32	CONFIGURABLE AS 256K X 32	CONFIGURABLE AS 256K X 32	CONFIGURABLE AS 256K X 32	CONFIGURABLE AS 256K X 32	CONFIGURABLE AS 256K X 32
Spare memory width	16	16	16	16	16	16	16	16
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XZMA-T64	R-XSMA-N64	R-XSMA-N64	R-XZMA-T64	R-XSMA-N64	R-XZMA-T64	R-XZMA-T64	R-XSMA-N64
memory density	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bi
Memory IC Type	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE
memory width	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1
Number of terminals	64	64	64	64	64	64	64	64
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	1MX8	1MX8	1MX8	1MX8	1MX8	1MX8	1MX8	1MX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES	YES	YES	YES	YES
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	ZIP	SIMM	SIMM	ZIP	SIMM	ZIP	ZIP	SIMM
Encapsulate equivalent code	ZIP64/68,.1,.1	SSIM64	SSIM64	ZIP64/68,.1,.1	SSIM64	ZIP64/68,.1,.1	ZIP64/68,.1,.1	SSIM64
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	225	225	225	225	225	225	225	225
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	14.859 mm	16.002 mm	16.002 mm	15.24 mm	16.002 mm	14.859 mm	15.24 mm	16.002 mm
Maximum standby current	0.32 A	0.32 A	0.32 A	0.32 A	0.32 A	0.32 A	0.32 A	0.32 A
Minimum standby current	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Maximum slew rate	1.6 mA	1.6 mA	1.6 mA	1.6 mA	1.6 mA	1.6 mA	1.6 mA	1.6 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	NO LEAD	NO LEAD	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	ZIG-ZAG	SINGLE	SINGLE	ZIG-ZAG	SINGLE	ZIG-ZAG	ZIG-ZAG	SINGLE
Maximum time at peak reflow temperature	30	NOT SPECIFIED	30	30	30	30	30	NOT SPECIFIED
JESD-609 code	e0	-	e0	e0	e0	e0	e0	-
Terminal surface	Tin/Lead (Sn/Pb)	-	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
