FLS
CONNECTOR
0.5mm
(.020") pitch
Emboss Tape
Connectors for FPC
Features––––––––––––––––––––––––

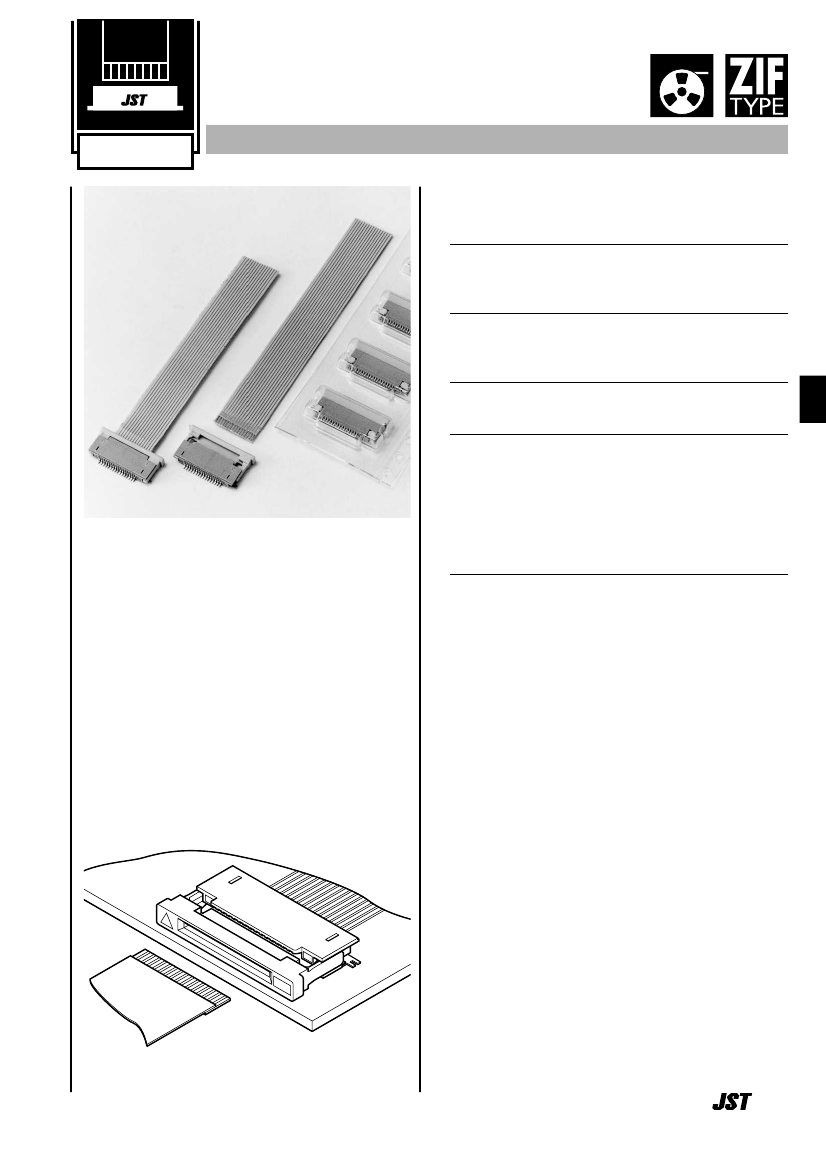

• Easy location of FPC
The shrouded FPC entry point allows the FPC to be positioned
and hold in place before the connector is locked.
• Heat resistant design suitable for surface mounting
The housing is made of heat resistant plastic to allow reflow
soldering.
• In-line surface mounting
Has an in-line surface mount tails for easy inspection.
• Two types of connections
The connector is available in either the normal or reverse
configurations.The FPC is positioned with its mating surfaces
facing upward for the normal configured connector,while the
reverse configuration requires that the FPC be positioned with
its mating surfaces facing down.The engineer has greater
Compact connector with just 2.0mm (.079
")
high after mounting on the PC board.
freedom in designing his circuitry.
• Embossed tape for automatic mounting
The FLS connector can be packaged in embossed tape for
automatic mounting.
Specifications –––––––––––––––––––
• Current rating: 0.5A AC, DC
• Voltage rating: 50V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/40m
Ω
max.
After environmental testing/60m
Ω
max.
• Insulation resistance:
800M
Ω
min.
• Withstanding voltage: 200V AC/minute
• Applicable FPC: Lead pitch/0.5mm(.020")
Lead width/0.35mm(.014")
Mating part thickness/
0.3±0.03mm (.012"±.001")
<
Note
>
FPC to be actually used should be checked for applicability.
FJ
ST
* Contact JST if Lead-Free product is required.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
Standards ––––––––––––––––––––––
0
Recognized E60389
1
Certified LR20812
497
FLS
CONNECTOR
Connector –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Normal type
2.4
(.094)
Reverse type
0.2
(.008)
0.2
(.008)
2.4
(.094)
1.9
(.075)
3.0
(.118)
C
5.5(.217)
1.9
(.075)
2.0
(.079)
[0.7(.028)]
C
3.0
(.118)
5.5(.217)
1.9
(.075)
2.0
(.079)
[0.7(.028)]
0.5(.020)
A
B
0.5(.020)
A
B
Circuits
6
7
9
10
12
13
15
16
17
18
19
20
22
24
26
28
30
Model No.
Normal type
06FLS-SM1-TB
07FLS-SM1-TB
09FLS-SM1-TB
10FLS-SM1-TB
12FLS-SM1-TB
13FLS-SM1-TB
15FLS-SM1-TB
16FLS-SM1-TB
17FLS-SM1-TB
18FLS-SM1-TB
19FLS-SM1-TB
20FLS-SM1-TB
22FLS-SM1-TB
24FLS-SM1-TB
26FLS-SM1-TB
28FLS-SM1-TB
30FLS-SM1-TB
Reverse type
06FLS-RSM1-TB
07FLS-RSM1-TB
09FLS-RSM1-TB
10FLS-RSM1-TB
12FLS-RSM1-TB
-
Dimensions mm(in.)
A
2.5(.098)
3.0(.118)
4.0(.157)
4.5(.177)
5.5(.217)
6.0(.236)
7.0(.276)
7.5(.295)
8.0(.315)
8.5(.335)
9.0(.354)
9.5(.374)
10.5(.413)
11.5(.453)
12.5(.492)
13.5(.531)
14.5(.571)
B
3.55(.140)
4.05(.159)
5.05(.199)
5.55(.219)
6.55(.258)
7.05(.278)
8.05(.317)
8.55(.337)
9.05(.356)
9.55(.376)
10.05(.396)
10.55(.415)
11.55(.455)
12.55(.494)
13.55(.533)
14.55(.573)
15.55(.612)
15FLS-RSM1-TB
16FLS-RSM1-TB
17FLS-RSM1-TB
18FLS-RSM1-TB
19FLS-RSM1-TB
20FLS-RSM1-TB
22FLS-RSM1-TB
24FLS-RSM1-TB
26FLS-RSM1-TB
28FLS-RSM1-TB
30FLS-RSM1-TB
Material and Finish
Contact: Phosphor bronze, copper-undercoated, tin/lead-plated
Slider housing: Nylon 46,UL94V-0
Receptacle housing: Nylon 46,UL94V-0
( )FLS-SM1-TB ...natural
( )FLS-SM1-TB ...gray
( )FLS-RSM1-TB ...black
( )FLS-RSM1-TB ...natural
Solder tab: Phosphor bronze, copper-undercoated, tin/lead-plated
Note: The products listed above are supplied on embossed-tape.
498
FJST
FJST
1.9
(.075)
C
8.5(.335)
9.0(.354)
10.0(.394)
10.5(.413)
11.5(.453)
12.0(.472)
13.0(.512)
13.5(.531)
14.0(.551)
14.5(.571)
15.0(.591)
15.5(.610)
16.5(.650)
17.5(.689)
18.5(.728)
19.5(.768)
20.5(.807)
Q'ty / reel
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
FLS
CONNECTOR

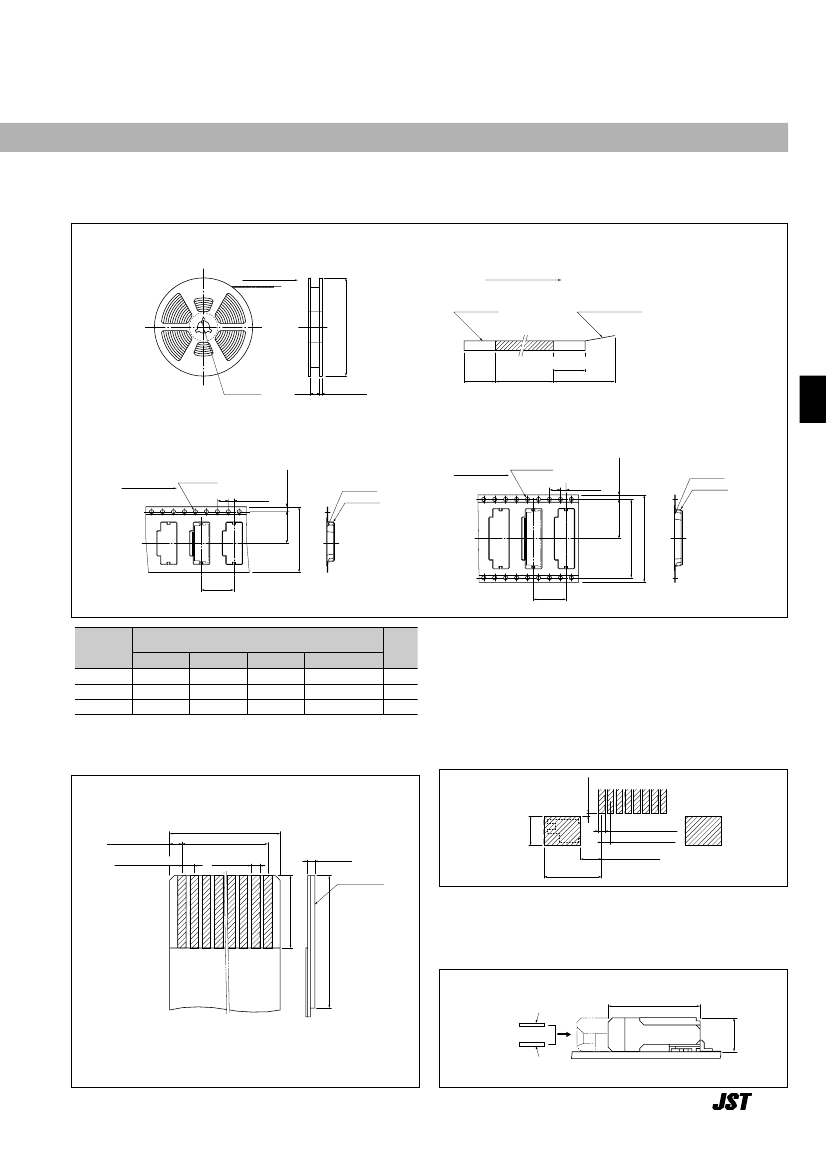

Taping specifications ––––––––––––––––––––––––––––––––––––––––––––––––––––––
Feeding direction
330
±
2.0(12.992
±
.079)dia.
Feeding direction
Carrier tape
Cover tape leader
13(.512)dia.
W1
2.0
±
0.5
(.079
±
.020)
Leader part
100(3.937)min.
The end part Connector
160(6.299)min. mounting part 400(15.748)min.
(6 to 22 circuits)
(24 to 30 circuits)
1.75±0.1
(.069±.004)
Feeding direction
1.55±0.05
(.061±.002)dia.
4.0±0.1
(.157±.004)
2.0±0.1
(.079±.004)
Feeding direction
Cover tape
Carrier tape
1.75±0.1
(.069±.004)
1.55±0.05
(.061±.002)dia.
4.0±0.1
(.157±.004)
2.0±0.1
(.079±.004)
Cover tape
Carrier tape
F±0.1(.004)
F±0.1(.004)
W±0.3(.012)
12.0±0.1
(.472±.004)
12.0±0.1
(.472±.004)
Taping dimensions mm(in.)
Circuits
6 to 7
9 to 22
24 to 30
F
7.5(.295)
11.5(.453)
14.2(.559)
S
-
-
28.4(1.118)
W
16.0( .630)
24.0( .945)
32.0(1.260)
W1
17.5( .689)
25.5(1.004)
33.5(1.319)
Q'ty /
reel
2,000
2,000
2,000
Note:
1. Specifications conform to JIS C 0806. The tape width, connector loading
recess square hole dimensions, etc. are determined by the number of
circuits and external shape of the connector to be loaded.
2. Specifications are subject to change without prior notice.
Lead section dimensions of FPC ––––––––––––
PC board layout
(viewed from component side)
–––––
0.15±0.1
(.006±.004)
1.6±0.1
(.063±.004)
[0.5(.020)x(Number of circuits +1)]±0.05(.002)
0.5±0.1(.020±.004) [0.5(.020)x(Number of circuits -1)]±0.03(.001)
0.35±0.04
(.014±.002)
0.3±0.03
(.012±.001)
0.35±0.05(.014±.002)
0.5±0.03(.020±.001)
1.2±0.1(.047±.004)
3.3±0.1
(.130±.004)
0.5±0.03(.020±.001)
Reinforcing layer
5.5(.217)
Note:
1. Tolerances are non-cumulative:
±
0.03mm(
±
.001" ) for all centers.
2. The dimensions above should serve as a guideline.
Contact JST for details.
3.0(.118)min.
Assembly layout–––––––––––––––––––––
Contact
point
Normal
type
Reverse
type
Contact
point
5.5(.217)
2.0(.079)
W±0.3(.012)
S±0.1(.004)
499
