3M
Pak 100 4-Wall Header
.100″
×
.100″ Latch/Ejector, Straight and Right Angle, High Temp Option
3000 Series
S
Military (with 3M’s 3518 polarizing key) and
centerbump polarization
S
Optional ejector latches
S
Mounting holes for securing header to board
S
Solder tail and wrap tail options
S
Optional polarizing posts
S
High temperature option
Date Modified:May 30, 2003
TS-0772-03
Sheet 1 of 4
Physical
Insulation
Material: Glass Filled Polyester (PBT)
Glass Filled Polyester (PCT — High Temp Option)
Flammability: UL 94V-0
Color: Gray, Standard
Beige (High Temp Option)
Contact
Material: Copper Alloy
Plating
Underplate: 100
µ″
[ 2.54
µm
] Nickel — QQ-N-290, Class 2
Wiping Area: Gold — MIL-G-45204, Type II, Grade C
Solder Tails: 200
µ″
[ 5.08
µm
] 60/40 Tin Lead — MIL-P-81728
Wrap Tails: Gold Flash, Standard
Marking:
3M Logo, Part Identification Number and Orientation Triangle
Electrical
Current Rating:
1 A
Insulation Resistance:
>1
×
10
9
Ω
at 500 Vdc
Withstanding Voltage:
1000 Vrms at Sea Level
Environmental
Temperature Rating:
- 55°C to +105°C
High Temp Process Rating:
Maximum 235°C, with 90 seconds over 215°C
UL File No.: E68080
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
Pak 100 4-Wall Header
-X0XX
Header with No
Ejector/Latch
-X5XX
Header with
Short Ejector/Latch
for 3M Sockets without
Strain Relief
.100″
×
.100″ Latch/Ejector, Straight and Right Angle, High Temp Option
-X6XX
Header with
Long Ejector/Latch
for 3M Sockets with
Strain Relief
3000 Series
-X4XX
Header with
Ejector only
.08
[2.0]
.08
[2.0]
.424
±
.010
[ 10.77 ]
.97 Ref
[24.6]
.573
±
.010
[ 14.55 ]
1.07 Ref
[27.2]
1.07 Ref
[27.2]
.37 Ref
[9.4]
.46 Ref
[11.7]
.42 Ref
[10.7]
Note: This Ejector is a Nickel
Plated Zinc Alloy Casting.
.025
±
.002 Sq Typ
[ 0.64 ]
.24
[6.1]
.020
[0.51]
2X
«.100
[2.54]
(See Note 2)
D
.28
[7.1]
.30
[7.6]
.100 Ref
[2.54]
C
L
“Y”
F Typ
Position 1
Orientation
Triangle
Notch A
(See Table 1 & Note1)
Notch B
(See Table 1)
.16
[4.1]
Notch C
(See Table 1 & Note 1)
E
±
.010
.12
[3.0]
Position 1
B
.25
[6.4]
.100 Ref
[2.54]
.34
[8.3]

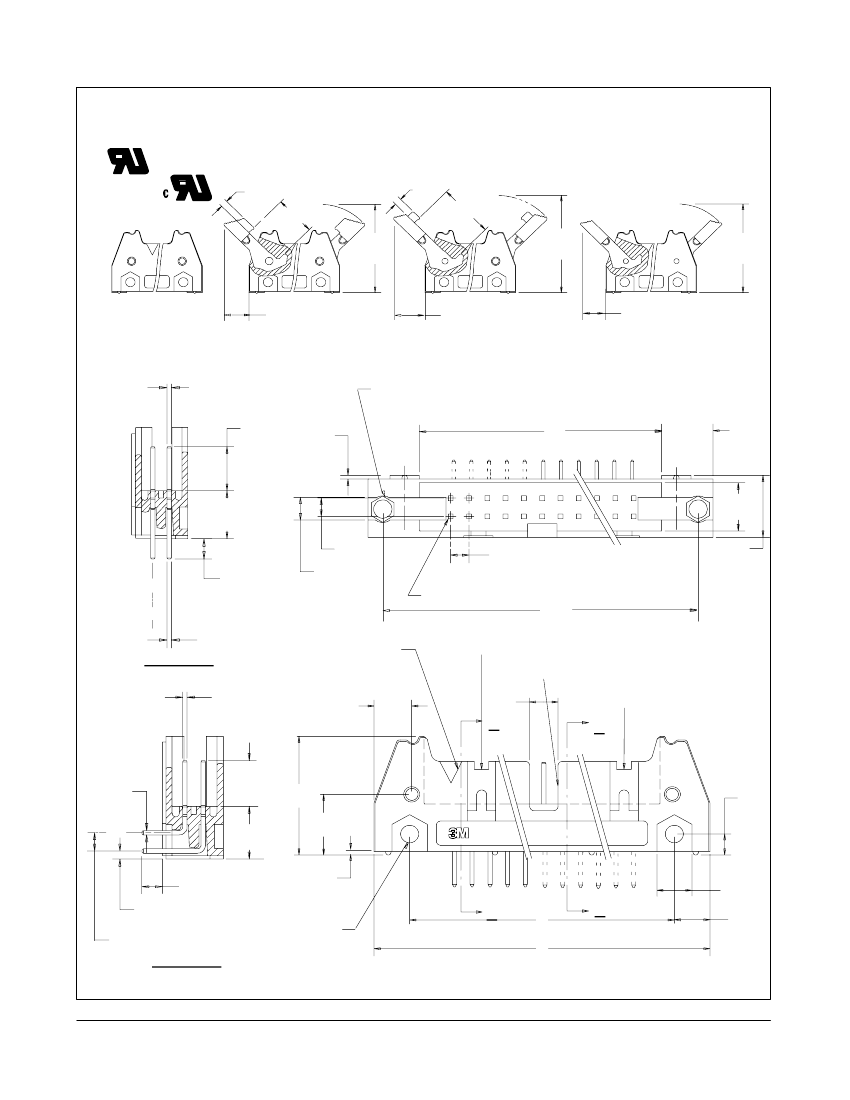

Section A--A
(Straight)
.025
±
.002 Sq Typ
[ 0.64 ]
.21
[5.3]
A
B
F Typ
.24
[6.1]
.68
[17.3]
.35
[8.9]
.12
[3.0]
C
L
“Y”
.30
[7.6]
E
±
.010
.049 Ref
[1.24]
.100 Ref
[2.54]
.020
[0.51]
A
2X
«
.100
[2.54]
(See Note 2)
C
A
B
.197
[5.00]
.20
[5.1]
Section B--B
(Right Angle)
TS-0772-03
Sheet 2 of 4
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
Pak 100 4-Wall Header
.100″
×
.100″ Latch/Ejector, Straight and Right Angle, High Temp Option
Table 1
Pin
Quantity
10
14
16
20
24
26
30
34
40
50
60
64
3M Part
Number
3793
3314
3408
3428
3627
3429
3440
3431
3432
3433
3372
3764
Dimensions
A
1.26 [32.1]
1.46 [37.2]
1.56 [39.7]
1.76 [44.8]
1.96 [49.8]
2.06 [52.4]
2.26 [57.4]
2.46 [62.6]
2.76 [70.2]
3.26 [82.9]
3.76 [95.6]
3.96 [100.7]
B
1.105 [28.07]
1.305 [33.15]
1.405 [35.69]
1.605 [40.77]
1.805 [45.85]
1.905 [48.39]
2.105 [53.47]
2.305 [58.55]
2.605 [66.17]
3.105 [78.87]
3.605 [91.57]
3.805 [96.65]
C
.865 [21.97]
1.065 [27.05]
1.165 [29.59]
1.365 [34.67]
1.565 [39.75]
1.665 [42.29]
1.865 [47.37]
2.065 [52.45]
2.365 [60.07]
2.865 [72.77]
3.365 [85.47]
3.565 [90.55]
Table 2
3M Part
Number Suffix
-5XX2
-6XX2
-5X03
-6X03
-5X05
-6X05
Contact Tail
C t t T il
Solder Tail for
.062 [1.57]
Thick PC Board
Solder Tail for
.094 [2.39] to
.125 [3.18]
Thick PC Board
Wire Wrap Tail for up to
3 Levels of Wire Wrap
or
«.116
«.106
[2.95]
[2.69]
(See Note 2)
G Dia
3000 Series
D
.71 [18.0]
.91 [23.1]
1.01 [25.6]
1.21 [30.7]
1.41 [35.8]
1.51 [38.3]
1.71 43.43]
1.91 [48.5]
2.21 [56.1]
2.71 [68.8]
3.21 [81.5]
3.41 [86.6]
Polarization
Notches Provided
BC
BC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
Dimension E
Di
i
.112
[2.84]
.155
[3.94]
.61 Ref
[15.5]
Pin Cross Section
Dimension F
0.0245
±
.0005
[0.622]
0.0245
±
.0005
[0.622]
0.0250
±
.002
[0.635]
Diagonals
0.028
±
.001
[0.71]
0.028
±
.001
[0.71]
0.035
±
.003
[0.90]
Corner Radii
0.0075 Ref
[0.191]
0.0075 Ref
[0.191]
0.003 Max
[0.08]
or
«.116
«.106
[2.69]
[2.95]
(See Note 2)
G Dia
Dimension G
Di
i
.035
±
.003
[0.89] (See Note 3)
.035
±
.003
[0.89]
.045
±
.003
[1.14]
.300
[7.62]
Side to Side Stackability
.41
[10.4]
Max to Edge of PCB
for Daisy Chain
“Y”
C
L
”Y”
C
L
Position 1
.100
±
.003
[2.54]
.232
[5.89]
C
.060
[1.52]
Position 1
.100
±
.003
[2.54]
.352
[8.94]
.029
[0.74]
.100
±
.003
[2.54]
.100
±
.003
[2.54]
B
Recommended Mounting Hole Pattern
(Straight)
Recommended Mounting Hole Pattern
(Right Angle)
Inch
[mm]
.0
Inch
±
.1
Tolerance Unless Noted
.00
.000
±
.01
±
.005
Notes:
1. Notches A & C will accomodate 3M Polarizing Keys (3M Part #N3518).
2. Accepts Rear and Front mounting hardware:
Rear Entry: #4-24 thread cutting screw, 3M Part #3341-5, .116 [2.95] dia mounting hole
Front Entry: (Prior to installation of latch on Straight Versions) #2-56 bolt and nut, 3M Part #3341-6,
.106 [2.69] dia mounting hole
3. The recommended PCB hole size for the kinked tail positions on the .112 solder tail connector is .035
±
.002.
Refer to TS-0972 for the positions kinked.
[ ] Dimensions for
Reference only
TS-0772-03
Sheet 3 of 4
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
Pak 100 4-Wall Header
Ordering Information
.100″
×
.100″ Latch/Ejector, Straight and Right Angle, High Temp Option
3000 Series
30 Microinches Gold Plated Product
XXXXX-XXXX
Product Material:
N = High Temp
Blank = Standard
Tail
02 = Solder Tail for .062 [1.57] Thick Board
K2 = Kinked Solder Tails for .062 [1.57]
Thick Board
03 = Solder Tails for .094 to .125 [2.39 to 3.18]
Thick Board
05 = Wrap Posts for up to 3 levels of Wire Wrap
(Not available on High Temp version.)
3M Part Number
(See Table 1)
Shroud and Pin Configuration
5 = 4 Wall, Right Angle
6 = 4 Wall, Straight
Latch/Ejector System
0 = No Latch/Ejector
4 = Roll Pin Ejectors
(3M Part # 3505-4)
5 = Short, Snap-In Latch/Ejectors,
(3M Part # 3505-30)
6 = Long, Snap-In Latch/Ejectors
(3M Part # 3505-31)
15 Microinches Gold Plated Product
XXXXX-XXXXUG
Product Material:
N = High Temp
Blank = Standard
Plating Suffix
UG = 15 microinch Gold
3M Part Number
(See Table 1)
Shroud and Pin Configuration
5 = 4 Wall, Right Angle
6 = 4 Wall, Straight
Tail
02 = Solder Tail for .062 [1.57] Thick Board
K2=Kinked Solder Tails for .062 [1.57]
Thick Board
03 =Solder Tails for .094 to .125 [2.39 to 3.18]
Thick Board
Latch/Ejector System
0 = No Latch/Ejector
5 = Short, Snap In Latch/Ejectors
(3M Part #3505-30)
6 = Long, Snap In Latch/Ejectors
(3M Part #3505-31)
TS-0772-03
Sheet 4 of 4
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related
to 3M’s products are based on information believed to be reliable,
but the accuracy or completeness is not guaranteed. Before using
this product, you must evaluate it and determine if it is suitable for
your intended application. You assume all risks and liability
associated with such use. Any statements related to the product
which are not contained in 3M’s current publications, or any
contrary statements contained on your purchase order shall have
no force or effect unless expressly agreed upon, in writing, by an
authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture
for a period of 1 year from the date of purchase.
3M MAKES NO
OTHER WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at
3M’s option, to replace or repair the 3M product or refund the
purchase price of the 3M product.
Except where prohibited by
law, 3M will not be liable for any loss or damage arising from
this 3M product, whether direct, indirect, special, incidental or
consequential regardless of the legal theory asserted.
3
Electronic and Interconnect Solutions Division
6801 River Place Blvd.
Austin, TX 78726-9000
www.3M.com/eisd
© 3M 2003
