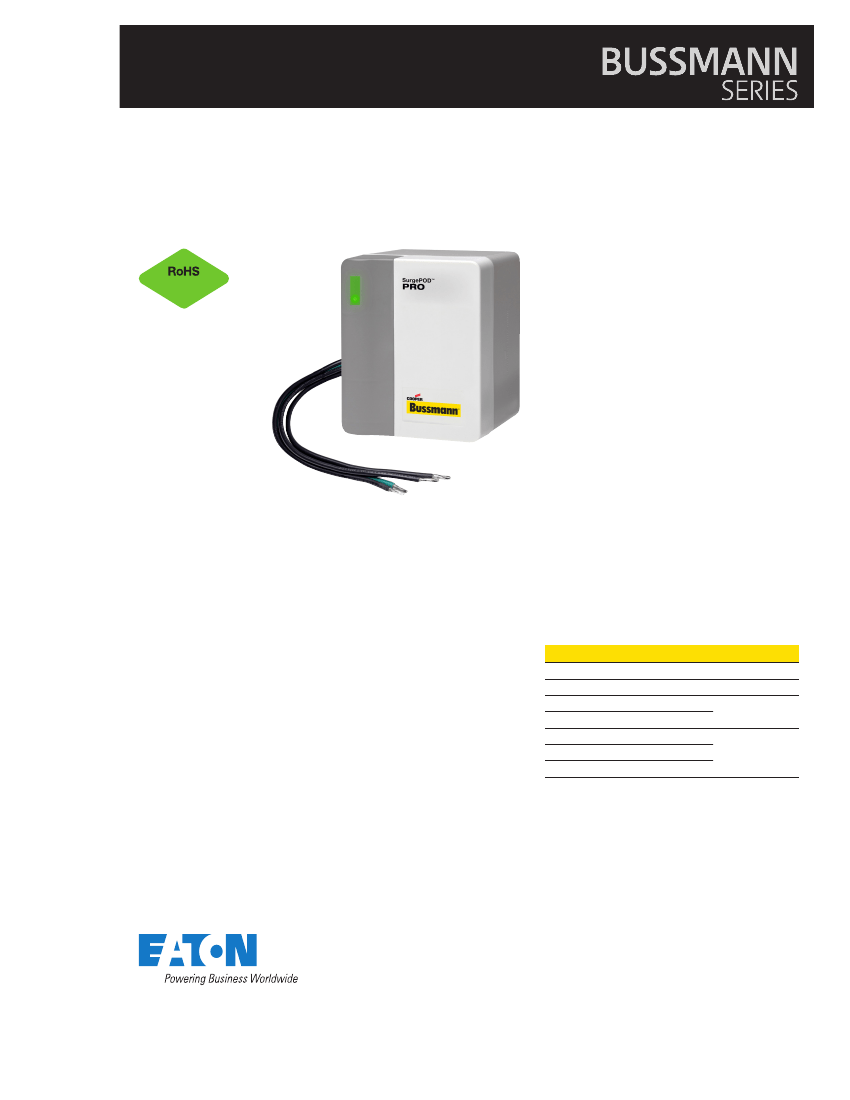

installation on both the loadside or lineside of the
service entrance overcurrent protective device.
SurgePOD PRO SPDs are available in popular
voltage and system specific versions to match
common residential and light commercial electrical
system and equipment requirements. They deliver
superior surge protection using MOV thermal
disconnect technology that eliminates the need for
additional overcurrent protection.
Parallel connection to the electrical system permits
the SurgePOD PRO SPD to be installed on panels
of any amp rating.
Catalog numbers
SPP40SP1120SN
SPP40SP2240PN
SPP40SP3240DLG
SPP40SP3480DLG
SPP40SP3208WYG
SPP40SP3480WYG
SPP40SP3600WYG
Technical Data
Effective April 2018
SurgePOD™ PRO UL Listed Type 1 surge protective devices
SurgePOD PRO ratings and specifications:
Voltages and system types
Nominal system voltage
(Vac)
Max. Continuous
Operating Voltage AC
(MCOV) (V
C
)
Catalog number
System type
Connection points
SPP40SP1120SN
SPP40SP2240PN
SPP40SP3240DLG
SPP40SP3480DLG
SPP40SP3208WYG
SPP40SP3480WYG
120
120/240
240
480
208
480
150
150
320
550
150
320
Single-phase 2 wire
Split-phase 3 wire
Three-phase Delta 3 wire + G
Three-phase Delta 3 wire + G
Three-phase Wye 3 wire + G
Three-phase Wye 3 wire + G
2
3
4
4
4
4
Specifications
For all SurgePOD PRO units
Short Circuit Current Rating (SCCR)
Discharge current (8x20µs)
Response time (ns) t
A
Frequency
Operating state/fault indication
Conductor length/gauge
Mounting
Enclosure/flammability ratings
Degree of protection (installed state)
SPD install location
Circuit location
Standard
Agency information
Warranty
Operating temperature range
Maximum operating altitude
Nominal I
n
Maximum I
max
Values
200 kA
10 kA
40 kA
<25ns
50/60 Hz
Bi-color LED - green (good) / red (replace)
18 inches, 10 AWG stranded tinned copper
Chase nipple / bracket*
NEMA 4X - UL 94-5VA
IP20 (finger-safe)
Indoor/outdoor
Lineside or loadside of service entrance overcurrent protective device
UL Type 1 1449 4
th
Edition
UL Listed, CSA Certified**, RoHS compliant
2 Years
†
-40°C to +65°C
12000 ft.
* Customer-supplied bracket.
** 600 V Wye version not CSA Certified.
† See Bussmann series SPD limited warranty statement (3A1502) for details at www.cooperbussmann.com/Surge.
Voltage Protection Ratings (VPRs)
Catalog number
SPP40SP1120SN
SPP40SP2240PN
SPP40SP3240DLG
SPP40SP3480DLG
SPP40SP3208WYG
SPP40SP3480WYG
SPP40SP3600WYG*
*
Not CSA Certified.
Nominal system voltage
(Vac_
MCOV (VC) (Vac)
120
150
120V/240
150
240
320
480
550
208
150
480
320
600
420
Voltage Protection Ratings (VPRs)
L-N
700
700
—
—
—
—
—
L-L
—
1200
2500
3000
1200
2500
2500
L-G
—
—
1200
1800
700
1200
1500
2
Eaton.com/bussmannseries
SurgePOD™ PRO UL Listed Type 1 surge protective devices
Technical Data 10033
Effective April 2018

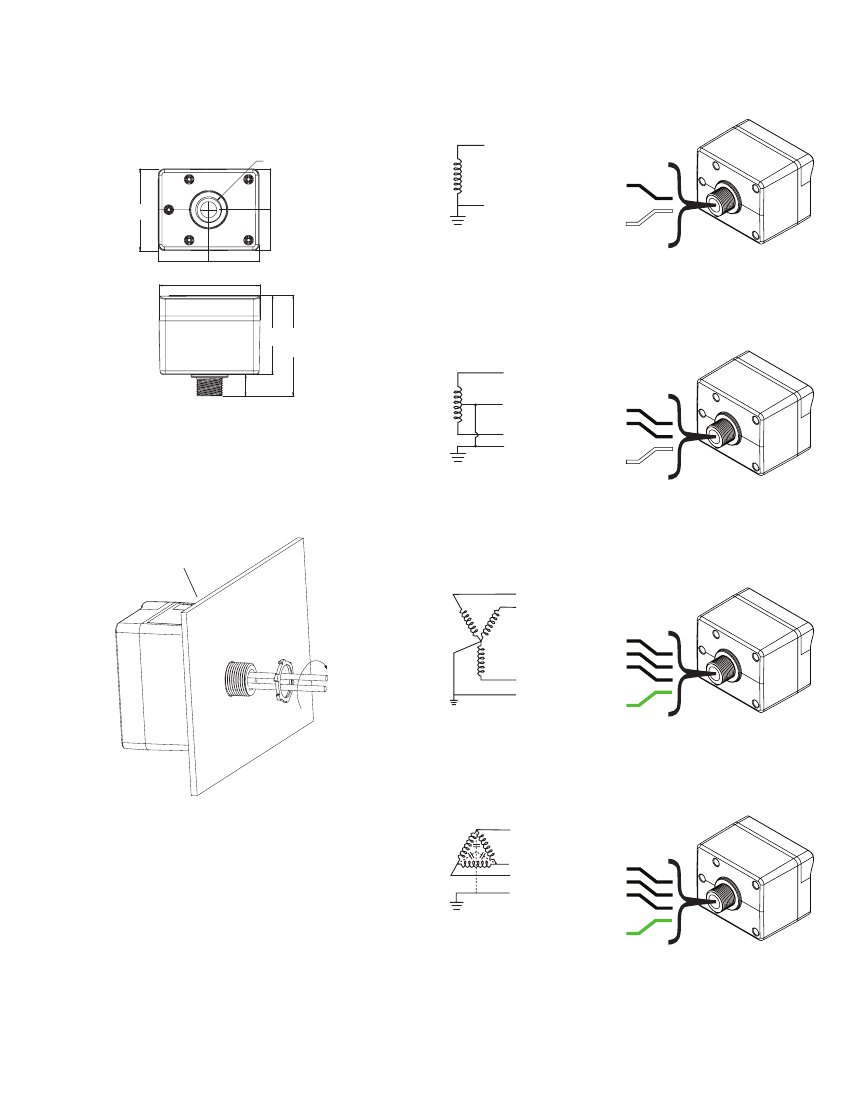

Dimensions — in
1-1/16” Dia.
1-11/16”
3-3/8”
1-11/16”
Wiring connections
L (Black)
Black
N (White)
White
2-1/16”
4-1/8”
2-1/16”
Single-phase
120 V (L-N) 2 Wire
Must be installed within 10 feet (3 m) of a bonded neutral-ground
connection per IEEE C62.41-1991.
3-3/16”
4-1/16”
Catalog number: SPP40SP1120SN
L1 (Black)
7/8”
Mounting
SurgePOD PRO is a panel mount device. It may also be mounted
using a customer supplied bracket or directly onto a female threaded
conduit fitting.
N (White)
L2 (Black)
Black
Black
White
Two-pole with Neutral (split-phase)
For NEMA 4X installation,
install appropriate, customer-
supplied gasket between
SurgePOD™ PRO
SPD and enclosure wall.
120 V (L-N) / 240 V (L1-L2), single-phase (split) center tap
For installations at or less than 10 feet (3 m) from the transformer.
Catalog number: SPP40SP2240PN
L1 (Black)
L2 (Black)
Tighten locknut to
20.3 lb-in (2.3N•m)
L3 (Black)
GND (Green)
Black
Black
Black
Green
Wye + Ground
208, 480 V (L-L) 3 wire Wye + Ground
Catalog numbers: SPP40SP3208WYG, SPP40SP3480WYG,
SPP40SP3600WYG
L1 (Black)
L2 (Black)
L3 (Black)
GND (Green)
Black
Black
Black
Green
Delta + Ground
240, 480 V (L-L) 3 wire Delta + Ground
Catalog numbers: SPP40SP3240DLG, SPP40SP3480DLG
Eaton.com/bussmannseries
3
Technical Data 10033
Effective April 2018
SurgePOD™ PRO UL Listed Type 1 surge protective devices

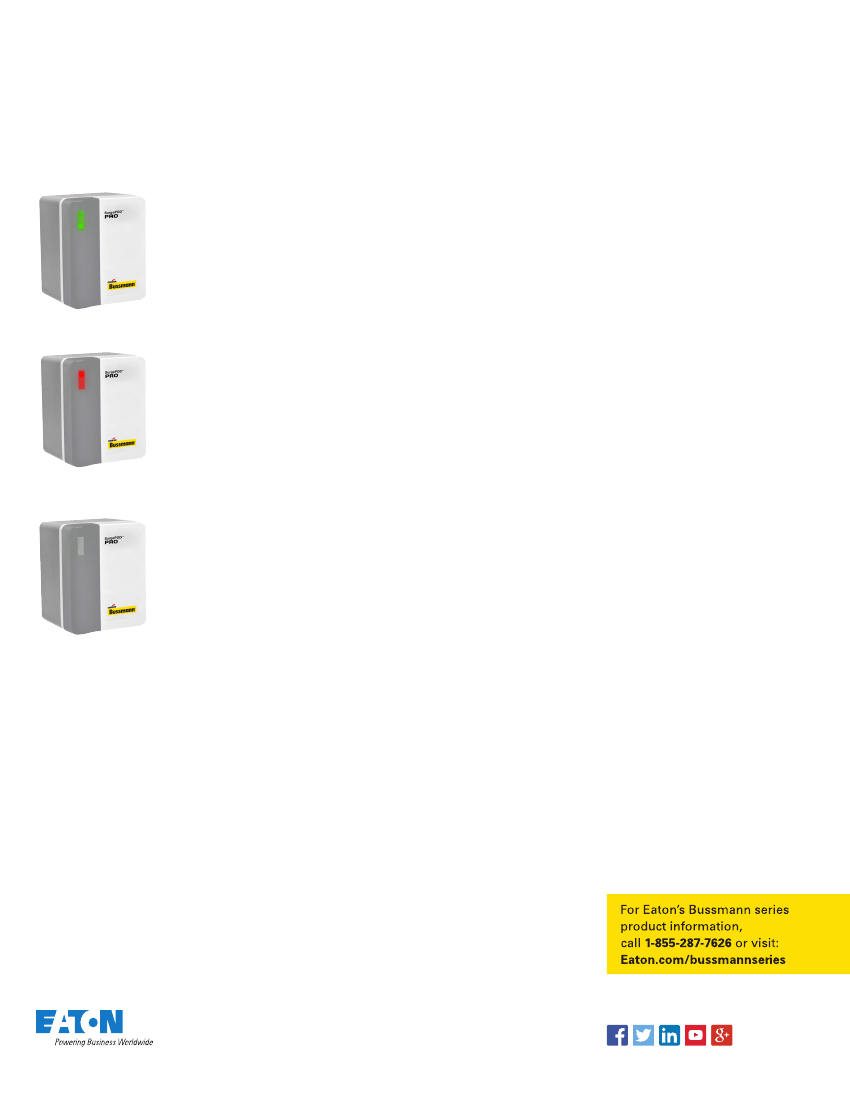

easyID
LED status indicator
The
easyID
LED status indicator will illuminate when the unit is
properly installed and the system or equipment being protected is
energized. The following LED color/status indicates:
GREEN LED = Good
•
The circuit is energized and protected.
RED LED = Replace
•
•
The circuit is energized and unprotected.
The unit needs replacing.
LED is Out / Unlit:
•
•
•
The circuit is most likely de-energized
The unit’s leads are disconnected
The unit is damaged
Authorized personnel should follow all
prescribed lockout/tagout and safety
procedures in troubleshooting the cause for
the above conditions. Opening SurgePOD
PRO enclosure will void UL listing and
warranty.
