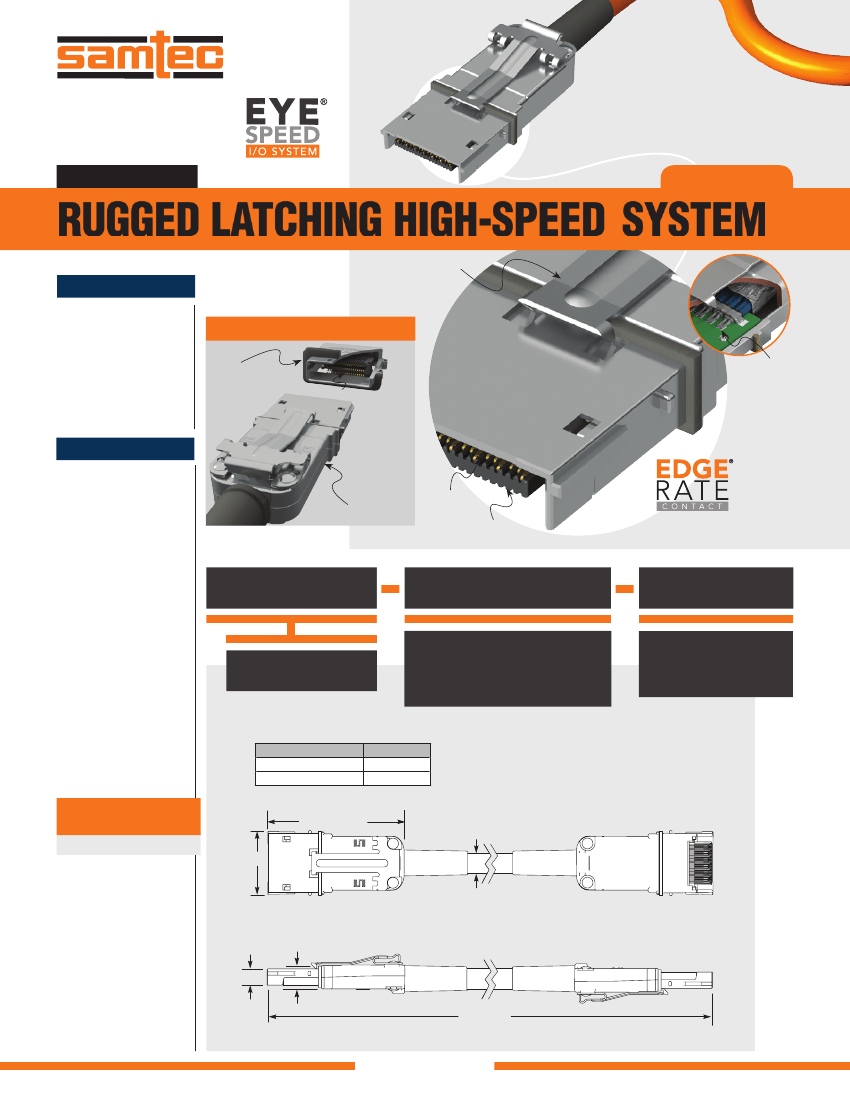

F-219
EPLSP–019–2000
(0.80 mm) .0315"
EPLSP SERIES
RUGGED LATCHING HIGH-SPEED SYSTEM
FEATURES
•
•
•
•
Rugged external cable
Small form factor
Low profile latching
Metal-to-metal two-piece
contact system
•
High mating cycles
•
High cable flex life
(500 cycles 180° bend)
•
Small bend radius
Mates with:
ERI8
Low-profile
latching
APPLICATION
ERC–019–01–02
ERI8–019–S–D–RA
32 AWG
Low
Skew
Pair
SPECIFICATIONS
For complete specifications see
www.samtec.com?EPLSP
Cable:
32 AWG Low Skew Pair/
28 AWG Power
Bend Radius:
(25.40 mm) 1.00"
Signal Routing:
100
W
Differential
Pinout Map:
1:1
Map Standard
(See web address above
for additional information)
Operating Temp Range:
-20 °C to +105 °C
Current Rating:
1.7 A per pin
(2 pins powered)
RoHS Compliant:
Yes
EPLSP–019–1000
High
cycles
Metal-to-metal
contact interface
TYPE
NO. OF
POSITIONS
LENGTH
= Eye Speed
®
I/O Cable
EPLSP
= 9 Pairs, 5 Power, 19 positions
–019
–031
= 17 Pairs, 5 Power, 31 positions
= Length in millimeters
–1000, –2000, –3000
(Standard lengths)
–“XXXX”
NO. OF POSITIONS
–019
–031
A
(23.85) .939
(32.95) 1.30
ALSO AVAILABLE
(MOQ Required)
• Other lengths
(50.40) 1.984
A
(7.57)
.298
End 2 reversed to
show bottom view
(8.79)
.346
Note:
This Series is non-standard,
non-returnable.
(6.00)
.236
LENGTH
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
