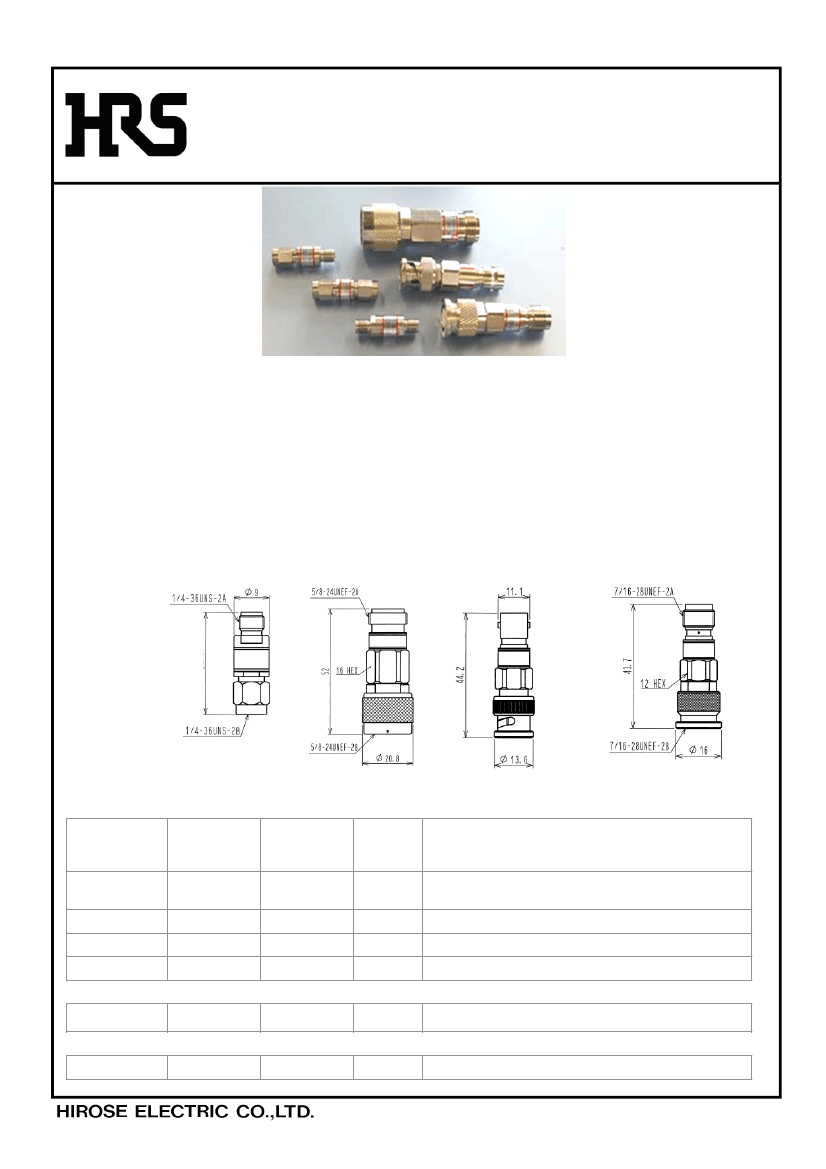

Fixed Attenuators Up to 2W Power
AT Series
MKT-E-11026F_1
Features
1. SMA, N, BNC, TNC, connector types are available.
2. Excellent high frequency characteristics
3. Stable performance under the conditions of vibration and changes in
temperature and humidity
4. Wide varieties of attenuation levels from 0.5-30dB
5. Conforming to MIL standard
6. RoHS compliant
N Type
AT-400
BNC Type
AT-500
TNC Type
AT-600
SMA Type
(Plug - Jack)
AT-100V
Dimensions
*() indicates dimension for AT-130V.
26.3 (28.3)*
Wide Varieties
Plug - Jack
Series
(CL354)
AT-100V
AT-400
AT-500
AT-600
Plug – Plug
AT-200
Jack – Jack
AT-300
SMA
DC-18
2
3, 6, 10, 20
SMA
DC-18
2
3, 6, 10, 20
Connector
Frequency
(GHz)
DC-18
DC-13
DC-4
DC-6
Power (W)
(at 25˚C)
2
2
2
2
All dimensions are in millimeters.
Attenuation (dB)
SMA
N
BNC
TNC
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 20, 30
0.5, 1, 2, 3, 5, 6, 10, 13, 20, 30
1, 2, 3, 5, 6, 9, 10, 14, 20
1, 3, 4, 6, 7, 10, 20
Specifications herein are subject to change without notice. Contact Hirose for the latest specifications, drawings and availabilities.
Issued: Jun. 15 , 2016
© 2016 HIROSE ELECTRIC CO., LTD. All rights reserved.
