LTH-030-01-G-D-A datasheet, PDF

Datasheet> All Categories > The connector> The connector> LTH-030-01-G-D-A

LTH-030-01-G-D-A: Description.5MM LOW PROFILE TERMINAL ASSEMB; CategoryThe connector The connector; File Size172KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

LTH-030-01-G-D-A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LTH-030-01-G-D-A	-	-	View	Buy Now

LTH-030-01-G-D-A Overview

.5MM LOW PROFILE TERMINAL ASSEMB

LTH-030-01-G-D-A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	8 weeks
Other features	LOW PROFILE
Board mount options	POSITIONING PIN
body width	0.189 inch
subject depth	0.066 inch
body length	0.75 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	CENTRONIC
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.02 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.2926 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	60

Preview

Download Datasheet

View All

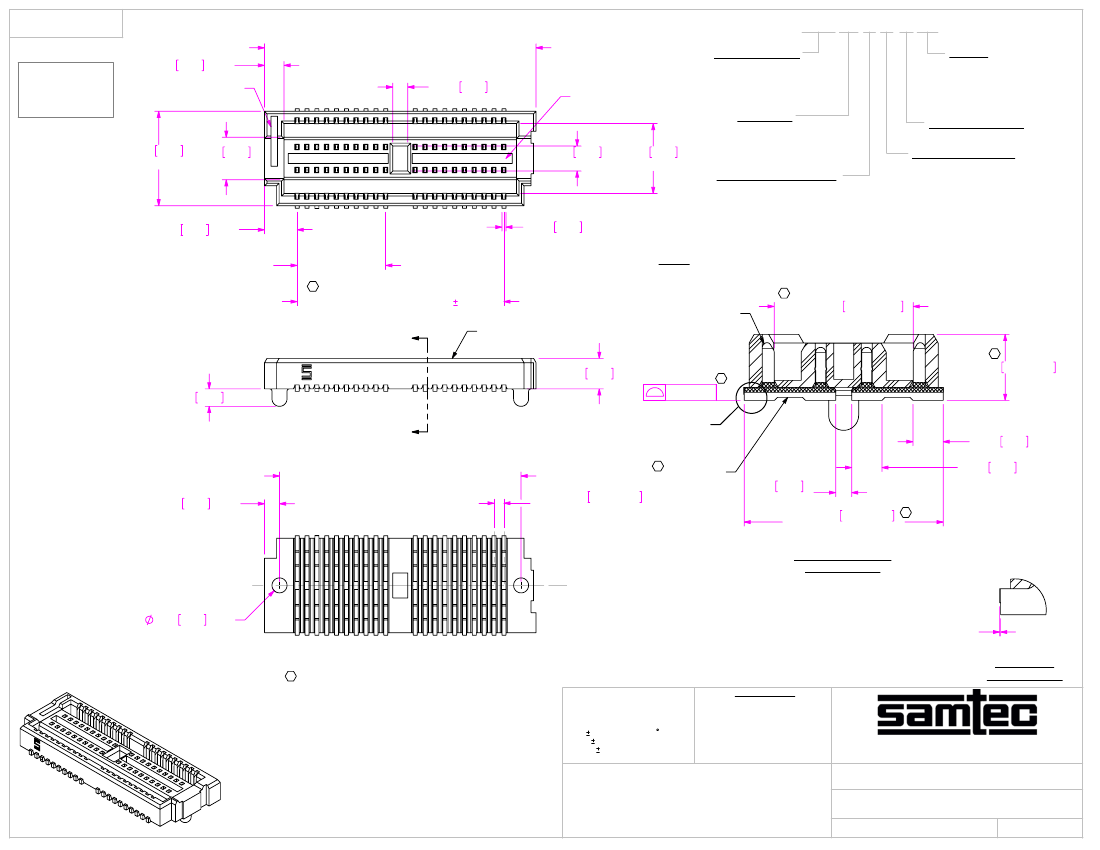

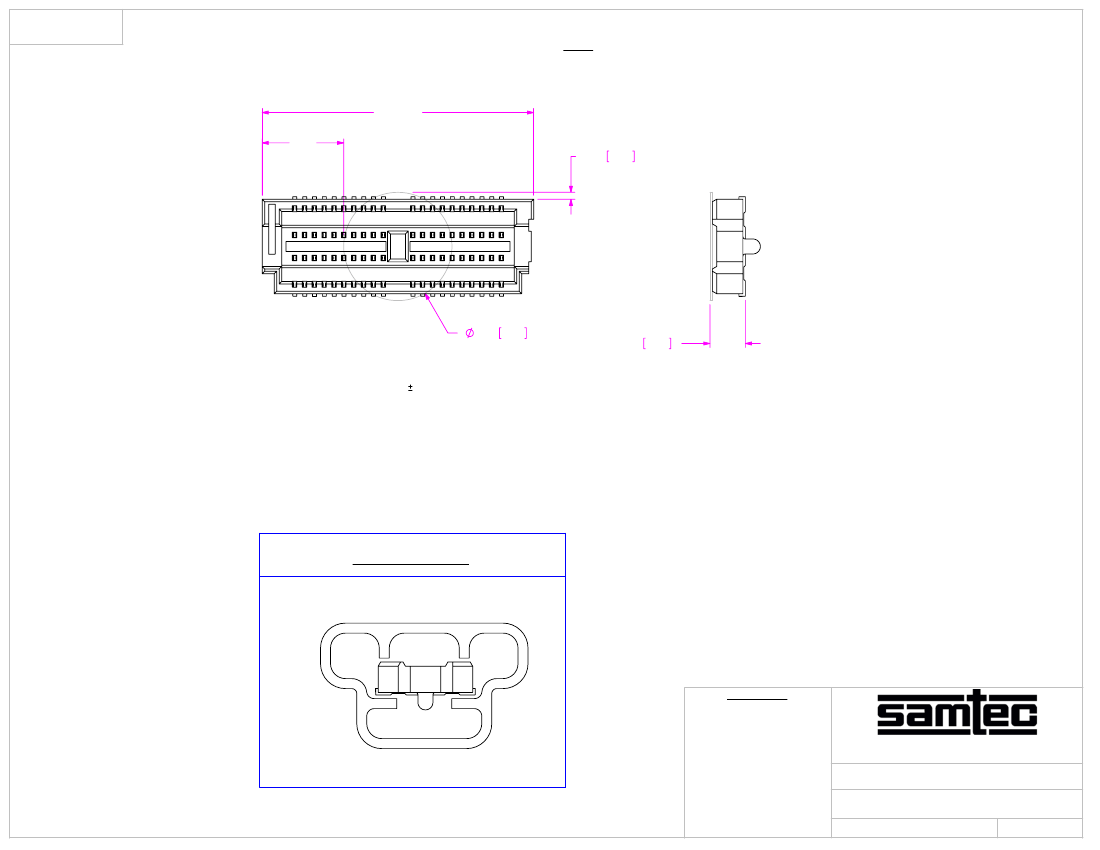

REVISION T

((No OF POS + 2) x .01969[.5000]) + .1100[2.794] REF

DO NOT

SCALE FROM

THIS PRINT

.039 0.99 REF

SEE NOTE 10

.030 0.76 REF

SEE NOTE 10

LTH-XXX-XX-X-D-A-XX

No OF POSITIONS

-010, -020, -030, -040, -050,

(PER ROW)

OPTION

-TR: TAPE AND REEL

-K: POLYAMIDE FILM PAD

(USE K-500-300, SEE FIG. 2)

.189 4.80

REF

.085 2.16

REF

.050 1.27

REF

.140 3.56

REF

LEAD STYLE

-01:SURFACE MOUNT

(USE SUB-T-1M18-01-X PIN)

PLATING SPECIFICATION

-G: 10µ" GOLD IN CONTACT AREA,

3µ" GOLD ON TAIL

-H: 30µ" HEAVY GOLD IN CONTACT

AREA, 3µ" GOLD ON TAIL

-A: ALIGNMENT PIN

ROW SPECIFICATION

-D: DOUBLE

(USE LTH-XXX-01-D-A)

.065 1.66 REF

(((No OF POS/2) - 1)

x .01969) REF

.008 0.20

LTH-020-01-X-D-A SHOWN

FIG 1

((No OF POS+1)x.01969[.5000] .002[.05]

"A"

LTH-XXX-01-D-A

SUB-T-1M18-01-X

.1390±.0020 3.531±0.05

.061 1.55 REF

.035 0.89 REF

"A"

.004[.10]

'A'

.066±.003 1.68±0.08

.030 0.77 REF

((No OF POS+2)x.01969[.5000])+.050[1.270]

REF

.030 0.76 REF

.020±.003 0.50±0.08

(MEASURE AT TIPS)

SEE NOTE 6

.016 0.41

REF

.199±.008 5.05±0.20

(SEE NOTE 7)

.030 0.77 REF

SECTION "A"-"A"

SCALE 10 : 1

.030 0.76 REF

SHEAR TO .004[.10]

MAX BURR

NOTES:

REPRESENTS A CRITICAL DIMENSION.

BURR ALLOWANCE: .001[.03] MAX.

MINIMUM PUSHOUT FORCE: 6 OZ MIN.

PARTS TO BE MOLDED TO POSITION

NOTE DELETED.

CUT IN THIS AREA MUST BE BELOW SURFACE MOUNT

LEADS.

7. MAX VARIATION BETWEEN ADJACENT PINS TO BE

.002[0.05] MAX.

8. NOTE DELETED.

9. NOTE DELETED.

10. VOIDS CAN BE USED AT VENDORS DISCRETION

TO CONTROL WARP.

DETAIL 'A'

SCALE 20 : 1

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS CONFIDENTIAL AND

PROPRIETARY INFORMATION AND ALL DESIGN,

MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS

AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,

INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE

OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR

REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY

OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS

WRITTEN CONSENT OF SAMTEC, INC.

.XX: .01[.3]

.XXX: .005[.13]

.XXXX: .0020[.051]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 5:1

INSULATOR: BLACK LCP

CONTACT: PHOS. BRONZE

.5mm LOW PROFILE TERMINAL ASSEMBLY

DWG. NO.

LTH-XXX-XX-X-D-A-XX

7/1/99

SHEET

F:\DWG\MISC\MKTG\LTH-XXX-XX-X-D-A-XX-MKT.SLDDRW

BY:

ERIC M
