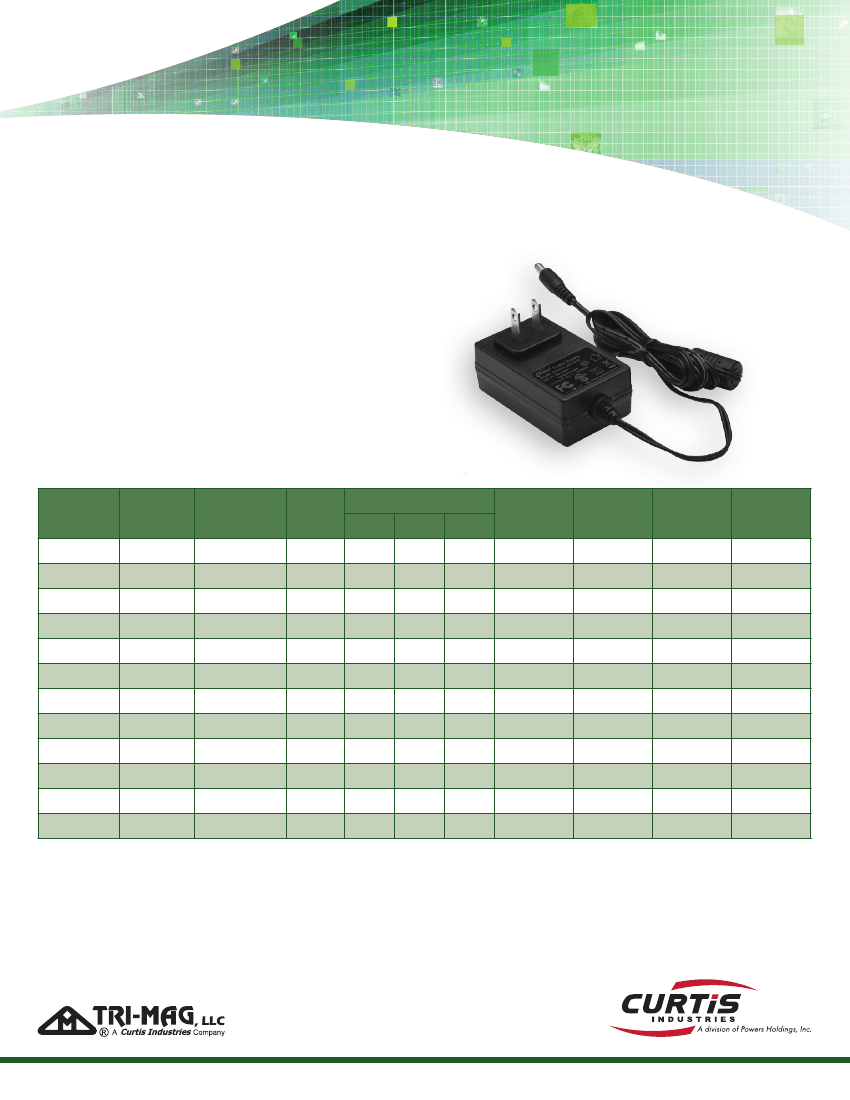

L6R24/L6R30 Series
24W/30W Wall Mount Power Supply
•
•
•
•
•
DOE Level VI Efficiency Rating
Universal Input: 90 ~ 264Vac, 47/63 Hz
UL/cUL Safety Approved
Corded Output Connection
Light Weight and Compact
Model No.
L6R24-090
L6R24-120
L6R24-180
L6R24-240
L6R24-300
L6R24-360
L6R30-090
L6R30-120
L6R30-180
L6R30-240
L6R30-300
L6R30-360
Application
ITE
ITE
ITE
ITE
ITE
ITE
ITE
ITE
ITE
ITE
ITE
ITE
Output
Connector
Corded Jack
Corded Jack
Corded Jack
Corded Jack
Corded Jack
Corded Jack
Corded Jack
Corded Jack
Corded Jack
Corded Jack
Corded Jack
Corded Jack
Output
Voltage
+9.0V
+12.0V
+18.0V
+24.0V
+30.0V
+36.0V
+9.0V
+12.0V
+18.0V
+24.0V
+30.0V
+36.0V
Output Current
Min
0
0
0
0
0
0
0
0
0
0
0
0
Rated
2.7
2.0
1.3
1.0
0.8
0.7
3.3
2.5
1.67
1.25
1.0
0.83
Peak
—
—
—
—
—
—
—
—
—
—
—
—
Voltage
Accuracy
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
Ripple
Noise
< ± 1%
< ± 1%
< ± 1%
< ± 1%
< ± 1%
< ± 1%
< ± 1%
< ± 1%
< ± 1%
< ± 1%
< ± 1%
< ± 1%
Line
Reg.
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
Load
Reg.
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
•
•
•
•
•
•
Output voltages from 5.0Vdc to 36.0Vdc are available in increments of 0.1V. Please contact Tri-Mag, LLC for the part number and specifications for your output voltage
requirement and application.
The output voltage is verified to specs at 60 percent rated load condition.
The
line regulation
is defined by changing ± 10 percent of input voltage from the nominal line at rated load.
The
load regulation
is defined by changing ± 40 percent of the measured output load from 60 percent of the rated load.
The
ripple and noise
is measured by using 20MHz bandwidth limited oscilloscope with each output terminated with a 10 µF electrolytic and a 0.1 µF capacitor at rated load
and nominal line.
The
efficiency
is measured at rated load and nominal line.
1601 N. Clancy Ct. • Visalia, CA 93291 • (559) 651-2222 • FAX (559) 651-0188 • sales@tri-mag.com •
tri-mag.com
GREEN POW ER
Power
Supplies
Power
Supplies
L6R24/L6R30 Series
Innovative, reliable, and inexpensive. That’s the
L6R24/L6R30 Series.
This economical, DOE Level VI compliant power
supply/charger is rated up to 30W when powering
stationary or charging portable devices.
Plenty of voltage levels to choose from, too. From
5.0Vdc all the way up to 36.0Vdc (in increments of
0.1V), to match your need.
Call us (800-657-0853) for the part number to match
your specifications.
Specifications
Input
Input Voltage
Input Frequency
No Load Input Power
Input Current
Inrush Current
Leakage Current
Input Connection
•
•
•
•
•
•
•
90 Vac ~ 264 Vac
47 Hz to 63 Hz
< 0.1W
1.2A Max.
40A Max.
0.25mA Max.
US (others available)
Warranty
Warranty Period
• 1 year
Dimensions and Notes
Dimensions in mm
Tolerance
Size
Weight
Connectors
± 0.2mm
71.2 x 43.2 x 29.0 mm
2.80 x 1.70 x 1.14 Inches
Approx. 140g (4.9oz.)
AC input, US 2-prong inlet plug
DC output, standard 5.5mm x 2.1mm
corded dc output jack or per
customer specification.
• 1500 ± 20 mm (59 ± .8”)
•
•
•
•
•
•
Output
Output Voltage Range
Output Current Range
Minimum Load
Line Regulation
Load Regulation
Ripple & Noise
Overvoltage Protection
Overload Protection
Short Circuit Protection
•
•
•
•
•
•
•
•
•
•
5.0 to 36.0 Vdc
L6R24: 667 - 3500mA, 24W Max.
L6R30: 833 - 3500mA, 30W Max.
No min. load required.
± 1% at rated load across input
voltage range
± 5%
240mVp-p Max.
Auto recovery
Auto recovery
Auto recovery
Cord length
Mechanical Drawing
General
Insulation Resistance
Efficiency
MTBF
•
•
•
50MΩ Min.
Level VI compliant
50,000 hrs to MIL-HDBK-217F at +25°C
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
•
•
•
0°C to 40°C
5% - 95% RH, Non-Condensing
-20°C to +80°C
EMC & Safety
Safety Approvals
EMC Approvals
•
•
•
UL: UL60950-1
cUL: UL60950-1
FCC
2017-03
