LS2-120-01-L-D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> LS2-120-01-L-D

LS2-120-01-L-D: Description2MM TERMINAL/SOCKET COMBO; CategoryThe connector The connector; File Size274KB，4 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

LS2-120-01-L-D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LS2-120-01-L-D	-	-	View	Buy Now

LS2-120-01-L-D Overview

2MM TERMINAL/SOCKET COMBO

LS2-120-01-L-D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Other features	MICRO RUGGED, POLARIZED
body width	0.208 inch
subject depth	0.25 inch
body length	1.636 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	HERMAPHRODITIC
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	1.112 N
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	10u inch
polarization key	ENDS
Rated current (signal)	3.2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.09 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	40
Evacuation force-minimum value	.834 N
Base Number Matches	1

Preview

Download Datasheet

View All

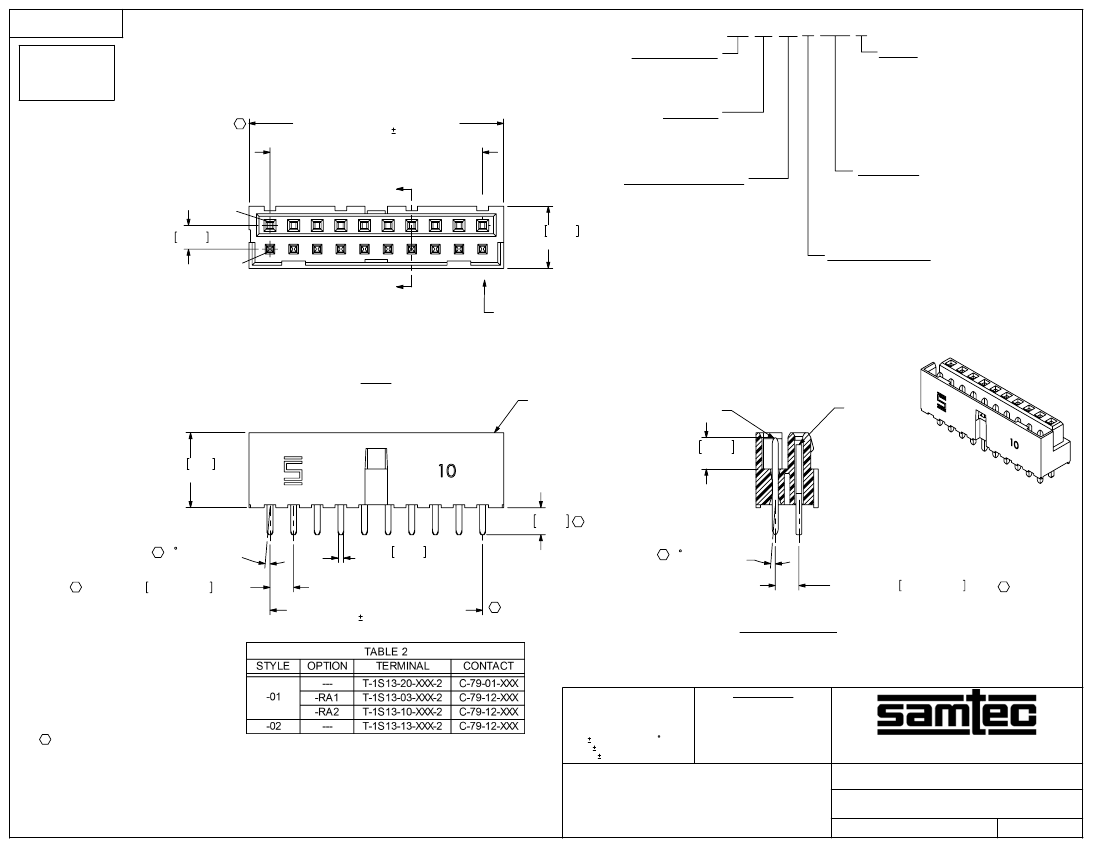

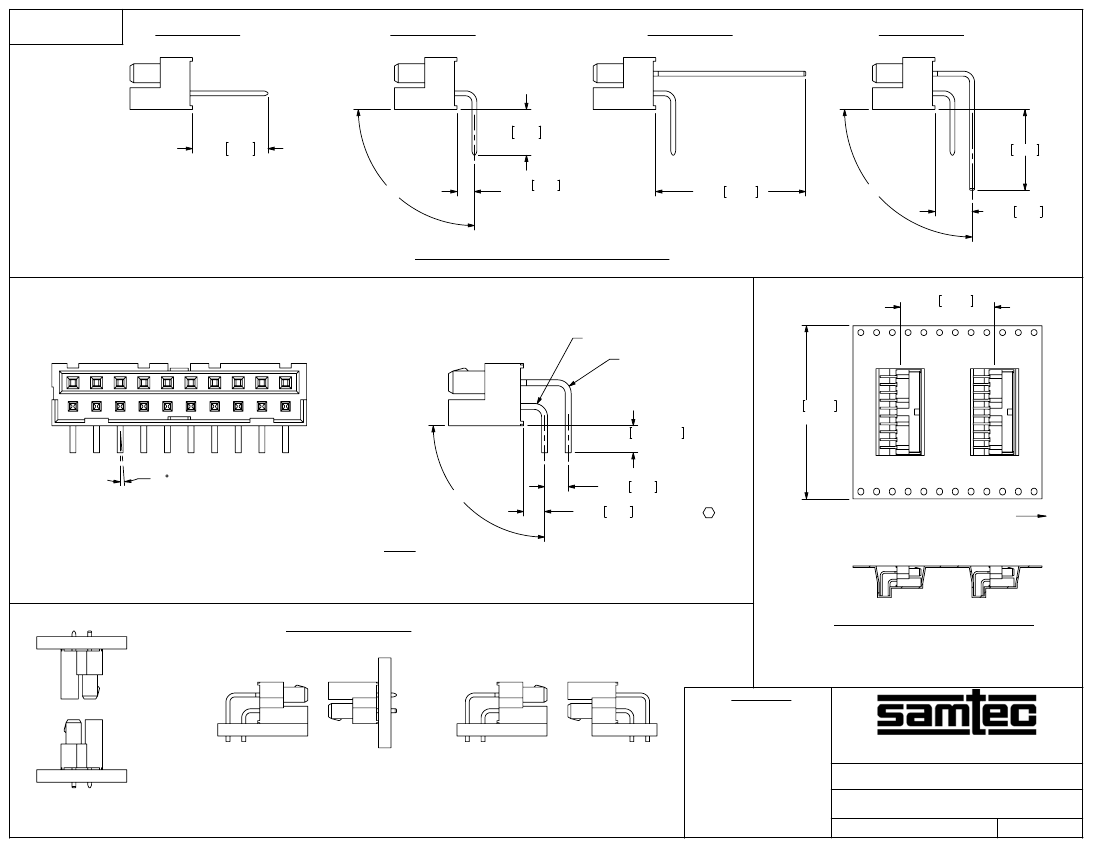

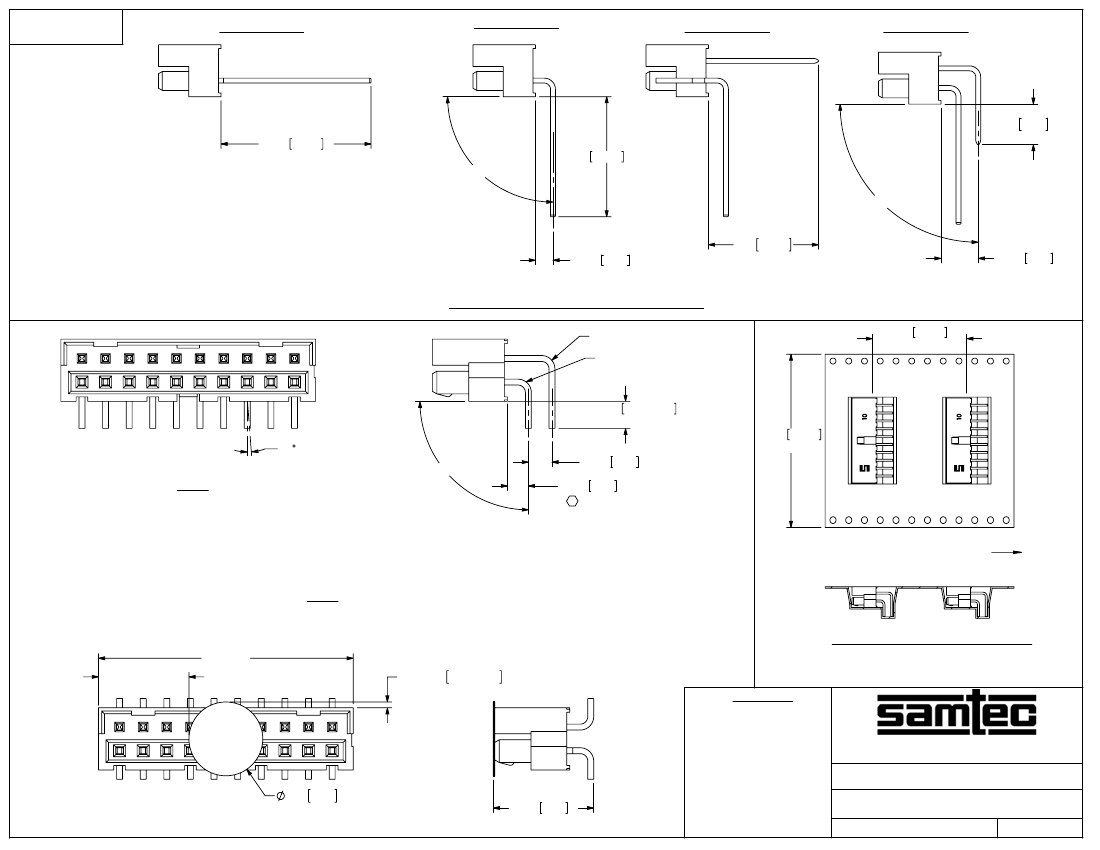

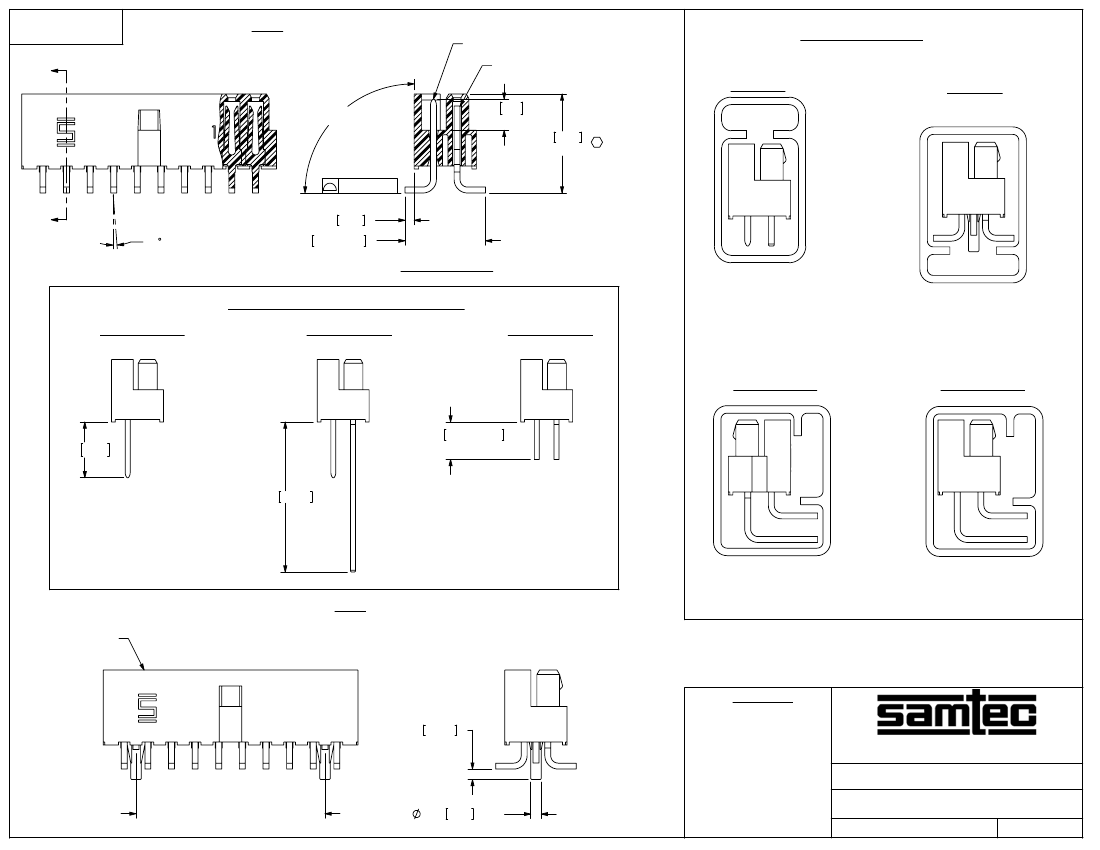

REVISION V

DO NOT

SCALE FROM

THIS PRINT

((No OF POS x .07874[2.0000])

+.0618[1.570]) .010[.25]

(No OF POS -1) x .07874[2.0000] REF

LS2-1XX-XX-XX-D-XXX-X

No OF POSITIONS

-05, -10, -15, -20,

-25, -30

(PER ROW)

LEAD STYLE

-01: THROUGH HOLE

-02: SURFACE MOUNT

(SEE FIG 2)

PLATING SPECIFICATION

-F: FLASH SELECTIVE GOLD

(USE T-1S13-XX-F-2 & C-79-XX-F)

-FM: FLASH SELECTIVE GOLD

MATTE TIN REMAINDER

(USE T-1S13-XX-F-2 & C-79-XX-F)

-L: LIGHT SELECTIVE GOLD

(USE T-1S13-XX-L-2 & C-79-XX-L)

-LM: LIGHT SELECTIVE GOLD

MATTE TIN REMAINDER

(USE T-1S13-XX-L-2 & C-79-XX-L)

-S: SELECTIVE GOLD

(USE T-1S13-XX-S-2 & C-79-XX-S)

-SM: SELECTIVE GOLD

MATTE TIN REMAINDER

(USE T-1S13-XX-S-2 & C-79-XX-S)

-G: GOLD

(USE T-1S13-XX-G-2 & C-79-XX-G)

-H: HEAVY GOLD

(USE T-1S13-XX-H-2 & C-79-XX-H)

TERMINAL

OPTION

-K: POLYIMIDE FILM PAD

(USE K-DOT-.246-.375-.005, SEE FIG 5)

[LEAD STYLE -02 ONLY]

-A: ALIGNMENT PIN

(USE LS2-XX-D-XX-A, SEE FIG 6)

[LEAD STYLE -02 ONLY]

-TR: TAPE & REEL

"A"

.0787 2.000 REF

N-1

.2075 5.270

REF

TAIL OPTION

-RA1: RIGHT ANGLE-

SHROUD DOWN (SEE FIG 3)

-RA2: RIGHT ANGLE-

SHROUD UP (SEE FIG 4)

[AVAILABLE ONLY ON LEAD STYLE -01]

ROW SPECIFICATION

-D: DOUBLE (USE LS2-XX-D-XX)

"A"

SEE NOTE 6

LS2-110-01-X-D SHOWN

FIG 1

LS2-XX-D-XX

CONTACT

.104 2.642

.250 6.35

REF

.090 2.286

2 MAX SWAY

(TYP)

.0197 0.500 SQ

REF (TYP)

2 MAX SWAY

(TYP)

.0787±.0050 2.000±0.127 (TYP)

(No OF POS -1) x .07874[2.0000])

.006[.15]

SECTION "A"-"A"

NOTES:

REPRESENTS A CRITICAL DIMENSION.

BURR ALLOWANCE: .003[.08] MAX.

MAXIMUM CUT FLASH: .015[.38].

MINIMUM PUSHOUT FORCE; TERMINALS: 2 LBS, CONTACTS: .5 LBS.

MAXIMUM ALLOWABLE BOW: .002 INCH/INCH AFTER ASSEMBLY.

SEE APPLICATION VIEWS (SHEET 3) FOR POSITION 01 LOCATION.

ALL PIN TO PIN DIMENSIONS TO BE MEASURED FROM TIP TO TIP.

DIMENSION TO BE MEASURED AT BEND.

SHEAR TAILS TO DIMENSION SHOWN.

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS CONFIDENTIAL AND

PROPRIETARY INFORMATION AND ALL DESIGN,

MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS

AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,

INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE

OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR

REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY

OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS

WRITTEN CONSENT OF SAMTEC, INC.

.XX: .01 [.3]

.XXX: .005 [.13]

.XXXX: .0020 [.051]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 3:1

INSULATOR: LCP, COLOR: BLACK

SOCKET: PHOS BRONZE

TERMINAL: PHOS BRONZE

2mm TERMINAL/SOCKET COMBO

LS2-1XX-XX-XX-D-XXX-X

4/24/2002

SHEET

C:\EnterpriseVault\DWG\MISC\MKTG\LS2-1XX-XX-XX-D-XXX-X-MKT.SLDDRW

BY:

DEAN P
