APPLICATION SHEET
ZWF-SERIES

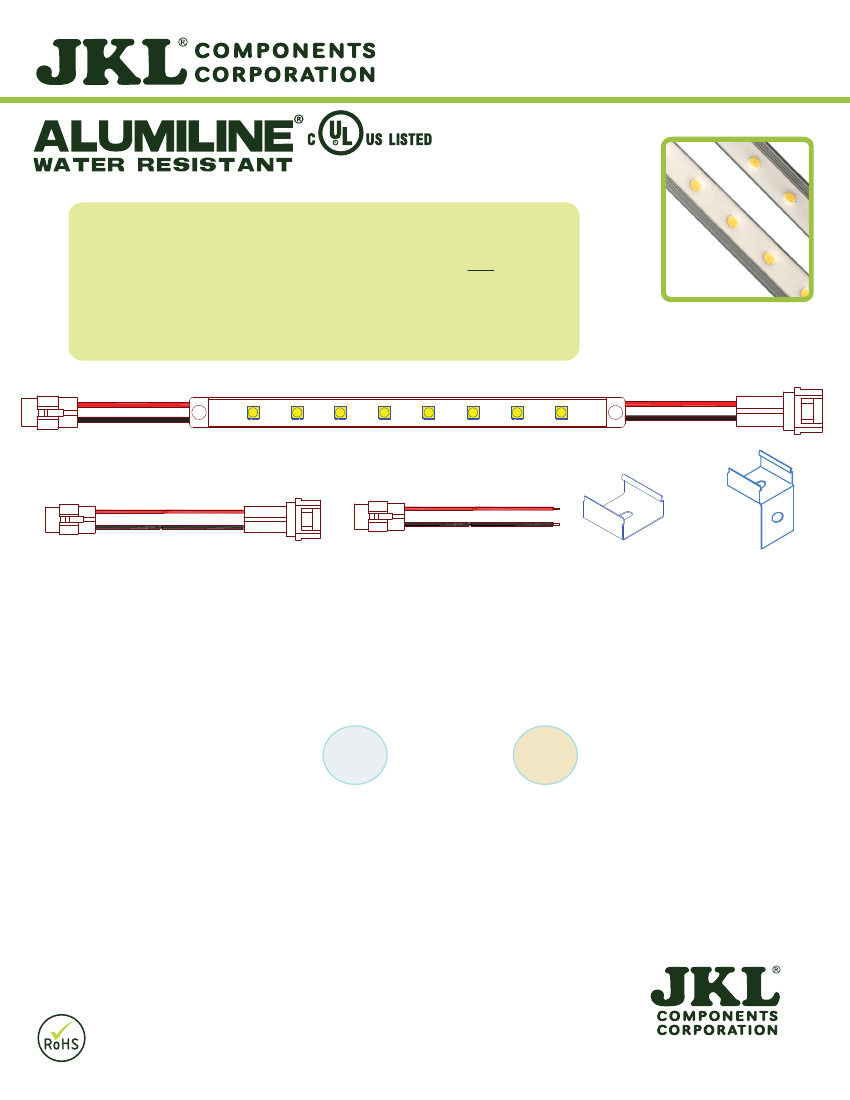

Accessories:
ZWF-1000-I
ZWF-400-J
ZWF-12-C
ZWF-1290-C
ZDM-01
Input Connector
ZPS-2435
Joiner Connector
ZPS-2460
Mounting Clip
ZPS-24150
Right Angle Mounting Clip
PWM LED Dimmer
24 Volt
Power
Supplies
ALUMILINE
®
ZWF DIAGRAM
ZWF-400-J
ZWF-1000-I
ZWF-12-C
ZWF-1290-C
APPLICATIONS
JKL’s UL listed Alumiline
®
LED ZWF-series light bars are commonly used in sign applications,
architectural accent lighting, display case illumination and decorative lighting. Slimmer than the
ZAF Alumiline
®
series, the ZWF fixtures use less power and are dust and water resistant with a
rating of IP67.
The Alumiline
®
ZWF series is available in two color temperatures:
WHITE
RANGE
6000°K
COOL
3000°K
WARM
LENGTH
The Alumiline
®
ZWF series comes in five lengths - 337mm, 438mm, 638mm, 939mm and 1239mm.
The design allows for joining fixtures together with a jumper connector, rated for a maximum of 5.0
Amps. The jumper connector comes in four lengths; 175mm, 200mm, 400mm and 915mm.
a
Lighti
ng
Solu
y
ti
lit
on
Qu
s
ROHS COMPLIANT
ISO9001 CERTIFIED
WWW.JKLLAMPS.COM
SALES@JKLLAMPS.COM
800-421-7244
Since 1972
APPLICATION SHEET p. 2
ZWF-SERIES
POWER INPUT
The ZWF bars operate on 24 VDC with a general power requirement of 3 Watts per linear foot.
The current requirement for the longest unit (1.2meter or 4 feet) is 480mA. An input connector
(ZWF-1000-I) plugs into the strip and connects to a 24 VDC power supply with wire nuts. The
connector has a maximum rating of 5.0 Amps. 12 meters (40’) of the LED bar can be connected
without overheating.
CONNECTION &
DISCONNECTION
Disconnect power before installing or servicing the fixtures. The ZWF series LED linear strips have
IP67 rated connectors. You may connect the strips in series, or if additional spacing is required
between units a jumper is available (in 8”, 16” and 36” lenghts) for interconnecting. The power
input connection has 3’ wires for remotely placing your power supply. The connector linking the
fixture can be disconnected by depressing the black tab and pulling.
INSTALLATION
& MOUNTING
The ZWF fixtures are fitted with mounting holes for ease of installation. Optional mounting clips
are recommended for additional support when high winds or vibrations are present.
Use a #8 screw for installation

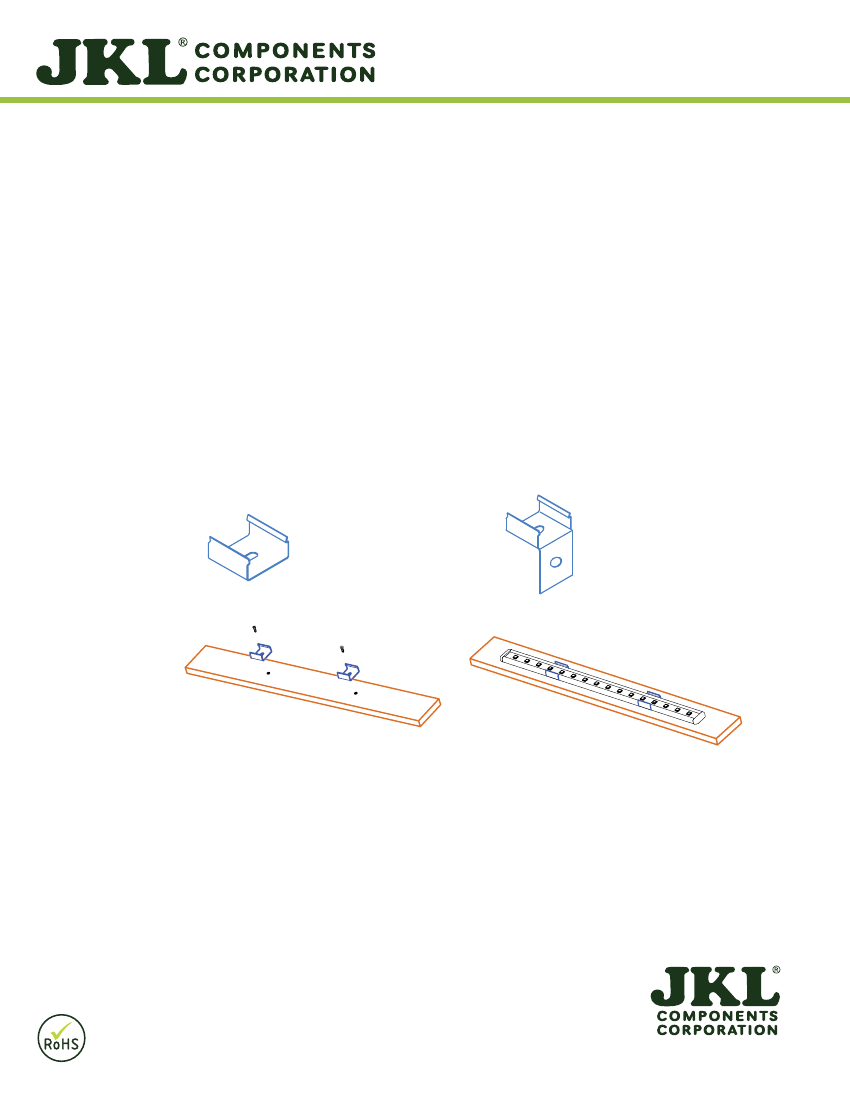

ZWF-12-C MOUNTING CLIP
ZWF-1290-C 90° MOUNTING CLIP
OUTPUT
DIMMING
Optimum dimming is accomplished with a PWM, such as the ZDM-01, which will maintain power
to the ZWF Alumiline
®
. The dimmer varies the duty-cycle to the LED which permits easy changes
to the light output.
a
Lighti
ng
Solu
y
ti
lit
on
Qu
s
ROHS COMPLIANT
ISO9001 CERTIFIED
WWW.JKLLAMPS.COM
SALES@JKLLAMPS.COM
800-421-7244
Since 1972
